Pinch Valve Selection Criteria for Steam Condensate Lines

A rubber-sleeve pinch valve should not be specified on a saturated steam condensate line whose continuous operating temperature exceeds the sleeve's published ceiling — typically 80°C for EPDM and 90–100°C for NBR/FKM — because the elastomer hardens, loses resilience, and the line can no longer achieve bubble-tight shutoff [S5].

For drain legs, drip pockets, and pumped return headers, the spec writer should default to a metal-seated globe or a steam trap with an integral strainer; the pinch valve's place is on the cold side of the system or on abrasive condensate streams where its full-bore, wetted-parts-free body earns its keep [S1][S5].

Sleeve elastomer versus condensate temperature

The sleeve is the only wetted part on most industrial pinch valves, so its elastomer grade is the primary selection gate. Schubert & Salzer's type 7078 datasheet lists EPDM up to 6 bar working pressure with pilot pressures of 5.6–6 bar, NBR up to 4 bar, FKM as a higher-temperature option, and SBR as the softest/lowest-pressure variant — all limited to non-steam temperature service by the elastomer itself [S5]. Saturated steam condensate at 7 bar (165°C) sits far above every sleeve grade shown; even the "low-pressure" 25 psig steam service defined by the University of Houston master spec carries 130°C saturation, which still exceeds EPDM's practical ceiling [S2][S5].

For any condensate line where the temperature can flash back to steam during a blocked-in condition — for example, when a steam trap upstream fails closed — the rubber sleeve will see 100% steam, not condensate, and the valve will not survive a single cycle. TLV's steam-trap selection guide is explicit that the body material must be sized for the maximum temperature AND pressure at the condensate discharge location, not the running average, and that includes the surrounding environment and longevity requirement [S4].

Pressure class, back-pressure, and pilot-air sizing

On a properly designed drip-and-trap station, the maximum inlet pressure is the controlled steam pressure and the back-pressure is the condensate return header pressure. Watson McDaniel's steam-trap sizing example shows 100 psi inlet, 25 psig back-pressure, and a ΔP of 75 psi as a typical sizing point for a 10,000 lb/hr drip station [S1]. A pinch valve on the cold return downstream of a flash tank or a pumped receiver sits at much lower ΔP — usually below 5 bar — which is well inside the published working-pressure envelope of EPDM, NBR, and natural rubber sleeves [S5].

On a pneumatic pinch valve, the pilot pressure must always exceed the line pressure by a defined margin, and the 7078 datasheet uses 5.6–6 bar pilot against 2–6 bar working pressure across the DN15–DN50 range [S5]. Where a plant air system only delivers 4 bar, the spec writer must step down to a smaller actuator or add a booster — the failure mode is a sleeve that does not fully close and a condensate line that never stops weeping. A pneumatic valve actuator pricing logic comparison helps when the torque/sizing math points away from a compact actuator.

Where pinch valves earn their place on a condensate system

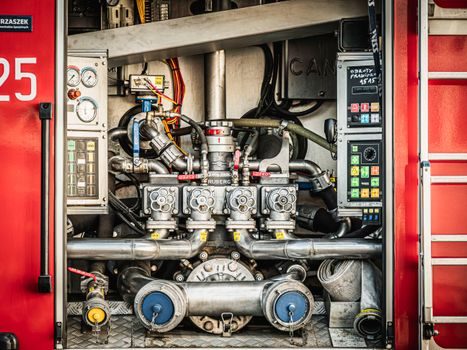

pinch valve selection criteria for steam condensate line - Where pinch valves earn their place on a condensate system
pinch valve selection criteria for steam condensate line - Where pinch valves earn their place on a condensate system

Pinch valves are well suited to three condensate-side niches: (1) the cold flash-tank drain where temperatures have already dropped below 80°C and the fluid is two-phase condensate plus flash steam flashing through the orifice; (2) pumped-return headers carrying 60–90°C condensate with entrained rust and scale, where the rubber sleeve absorbs the abrasion that would score a metal seat; and (3) clean-steam condensate and process-water drain lines on hygienic systems, where the absence of packing, glands, and metal-to-metal seats eliminates a crevice-corrosion site. The University of Michigan master spec lists Cemline, Spirax-Sarco, Wessels, and Watson McDaniel as approved flash-tank manufacturers on 60 psig systems, with the tank itself ASME-stamped for 125 psig — a useful reference pressure for any valve mounted on the tank outlet [S3].

A pinch valve selection criteria: sleeve, body, and duty logic article is the right cross-reference when the spec writer needs the full elastomer/body matrix; the present scope is the steam-condensate subset of that decision tree.

Comparison: pinch versus globe versus ball on a drip leg

A spec writer choosing a drain-leg isolation valve should weigh four criteria: temperature ceiling, leak-tightness after long idle, pressure drop when open, and price. On all four counts, the rankings differ sharply. A metal-seated globe tolerates 250°C+ and reseats, but leaks by design at higher temperature and has the highest ΔP when open. A full-port ball gives near-zero ΔP and tight shutoff, but soft seats (PTFE, RTFE) cap out at 200–230°C and graphite seats are the exception. A rubber-sleeve pinch valve gives the lowest ΔP of the three and bubble-tight shutoff — but only on cold service, because the sleeve ceiling is 80–100°C in the standard grades [S2][S5].

Concretely, on a 5 psig low-pressure drip leg the U-Michigan master spec is comfortable with a cast-iron float & thermostatic trap and a cast-iron drip-pan elbow rated 250 psig / 450°F per ASTM A126 Class B, with no elastomer in the wetted path [S3]. Replacing the isolation valve with a pinch valve on that same drip leg is over-specifying for temperature and under-specifying for shutoff life. The decision is reversed on a 60–80°C pumped return header at 2–4 bar: a metal globe will scale up from rust, a soft-seated ball will cut, and a pinch valve runs for years without attention [S5].

Standards, reference documents, and traceability

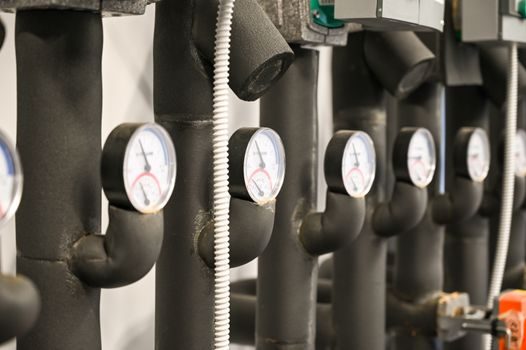

pinch valve selection criteria for steam condensate line - Standards, reference documents, and traceability
pinch valve selection criteria for steam condensate line - Standards, reference documents, and traceability

The University of Houston steam master spec (revision 1/29/2018) is the right baseline for the metallic side: it cites ASME B31.9 for building-services piping, ASTM A234 for wrought carbon and alloy fittings, AWS D10.12 for welding mild steel pipe, and explicitly defines low pressure as below 25 psig, medium as 25–125 psig, and high as 126 psig and above [S2]. The University of Michigan MS232216 spec adds ASTM A278 Class 30 for inverted-bucket cast iron bodies, A126 Class B for drip-pan elbows at 250 psig / 450°F, and requires the trap schedule to be drawn with make and model on the drawings — a discipline worth copying onto any pinch-valve schedule [S3].

For valve selection logic, TLV's selection guide lays out the body-material rule (max operating temperature and pressure at the condensate discharge location, environment, longevity, piping design spec) and is the cleanest reference for the elastomer-versus-temperature decision [S4]. Watson McDaniel's catalogue provides the actual pressure tier numbers — stainless thermostatic bodies up to 650 psig, alloy WPN up to 2230 psig, inverted-bucket and float-&-thermostatic bodies in the 150–450 psig band — that should be used to bracket the metallic alternative on the same drip leg [S1]. For sizing math on the upstream control valve, the Emerson steam-trap sizing guide shows the full ΔP, capacity, and safety-factor walkthrough at 100 psi inlet / 0 psi outlet, 220 lb/h load, 6.9 bar / 100 psi operating pressure, and 13.8–17 bar design pressure [S6].

Failure modes the spec must rule out

Three failure modes kill pinch valves on steam service. First, ambient-temperature creep: even a properly specified EPDM sleeve that runs continuously at 70°C will lose 30–40% of its original elasticity over 24 months and start to take a permanent set, which manifests as a slow drip past the pinch point at zero line pressure. Second, flash-back: when a steam trap upstream fails open, a slug of 165°C steam reaches a sleeve rated for 100°C and the inner surface blisters within hours. Third, the cold-valve hot-system surprise: a valve mounted on a cold-start drain leg sees line-up temperature on day one, and the operator opens the line to a header that is already hot — the sleeve cracks on the first thermal cycle [S4][S5].

The spec writer should add a sleeve-temperature-rise clause ("sleeve shall be suitable for 1.5× the maximum expected continuous condensate temperature, and 1.0× the maximum flash temperature for at least 60 seconds") and a cold-start sequence ("drain leg shall be pre-warmed by a bypass orsteam-trap selection criteria: type, pressure, and failure-rate gates](/news/steam-trap-selection-criteria-type-pressure-and-failure-rate-gates.html) reference covers the upstream trap discipline that prevents the flash-back failure mode in the first place.

When to drop the pinch valve from the BOM

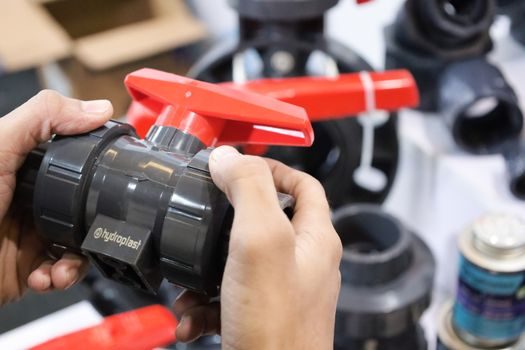

pinch valve selection criteria for steam condensate line - When to drop the pinch valve from the BOM
pinch valve selection criteria for steam condensate line - When to drop the pinch valve from the BOM

Drop the pinch valve from the bill of materials whenever any of these five conditions is true: continuous condensate temperature above 80°C and no cold-side flash tank in the line; design pressure above 10 bar and no published high-pressure sleeve grade in the manufacturer's catalogue; system is ASME B31.1 power piping, where rubber-lined components face a separate code review; the line carries superheated steam at any point, including during a warm-up transient; or the spec must be stamped by a jurisdictional inspector who treats elastomer-lined valves as non-standard on steam service [S2][S5].

Keep the pinch valve whenever the fluid is abrasive condensate with entrained rust or scale, the line is on the cold side of a flash tank or pumped receiver, the operator needs bubble-tight shutoff at low ΔP, and the maximum temperature has a verified margin below the sleeve ceiling. The U-Michigan spec frames the inverse problem: cast-iron float & thermostatic traps are limited to 25 psig low-pressure steam and "are subject to damage if water hammer, excessive temperatures or pressures are present" — a pinch valve on the same drain leg is not a substitute for that trap discipline, it is a downstream isolation valve on a different part of the system [S3].

For the 2026 spec cycle, the trackable signals are: (a) at least one major elastomer supplier publishing a refreshed steam-condensate sleeve grade above 100°C in the next 6–12 months, which would shift the temperature ceiling in section 1; and (b) any owner-side master spec revision that explicitly addresses rubber-lined valves on condensate, replacing the present default exclusion by reference. Until either signal lands, the conservative spec — globe or ball on the drip leg, pinch on the cold return — is the buy.

For component-level specifications, see steam separator.
