Luoyang Lutong Heavy Industry's product index (updated 2026-06-30) groups road roller and motor grader as two distinct engineering-roller categories with separate engineering teams and tooling paths [S1].
Road rollers — a detailed product family captured on our road roller reference — apply line load through a steel drum onto unbound aggregate, asphalt or subgrade. Motor graders — see motor grader — use a drawbar-pulled moldboard centered between front and rear axles to cut, mix and finish a surface to elevation. A buyer who confuses the two typically tries to use a grader as a compactor and ends up with uncompacted lift, or uses a roller to finish a sub-base and gets the wrong cross-slope.
What Each Machine Actually Does on a Job Site
Road rollers are designed to densify, not shape. Working weight drives static line load on smooth-drum, padfoot or pneumatic-tire models, and an eccentric-weight vibratory system (the eccentric shaft rides in a heavy-duty roller bearing) adds dynamic force on most modern units [S1][S6]. Operating weight classes for the Chinese-made single-drum and tandem units shown in the Luoyang Lutong 2026 catalog typically span 4 t to 22 t, with vibratory amplitude on single-drum machines in the 0.5 mm–1.8 mm range [S1][S6].
Motor graders are designed to cut and finish. The defining geometry is the long moldboard — usually 3.7 m to 4.3 m on mainstream 14 t–19 t class machines, with a blade reach roughly 600 mm outside the rear tires for ditching and slope work. Engine net power in this class sits around 125 kW to 220 kW, paired with a full power-shift transmission (typically 6 forward / 3 reverse) and a tandem-drive rear axle for tractive effort at the blade [S2][S5]. For a deeper purchasing walkthrough of motor-grader spec gates, see the Motor Grader 2026 Buying Guide: Power, Blade, Drivetrain and Total Cost.
Selection Criteria: Weight Class, Drum Type, Blade Reach
Specifying a roller starts with three numbers: operating weight, drum width, and (for vibratory models) frequency × amplitude. A 12 t single-drum vibratory with a 2.13 m drum width is the workhorse for road-embankment lifts; a 3 t ride-on tandem is the right pick for asphalt finish rolling on parking lots and secondary roads [S1][S6]. Pneumatic-tire rollers enter the picture when the spec requires kneading action on bituminous mixes, typically at 14 t to 26 t operating weight with 7–11 wheels [S3][S5].
Specifying a grader starts with three different numbers: moldboard length, engine net power, and articulation/tandem-drive configuration. A 165 kW grader with a 3.96 m moldboard, articulated frame and tandem rear drive handles highway subgrade trimming; a 100 kW rigid-frame unit with a 3.66 m blade handles municipal road maintenance. Buyers who want a compactor-adjacent earthworks fleet often pick a 14 t motor grader and a 14 t single-drum vibratory in the same procurement batch, since both fit a single lowboy trailer at common transport widths near 2.5 m [S1][S2][S5].
Options Lined Up Against Decision Criteria
Side-by-side, the two families trade off on the criteria that matter most to fleet owners. The comparison below is based on published 2026 catalog data from Luoyang Lutong, Yituo Luoyang, Zhengzhou Mega and Chanway [S1][S2][S3][S5].
Primary function: Road roller — densify subgrade, base and asphalt; Motor grader — cut, mix, shape and finish to elevation. Operating weight (typical 14 t class): Road roller — 12 t–14 t with 2.13 m drum, vibratory amplitude 0.5–1.8 mm; Motor grader — 14 t–16 t with 12.5 t on front axle. Key implement: Road roller — smooth / padfoot / pneumatic-tire drum; Motor grader — 3.66 m–4.27 m moldboard with 360° rotation. Productivity lever: Road roller — frequency (28–35 Hz typical) and amplitude; Motor grader — blade down-pressure and forward speed (typically 0–40 km/h working range). Daily output on a subgrade lift: Road roller — 600–1,200 m²/lift in 200–300 mm layers; Motor grader — 2,000–4,000 m² of fine grading per shift.
Who Each Machine Is For — And Who It Is Not For
Road rollers are for earthworks and paving contractors, quarry operators, and road-building crews who need density proof. A static three-wheel or tandem belongs in a municipal asphalt patch train. They are NOT for fine grading, for slope shaping to a design cross-fall, or for cutting a ditch line — that work wastes a roller's hours and produces a wavy surface. Used-market stock (verified on ECVV's 2026 listings) typically includes 8 t–14 t used single-drum vibratory units, with payment terms T/T and minimum order 1 unit [S4].

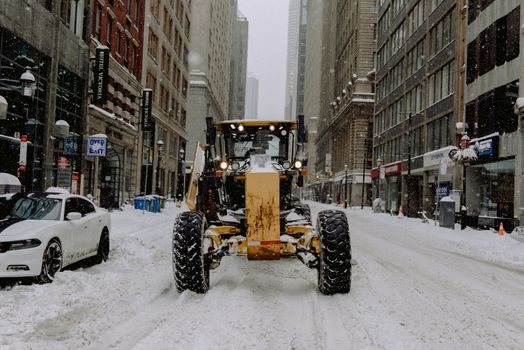

Motor graders are for road construction, mining haul-road maintenance, and snow removal fleets. The moldboard geometry and long wheelbase let a grader hold a 3 % cross-slope on a 9 m road at steady speed, something a roller cannot do. They are NOT a compactor, NOT a dozer (blade reach is much shorter than a 6-way dozer blade), and NOT a loader — graders have no bucket linkage. A buyer who needs a 1.5 m³ loading tool on the same jobsite should be looking at a wheel loader spec instead, and the Wheel Loader 2026 Buying Guide: Tier, Bucket, Powertrain, Total Cost lays out those gates.
Real Use Cases From the 2026 Supply Base
Luoyang Lutong's June 2026 product page lists road rollers as the lead category, with motor graders as a separate export line — typical end-user markets include Southeast Asia road-building tenders, Central Asian highway projects, and African rural road programs [S1][S6]. Yituo (Luoyang) Building Machinery's Made-in-China showroom (2026-05-29) lists both machines under Industrial Equipment & Components, with motor graders marketed for road maintenance and refuse compactors as a third line [S2]. Chanway Group, also re-verified 2026-06-30, ships a 4-machine earthworks kit of wheel loader, road roller, motor grader and bulldozer to the same customer base, which is the standard Chinese export bundle for mid-tier contractors [S3].
Zhengzhou Mega's June 2026 catalog adds wheel loaders, backhoe loaders, bulldozers, excavators, mini excavators and skid-steer loaders to the road roller + motor grader pair — a one-stop fleet supplier model that lets a contractor consolidate spare parts and operator training [S5]. Used-equipment channels (ECVV, 2026-05-03) confirm both road roller and motor grader are common on the remarket side, with 100-unit-per-year supply ability and T/T payment terms as the industry-standard commercial baseline [S4].
Limitations, Failure Modes and Sourcing Constraints
Two failure patterns repeat in the field. First, a road roller used for finish grading leaves a smooth-drum washboard on the surface; the spec gate is that finish grading is a grader task, not a roller task. Second, a motor grader used as a compactor gives false density — the grader's tires are sized for tractive effort, not for line load, and density gauges will fail the lift. The mechanical reality: a 14 t grader applies roughly 4 t per tire on a small contact patch, while a 14 t roller applies roughly 60 kg/cm of static line load across a 2.13 m drum. The grader cannot match the roller's compaction energy, no matter how many passes [S1][S3][S5].
Sourcing constraints in mid-2026 include longer lead times for vibratory pumps on single-drum rollers, and a tightening supply of Tier 3 / EU Stage V engines for export graders above 160 kW. Lead times on a standard 14 t single-drum vibratory from a Luoyang OEM run 30–45 days ex-works as of June 2026; lead times on a 165 kW motor grader with full power-shift transmission run 45–60 days. Minimum order on new units is typically 1 unit; on used units, ECVV listings show the same 1-unit MOQ with 100-unit-per-year supply ability, payment T/T [S1][S4][S6].
Trackable signals for the next 90 days: (1) revised lead-time and price lists from the Luoyang OEM cluster after the Q3 2026 domestic construction season opens, and (2) any update to the Tier 4 final / EU Stage V engine allocation for the 160–220 kW motor-grader power band. Both will move order intake at the August–September 2026 buying window.
