RV reducers in cement plants split into two distinct duty camps: low-backlash cycloidal units (RV-EM family, 98–4900 Nm output, ratios 27–37.34, 1–2 stages) for mixers, kilns, and packers where start/stop shock matters, and high-ratio bevel-helical DBY/DCY units (ratios 8–50, center distance 160–800 mm) for 24/7 belt conveyors moving raw meal, clinker, and finished cement [S1][S2].
Cement plant drives are not interchangeable with general industrial gearboxes. Ambient dust load, continuous duty at elevated temperature, and tight gallery footprints make wrong-frame selection a common cause of premature bearing and seal failure. The selection decision starts with the driven machine, not the motor.
Two reducer architectures for two duty profiles
Cycloidal RV reducers use an eccentric cycloid disc and pin gear set to deliver ratio 27–37.34 in 1–2 stages, with quoted lost motion below 1 arc-min and a hardened tooth surface rated for high torsional rigidity under shock load [S1]. Bevel-helical reducers (DBY 2-stage, DCY 3-stage) instead use a spiral-bevel first stage (Gleason profile) followed by helical stages, built to JB/T 9002-1999, with ratios from 8:1 (DBY) up to 50:1 (DCY) and center distances from 160 to 800 mm [S2]. The two architectures answer different questions: cycloidal = precision + shock tolerance, bevel-helical = high ratio + continuous-duty thermal capacity.
For an engineer mapping options, the RV reducer class and the cycloidal reducer family overlap, but cement plants lean on the cycloidal variant only where positioning, indexing, or heavy shock exists. Continuous belt-conveyor drives almost universally fall back to bevel-helical, where selection tables already encode thermal capacity at ambient temperatures typical of cement kilns [S2].
Torque, ratio, and speed: the three numbers that gate selection
RV-EM cycloidal units are published at rated output torque of 98–4900 Nm across the catalog, with a 1-year ex-factory warranty and a weight band starting near 10 kg per stage module (single-gross shipping weight 30 kg for a small frame) [S1]. That span covers small pan mixers and most laboratory-scale cement mills, but large raw mills and rotary kilns need larger frames; OEM rating tables must be consulted, not estimated. For comparison, a typical gear reducer catalog for cement duty should publish three rows per frame: rated torque (Nm), permissible radial load (N) at the output shaft, and thermal capacity (kW) at a stated ambient.
Bevel-helical DBY (2-stage, ratio 8–14, center distance 160–560 mm) handles medium-ratio conveyor drives with 1,500 rpm max input, while DCY (3-stage, ratio 16–50, center distance 160–800 mm) extends to high-ratio kiln-feed and long-distance clinker conveyors. Both stages use high-strength alloy steel, carburized, quenched, and precision ground, with thermal capacity explicitly included in the published selection data so that continuous-duty verification against ambient temperature is a lookup, not a calculation [S2].

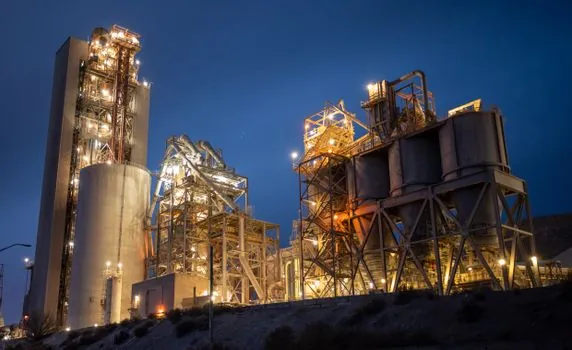

Dust, heat, and the cement-specific operating envelope
Cement plants run conveyors fully loaded for entire shifts, in abrasive dust, at ambient temperatures often above 40 °C near kiln feed points, and the gearbox must not overheat across that envelope [S2]. Sealing is therefore a hard selection criterion: lip seals plus a dust-excluder on the output shaft, and on cycloidal units a breather positioned away from dust-laden airflow. The hardened-tooth-surface treatment quoted on the RV-EM family (rated for shock load and wear resistance) is not a marketing line; it is what determines overhaul intervals under abrasive cement dust [S1].
On the thermal side, DBY/DCY selection tables publish a thermal capacity coefficient; if natural cooling is insufficient at site, optional cooling fans or cooling coils are available as documented options rather than field retrofits [S2]. For cycloidal units in mixer duty, thermal capacity is rarely the binding limit because intermittent duty and lower continuous power keep the housing well inside the rating, but the seal and bearing arrangement still must be dust-rated.
Footprint, mounting, and right-angle vs coaxial output
Plant galleries and transfer towers punish parallel-shaft units that stick the motor out into the walkway. The DBY/DCY right-angle (bevel-helical) configuration puts the motor parallel to the conveyor axis and the output at 90°, which keeps the drive footprint inside the conveyor stringer envelope and is one of the practical reasons cement plants prefer this architecture for belt conveyors [S2]. Cycloidal RV-EM units, by contrast, use a coaxial layout with an IEC flange input; that geometry suits mixers and pan mills where the reducer bolts directly to the input shaft of the driven machine, and the mounting position is published as any-direction, which is useful on inclined agitator shafts [S1].
Frame dimensions on small RV-EM units run roughly 38 × 35 × 33 cm in the published spec, with wooden-box or carton export packing from Shanghai [S1]. The full DBY/DCY range scales from 160 to 800 mm center distance, so frame selection tracks torque, not the other way around; an undersized center-distance frame is the single most common cause of premature bearing failure on cement conveyor drives.

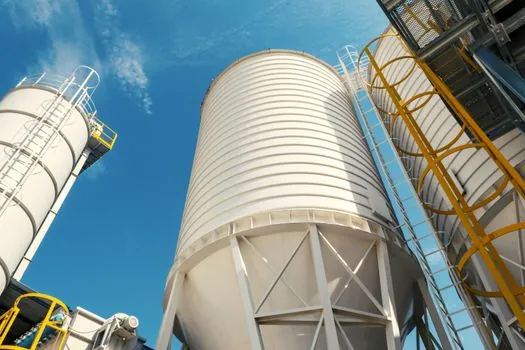

Standards, certificates, and what to verify before signing the PO
Published certifications on cycloidal RV-EM units include CE and ISO, with a 1-year ex-factory warranty starting on the bill of lading date [S1]. Bevel-helical DBY/DCY units are designed and manufactured to JB/T 9002-1999, the Chinese national standard for bevel-helical gearboxes that replaced legacy SS, ZQ, and ZL series and can substitute for common right-angle conveyor units [S2]. Buyers sourcing from international OEMs should also confirm that the published thermal capacity table is being applied to the actual ambient at site, not the standard 20 °C reference, and that the gear material certificate (alloy steel grade, case depth after carburizing) is in the mill document packet.
For cross-reference on adjacent drive architectures, see the Marine Harmonic Drive Reducer Selection: 2026 Spec Map and the Harmonic Drive Reducer Sizing for Packaging Lines: 2026 Spec Map, both of which cover low-backlash precision gearing in duty profiles adjacent to cement mixers. For heavy-mobile equipment in quarry supply chains feeding the cement plant, the Quarry Dump Truck Spec Bands: 2026 Selection Map for 30-40 t Rigid Builds sets the upstream hauling context.
Limits, failure modes, and what RV is NOT for
RV cycloidal reducers are the wrong tool for high-ratio, long-distance belt conveyors, where 50:1 ratios and thermal capacity at continuous full load are the binding spec, and a 1–2 stage cycloidal unit cannot match the published bevel-helical thermal coefficient data [S2]. Conversely, bevel-helical DBY/DCY units are not the right pick for applications requiring sub-arc-minute lost motion, indexing, or rapid start-stop reversals under peak shock, where the cycloidal architecture's quoted <1 arc-min lost motion and hardened tooth surface give a clear engineering margin [S1]. Misapplying either family typically shows up as overheating (wrong family) or rapid tooth wear and backlash growth (other wrong family), and both failure modes are expensive to recover because they usually surface during a kiln outage window.
Continuous-duty dust-laden cement environments also push the bearing L10h calculation, not the gear rating, to be the binding constraint, so the published permissible radial load at the output shaft and the documented grease interval should be reviewed with the same rigour as torque and ratio.
Track these signals before locking the next RV or DBY/DCY frame order: (1) the supplier's thermal capacity table printed against the actual site ambient, not the catalog reference, (2) the gear material certificate and case depth after carburizing and quenching, and (3) the documented seal arrangement and grease interval, which in cement duty usually beat the published L10h by a wide margin if they are actually followed. For a broader read on adjacent industrial specs, the RV reducer and cement encyclopedia pages are the natural next references.
