Spiral round duct typically halves the per-foot pressure drop of equivalent flexible duct at the same face velocity: a 12" spiral at 800 fpm shows 0.15" w.g. per 100 ft, versus 0.30" w.g. for the same-diameter flexible run, doubling fan static pressure requirements for the flexible case [S5].
Selection pivots on four decision variables: available plenum depth, leakage tolerance per SMACNA HVAC Air Duct Leakage Test Manual classes, required hanger spacing, and whether the run will be concealed or architecturally exposed. For most warehouses, manufacturing floors, and exposed-ceiling commercial builds, round spiral tube wins on all four; for tight residential soffits and retrofit ceilings, rectangular or flexible stays the right call [S1][S4].
What Spiral Duct Is and Where It Fits

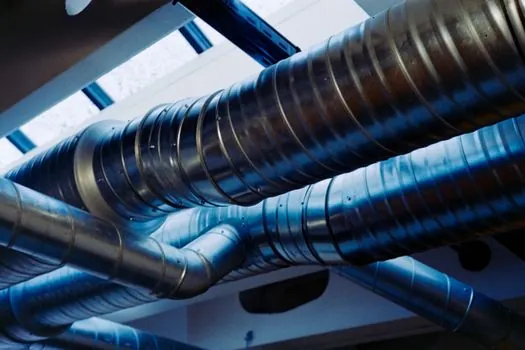

Spiral duct is a continuously helically wound round metal tube, formed from a single strip of galvanized steel, stainless steel (common grades 304/304L, 316/316L, 409), aluminum (3003, 3105, 5052), or other alloys, with a locking seam running the full length of the pipe. The helically wound lock-seam construction is the structural feature that lets the same product serve leak-sensitive industrial dust collection and architectural exposed ductwork [S1][S3].
Typical building-sector applications include HVAC supply and return, ventilation and indoor-air-quality duct, dust collection and extraction, fume extraction, and large-volume ventilation for warehouses, factories, data centres, sports arenas, and concert halls [S2]. Industrial variants such as clamp-together rolled-lip duct, flanged duct, and leak-free tubing extend the same spiral geometry into dust-collection, waste-handling, and fume-extraction service [S1].
Airflow and Pressure-Loss Performance vs Rectangular and Flexible
A round cross-section is hydraulically smoother than rectangular: the round profile delivers lower air resistance and turbulence than equivalent rectangular cross-sections, which directly lowers static pressure the fan must overcome, and lowers sound power radiated from the duct wall because there are no flat walls to set into vibration [S2][S3][S5].
Direct head-to-head data: at 12" diameter and 800 fpm, spiral measures 0.15" w.g. per 100 ft pressure drop; flexible at the same size and velocity measures 0.30" w.g. per 100 ft, a 2:1 ratio in fan energy demand over the same run length [S5]. Compared with rectangular, the round section reduces the equivalent diameter for a given cross-sectional area, which usually lets a smaller round duct move the same CFM with less friction, an important sizing lever when fan energy dominates lifecycle cost [S4][S5].
Leakage, Sealing, and Joint Count
Continuous-seam spiral construction with fewer field joints lowers total leak area, and the round geometry is easier to gasket and clamp than four-corner rectangular seams [S1][S3][S6]. The practical effect: less conditioned air bypasses the intended zone, less dust or fumes escape into occupied areas, and downstream filtration or scrubbing equipment sees the design airflow it was sized for.
Round spiral duct typically requires hangers every 10-12 ft maximum, versus 4-5 ft spacing for flexible duct, cutting hanger count and labour roughly in half on long runs [S5]. Fewer joints plus fewer hangers plus factory-formed couplings are the three installation variables that drive the labour-savings claim consistently reported across multiple OEM and contractor sources [S1][S3][S7].
Durability, Maintenance, and Service Life
Spiral is rigid and shape-stable, so it does not kink, collapse, or sag between hangers the way flexible duct does, which is the dominant failure mode for flexible in commercial and high-traffic environments [S5]. The round cross-section also resists mechanical damage and denting better than the flat faces of rectangular duct, which in turn keeps the equivalent diameter stable over decades of service [S2][S3].
For corrosive or hygienic service, stainless 304/316 and aluminum 5052 spiral are standard stock alloys; the same helically wound lock-seam is produced in plain carbon, aluminized, and PVC-coated finishes, giving specifiers a material menu that mirrors the duty, from commercial comfort air to pharmaceutical and food-processing supply [S3]. For a wider view of where rigid round metal stock and strip coil feed into HVAC and adjacent industrial fabrication, see the spiral duct reference page [S3].
Limitations: Where Spiral Duct Is the Wrong Choice
Spiral round requires more vertical clearance than rectangular, will not fit tight ceiling plenum spaces common in residential and retrofit office work, and carries slightly higher material cost in some diameters compared with rectangular [S4]. Where the duct must make sharp 90° offsets inside a shallow soffit, the rectangular section is geometrically better suited.
For short final runs to diffusers, flexible duct remains the right pick on installed cost and routing flexibility, but only if its 2:1 pressure-drop penalty is accepted in the fan schedule, and only if hanger spacing (typically every 4 ft) and maximum sag between supports are respected to code [S5]. Sizing the upstream rigid mains as spiral and terminating in flexible drops is the common hybrid that captures most of spiral's energy benefit without forcing the entire run to fit a round envelope [S1][S4].
Comparison: Spiral vs Rectangular vs Flexible on 4 Decision Criteria
On the four criteria that most often decide a duct spec, spiral round sits at the top of airflow efficiency and joint/leakage count, middle on first-cost in small diameters, and bottom on minimum ceiling-depth requirement; rectangular is the inverse, and flexible trades structural and pressure-drop performance for low material cost and routing flexibility. Reading this as a structured table, the ranking is: airflow efficiency spiral > rectangular > flexible; leakage rate spiral < rectangular < flexible; minimum plenum depth rectangular < flexible < spiral; first-cost flexible < rectangular ≈ spiral (diameter-dependent) [S4][S5].
For projects where air-handling, dust-collection, and fume-extraction subsystems must coexist, specifiers can pair spiral round mains feeding wiring-duct service drops and lamps-and-light-fittings coordinated ceiling layouts without the rectangular box dictating plenum depth, and the same factory-formed couplings that serve HVAC can be redirected into construction-machinery-and-equipment dust-extraction tie-ins on industrial sites [S1][S3].
Standards, Sourcing, and 2026 Selection Signals
Round spiral ductwork is normally specified to SMACNA HVAC Duct Construction Standards for gauge, joint, and hanger rules, with leakage targets set against the SMACNA Leakage Test Manual class (often Class 3-6 for commercial, tighter for hospital and cleanroom) and galvanized sheet referenced to ASTM A653/A653M; stainless variants typically reference ASTM A240 for 304/316 grade coil [S1][S3]. Two-trackable 2026 signals for specifiers: more OEM price lists are publishing spiral as a stocked, cut-to-length SKU in 4-6 m pieces with factory-formed couplings, and software tools (e.g. DuctQuote-style BOM generators) are correcting flanged-pipe and elbow counts, which is a real downstream impact on quote accuracy for spiral-heavy takeoffs [S1].
Next step for any HVAC or dust-collection project: pull the longest five runs in the model, convert each to round spiral at the same CFM, recalculate fan static from the 0.15" w.g. per 100 ft figure, and compare installed cost against the rectangular alternative before locking the spec. For a wider industrial context on where round metal stock and related fittings feed into plant builds, cross-reference the pressure-transmitter and lighting-equipment-and-electric-lamps pages for adjacent ceiling-coordination rules.
