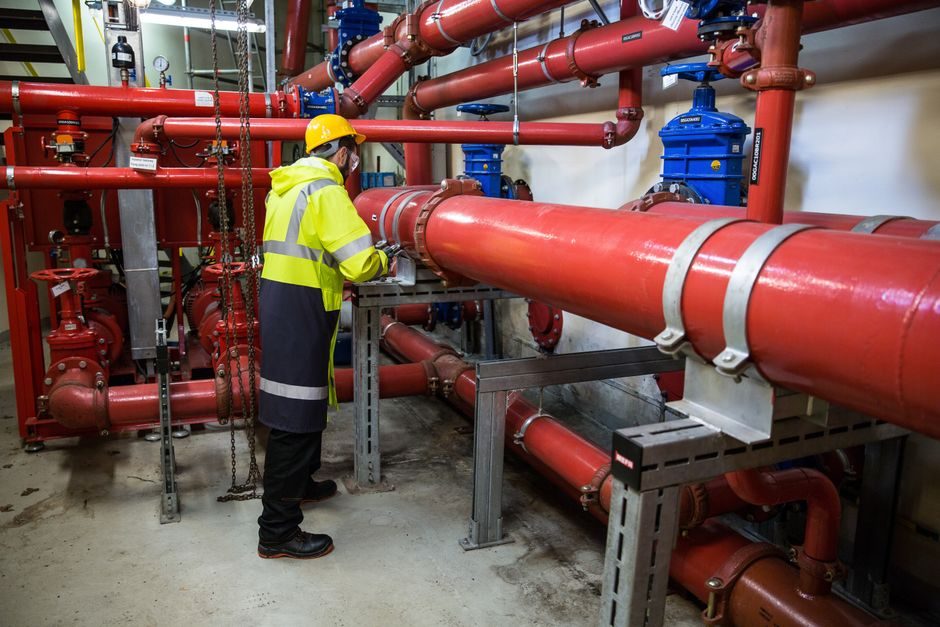

A well-formed steam RFQ locks six parameters per fitting line item — governing standard, material grade, schedule/wall, connection type, size, and inspection scope — because every one of those fields independently swings the unit price, lead time, and weld-procedure qualification path.
This spec map covers saturated and superheated steam service from 0.5″ to 48″ OD, drawing on the ASME B16.9 / B16.11 / B16.25 dimensional families, MSS SP-43 light-wall practice, and the ASTM A234 / A403 / A420 / A815 material families used by current Indian and Chinese mills [S1][S3].
Standard Family and Dimensional Boundary
Buttweld (BW) fittings must be called out to ASME B16.9 for the 1/2″–48″ range, with MSS SP-43 reserved for light-wall stainless where schedule 10S is acceptable [S3]. Socket-weld (SW) and threaded (THD) fittings below 4″ fall under ASME B16.11 with pressure class 2000 / 3000 / 6000 / 9000 explicitly written on the line, not left to the supplier's default [S3]. Forged flanges pair with ASME B16.5 for Class 150–2500, and weld-end prep per ASME B16.25 is mandatory for any BW assembly; B16.25 is what guarantees the bevel angle and root face the welder's WPS expects [S1][S3].
Spec mistakes that trigger requotes: writing "ASME B16" without the suffix digit, omitting the class number on SW/THD lines, and using "ANSI B16.9" interchangeably with "ASME B16.9" (the standards body renamed, but the part number is the same — both are acceptable on the same line). [S1] lists ANSI B-16.5, ANSI B-16.9, ANSI B-16.11, ANSI B-16.28, and MSS SP-43 as a combined offering from a single Indian mill, which is the typical scope a buyer should expect to release in one PO.
Material Grade and the Steam-Service Shortlist
For saturated steam up to ~1.0 MPa (150 psig), ASTM A234 WPB carbon steel is the default; for low-temperature or sour-service steam, ASTM A420 WPL6 is specified because of its notch-toughness testing at −46 °C [S3]. Stainless routes are governed by ASTM A403, with WP304/304L, WP316/316L, WP321, and WP347 as the four common grades, and the "L" variants mandatory for welded service to defeat sensitization in the HAZ [S3]. Duplex and super-duplex routes (UNS S31803, S32750, S32760) are used where chloride carryover in the steam threatens pitting, and they are quoted under ASTM A815 [S3].
Chrome-moly (A234 WP1 / WP5 / WP9 / WP11 / WP12 / WP22 / WP91) is the high-temperature escalation path above ~450 °C, with WP91 reserved for the hottest headers [S1][S3]. Material identification on the RFQ must call the UNS number where the supplier catalog uses it — Metline and Metallica both publish their ranges as UNS S31803 / S32750 / S32760 rather than generic "duplex" [S1][S3]. For aluminium service (utility steam at low pressure), 5083 / 6061 / 6082 grades are quoted to ASTM B361-equivalent practice, with 6061-T6 the typical temper [S1].
Schedule, Wall, and Size Range
Schedule is the second-largest price lever after material. Carbon and alloy steel default to STD, XS, XXS, and SCH10–SCH160; stainless defaults are SCH5S / 10S / 40S / 80S, with 10S being the common economic choice for stainless BW [S3]. A typical production range from current Indian mills covers 1/2″–48″ OD for buttweld, 1/2″–4″ for forged SW/THD, and 1/2″–60″ for plate flanges [S1][S3]. The price differential between Sch 10S stainless and Sch 40S stainless on the same fitting is roughly 25–45% — a number buyers should expect on returned quotes and use to sanity-check deviations.
For bends outside the ASME B16.9 elbow geometry, call out 3D / 4D / 5D / 6D / 8D / 10D bend radius with 22.5° / 30° / 45° / 60° / 90° angle options, per the standard catalog of current Indian and Chinese mills [S3]. A typical size window for induction bends is 3″–48″, with 5D the default for steam [S3]. Spec mistakes that drive requote cycles: writing "SCH 40" on a stainless line (should be 40S), omitting the "S" on 10S/40S, and not stating whether long-radius (1.5D) or short-radius (1.0D) elbows are wanted.
Connection Type and Fitting Geometry
For each line item, the RFQ must name the fitting type from a fixed list: 90° LR / SR elbow, 90° 3D / 5D bend, 45° elbow, concentric / eccentric reducer, equal / reducing tee, cap, stub end (lap joint), coupling (full / half), union, cross, and o-let (boss) [S1][S3]. The unit weight — and therefore the price — of a 90° LR carbon-steel elbow is typically 1.6–1.8× the weight of the equivalent straight pipe of the same schedule; this ratio lets the buyer cross-check quoted weights against an internal estimate.
Where the run is a steam header with branch takeoffs, the o-let family (weldolet, sockolet, thredolet, nipolet, elbolet, latrolet) is the preferred butt-weld branch fitting over a fabricated tee, because it reduces the local stress concentration at the header penetration [S1]. For instrumentation and small-bore drains, the SW/THD family — including hex head bushings, swage nipples, and insert fittings — is quoted to ASME B16.11 and the same class system as the run piping [S1].
Testing, Certification, and Traceability Fields
EN 10204 3.1 certification is the current default for pressure-containing fittings from Indian mills, and should be written on the line as "MTC to EN 10204 3.1" — not just "with certificate" [S3]. Marking must include heat number, size, grade, manufacturing spec, and commodity name, either per the standard or per a customer template the buyer attaches [S3]. Hydrotest is typically performed at 1.5× the design pressure for carbon and alloy, with pneumatic testing reserved for sizes or services where water is unacceptable; the RFQ must declare which test, at what pressure, and at what hold time.
Omitting PMI on a duplex line is the single most common reason a delivered fitting fails in service; specifying PMI on every stainless and duplex line adds 1–3% to the price but eliminates the wrong-grade risk [S1][S3]. For sour steam service, NACE MR0175 / ISO 15156 compliance must be written on the line, with hardness limits and HIC test data required on the MTC.
Quantity, MOQ, and Quote Sanity Check
MOQ on commodity malleable and threaded fittings from Chinese mills runs 1,000–5,000 pieces at US$0.06–0.40 per piece, while stainless and alloy BW fittings are quoted per piece or per kilogram with no MOQ on the catalog items [S4][S5]. A buyer who needs 200 elbows should not be deterred by a 5,000-piece MOQ; the right move is to ask for a mill run, which typically prices 10–18% above the catalog rate but ships in 4–6 weeks [S5]. The same price band — US$0.06/pc for commodity galvanized threaded elbows up to US$30/pc for special-grade BW fittings — defines the sanity-check envelope for a steam RFQ returned from current Chinese and Indian suppliers [S5].
Surface finish is the last line on the RFQ: black (as-formed), varnish, galvanized (hot-dip, cold, electro, bake), or coated [S3]. For steam, black or varnish is the carbon-steel default; galvanizing is only required where the fitting is in a corrosive atmosphere outside the insulation jacket. A buyer who writes "galvanized" on a carbon-steel elbow without thinking will pay 20–35% more and add 2–3 weeks to the lead time — this is one of the classic unnecessary upgrades that quietly inflate steam RFQ totals.
Limitations and Failure Modes
The four failure modes a steam RFQ must design against are: (1) creep rupture in chrome-moly above 500 °C if the wrong grade is ordered, (2) chloride pitting on stainless in the wet zones of a steam line if 304 is used where 316L was needed, (3) sensitization at weld HAZs if non-"L" stainless is used on welded service, and (4) galvanic corrosion at the carbon-to-stainless transition if a dielectric union is not specified [S3]. None of these failures is visible at receipt inspection; all four require the RFQ to be written correctly up front. For reference, the dimensional families discussed here are covered in the steam distribution equipment overview and the steam trap selection guide, which sit adjacent to the fitting spec in any steam-line RFQ package.
Trackable signals for the next 30–60 days: ASME B16.9 and B16.11 reprint activity (any new edition would invalidate the dimensional callouts above), A815 duplex grade additions from Indian mills, and the price spread between 10S and 40S stainless as nickel moves. Buyers should hold the fitting spec on the molding line and process skid interface as the locked configuration while the run piping is being quoted, because changing the fitting schedule after the skid is built forces a full skid re-fabrication.
