Timing belts are positive-engagement drives — teeth on the belt mesh with grooves on the timing pulley, eliminating the slip and speed-ratio drift that limits flat belts and V-belts. Metric-pitch families (3M, 5M, 8M, 14M) dominate industrial automation builds; imperial-pitch profiles (XL, L, H) persist in older North American machinery and light OEM conveyors [S1].
For 2026 sourcing, the practical decision tree is: tooth profile → pitch → width → tensile member → cover material. Each step changes torque capacity, NVH behaviour, and compatibility with a given timing-belt tensioner and pulley bore arrangement.
Tooth profile families: trapezoidal, curvilinear HTD, and RPP
The HTD3M, HTD5M, and HTD8M series are stocked in standard widths of 6 mm, 9 mm, 15 mm, 20 mm, and 25 mm for industrial automation duty [S4].
STD5M and S5M (semi-circular / round-tooth) profiles with steel-cord polyurethane construction are the default for high-precision indexing — Yamaha Motor specifies a 1,875 mm/s maximum speed and 150–3,050 mm stroke on its B-series single-axis robot timing-belt linear stage, where a 4-row circular-arc linear guide carries the moment load [S2]. RPP (Roto-Plus Profile) variants extend tooth contact deeper into the pulley, extending life at high torque.
Trapezoidal XL (0.200 in / 5.08 mm pitch), L (0.375 in / 9.525 mm), and H (0.500 in / 12.7 mm) imperial profiles remain common in legacy automotive cam drives; the ASHIKA 40-05-591 aftermarket timing belt for CHERY and MITSUBISHI lists 124 teeth with a curvilinear tooth system, driving the camshaft directly [S6].
Pitch classification: metric 3M/5M/8M/14M versus imperial XL/L/H
Metric pitch is defined as the centre-to-centre distance between two adjacent teeth, and the belt must mate with a same-pitch timing pulley to maintain a positive drive [S1]. The 3M pitch is used for small drives and printers; 5M covers most general automation; 8M handles higher torque packaging machinery; 14M is reserved for heavy industrial and CNC spindle applications.
Standard metric widths scale by pitch: 9 mm and 15 mm for 5M; 20 mm, 30 mm, 50 mm, and 85 mm for 8M and 14M. HTD5M part numbers run from 450-5M to 700-5M in the catalogue, with HTD168-3M-4 at 168 mm length and 4 mm width representing the micro-drive class [S4]. Imperial XL belts run in 1/4-inch (6.35 mm) increments, L in 3/8-inch (9.525 mm) increments.
Cross-mating a metric belt to an imperial pulley — or vice-versa — destroys the drive: the tooth pitch will not register, and the belt will ride on the pulley flange until failure. Always verify pitch family on the existing pulley stamping before ordering a replacement.
Construction: rubber versus polyurethane, with steel or aramid tensile cords
Chloroprene (neoprene) rubber timing belts with fibreglass tensile cords are the workhorse for general industrial drives; they tolerate ambient temperatures of roughly -30 °C to +80 °C and resist oil splash better than natural rubber. Polyurethane (PU) timing belts with steel-cord tension members — for example the S5M STD5M open belt with 15/20/25/30 mm widths — are specified where chemical resistance, low friction, or cleanroom suitability is required [S4].
Steel-cord PU belts tolerate smaller bend radii and higher speeds but have limited resistance to hydrolysis in hot/wet environments above ~80 °C. Fibreglass-cord rubber belts handle wet heat better but flex poorly below -25 °C. Aramid-cord (Kevlar) variants are used where shock loads and stretch control matter — typically on automotive primary drives and high-inertia machine tool spindles.
Deflection/guide pulleys ride inside the belt loop to control the span. The DAYCO ATB2491 deflection/guide pulley for NISSAN engines has a 60 mm belt-pulley diameter, 36 mm flange height, and 73.5 mm total height, listed against OE references 1307745V00, 13077F6200, and 13077F6512 [S3]. The flange keeps the belt tracking straight on long-centre belt conveyor and linear-axis runs.
Application bands: automotive, automation, linear motion, and tensioning

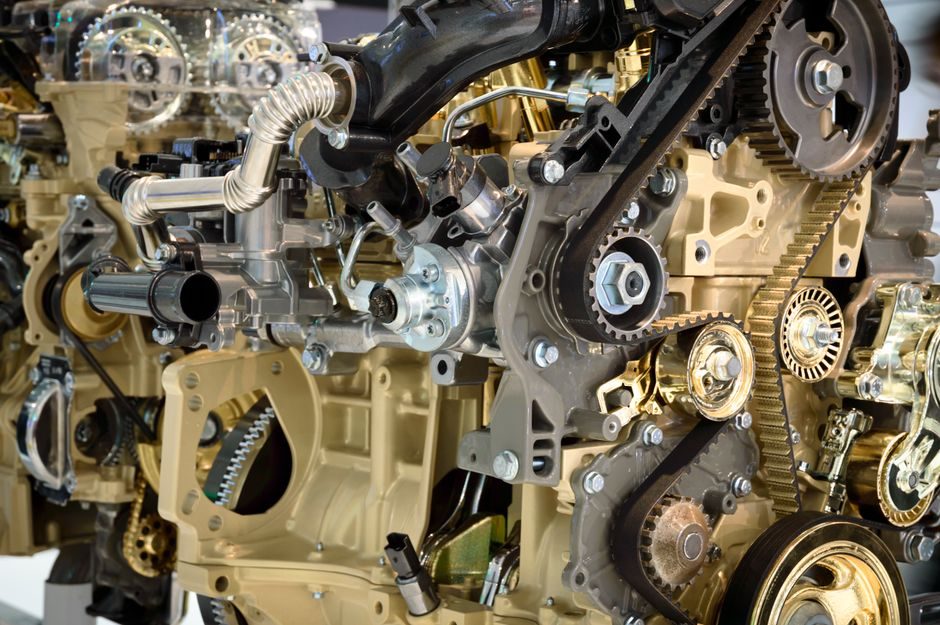

Automotive primary timing belts (camshaft drive) almost always use the curvilinear HTD or RPP profile in the 150–250 tooth range; the MITSUBISHI MD182294 / MZ690647 family fits Great Wall and Mitsubishi engines with 124 teeth [S6]. Replacement intervals in OEM service manuals typically run 60,000–100,000 km, though newer chain-driven engines are displacing belts in some 2024–2026 model lines.
Industrial automation belts (packaging, pick-and-place, small CNC) run 3M, 5M, and 8M in widths up to 30 mm, often paired with a hydraulic or spring-loaded belt tensioner to compensate for stretch and wear. Toyota-branded hydraulic timing-belt tensioners for Asian-market vehicles are stocked as complete engine-component kits, integrating the tensioner pulley, mounting bracket, and seals [S5].
Linear motion / robot axis belts — like the Yamaha B-series stage — use a steel-cord PU belt on a long fixed-centre drive, where the belt's low-stretch behaviour is the limiting factor on positioning repeatability. Stroke length, payload moment, and the linear guide's moment rating together determine whether a 2-row Gothic arch or 4-row circular-arc guide rail is specified [S2].
Selection criteria comparison: profile, material, load, and environment
Three criteria decide a timing-belt spec: required torque, peak speed, and ambient exposure. For a pharmaceutical packaging line with frequent wash-down, a PU steel-cord S5M or 8M is the default — chemical resistance and cleanability outweigh cost. For a stamping-press feed drive with shock loads, an aramid-cord HTD14M with a hydraulic belt tensioner holds tooth engagement under transient torque spikes. For a 3D-printer or small pick-and-place, a 3M PU belt at 4–6 mm width is the cost-optimised choice. [S2]
Width multiplies torque capacity roughly linearly: a 25 mm HTD5M belt carries about 2.5× the load of a 10 mm HTD5M at the same pitch and speed. Pitch selection is a torque-vs-speed trade — smaller pitch (3M) allows higher linear belt speed and lower noise, larger pitch (14M) carries more tooth load at lower belt speed [S7].
Comparison snapshot by load band: (1) Light duty / office automation — XL or HTD3M, fibreglass-cord rubber, 6–9 mm width, no tensioner; (2) General automation — HTD5M or STD5M, PU or rubber, 9–15 mm width, with spring tensioner; (3) Heavy industrial — HTD8M or HTD14M, aramid or steel cord, 20–85 mm width, hydraulic tensioner. Match the timing pulley tooth count to achieve the design speed ratio before locking pitch and width.
Failure modes, limitations, and the case for upgrading to chain
The dominant failure modes for timing belts are: tooth shear from overload, back-idler wear at small pulley diameters, tensile-cord fatigue from mis-tensioning, and hydrolysis of PU in hot/wet service. A misaligned pulley accelerates tooth wear on one flank and shortens life by 50% or more. A flat-belt or ribbed-belt will tolerate misalignment better, but cannot hold a positive speed ratio. [S3]
Where the drive sits near a heat source above 90 °C, in a chemically aggressive atmosphere, or under repeated shock loading beyond the belt's service factor, chain drive is often the better-specified alternative — at the cost of lubrication and noise. The engineering trade-off is well documented in the MISUMI sizing and selection guide for chain-versus-belt decisions [S7].
Market data for 2026 puts the global timing-belt segment — across dry belts, chain-in-oil, idler pulleys, sprockets, and tensioners — on a continued growth track through 2030, driven by ICE and hybrid passenger-car demand, plus automation retrofit in packaging and material handling [S8]. For high-throughput process lines, the design trend points toward higher-pitch (8M, 14M) aramid-cord belts with hydraulic tensioners, paired with matched pulley kits for one-shot replacement.
Track the following for the rest of 2026: ISO 5293 / ISO 13050 timing-belt standard updates for HTD and RPP tooth-geometry definitions, any new IECEx or ATEX-rated PU belts for explosion-risk zones, and supplier consolidation moves among aftermarket tensioner brands (SKF, Gates, Dayco, INA) that affect parts availability on NISSAN, MITSUBISHI, and CHERY service parts. Stock a minimum of two spare deflection pulleys per critical drive line — they are the cheapest insurance against an unplanned line stop.
