Radial spherical plain bearings in the GE..-DO-2TS and GE..-FO-2TS series are sealed on both sides by integrated triple-lip high-performance seals, a design that keeps process slurry, fines, and wash water out of the spherical sliding contact [S2]. This seal architecture is the single largest driver of grease-life extension on slurry-exposed pins, where contamination, not load, is the dominant failure mode [S5].
For hydrocyclone feed pivots, thickener underflow linkages, and tailings line actuator ends, a properly selected spherical plain bearing with triple-lip sealing runs in the 17-300 mm bore range (series GE..-DO-2RS, E dimension series, DIN ISO 12240-1), covering the typical duty from pump side-shaft supports to agitator pivot points [S2].
Seal Architecture and What the Three Lips Actually Do
SKF describes its LS triple-lip heavy-duty contact seal as reinforced with a steel insert carrying three seal lips, designed to protect the spherical interface from external contamination [S1]. The Schaeffler/Ina equivalent on GE..-DO-2TS and GE..-FO-2TS uses an integrated triple-lip geometry, while the larger GE..-DO-2RS4 (C dimension series, bores 320-1000 mm) is specified for "very high" sealing action in oversized slurry duties [S2]. KML's ES-2RS style adds reinforced molded rubber lip seals retained in the outer ring, with the lips designed to withstand high grease pressure during relubrication while distributing grease across the ball path [S3].
The functional split matters: a primary lip scrubs the largest particles and water spray, a secondary lip catches fines that pass the first, and a third lip holds the grease film at the seal pocket. Lip seals run as contact seals, which means they add a small torque drag and have a finite speed limit, but for the low-oscillation, high-contamination duty typical of slurry pivots this trade-off is the correct one. Shaft-side seal lips are the parts most often damaged by direct jetting; a wiper or boot upstream is cheap insurance [S4].
Sliding Contact Pairings: Steel/Steel vs Steel/Bronze vs PTFE
Sliding contact surface is the second biggest selection lever after the seal. Per the Schaeffler/Ina table, series GE..-DO, GE..-HO, GE..-FO, GE..-LO, and GE..-ZO use steel-on-steel sliding pairs, while GE..-PB uses a steel inner ring with a bronze outer ring, dimension series K, bores 6-30 mm [S2]. Steel/steel is the default for heavy radial load and shock on slurry pins; the bronze liner on GE..-PB suits slower oscillation with some contamination tolerance but at much lower PV (pressure-velocity) ratings.
Maintenance-free PTFE/composite liners are a different family altogether, aimed at cleanroom or maintenance-limited service; they carry lower load ratings and must be checked against the PV envelope before substitution [S4]. For an abrasive slurry application, the steel/steel GE..-DO-2TS with the triple-lip seal is the conservative pick, with GE..-FO-2TS chosen when extended inner rings (larger tilt angle) are needed for clevis-mounted pivots [S2]. For comparison, the main options line up roughly as: steel/steel + triple-lip seal for heavy shock and abrasive ingress, steel/bronze for slower oscillation in mildly dirty service, PTFE-lined for clean or food-grade service, and stainless or coated rings where corrosion is the limiting failure mode rather than abrasion [S4].
Bore Range, Dimension Series, and Fit on a Slurry Pin

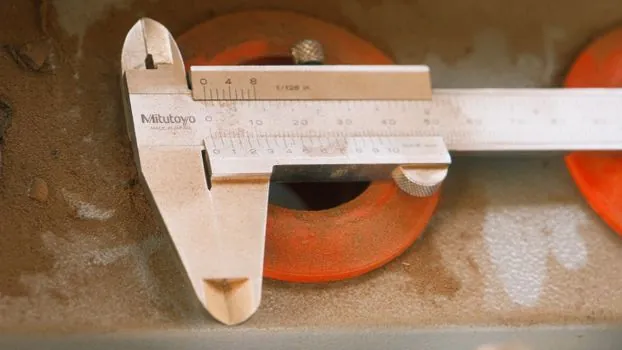

Standard steel/steel radial spherical plain bearings per DIN ISO 12240-1 cover bores 6-300 mm in dimension series E and 320-1000 mm in series C; the sealed 2TS variants are catalogued in the 30-140 mm (GE..-DO-2TS) and 25-120 mm (GE..-FO-2TS) bore windows [S2]. The LO series conforms to DIN 24338 for standard hydraulic cylinders, bores 12-320 mm in dimension series W, which is the right starting point for hydraulic cylinder rod-end duty on slurry feed rams [S2]. GE..-HO-2RS, bores 20-120 mm, adds cylindrical extensions on the inner ring so spacer rings drop out of a clevis mount [S2].
Pin fit is typically h6-h9 on the inner ring for outdoor/washdown and dusty/abrasive environments, with running clearance re-measured after any corrosion-resistant coating is applied, since coating thickness shifts preload at the spherical pair [S4]. Aerospace-grade sealed spherical plain bearings such as the MS14102-3 (bore 0.1900 in, OD 0.6250 in, ball width 0.437 in, race width 0.327 in) show how tightly toleranced sealed SPBs are produced in the mil-spec range, a useful benchmark when slurry service is held to a tighter fit class than commodity stock [S8].
Lubrication, Re-Grease Interval, and Grease Compatibility
Triple-lip seals are contact seals, so they hold grease in but do not eliminate the need to grease. The standard recommendation is an NLGI #2 EP (extreme pressure) grease, applied until fresh grease is visible purging from the seal area adjacent to the ball, which confirms the lips are seating correctly and the channels are full [S3]. On slurry pins, purge-after-operation is the right pattern, since heat from a duty cycle thins the grease and lets it reach the seal lips; cold-purge at assembly alone leaves the lower half of the bearing starved.
Corrosion inhibitors such as the molybdenum disulphide protectant applied at packaging are not the working lubricant, only a storage film; bearings should be installed promptly and greased at commissioning [S3]. For washdown-exposed slurry pivots, H1 food-grade grease is one option where incidental contact is a concern, but the more important variable is grease compatibility with the cleaner chemistry in service, since incompatible cleaners attack certain thickeners and break the seal lips [S4]. The broader ball bearing family uses the same NLGI #2 EP baseline, so grease inventory across a plant can be unified without giving up the EP additives a spherical plain bearing needs at the sliding contact.
Where the Triple-Lip Design Wins, and Where It Loses

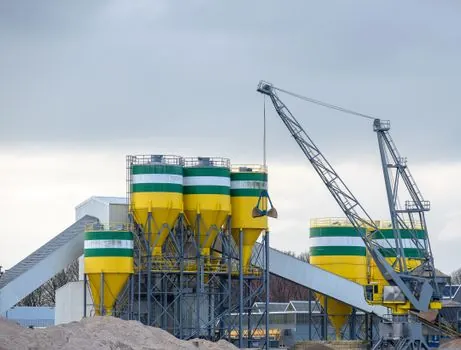

The design pays off where the bearing killer is contaminated grease rather than pure rolling-contact fatigue: conveyor pulleys, vibrating screens, bucket elevators, quarry and mining gear, cement plant equipment, and the slurry-side pivots of pumps and agitators are all listed as strong fits for sealed spherical bearings with contact seals [S5]. On a hydrocyclone pivot or a tailings line actuator, the same logic applies: a sealed spherical plain bearing keeps the abrasive out of the contact and holds the initial grease fill for the full interval between shutdowns.
It loses where the duty is high-speed, high-oscillation, or where direct jetting strikes the seal lip at high pressure. Contact seals have a speed ceiling well below open designs, and a high-pressure wash aimed at the seal edge will defeat the lips faster than any contaminant in the slurry [S4]. In clean, dry, or vacuum service, a non-contact cover or a maintenance-free PTFE liner is the better answer, since the seal drag is wasted and the PTFE liner's PV envelope is the limiting parameter, not seal integrity [S4]. For comparison with rolling-element alternatives in similar slurry service, see roller bearing and slewing bearing duty guides, which use different sealing and load strategies at the cost of tolerance to misalignment.
Spec Selection Workflow for an Abrasive Slurry Pivot
The decision order that survives a plant audit is straightforward. First, confirm the failure mode is ingress-driven, not fatigue-driven; if the bearing is failing on load alone, a bigger bearing is the answer, not a better seal [S5]. Second, set the bore from the pin diameter and pick the dimension series: E (6-300 mm) for general steel/steel, W for hydraulic cylinder conformance, G for extended-inner-ring tilt, K for the small-bore steel/bronze PB series [S2]. Third, lock the sliding pair to steel/steel for shock and abrasive service, or to steel/bronze only if oscillation is slow and loads are modest [S2][S4]. Fourth, specify the triple-lip suffix: 2TS for the standard triple-lip high-performance seal on GE..-DO-2TS (30-140 mm) and GE..-FO-2TS (25-120 mm), or 2RS4 for the increased-sealing-action variant on 320-1000 mm bores [S2].
Fifth, set the pin to h6-h9 and re-measure clearance after any coating is applied [S4]. Sixth, write the lubrication clause: NLGI #2 EP, purge at commissioning until grease purges at the seal, and a relubrication interval keyed to the duty rather than the calendar [S3]. A useful internal reference for the maintenance-strategy side of this loop is the CBM vs PdM vs RCM decision matrix, and for pump-side slurry pivots, the self-priming vs submersible sludge pump guide covers the driven equipment these bearings typically support.
Trackable signals to watch over the next duty cycle: (1) purge-grease color at the seal lip, which shifts from amber to dark grey as abrasive load is picked up, and (2) seal-lip condition at scheduled shutdown, since lip damage from direct jetting is the most common early failure on washdown-exposed slurry pivots [S4][S5].
