A well-service triplex plunger pump specification is driven by four numbers: minimum/normal/maximum pressure, flow at each point, fluid chemistry and plunger diameter. Anything else (frame, driver, valves, instrumentation) is sized around those four, per the 2026 oilfield sizing checklist [S3].
The headline envelope is wide: industrial plunger-pump performance spans 0.13 to 240 GPM (0.49 to 908 LPM) and 100 to 10,000 PSI (6.9 to 689 bar), with materials from brass through nickel-aluminum-bronze up to full stainless [S4]. At the oilfield extreme, frac models like the GD 3000 reach 20,000 PSI (1,379 bar) at 1,374 GPM with 3,000 BHP input, and the GD 5000HF holds 20,000 PSI at 2,370 GPM with 5,000 BHP [S5].
Operating envelope, not a single maximum
A single maximum figure is not enough: the supplier needs the expected operating range to select pumps, drivers, heat exchangers, vessels, controls and protective devices that work efficiently away from the peak [S3]. Field practice for triplex units pumping water or average crude oil holds suction at 10 to 15 PSIG when pump speed stays at or below 250 RPM [S6].
Ratings must be flagged as continuous, intermittent or short-duration, and the proposal should state derating for altitude, high ambient temperature, cold starts and the intended fuel or power source [S3]. The 2026 sizing checklist therefore treats minimum/normal/maximum as three separate data points, not one line on a data sheet.
Fluid chemistry drives fluid-end metallurgy
Record the fluid, gas or process-medium properties at minimum, normal and maximum conditions: temperature, density, viscosity, solids, corrosive species and hazardous-area classification [S3]. These details influence metallurgy, seals, instruments and the cleaning method, and they frequently explain why two apparently similar quotations carry different prices [S3].
For a frac fluid end, that usually means forged alloy steel bodies with tungsten carbide or elastomer-backed valve seats. For produced-water or acid service, the spec should call out NACE MR0175 compliance on wetted parts. On the suction side, 10 to 15 PSIG is the operating target with a flooded or charged suction; running dry accelerates packing wear and shortens plunger life on triplex units [S6].
Comparing triplex, quintuplex and duplex for well service
For well-service duty the choice sits between duplex, triplex and quintuplex. Triplex gives the best compromise of flow smoothness, efficiency and parts count; published triplex volumetric efficiency is 90% and above [S2]. Quintuplex units, like the GD 2500Q HDF at 2,500 BHP / 17,800 PSI / 2,044 GPM, push flow-per-stroke higher and cut pulsation further at the cost of a wider frame and more valve service [S5].
Duplex pumps are cheaper and simpler but deliver higher pulsation and shorter packing life at the same rod load. Triplex is the default for cementing, stimulation and most well-service skids; quintuplex is preferred on continuous-duty high-pressure frac spreads where flow smoothness protects downstream treatment equipment and pressure measurement instrumentation.
Driver speed, rod load and plunger diameter
Driver speed and power set the suction and discharge valve rating; plunger diameter sets plunger and packing rating [S3]. Published rod-load ceilings for current oilfield triplex units span 101,550 LBS (PZ 1000 at 1,000 BHP / 5,000 PSI) up to 350,000 LBS (GD 3000 at 3,000 BHP / 20,000 PSI) [S5].
Plunger diameter is the second lever after pressure: at constant RPM, halving plunger area roughly halves flow but doubles available pressure for a given horsepower. Field service pumps for directional drilling are commonly rated around 59 GPM at moderate pressure for mud-motor circuits in NWL drilling [S7]. At the high end, the K4500-3 process triplex reaches 2,100 bar or 232 L/min, a single-point operating envelope typical of ultra-high-pressure cleaning and jetting skids [S1].
Auxiliary systems and instrumentation

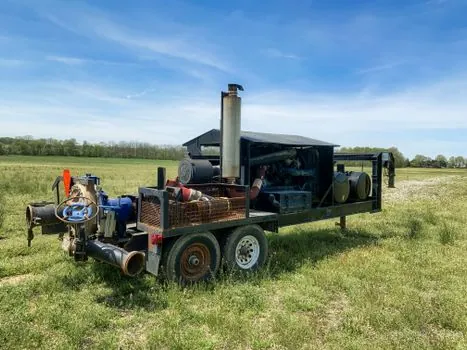

Auxiliary systems deserve the same attention as the headline component: cooling, lubrication, filtration, drains, relief paths, earthing, fire protection and operator access often determine field reliability [S3]. Every well-service skid needs a calibrated pressure gauge on the discharge manifold, a pressure sensor feeding the HART/4-20 mA loop to the data logger, and a relief valve set at or below the fluid-end MAWP.
For periodic proof testing or pump characterisation a hydraulic pressure calibrator is the practical reference. Downstream pressure-transducer verification on 20,000 PSI service requires a high-voltage tester-class deadweight or comparison pump with traceable certificate; the production pressure transmitter itself usually rides a HART loop off a pressure transmitter head.
Sourcing, codes and inspection evidence
Ask the supplier to show the duty point on a curve, heat balance or capacity calculation where applicable, and to identify ratings as continuous, intermittent or short-duration [S3]. A CE-marked well-service skid for European operators needs the machinery technical file per Annex VII compiled before shipment, with the pump, driver and control panel as a single functional assembly.
For hazardous-area builds, the motor and instrumentation must match the zone classification; guidance on selecting certified motors for those zones is laid out in explosion-proof motor ratings for hazardous locations. Bids should also flag the expected bearing life, plunger packing interval and valve service interval, since those drive the total cost of ownership more than the headline purchase price.
For procurement teams, the next trackable signals to watch are the published efficiency curves for the next generation of 5,000+ BHP quintuplex frac units, the cost deltas between forged-steel and nodular-iron fluid ends at 15,000 to 20,000 PSI service, and any updates to NACE MR0175 / ISO 15156 wetted-parts rules that flow through to 2027 model-year well-service pump specifications.
