Warning tape is a thin, printed polymer strip used to alert excavators or pedestrians to buried or surface hazards, and the market sorts it into two families that share almost no spec [S1].
Sparco Multiplast (SMPL) — an ISO 9001:2015 certified converter of polyethylene and speciality films — lists seventeen tape and protection products, of which aluminium foil detectable tape, aluminium strip detectable tape, anti-corrosive SS-wires detectable tape, and barrier/caution tape define the two main performance buckets [S1].
Detectable Underground Tape: Construction, Foil Gauge, and Locating Frequency
Detectable underground tape is a multilayer PE film with a continuous metallic layer that a 27 kHz–80 kHz pipe-and-cable locator (CAT, Radiodetection) can induce a current on and trace from the surface, per standard utility-locating practice [S1].
SMPL offers three detectable constructions: aluminium foil (laminated between two PE plies, typically 50–80 µm total thickness), aluminium strip (a thicker 0.2–0.5 mm metal ribbon for higher signal strength in deep or high-clay soils), and anti-corrosive stainless-steel wire (0.5–1.0 mm SS304/316 stranded wire for chemically aggressive backfill such as sewage or landfill sites) [S1]. Widths run 100 mm, 150 mm, and 300 mm, with standard roll lengths of 100 m, 200 m, and 500 m.
APWA uniform color code is the de-facto print standard in North America: red = electric, yellow = gas/oil/steam, blue = potable water, green = sewer/drainage, orange = telecom/CATV, purple = reclaimed water, pink = temporary survey markings. Tape is buried 300–450 mm above the utility in the trench, with the printed color-coded legend facing up.
Non-Detectable Surface Tape: PE/PVC Film, Safety Colors, and Tensile Class

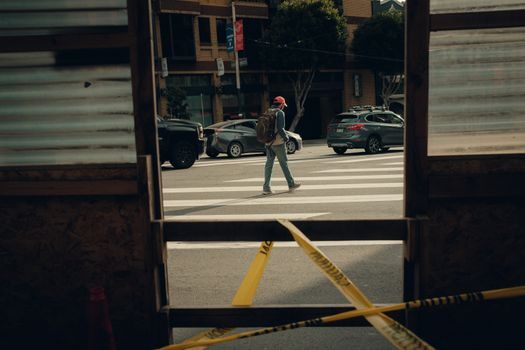

Non-detectable warning tape is a single- or co-extruded LDPE or PVC film (35–100 µm) printed with hazard legends, used above ground for barricades, scaffolding, and traffic control, and it carries no metallic layer [S1].
SMPL's ZIGMA tape is a reusable, lead-free PE film, while barrier/caution tape is typically a 35–50 µm LDPE in red/white or yellow/black diagonal stripes; WARSIGN scaffolding tags extend the family with rigid plastic holders for vertical mounting [S1]. Tensile break strength for utility-grade non-detectable tape is ≥ 10 N/cm² in the machine direction, with elongation at break of 300–500% for LDPE grades.
Color and symbol follow ISO 3864 safety sign conventions: red/white = prohibition or fire, yellow/black = caution/caution-tape pattern (most common barricade), blue = mandatory, green = safety/condition. For an adjacent reference on visible hazard signage at the worksite, the warning sign page covers sign geometry and retroreflective sheeting classes.
APWA Color-Code Cross-Reference for Detectable Tape Selection
Detectable tape is selected first by the utility being protected — color is not decorative; it is a contract and one-call (811 / Call-Before-You-Dig) locating convention, and substituting a generic red tape over a gas main is a direct violation of APWA convention [S1].
Selection criteria: (1) metallic-layer continuity — single-piece foil is preferred over segmented strip for uniform locate signal, (2) soil corrosivity — SS316 wire over foil in landfill or coastal sand, (3) burial depth and soil conductivity — strip or wire grades for > 1.5 m depth or high-clay soils where foil signal attenuates, (4) print legibility after backfill compaction. For a deeper comparison of how printed polymer labels survive burial alongside other buried infrastructure, see the warning tape reference page.
Common Failure Modes and Specification Pitfalls
Three failure modes recur on buried PE tape: foil corrosion in acidic soil (use SS-wire grade), print fade from groundwater leaching (specify subsurface-grade pigment inks, not surface-printed), and locator non-detection when the metallic layer is too thin or discontinuous under high-clay overburden. [S1]
Surface tape fails by UV embrittlement (carbon-black-loaded LDPE extends outdoor life to 6–12 months vs ~3 months for unpigmented film) and by wind/pedestrian tear-out at low-tack stakes. Specifying ≥ 50 µm LDPE with UV stabilizer and using reinforced barricade mesh (SMPL's WARSHIELD rockshield) at trench crossings reduces both [S1].
Adjacent Protection Products in the Underground-Locating Family
Warning tape rarely travels alone: cable protection cover plates (HDPE or PP, 1–3 mm thick, 150–300 mm wide, placed 150–300 mm above the cable) provide mechanical impact protection, while warning mesh (orange PP, 40–60 g/m²) gives a wider alerting band 300–600 mm above the asset [S1].
SMPL's WARMAT underground warning tape, WARSHIELD protection mesh, underground warning mesh, and underground cable protection cover form an integrated trench-protection stack: mesh on top, cover plate mid-depth, detectable tape 300 mm above the utility. High-density polyethylene sheets are also used as marker boards at junctions [S1].
Lead-Free, Reusable, and Environmental Compliance
SMPL markets its PE-based tapes as 100% reusable, lead-free, and non-sticky/non-adhesive, which is the industry baseline for underground-grade tape and avoids heavy-metal pigment migration into groundwater [S1].
Anti-rodent adhesive tape (RODENTSHIELD) and termiresist tape are niche variants for rodent-prone sites (using capsaicin or denatonium-benzonate deterrents) and tropical/subterranean-termite zones, respectively, and are typically specified as 50–80 mm wide PE strips applied at the trench perimeter rather than as primary utility markers [S1].
For procurement teams mapping buried-infrastructure protection alongside adjacent utility categories, the broader industrial valve and flow meter reference pages sit in the same plant-utility context and use related spec-discipline language.
Track two signals in the next buying cycle: (1) wider adoption of 0.5 mm SS316 wire-reinforced detectable tape in coastal and landfill-grade projects, displacing 50 µm foil in deep-trench work, and (2) growth of lead-free, UV-stabilized LDPE barricade tape with ≥ 12-month outdoor rating for traffic-control rental fleets. Sourcing map for adjacent safety categories continues to consolidate around ISO 9001:2015 converters offering multi-product trench stacks rather than single-tape specialists [S1].
