Worm gear reducers in pulp and paper mills are specified primarily for refiner drives, pulper drives, dryer section drives, and trim nozzle positioning, where single-stage ratios above 60:1 and inherent self-locking eliminate the need for a separate holding brake [S1].
For continuous-duty paper machine sections, parallel shaft helical gearboxes are the default because they deliver 96-98% efficiency per stage and smoother torque transmission at high load [S2][S3]. The worm reducer's role is narrower: it solves mechanical layout problems (right-angle drive in tight guards), safety problems (self-locking hold without external brake), and low-cost problems (single-stage reduction where a helical unit would need two or three stages).
Where Worm Reducers Fit in a Paper Mill: Refiner, Pulper, Dryer, and Trim Duties
Pulp and paper application classes identified for worm gearing include refiner drives, pulper drives, and dryer drives, with selection driven by required single-stage reduction and right-angle mounting envelope rather than by efficiency targets [S1]. Refiner drives run heavily loaded, often continuously, and frequently converge on parallel shaft helical units because the worm efficiency tax at 60:1 typically lands around 60-65% useful output for the input power [S2][S3]. Pulper drives follow the same logic when the duty cycle is heavy and continuous.
Where worm units dominate is in auxiliary paper machine hardware: edge-trim nozzle positioning units, for example, use a built-in worm gear for manual or driven cross-machine direction (CD) movement, paired with a pressure-adjusting unit and rapid-exchange filter unit, in stainless-steel construction suitable for pulp applications [S4]. This is the classic self-locking use case: a worm reducer holds the trim nozzle at set position under trim water reaction forces, with no need for a powered brake or continuous motor torque.
Decision Criteria: Efficiency, Ratio, Service Factor, and Self-Locking
Four parameters decide whether a worm reducer belongs on a paper machine axis: per-stage efficiency, achievable single-stage ratio, applied service factor, and the need for self-locking. Standard worm gearboxes are offered with ratios up to 4900:1 in single and double-stage designs, while SEW-Eurodrive-class helical-worm and SPIROPLAN units are positioned for light loads to roughly 4,000 Nm output torque in pulp, paper, and aggregates service [S5][S6].
Service factor is the other gate. Malloy's published guidance tells specifiers to apply factors that reflect the real loading profile, including starts per hour, shock loading, and direction reversals, not the upstream motor nameplate [S1]. On a paper machine, dryer section drives see moderate steady load with low starts; refiner drives see high shock load; trim nozzle drives see low load and very low duty cycle, and that profile spread is exactly why the same mill ends up with three different gearbox technologies on three adjacent axes.
Comparison: Worm, Helical, and Helical-Worm on Paper-Mill Decision Criteria
Worm, helical, and helical-worm units each address a different combination of efficiency, ratio, and self-locking need, and lining them up against the four decision criteria above is the cleanest way to choose [S1][S3][S5][S6]:
Per-stage efficiency: helical 96-98%, helical-worm 70-90% (typical, lead-angle dependent), worm 50-90% and falling as ratio rises [S3][S5]. Single-stage ratio capability: helical 5:1 to roughly 20:1 per stage, helical-worm 20:1 to 100:1, worm 5:1 to 100:1 standard and up to 4900:1 in extended double-stage offerings [S6]. Self-locking at rest: helical none, helical-worm partial, worm inherent at high ratio (a real engineering benefit for position-holding without a powered brake) [S3]. Output torque envelope: helical units scale into the high-torque parallel-shaft class used for paper-plant main drives, while SEW-class helical-worm and SPIROPLAN units cover the light-duty range to 4,000 Nm for aggregate and pulp auxiliaries [S2][S5].
The short version: if the duty is continuous and high-torque, choose helical or parallel-shaft helical; if the duty is auxiliary, position-holding, or right-angle in a tight envelope, choose worm; if the duty falls between those two and you can accept a small efficiency tax, helical-worm is the bridge technology [S2][S3][S5].
Worm Reducer Failure Modes and Selection Pitfalls in Paper Mills
Worm gearing relies on sliding friction between the worm thread and worm wheel tooth, which is the source of the technology's self-locking advantage and also the source of its higher wear rate and lower efficiency versus rolling-contact gear types [S3].
Selection pitfalls that recur in paper mill projects include undersizing service factor for shock-loaded refiner or chipper drives, omitting a right-angle envelope check that forces a costly coupling redesign later, and specifying a worm unit for a continuous-duty high-torque axis where a parallel-shaft helical gearbox would have run cooler and used less power [S1][S2].

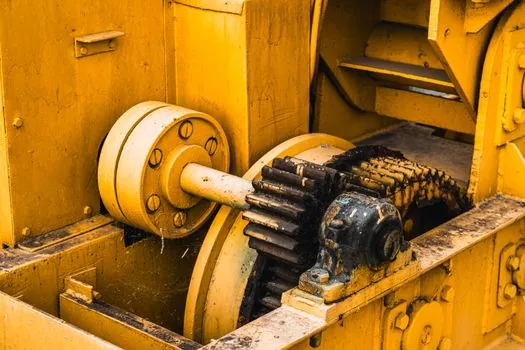

Selection Workflow: From Duty Profile to Lubrication and Mounting
A defensible worm-reducer specification for a paper machine axis starts with the duty profile and ends with lubrication matched to ambient. The first pass: identify whether the axis is continuous-duty high-torque (helical, not worm), continuous-duty light-torque (helical or helical-worm acceptable), or intermittent position-holding (worm is the right call) [S1][S3]. Second pass: lock the required single-stage ratio, confirm the right-angle mounting envelope against the machine guard, and pick a standard catalogue family (ratios to 4900:1 in single and double-stage designs are widely available) [S6].
Third pass: apply a service factor that reflects starts per hour, shock load, and direction reversals for that specific paper-machine axis, not the motor nameplate [S1]. Fourth pass: confirm lubrication grade against ambient temperature and housing orientation; worm gear oil specifications are tighter than helical because the sliding contact generates bulk heat that breaks down under-spec oil faster. Fifth pass: plan maintenance access at specification time, because gearboxes that cannot be inspected or sampled are gearboxes that do not get inspected or sampled, and on a paper machine that means an unplanned dryer-section shutdown [S1].
Adjacent Specification: When the Paper Mill Picks Helical Instead
For paper plants specifying higher-power drives, parallel-shaft helical gearboxes are the established choice because they combine smooth running with stable power transmission at the torque levels a refiner or main press drive demands, and they avoid the worm efficiency tax entirely [S2]. SEW-class helical, helical-bevel, helical-worm, and SPIROPLAN gear-motor packages cover the full spectrum from light-load auxiliaries through heavy continuous drives in pulp, paper, and aggregates service, which is why the same vendor family is specified across an entire mill rather than mixing technology per axis without a rationale [S5].
Worm reducer selection for material handling conveyors, hoists, and stacker drives follows similar logic and is covered separately in Worm Gear Reducer Selection for Material Handling: Ratios, Torque, Service Factor. For wind turbine auxiliary drives where self-locking at high ratio matters more than efficiency, the trade pattern is similar but the standards and torque envelopes are different, as laid out in Worm Gear Reducer Selection for Wind Power Auxiliary Drives. Limit switches that pair with these reducers on dryer and reel positioning axes are mapped in Best Limit Switch for Pulp and Paper Mills: 2026 Spec Map.
Track the next two signals: any update to the AGMA service factor tables that paper-mill specifiers apply to worm units, and any vendor release of a higher-efficiency worm profile (lead-angle optimized) that pushes the 50-90% per-stage band upward without giving up the self-locking behaviour that the trim nozzle and gate actuator duties actually need [S1][S3][S6].
