An automatic molding line for power-generation components is sized first by the heaviest single casting — typically a turbine housing, valve body or generator-end bracket weighing 80–2,500 kg — and second by the alloy mix, because austenitic stainless and high-chrome grades demand different sand, binder and compaction logic than carbon-steel utility castings.
The technology split is binary in practice: greensand automatic molding line systems running 12–30 molds/hour on flasks of 800×600 mm up to 1600×1200 mm, versus horizontal flaskless cold-box or PEP-set lines pushing 180–400 molds/hour on a sand block roughly 600×500 mm to 1000×800 mm; vertically-parted molding line setups sit between, at 40–120 molds/hour. Each architecture carries a different floor-loading, sand-handling and dust-extraction envelope, and a wrong pick multiplies capex and per-ton sand cost for the next 15 years.
What "power generation" actually demands from the molding line
Power-generation castings are dominated by four part families: steam-turbine housings and casings (often 200–2,500 kg in carbon or low-alloy steel), pump and valve bodies for boiler-feed and cooling-water circuits, generator-end brackets and stator frames, and a long tail of grey-iron or ductile-iron service fittings. Three engineering facts drive the spec: most of these parts are thick-walled (50–250 mm section), many require controlled cooling to avoid pearlite banding or ferrite streaks, and a meaningful share — stainless pump bodies, monel trim housings, high-chrome wear rings — cannot tolerate the silica-dust and moisture drift of a greensand line. The practical consequence is that a plant mixing ductile-iron fittings with 10–20% stainless or copper-alloy pump bodies almost always ends up with two parallel lines: a greensand shell molding machine bank for the high-volume iron, and a horizontal flaskless resin line for the corrosion-alloy mix. [S1]
On the greensand side, the controlling numbers are compactability (target 38–45% with a ±2% tolerance window), moisture (2.8–3.6% for bentonite-bonded mixes), and tensile strength of the prepared sand (typically 120–170 kPa after mulling). On the resin side, the controlling numbers are strip time (bench life of 30–180 seconds depending on resin system), gassing time, and a cured mold hardness above 85 Shore A at the parting line — these windows are tight because power-plant castings are audited against internal porosity and inclusion limits that are 30–50% tighter than generic industrial castings.
Flask size, sand rate and takt — the selection triangle
Three numbers decide the line: maximum flask size L×W×H, net sand rate (molded tons per hour at target compactability), and cycle time. For a typical power-generation foundry running a mix of 100–500 kg castings on greensand, a 1200×1000×400/400 mm flask line at 18–22 molds/hour delivers roughly 25–40 molded tons/hour; that is the workhorse configuration. For smaller utility-class fittings 5–50 kg, a 900×700 mm flask running 22–28 molds/hour covers volume without over-spending on flask mass. [S2]
Horizontal flaskless cold-box lines invert the logic: a 700×600 mm sand block at 240 molds/hour with a 12–18 kg sand slug per mold yields 3.0–4.5 tons/hour of resin-bonded sand, which is too small for a 10,000-ton-per-year iron foundry but correct for a 1,500–3,000-ton stainless pump-and-valve shop. The static pressure molding machine configuration — squeezing pressure 0.6–1.2 MPa on a pre-filled flask — sits between, with 20–40 molds/hour on 1000×800 mm flasks, and is the typical upgrade path for a foundry moving from jolt-squeeze to a controlled-density process.
Two reference rules from the field: cycle time scales roughly linearly with flask plan area for greensand, and a 10% jump in compactability tolerance (±2% to ±2.2%) typically lifts scrap rate from below 2% to 4–6% on thick-section power-generation castings because moisture variability drives gas porosity at the cope surface.

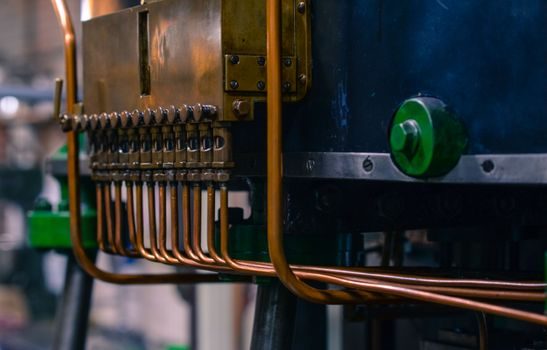

Greensand versus resin cold-box: a criteria comparison
On a 1,500–3,000 ton-per-year power-generation mix of ductile-iron housings, stainless pump bodies and bronze valve trim, four criteria separate the two architectures cleanly. (1) Sand cost per ton of casting: greensand with bentonite-bonded silica sits at 35–60 USD/ton of prepared sand, resin cold-box with PEP-set or furan sits at 110–180 USD/ton — a 2–3× delta that compounds over 15 years. (2) Molding rate at 600×500 mm equivalent mold: greensand 18–25 molds/hour, cold-box 220–320 molds/hour — cold-box wins by an order of magnitude. (3) Surface finish and dimensional tolerance: greensand delivers CT 9–11 (ISO 8062-3), cold-box delivers CT 7–9, with cold-box typically 0.3–0.8 mm better on critical sealing faces for valve bodies. (4) Capability on stainless and copper alloys: greensand struggles because moisture control at 3.0–3.4% is harder to hold against exothermic reactions on chrome-bearing pours, while cold-box is the default for 304/316, duplex and high-chrome grades. [S3]
Choose cold-box when the mix skews to stainless or copper alloys, the volume justifies a 220+ molds/hour rate, and the foundry can absorb a higher sand-cost line.
Sand handling, reclamation and dust — the auxiliary envelope
A 25 molded-tons/hour greensand line pulls 60–90 tons/hour of return sand through the conveyor sorting line, magnetic separator and cooler, and the return-sand temperature must be held below 45 °C to keep bentonite activation stable. Typical reclamation targets are 80–92% recovery of the active bentonite fraction, with new-sand addition of 4–7% to cover core loss and dust. For resin lines, attrition reclaimer output is set to keep AFS fineness between 45 and 60, with thermal or mechanical reclaimer choosing depends on whether the binder is organic (furan, phenolic) — at 800–900 °C thermal reclamation is the standard to burn out residual resin. [S1]
Dust and emissions numbers that matter: a 20 molded-tons/hour greensand line without a wet scrubber typically discharges 80–150 mg/Nm³ of silica-bearing dust at the sand handling stack, and 20–40 mg/Nm³ with a bag filter plus wet scrubber on the mixer. For a foundry in an EU regulatory perimeter, ATEX 2014/34/EU zoning on the dust pickup and sieve is a hard spec, with the mixer, hopper and silo-top typically zoned as 20/22 inside the enclosure. Noise is the second constraint: a greensand line without acoustic enclosures runs 92–98 dB(A) at the operator station; with enclosures and the squeeze head damped, that drops to 78–85 dB(A) — the threshold for an 8-hour operator shift without hearing protection in most jurisdictions.
Who this line is for, and where it fails
[S2]
The deeper failure mode is parts-related: a 2,500 kg turbine casing on a 1200×1000 mm flask is at the upper edge of most squeeze heads, and pushing beyond the rated clamping force of 1,200–1,800 kN causes mold flash and casting dimensional drift that scrap rate alone will not surface until the third or fourth heats.
Standards, sourcing and trackable signals
Specifying the line is mostly a question of which tolerances and inspection regimes you must audit against. ISO 8062-3 governs the casting geometrical tolerance classes (CT 7–11 typically) and pairs with ISO 6892 for the casting mechanical properties. For dimensional control on the mold itself, foundries commonly reference the VDG P-series guidelines for the mold hardness and density mapping. For the materials, ASTM A536 covers ductile-iron grades 60-40-18 through 100-70-03 that dominate power-generation housings, and ASTM A216 WCB/WCC for the carbon-steel valve bodies; stainless pump and trim castings reference ASTM A351 CF8/CF8M or A890 duplex grades. [S3]
Two trackable signals to watch into the second half of 2026: first, delivery lead times from Chinese builders, which moved from 6–9 months pre-2024 to 14–20 months in 2024–2025 and have started to ease toward 10–14 months in the first half of 2026 as foundry capex demand cooled; second, resin and catalyst price stability, with PEP-set resin running 1,800–2,400 USD/ton delivered to Southeast Asia in mid-2026 versus a 2022–2023 band of 1,400–1,700 USD/ton — a delta that re-orders the payback math on any cold-box project tendered in the back half of 2026. The automatic molding line selection guide walks through the same flask-size and takt logic for non-power-generation foundries, and a muller and sand-mixer comparison is the natural follow-on read for the green-sand side of the same project.
