Precision grades and accuracy stack
Ball-screw accuracy in automated cells is normally classified per DIN ISO 3408 / DIN 69051: IT 1 (≈ 3-5 µm / 300 mm travel), IT 3 (≈ 8-12 µm) and IT 5 (≈ 18-23 µm) — A. Mannesmann explicitly ships all three classes with preloaded double nuts in an O-arrangement [S3]. Achievable end-stage accuracy depends on the stack: Daheng's GCD-501100M uses a high-precision ground ball screw to reach repeatable sub-micrometre motion when paired with a closed-loop controller [S1]. The reference ball screw article breaks down why IT 1 nuts still need matched support bearings and a tension/compression preloaded pair to hit the rated figure.
For automation, IT 5 covers most machine-tool axes, pick-and-place, and packaging slides; IT 3 is the common floor for semiconductor inspection and PCB drilling; IT 1 is reserved for ultra-precision metrology and optical polishing. Selection should start with required positioning repeatability, not the highest grade available, because moving from IT 5 to IT 1 typically 2-3× the cost of the screw, plus a stiffer bearing arrangement.
Closed-loop, encoder-resolved, thermal-aware
Smart manufacturing lines treat the ball screw as a mechatronic assembly: servo drive + linear encoder + temperature sensors + controller. The PI M-122.2DD1 integrates a linear encoder giving 0.1 µm resolution and 0.2 µm minimum incremental motion over a 25 mm stroke at 0.02 m/s [S1]. A. Mannesmann's catalog lists a separate Sensor System option, intended for live preload and position feedback [S3].
Thermal expansion is the dominant error source on a continuously running ball-screw feed system: a 2022 study in The International Journal of Advanced Manufacturing Technology measured the temperature rise at the nut, the motor side and the support-bearing side of a precision BSFS, then built a thermal-error compensation model on top of the mechanical model [S4]. The same group's survey on modeling and control of ball-screw feed-drive systems frames the screw as a flexible distributed-parameter body that requires both high-bandwidth servo control and thermal correction to keep micron-class accuracy at high acceleration [S2]. For automation users, the practical rule is: every precision ball-screw axis that runs more than a few minutes per cycle needs at least one temperature probe at the nut and a compensation table in the controller.

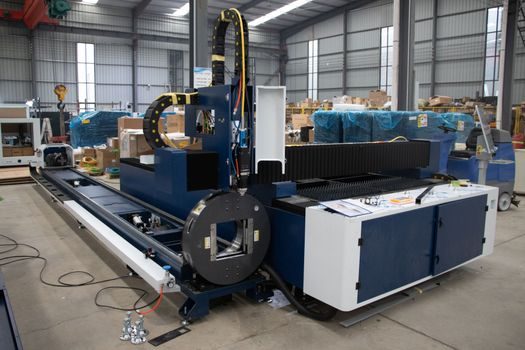

Linear modules: where smart manufacturing actually ships
Linear-module vendors now publish a single datasheet that bundles the ball screw, the support bearings, the slide guidance, the motor mount, the coupling, and the encoder bracket. Willbot's QF8 is a compact 80 mm-wide ball-screw linear actuator with 420 mm max stroke, 30 kg max load and ±0.006 mm repeatability, marketed for industrial automation, precision assembly and optical equipment [S10]. DirectIndustry's directory for ball-screw positioning stages lists FUYU Technology's FSK40IS-DL (X 200 mm, 50-1000 mm stroke, 0.26 m/s, 0.02-0.2 mm repeatability) for point-to-point handling, inspection and dispensing [S1].
Compare three common linear-module classes on four decision criteria:
1) Compact ball-screw actuator (e.g. Willbot QF8): stroke ≤ 420 mm, load ≤ 30 kg, repeatability ±5-10 µm, lead time shortest. 2) Mid-range linear positioning stage (e.g. FUYU FSK40IS-DL, PI 402XE): stroke 50-1000 mm, load to ~50 kg, repeatability 5-20 µm, lead time 4-6 weeks. 3) Precision metrology stage (e.g. PI M-122.2DD1, Daheng GCD-501100M): stroke 25-100 mm, sub-micrometre encoder resolution, lead time measured in months, cost per axis 5-10× class 1. A typical SMT pick-and-place axis slots into class 1; an optical inspection line targets class 2; a wafer-stage or laser-machining head needs class 3.
Custom manufacturing, repair, and large-format axes
Smart factory retrofits often need shafts longer or thicker than any catalog item, and that is where custom shops take over. Dynatect manufactures and repairs custom ball-screw assemblies up to 6 in (≈ 150 mm) diameter and over 50 ft (≈ 15 m) shaft length, with standard lead times of 4-6 weeks and expediting available [S6]. On the supply side, Made-in-China lists Lishui (Zhejiang) and Jiangsu factories with ISO 9001:2015 certification, 20+ years' production experience, and material options including CF53 with C7 tolerance on a 40 mm big-lead CNC ball screw (SFS1620) [S7][S8][S9].
For higher-volume OEMs the practical decision matrix is: catalog screw + integrated module for short strokes and standard lead times; engineered-to-order screw for shafts above ~3 m, diameters above ~80 mm, or accuracy classes below IT 3. The process window is well documented — see Ball Screw Manufacturing Process: From Rolled to Ground, From Blank to Preloaded Nut for the rolled-to-ground split and the preload mechanics that govern IT grade.
Application spread: machine tools, 3D printing, automotive, textile

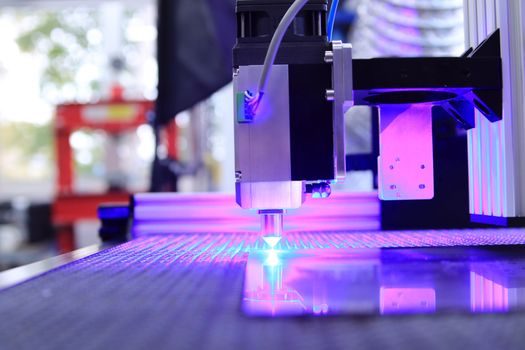

Ball-screw feed-drive systems remain the workhorse of precision machine tools — the survey above cites CNC machining, lathes, and parallel tool heads as the main application drivers, with high-acceleration dynamics research specifically targeting X-axis feed systems [S2]. Beyond machine tools the literature now covers ball-screw-driven elevators for building construction, automated-manual-transmission (AMT) gear-shifting actuators, ring-spinning-machine doffing devices, and FDM smart-food 3D printers, each imposing a different load/cycle profile on the same mechanical element [S2].
For OEM selection, the application-to-spec map is roughly: machine tool axis → IT 3-IT 5 ground screw, C0-C3 preload, 1-2 m/s; semiconductor/inspection → IT 1-IT 3 ground screw with linear encoder, 0.1-0.2 m/s; elevator / heavy transport → rolled screw, 30% of dynamic load rating limit per A. Mannesmann's published design rule, lubrication at 20,000 h service intervals [S3]; 3D printer / FDM → small-format rolled or ground screw, C5-C7 tolerance, often a 6-16 mm diameter. The ball screw reference page consolidates the load-life formulas behind these rules.
Selection criteria: precision, load, life, integration
Five criteria cover most procurement decisions for an automated ball-screw axis. (1) Accuracy class: IT 1 / IT 3 / IT 5 per DIN ISO 3408, matched to the positioning repeatability budget [S3]. (2) Load and life: dynamic load rating C [N] and target L10 life in hours; A. Mannesmann caps axial preloaded load at 30% of the dynamic load rating and still expects more than 20,000 h operation at standard speed/acceleration [S3]. (3) Drive integration: servo or stepper, with/without integrated linear encoder — encoder-resolved stages change the error budget dramatically, taking 1-2 µm of backlash play out of the equation [S1]. (4) Speed and acceleration: linear-stage catalog speeds vary from 0.02 m/s (PI M-122.2DD1) up to 1.5 m/s (some TKK-series stages) [S1]. (5) Form factor: catalog module vs engineered-to-order; a 50 ft custom shaft from Dynatect is not interchangeable with a 420 mm QF8 module [S6][S10].
For the drivetrain interface, ball-screw modules typically pair with a planetary gearbox or a direct-drive servo through a bellows coupling. When the axis is part of a larger precision positioning chain — for example a wafer-handling robot or a CNC tool head — the matching gear reducer selection follows its own torque, ratio and backlash trade-offs, covered in Planetary Gearbox Selection: Torque, Ratio, Backlash and Stage Trade-offs.
Failure modes and what the 2026 buyer should watch

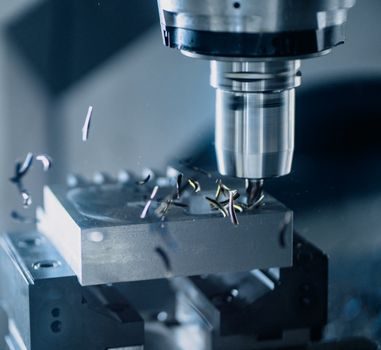

The well-documented failure modes for a ball-screw feed system in a smart-factory cell are wear at the contact surfaces, lubrication degradation, thermal-induced positioning error, and fatigue of the ball track. A 2022 experimental study on a precision machine tool isolated these effects into a thermal-error model and showed that heat from the motor side and the nut side contributes differently to drift at different speeds [S4]. A separate study on double-nut ball screws measured the wear coefficient directly and tied it to preload and surface finish [S2].
For procurement, three watch-points stand out in 2026: (a) demand the actual IT class on the certificate — IT 1 vs IT 3 is not a marketing claim, it is a measured 3-12 µm / 300 mm travel [S3]; (b) require an encoder-resolution statement, because "±0.005 mm repeatability" without a sensor specification is usually just the screw's mechanical hysteresis; (c) specify the lubrication interval and the grease family, since the >20,000 h L10 figure assumes correct lubrication at the rated axial load [S3].
Track two signals over the next quarter: (1) whether leading Chinese suppliers extend the IT 3 ground-screw line below 16 mm diameter at C5 tolerance — current Made-in-China catalog shows 40 mm big-lead (SFS1620) at C7 with CF53 material [S8]; (2) whether the next generation of ball-screw positioning stages publish integrated thermal compensation curves rather than leaving them to the controller — DirectIndustry already lists 130 products in this category, but thermal data on the public spec sheets remains rare [S1].
