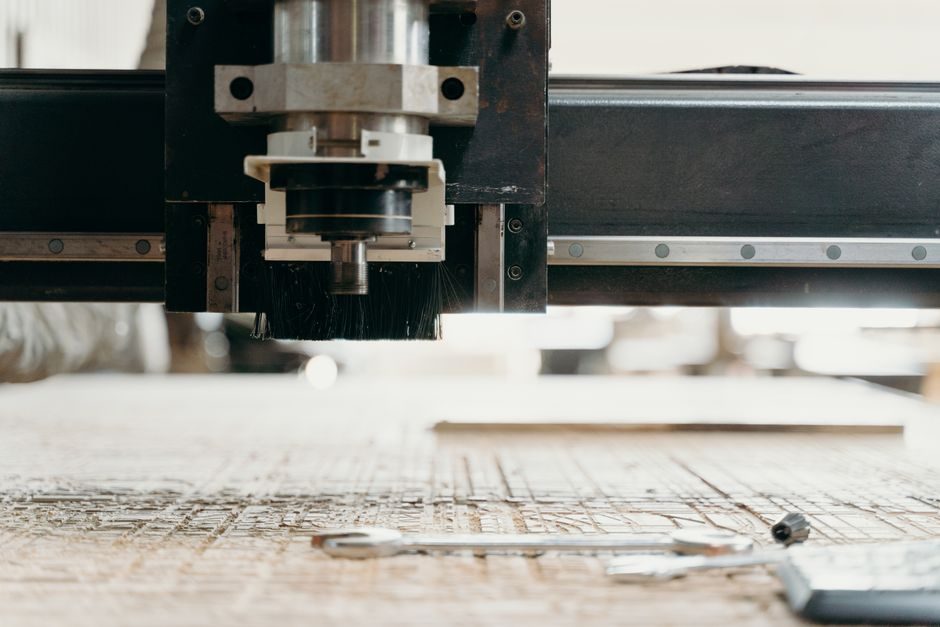

Linear guide rails sized from 100 mm to 3,000 mm in length and HRC58-62 hardened raceways are the default load-bearing element inside the Cartesian, gantry and linear-module cells now specified for smart-manufacturing lines, with light-load MGN-series rails and high-load HGW/EGW profile guideways deployed side-by-side [S2].
Sourcing has consolidated around Chinese OEM/ODM plants in Lishui (Zhejiang), Qingdao (Shandong) and Chengdu (Sichuan), and around European suppliers offering aluminum-bodied D48-AL60 contact-shoe rails for cleanroom and medical automation, with SCHNEEBERGER MONORAIL cross-roller and ball guideways (Type R, Type RN, Type RNG) serving the high-precision end of the market [S1][S2][S3][S5][S6].
What a "linear guide rail for automation" actually is
Linear guide rails in this segment are profiled steel or aluminum extrusions carrying either recirculating ball bearings, crossed rollers, or polymer contact shoes; the SCHNEEBERGER Type R is described by the manufacturer as "the first standardized frictionless guideways in the world," with the RN variant compatible with R and the RNG adding integrated cage control for stroke synchronisation [S3].
For light-duty automation, the MGN-C and MGN-H series (9 mm block width class) carry the bulk of the volumes sold by Chinese OEM lines, with rail lengths of 100-2000 mm and rails of MGN9C Chrome Steel / Stainless Steel Aluminium Alloy listed at HRC58-62 hardness under ISO 9001:2008 certification. For heavier Cartesian and gantry payloads, the HGW-CC/HGW-HC and EGW-SA/EGW-CA families add 25-45 mm rail widths and 4-row ball circulation; Asia FON catalogues the full stack alongside SFU/DFU ball screws and SFK ball splines for complete linear-module assemblies [S5]. See the linear guide reference for the geometry conventions (block height, preload class, accuracy grade P) that the MGN9C P-grade spec refers to.
Criteria-based selection: ball, cross-roller, contact-shoe
Three rolling-element families dominate the 2026 shortlist, and each is matched to a different smart-manufacturing cell profile. The criteria worth scoring on are load capacity per block, permissible speed, stick-slip behaviour, contamination tolerance, and unit cost in OEM volumes. [S1]
Ball-bearing recirculating rails (HGW, EGW, MGN) give the lowest unit cost, the highest permissible speed, and the cleanest feel in long-stroke gantries, at the price of lower static stiffness per block than a crossed-roller equivalent. Crossed-roller MONORAIL profile guideways (Type R / RN / RNG) deliver roughly twice the moment stiffness in a comparable footprint, accept lower speeds, and are the first choice for high-precision semiconductor, metrology and medical-automation cells [S3]. Aluminum-bodied contact-shoe rails such as the CHAMBRELAN D48-AL60 (rail length 300-3,000 mm, ball-bearing rolling element, contact-shoe variant in the same D-family) trade some load capacity for corrosion resistance, low mass, and cleanroom compatibility, making them a common pick for medical and laboratory automation [S2].
Stick-slip and friction class are the decision drivers that do not appear in the catalogue headline numbers: contact-shoe D48-AL60 is positioned by the supplier for applications needing defined friction and quiet motion, while MONORAIL RNG is built for "delicate, precise, feedback-free movements with little effort" per the supplier [S3]. Engineers designing precision positioning systems should also note the crossed roller guide options when moment loads are dominated by overturning rather than vertical force, as the crossed-roller geometry handles moment loading without the preload-loss issues that a 4-row ball rail can show under cantilevered payloads.

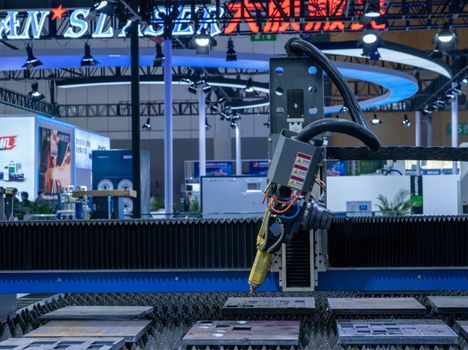

Gantry, Cartesian and linear-module integration

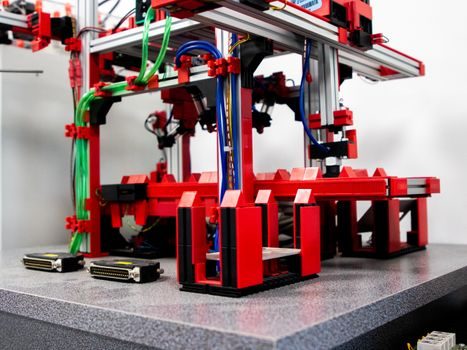

A gantry robot — also called a Cartesian or linear robot — is described by FUYU Technology as "a manipulator mounted onto an overhead system that allows movement across a horizontal plane," with belt-driven linear actuators widely used in electronic assembly, electronic manufacturing, vision systems and industrial automation, and the horizontal travel elements almost always built on a linear guide rail pair [S1].
The 2026 smart-manufacturing stack pairs those rails with servo linear motor actuators and servo belt-drive actuators in the $300-$900 per-piece range (MOQ 1 piece) from Jiangsu-based OEM lines, and with ball-screw driven linear modules where repeatable positioning is required rather than continuous-stroke scanning [S4]. Asia FON supplies a complete linear-module build kit (linear guide rail + ball screw + ball spline + linear bearing), which is the typical BOM for a 1-axis Cartesian module on a palletising or pick-and-place cell; WANGONG lists ball screws, linear guides and high-precision transmission components as its core catalog since its 2008 founding in Lishui [S5][S6]. For a deeper look at the motor side of the BOM and the SMT-line audit anchors that govern these actuator builds, see the servo drive manufacturing process reference.
Hardness, material and accuracy grades to specify
Spec sheets in this segment now cluster around three concrete numbers engineers should write into the RFQ: rail hardness HRC58-62, accuracy grade P (precision) for positioning modules, and rail length 100-2000 mm for the MGN-class and up to 3,000 mm for D48-AL60-class aluminum contact-shoe rails [S2]. The MGN9C datasheet lists "Chrome Steel and Stainless Steel Aluminium Alloy" as the construction, with "P Grade" as the precision class, and "Automatic Machinery" as the installation mode — a wording engineers should treat as the de-facto RFQ line for light-load automation.
Material selection is the single largest swing factor on total cost of ownership: aluminum-bodied rails such as D48-AL60 and ST50-GS54 (stainless-steel variant) sit at the corrosion-resistant end of the spectrum and are used where washdown or cleanroom cleaning is part of the duty cycle, while carbon-steel HGW/E rails accept higher contact stress and longer service life in dirty environments [S2]. Where motion must repeat at the micrometer level, crossed-roller MONORAIL R/RN/RNG is the only one of these three families specified by the supplier for "parts that can make delicate, precise and feedback-free movements" in machine tool, semiconductor and medical applications [S3].
Standards, audit anchors and sourcing map
The 2026 sourcing picture is dominated by ISO 9001:2008-certified Chinese OEM/ODM lines, with Qingdao Industrial Technology (Shandong) explicitly describing itself as "a professional supplier of industrial automation components and motion solutions" with R&D, production, sales and customisation in-house, and a Qingda-Made product list covering linear guide, spline, screw, linear bearing, cross-roller guide, cross-roller bearing, linear actuator, support unit, linear ball slide and cross-roller table. [S2]
Buyers should treat the accuracy-grade and hardness lines on the MGN9C datasheet (P-grade, HRC58-62, ISO 9001:2008) as the minimum audit anchor when qualifying a new Chinese supplier, and should require the same datasheet anchors — plus a published load-life rating in km or dynamic load C in N — when comparing a D48-AL60-class aluminum rail to a MONORAIL R-class profile [S3]. SCHNEEBERGER publishes the MONORAIL family alongside its mineral-casting, ball-screw and integrated-measuring-system product lines, so the rail, the screw and the position-feedback system are sourced from a single supplier for high-end cells [S3]. Two verifiable next-data nodes are worth tracking: (a) the Analytica Lab India 2026, IMTS 2026, AMB 2026 and SEMICON India 2026 / SEMICON West 2026 / SEDEX 2026 / PACK EXPO 2026 / MD&M Midwest 2026 trade-fair calendar, where new rail and linear-module releases are typically shown [S3]; (b) any move by Lishui Wangong Precision Machinery (founded 2008) or Qingdao Industrial Technology (founded 2019) to publish additional accuracy grades above P-grade on HGW/MGN rails. The additive manufacturing material reference is also worth keeping open, since several rail-supplier catalogues now list AM-buildable mineral casting and rail-mount brackets that are entering the precision-positioning market on the same lead times as MONORAIL profile guideways [S3].
