Grey iron and ductile (spheroidal graphite) iron remain the two workhorse cast-iron families specified across shipbuilding, with selection driven by pressure class, impact loading, and exposure to seawater rather than by raw material cost alone [S1][S2].
Marine specification also has to weigh thermal loading on engine components, where cast iron is the most widely used metal after steel, against the brittle-fracture and corrosion risks that push designers toward austempered or alloyed variants on larger prime movers [S5][S7].
Why Cast Iron at All: Castability, Damping, and the 2% Carbon Line
Cast iron is defined as an iron alloy with more than 2% carbon, almost always paired with 1-3% silicon, which together lower the melting point, improve fluidity, and reduce reaction with moulding sand compared with molten steel [S1]. Because the carbon precipitates as graphite during solidification, the alloy cannot be rolled or forged, but gains a set of properties no plain carbon steel offers at the same cost: compressive strength that is three to five times the tensile strength, vibration damping that improves with graphite content, and self-lubricating behaviour under borderline-lubrication sliding contact [S1][S4]. Grey iron is therefore the default material for upper cylinder liners and for machinery covers where acoustic damping matters more than impact toughness [S1].
Wrought iron and cast iron split at the Iron Age/Industrial Revolution boundary: wrought iron is virtually pure elemental Fe worked under the hammer, while cast iron is smelted at 2-4% C and 1-3% Si and poured, never hammered, into a mould [S4]. The downstream consequence is that any marine part with thin walls, sharp corners, or impact loading has to be re-graded away from generic grey iron, or the casting will crack at the graphite flake tips under shock [S3].
The Five Cast-Iron Families a Marine Specifier Must Distinguish
Grey iron (flake graphite) is specified in North America by a Class number equal to its minimum tensile strength in 10³ psi, so Class 20 means 20,000 psi minimum UTS, and that strength is highly sensitive to the casting's controlling section thickness [S1]. Ductile iron (also called nodular or spheroidal graphite iron, SG iron), produced by adding magnesium to give spheroidal rather than flake graphite, raises tensile and impact strength by roughly an order of magnitude over grey iron and is sold under designations like GGG40 in DIN/EN naming [S2]. White iron and malleable iron are specialised: white iron is hard and brittle, used for wear plates; malleable iron is white iron that has been heat-treated to convert the brittle carbide into temper graphite clusters, recovering useful ductility [S4].
Within the ductile family, austempered ductile iron (ADI) takes the alloy through a two-stage heat treatment that yields a bainitic matrix with retained austenite, giving wear resistance competitive with forged steel at lower weight, which is why ADI is increasingly specified for shipboard gearing and high-stress brackets [S6]. Compacted graphite iron (CGI) sits between grey and ductile, with short, thick interconnected graphite worms: it keeps much of grey iron's damping and thermal conductivity but roughly doubles the tensile strength, which is why heavy-duty marine diesel cylinder heads have moved toward CGI on the larger bore sizes [S7].
Cast Iron for Marine Valves: Where Grey Ends and Ductile Begins
On a marine globe valve, the material question is largely a question of fluid and pressure: grey cast iron (e.g. EN-GJL-250 / GG25) is acceptable for low-pressure, non-critical services such as fire-fighting mains and ballast lines below the class threshold, while ductile iron (e.g. EN-GJS-400 / GGG40) is required wherever the line is rated for higher pressure or subject to mechanical shock during berthing or wave-slap [S2]. The economic crossover is roughly at DN200 and above, where the per-piece price gap between bronze and ductile iron widens enough that ductile iron becomes the default for cost-driven bodies even on seawater duties, with bronze still preferred for shipside discharge and trim where biofouling resistance matters [S2].
Three operating realities govern that crossover and override raw cost: (1) grey iron has no distinct yield point and fails in a brittle, non-ductile mode, so it must not be used where predictable plastic deformation is preferred over catastrophic fracture; (2) graphite flakes in grey iron act as stress raisers, dropping impact strength well below ductile iron and below most cast steels; and (3) any ferrous body in seawater needs a coating, lining, or cathodic strategy, since unprotected grey or ductile iron will pit aggressively in aerated salt water [S1][S3]. A practical comparison for valve procurement:
<b>Bronze vs ductile iron vs grey iron for marine globe valves (DN200 class, seawater service):</b> corrosion resistance is highest in bronze (Cu-Sn-Zn gunmetal or Al-bronze, both forming a protective patina) and lowest in unprotected grey iron; cost per body of the same DN class is lowest in grey iron, with ductile iron in the middle and bronze commanding a premium; impact toughness is highest in bronze, intermediate in ductile iron, and lowest in grey iron; and machinability/damping is best in grey iron because the graphite flakes both chip cleanly and damp vibration [S1][S2].
Engine Components: Thermal Loading and the Steel Substitution Threshold
The thermal-stress failure mode is what forces a re-spec on larger marine engines: in small engines, cast iron covers work satisfactorily, but as thermal loading increases, thermal-stress failures can occur and steel is used on larger engines instead [S7]. That crossover is why large two-stroke marine diesels use cast steel cylinder covers, while medium-speed four-strokes continue to use pearlitic grey iron or CGI heads with controlled coolant-jacketed geometry [S5][S7]. The metallurgical distinction a marine engineer has to memorise for exam and for shop-floor work is between pearlitic grey cast iron and spheroidal graphite (ductile) cast iron: the former is iron with flake graphite in a pearlitic matrix, normally produced as-cast with no special heat treatment beyond stress relief; the latter is produced by magnesium or cerium inoculation of the melt so that the graphite solidifies as spheres, followed by ferritising or pearlitising anneal depending on whether ductility or wear resistance is the priority [S5].
For engine-bearing service, pearlitic grey iron with finely divided graphite remains a baseline material because the graphite itself provides a self-lubricating surface under marginal oil supply, and the pearlitic matrix gives the wear resistance needed at the bearing surface [S1][S5]. For crank-shafts, camshafts, and high-rpm gear wheels on shipboard machinery, the same graphitic-damping logic applies but the matrix has to be tougher, which is where ductile iron and ADI are substituted in to absorb bending and torsional shock that would crack grey iron [S6].
Cast-Iron Failure Modes a Marine Surveyor Should Recognise

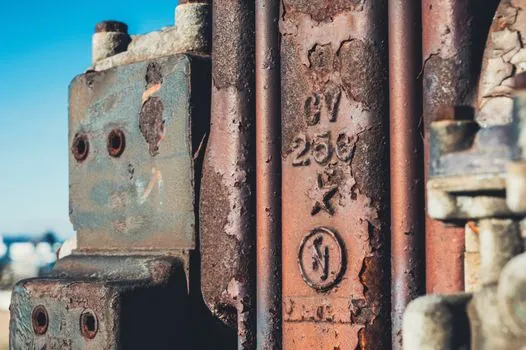

Three failure signatures dominate shipboard cast-iron failures and each maps back to a specific design choice. First, brittle fracture with little plastic strain and a grey-black crystalline facet almost always points to a grey iron grade that was specified where ductile iron should have been, especially on a section that took a mechanical impact or a cold-water thermal shock [S3]. Second, graphitic corrosion in seawater, where the iron matrix dissolves and leaves a soft graphite sponge (often called "graphitic corrosion" or "spongiosis"), is the long-term failure mode of any uncoated cast-iron pipe or valve body in aerated seawater and is the reason class rules push for lining, coating, or a move to bronze/ductile iron with proper corrosion allowance [S2]. Third, thermal-fatigue cracking at cylinder-cover bolt bosses or exhaust manifolds is the classic symptom of undersized cast iron in high-BMEP service, and the remediation is either a switch to cast steel, CGI, or a re-design of the cooling jacket to lower peak metal temperature [S7].
One often-missed point is that cast iron is less forgiving than carbon steel in selection and application, which is why a class-approved casting supplier with a documented heat-treatment procedure (ferritising, pearlitising, normalising, or austempering) is part of the specification, not a procurement afterthought [S3][S6]. A class surveyor will routinely reject a casting that meets the strength number on the test bar but shows an uncontrolled ferrite fraction or graphite degeneration in the production coupon, because the in-service behaviour diverges sharply from the lab coupon [S3].
Specification Checklist and Standards Map for Marine Procurement
A defensible marine cast-iron specification names the material standard, the grade within that standard, the test-bar geometry, the impact requirement if any, and the required surface protection, in that order. The most commonly invoked references for marine valve bodies are the EN 1561 (grey iron) and EN 1563 (ductile iron) series, with ASTM A48 (grey) and ASTM A536 (ductile) used in U.S.-flag work, and ISO 1083 for ductile iron internationally; valve assembly standards such as MSS-SP-25 or the relevant IMO/classification society rules are layered on top [S1][S2][S6]. For engine components, classification society rules (IACS members: Lloyd's Register, DNV, ABS, BV, ClassNK, RINA, KR, CCS) each publish their own casting acceptance criteria, and a foundry should be asked to demonstrate prior approval against the specific society, not just ISO 9001 [S5][S6].
Two operating limits to keep in front of any procurement decision: ductile iron retains useful impact toughness down to roughly -20°C with the standard ferritic-pearlitic matrix, and -40°C with explicit low-temperature nickel-alloyed grades, while grey iron loses Charpy impact energy so steeply below 0°C that class rules prohibit its use in any chilled or Arctic-service location in stressed sections [S1][S3]. When in doubt, specify ductile iron (GGG40 / GJS-400) over grey iron (GG25 / GJL-250) for any hull-penetrating valve, any sea-chest connection, and any line that sees a hammer-test during sea trials, because the safety margin is roughly an order of magnitude in impact energy for a modest cost premium [S2].
For shipboard applications that demand both corrosion resistance and castability beyond what ferrous alloys offer, the next escalation is to aluminium bronze or nickel-aluminium bronze bodies, which carry a substantial cost premium but eliminate the seawater graphitic-corrosion failure mode entirely [S2]. Engineering plastics such as engineering plastics and glass-fibre-reinforced composites are increasingly co-specified for non-pressure pipe supports and sea-chest gratings where the duty is structural rather than pressure-retaining, freeing the iron specification to focus on the truly pressure-bearing components. For a broader view of how cast iron sits next to other cast metals in shipboard valve bodies, see the cast iron and marine valve reference pages.
For related coverage, see Glass Fiber Selection for Medical Devices: Spec-Anchored Criteria.
