Material Properties: Density, Absorption, and Hardness
Flexural strength per ASTM C648 averages 35-60 MPa for porcelain versus 15-30 MPa for non-porcelain — a 2× margin that shows up as lower breakage rates on site.
Coefficient of thermal expansion sits near 6-8 × 10⁻⁶/°C, low enough for use over underfloor radiant heating but high enough to demand expansion joints every 4-6 m in large commercial floors.
Advantages: Wear, Water, Fire, and Lifecycle
PEI Class IV and V glazed porcelain survives 12,000+ revolutions on the abrasion test, making it the default for shopping malls, hospitals, and airport terminals where 20+ year wear is specified [S1].
Fire performance is essentially inert: the fired body is A1/A2fl non-combustible with zero flame-spread contribution and zero smoke-developed index, which is why tile is the finish of choice for egress corridors and high-rise facades.
Lifecycle cost compares well to LVT and carpet over a 30-year horizon: tile installs routinely hit 30-40 years, carpet cycles at 8-12, and LVT at 15-20, so replacement labour dominates the TCO stack — a pattern seen in the industrial flooring total-cost maps covering long-life capital finishes.

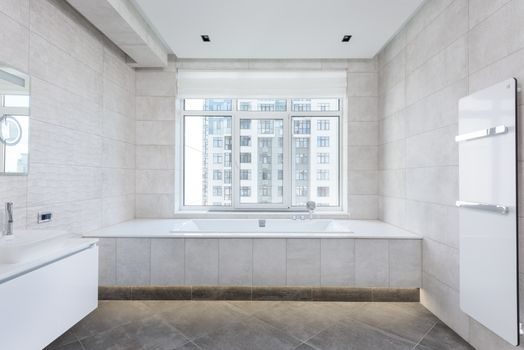

Disadvantages: Installation Cost, Grout, Cold Feel, and Brittleness
Ceramic tile is rigid and brittle: point impact above roughly 2-3 J chips the glaze, and a dropped cast-iron pan will crack a porcelain tile that would only dent vinyl — this failure mode drives hospital and warehouse wheel-load specs toward thicker 10-12 mm formats or alternative materials [S1].
Thermal mass makes the surface cold underfoot; in temperate climates this is mitigated by underfloor radiant loops, but the operating-cost penalty remains versus carpet. Grout joints, typically 2-5 mm wide, absorb spills and stain; cementitious grout needs periodic sealing, while epoxy grout raises material cost 3-5× but eliminates the maintenance interval.
Install labour runs $8-25/m² depending on format and substrate prep, materially higher than click-lock LVT at $2-5/m². Substrate flatness tolerance is unforgiving — deviation above 3 mm over 2 m requires a levelling screed, and any flex in the subfloor telegraphs as cracked tile and hollow spots within 12-24 months.
Lining the four main hard-surface options against the criteria that drive spec selection surfaces where each one wins [S1].
Porcelain wins on wear, water, and lifecycle; resilient wins on install speed, comfort, and impact forgiveness; stone wins on aesthetics and prestige but loses on chemical and stain resistance versus glazed tile. The trade-off map mirrors the layered logic in filling-scale selection guides, where each option dominates a different criterion cell rather than a single best-answer.

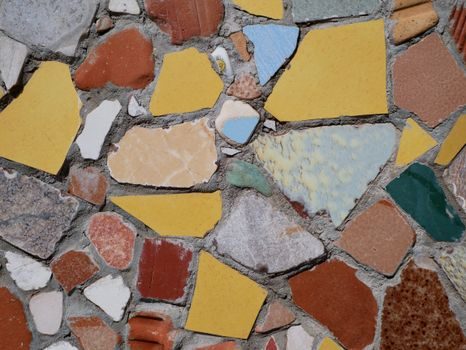

Who Should Specify Tile, and Who Should Not
Tile is the right call for wet areas (bathrooms, kitchens, pool decks), high-traffic commercial floors rated PEI IV/V, exterior freeze-thaw zones requiring ≤0.5% absorption, fire-rated egress corridors, and any installation targeting a 30+ year service interval without major replacement [S1].
Tile is the wrong call where the substrate flexes (second-storey wood frames over 16-inch centres without stiffening), where impact from dropped tools is routine (workshops, mechanic bays — specify urethane-cement or rubber instead), where barefoot comfort dominates (bedrooms, elder-care rooms), or where fast install on occupied space matters (spec LVT or click porcelain panels with 600×1200 mm formats and 6 mm thickness to cut install time by 30-40%).
Standards, Sourcing, and Failure Modes to Audit
The five governing standards for spec compliance are ASTM C373 (water absorption), ASTM C648 (breaking strength), ASTM C1026 (freeze-thaw), ASTM C650 (chemical resistance), and ISO 10545-7 (PEI abrasion) — every datasheet should cite at least C373, C648, and 10545-7 to be sourceable [S1].
Failure modes to inspect during sourcing review: efflorescence from cement-back-unit migration (visible as white haze on grout within 6-12 months), lippage above 1 mm on large-format panels causing trip hazards, and shade variation between production lots — V-rating (ANSI A137.1) categorises this from V1 uniform to V4 random, and high V-ratings demand a 10-15% attic stock for replacement. When industrial-grade chemical or abrasion resistance is the driver, the same logic that maps industrial gearbox spec tiers applies: PEI V + ≤0.5% absorption + ASTM C1026 pass + MOHS ≥7 is the procurement shortlist.
One verified next node: the 2024-2026 porcelain panel trend — 1200×2400 mm and 1600×3200 mm thin slabs (3-6 mm) laminated to substrate, used as ventilated-facade rainscreen — is worth tracking as a separate decision branch from floor tile, because the failure criteria (wind load, anchor pull-out, thermal bow) differ from the floor spec covered above.
For component-level specifications, see ceramic tile, alumina ceramic, and ceramic bearing.
