A circular saw is a power-saw that uses a toothed or abrasive disc spinning around an arbor to cut material via rotary motion, with the blade the only consumable that touches the workpiece [S2].
The tool exists in hand-held, bench-mounted, and machine-mounted forms, cuts wood, masonry, plastic, and metal, and is most commonly driven by a single-phase series-excited universal motor in portable units [S2][S3].
Core Working Principle: Rotary Motion and Chip Formation
The cutting action of a circular saw is defined by a continuous rotary cut, where dozens of teeth engage the workpiece in sequence and each tooth removes a small chip per revolution [S2]. Because the teeth are in constant motion, the rotary design requires more input power than a reciprocating up-and-down saw, but it cuts faster; the higher pitch of the emitted sound is the origin of the colloquial term "buzz-saw" [S2].
Three mechanical elements share the work: the motor (electrical, gasoline, or hydraulic), the gearbox (in portable units, typically reducing motor rpm to a usable blade rpm), and the blade itself, which is clamped to the spindle with an arbor nut and protected by upper and lower guards [S3][S4]. The blade is the only component that contacts the workpiece, which is why blade selection, not machine selection, drives cut quality and tool life on the same saw body [S2].
Power Source and Motor Topology
Hand-held circular saws use a single-phase series-excited universal motor as the prime mover, which delivers high rpm at low cost and accepts both AC and DC input, the reason corded and cordless units share the same motor family [S3]. Industrial and heavy-equipment-mounted circular saws, by contrast, are frequently driven by hydraulic motors because they can be tied to a machine's existing hydraulic circuit without a separate energy source [S2].
For shop-floor and OEM integration, the prime mover selection cascades into the choice of industrial valve and flow meter sizing for hydraulic variants, since blade-feed rate scales with hydraulic flow and the guarding circuit relies on pilot-operated logic valves. Cordless platforms add a third variable, battery voltage and amp-hour rating, which together set continuous-load runtime and thermal headroom for the motor [S2][S3].
Blade Geometry: Tooth Count, Kerf, and Tooth Pattern
Cut quality is controlled by three blade parameters: diameter, tooth count, and tooth geometry, and a blade is purpose-built for rip-cuts, cross-cuts, or a combination of both [S2]. A rip-cut blade has fewer teeth with deep gullets to evacuate long wood chips along the grain, while a cross-cut blade has more teeth with a finer pitch to sever wood fibers cleanly across the grain [S2][S4].
Comparison of common wood-cutting blade patterns, against the dimensions an operator actually feels at the saw:
Rip-cut blade: low tooth count (typically 24T on a 7-1/4 in / 184 mm blade), deep gullet, fast feed, rough finish. Cross-cut blade: high tooth count (typically 60T on the same diameter), shallow gullet, slower feed, clean finish. Combination blade: 40T to 50T, ATB or MTCG tooth grind, the practical compromise for jobsite framing where blade swaps cost time. Metal-cutting and masonry blades replace carbide-tipped steel teeth with abrasive segments or polycrystalline-diamond tips, and run at lower surface feet per minute to avoid segment thermal shock [S2][S4].
Operating Controls: Trigger, Guard, Depth, and Bevel
Operator interface on a hand-held saw is built around four controls: the on/off trigger switch, a separate safety lock-off, the lower-blade retracting guard, and the sole plate (shoe), which carries both the depth-of-cut adjustment and the bevel adjustment [S4]. To start a cut, the operator holds the main handle, depresses the lock-off, then squeezes the trigger; releasing the trigger stops the blade, and a spring-loaded lower guard automatically covers the teeth as the saw is withdrawn from the cut [S1][S4].
Depth-of-cut is set by loosening the depth lever, raising or lowering the saw body relative to the sole plate, then re-clamping; most 7-1/4 in hand-held saws deliver a 90 degree cut depth of roughly 2-1/2 in (about 63 mm), with a 45 degree bevel cut dropping to roughly 1-7/8 in [S4]. The bevel scale, typically marked at 0, 22.5, and 45 degrees, is set the same way; the saw body pivots on an arced trunnion while the sole plate remains flat to the workpiece. These adjustments matter because blade exposure beyond the workpiece is the dominant kickback risk factor.
Types by Form Factor: Hand-Held, Miter, Table, Cold Saw

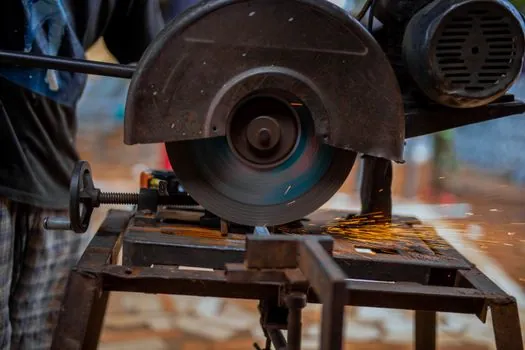

Circular saws sort into four form factors, each fixing the workpiece-to-blade relationship differently. A hand-held circular saw moves the blade over a stationary workpiece and is the most common jobsite tool; a miter saw mounts the same blade on a swing arm for crosscutting at a chosen angle; a table saw inverts the geometry, with the blade projecting up through a stationary table and the workpiece fed past it; a cold saw uses a dedicated ferrous-metal blade running at low surface speed with flood or mist coolant, the production-line choice for clean steel cuts [S2][S4].
For a procurement or maintenance team, the practical decision axis is cut repeatability and material. Hand-held units are flexible but operator-dependent; miter saws lock the angle and length but cap at short stock; table saws deliver rip accuracy and high throughput on sheet goods; cold saws are the only category that delivers burr-free, heat-affected-zone-minimized cuts on solid bar and structural steel [S2][S4]. A useful parallel for plant buyers is sourcing logic for adjacent tooling: the same qualification gates that apply to an industrial laser (cut quality, material compatibility, throughput) reappear, scaled, when a team is sizing a circular-saw fleet.
Limitations, Failure Modes, and Safety Constraints
Three failure modes account for most circular-saw incidents and warranty claims: kickback from a pinched blade, tooth chipping from feeding too fast into knots or foreign objects, and lower-guard binding from sawdust accumulation [S1][S4]. Kickback is mitigated by keeping the guard closed when not cutting, supporting the offcut so it does not pinch the kerf, and never retracting the lower guard manually during a cut [S1][S4].
Blade-life failure modes are different: a wood blade dulls along the carbide edge, typically after 100 to 200 board-feet of clean cuts, while a metal or masonry blade wears its abrasive or PCD segments uniformly and is replaced when segment thickness drops to a manufacturer-marked minimum [S2][S4]. Heat is the limiting variable on metal and masonry blades; flood or mist coolant extends abrasive-blade life by a factor of three to five on production cold saws, and dry-cutting a steel section thicker than the blade's rated capacity will shatter the segment in seconds [S2]. The constraint to remember: a circular saw is, at heart, a high-rpm rotary tool, and any feed or binding condition that stalls the blade in the kerf converts stored kinetic energy directly into a kickback event.
Trackable signals for the next planning cycle: monitor tooth-count standardization across the saw fleet to reduce blade SKU count, standardize on 7-1/4 in (184 mm) arbors for the hand-held side, and verify that abrasive-blade storage stays dry since humidity degrades the resin bond in masonry and metal segments before the blade is even mounted [S2][S4].
