Internal immersion vibrators with 1.0–1.5 inch heads running 8,000–12,000 VPM cover most plumbing backfill, slab penetration, and pipe-encasement pours encountered in residential and light-commercial work [S1].
Consolidation reduces entrapped air from 5–20% of fresh concrete volume to below 2%, recovering 5–15% of design compressive strength and protecting pipe sleeves, slab penetrations, and trench fills from honeycombing and bug-hole defects [S1].
Plumbing Pour Geometry vs Vibrator Type
External (form) vibrators, rated 500–10,000 lb of centrifugal force, apply to column-encasement forms and precast utility vaults where rebar congestion or thin walls block poker access; they are not normally used for horizontal plumbing slab pours [S1]. Surface screed vibrators consolidate only the top 4–6 inches, which is acceptable for thin slab pours but insufficient for thick trench fills. For trench backfill deeper than 12 inches, an internal concrete vibrator with a 1.5–2.0 inch head is the working choice.
Head Diameter, VPM, and Pour-Depth Matching
Effective radius of action scales with head diameter: a 1-inch head consolidates a 3-inch radius and suits pours up to 6 inches deep, while a 2-inch head reaches a 10-inch radius and handles pours up to 18 inches deep [S1].
Standard plumbing slab pours 4–6 inches thick take a 1.0–1.25 inch head; trench fills 12–24 inches deep around pipe runs take 1.5–2.5 inch heads. VPM should sit between 8,000 and 14,000, with 9,000–12,000 VPM ideal for typical 4,000–5,000 psi mix designs; below 7,000 VPM risks incomplete air release, above 14,000 VPM risks segregation in lower-slump mixes [S1]. Common electrician and plumber pickup mistake: oversizing the head, which leaves a void pattern around the pipe and prevents mortar flow into the springline.
Power Source: Corded, Cordless, and Pneumatic
Electric corded models run 1.0–2.5 HP and remain the workhorse for indoor plumbing work where generator noise and fumes are restricted; gas-driven 1.5–6.0 HP units cover outdoor trench work where power is unavailable [S1].
Cordless shaft-driven immersion heads on 18V platforms such as the Makita XVR02Z deliver up to 8 ft shaft reach on a single LXT battery, suiting one- to two-hole pours around fixture bases, cleanouts, and small-diameter pipe penetrations where running a cord is impractical [S2]. Pneumatic vibrators (factory air supply, 80–100 psi) are specified for hospital, lab, and explosion-risk mechanical rooms where electric spark ignition is unacceptable. For trench-encasement work in mixed-material pipe runs, the broader cement concrete consolidation guidance applies directly.
Shaft Length, Radius, and Job-Site Logistics
Internal vibrator shafts range from 3 ft to 21 ft; plumbing work on slabs and shallow trenches is well served by 8–14 ft shafts that let the operator stand clear of the pour [S1].
Shorter 3–6 ft shafts fit inside narrow trench shoring and under-floor crawlspaces where headroom is below 4 ft. Long 18–21 ft shafts are engineered for deep mat pours and caisson work, not residential plumbing. Coupling-shaft construction (multi-section) lets a plumber carry one drive unit and swap heads, which lowers equipment cost on a multi-day rough-in. For a related spec walkthrough on internal-vibrator picks in a different structural context, see Concrete Vibrator Selection for Steel Construction.
Mix-Slump, Rebar, and Pipe-Crossing Constraints
Plumbing pours often mix 3–4 inch slump concrete (for slab work) with 5–7 inch slump (for trench fill around pipe runs); lower-slump mixes need higher VPM and longer insertion time, while wetter mixes segregate if vibrated above 12,000 VPM [S1].

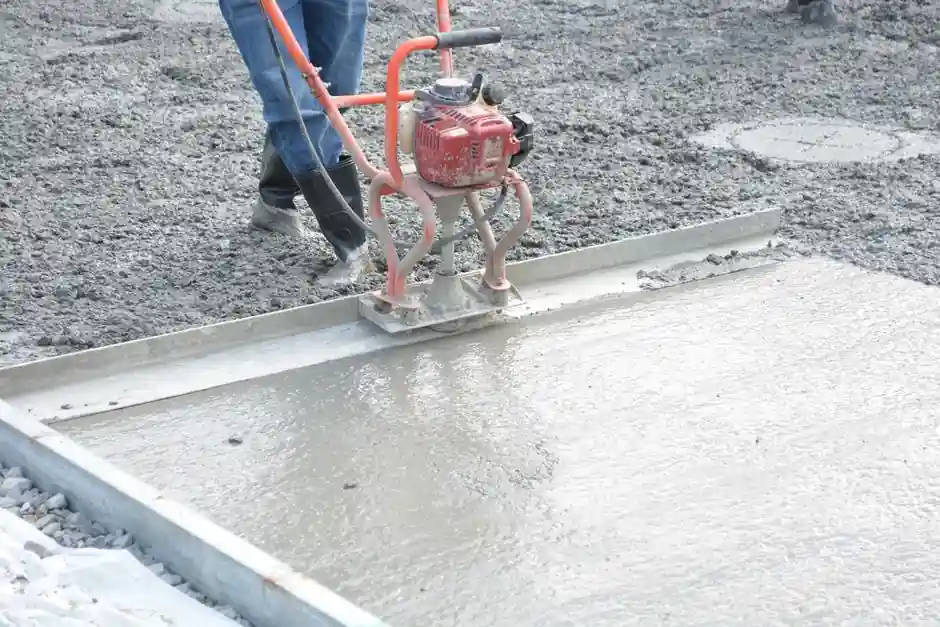

Where rebar and pipe crossings concentrate near a slab penetration, drop the head diameter by one size (e.g. 1.5 inch to 1.0 inch) and increase insertion time to 10–15 seconds per node. ACI 309 limits immersion-needle spacing to about 1.5× the effective radius; for a 1.5 inch head that is roughly 12–15 inches between insertion points, which a working plumber should mark with chalk on the form. Acceptable concrete after vibration shows a sheen of mortar at the surface, no visible air rise for 5+ seconds, and audible tone change from the head as aggregate settles. Related head-size and VPM trade-offs for masonry work are mapped in Masonry Concrete Vibrator Selection: Head Size, VPM, and Power Source.
When Not to Vibrate: Failure Modes and Limits
Do not vibrate concrete that has begun initial set, or any mix below a 1-inch slump, since the head will leave a permanent hole rather than consolidate; a 0.5–1.0 inch slump is a re-temper or reject decision, not a vibration problem [S1].
Excessive vibration around PVC pipe causes floatation and misalignment of fittings; bracket the pipe before the pour and limit insertion time to 5–8 seconds near the springline. Do not use a 2.5+ inch head inside a 6-inch-diameter pipe sleeve or form, as the head cannot retract and will displace the pipe. Bug holes larger than 1 inch, honeycombing deeper than the cover depth, or visible cold joints between lifts are reject criteria that call for chipping and epoxy-patch repair, not a second vibration pass. For broader vibration-tooling fault patterns, the concrete tool reference covers head, shaft, and motor failure modes in detail.
Sourcing, Standards, and Acceptance Criteria
Specifying a vibrator for plumbing work should reference ACI 309 (consolidation guidance) and the project structural notes, with head diameter, VPM range, shaft length, and power source called out as separate line items rather than as a generic "vibrate per ACI" note [S1].
Acceptance on the pour: 1–2% residual air content by volumetric or pressure method, no visible bug holes above 1/4 inch, full mortar coverage at rebar and pipe interfaces, and a uniform sheen across the surface. Replacement-vs-repair thresholds for a worn head: eccentricity over 0.020 inch, shaft straightness deviation above 0.125 inch per 10 ft, or a drop in measured VPM below 7,000. Trackable signals: 2026 cordless 18V shaft-vibrator rollouts (XVR02Z and equivalents) and any 2026 ACI 309R update on low-slump consolidation tolerance.
