For components under 100 mm, metrology-grade desktop 3D scanners now sit in two camps: structured-light systems (Artec Micro II, AutoScan Inspec2) delivering 5–10 micron point accuracy on objects up to 200 × 200 × 150 mm, and laser-triangulation systems (Revopoint MetroY Ultra, SOL PRO) reaching 0.015 mm volumetric accuracy with multiple laser cross-line modes for deep holes and shiny surfaces [S1][S2][S4][S6].
Engineers specifying a benchtop unit for small parts in 2026 are typically looking at three workloads: dimensional inspection against a CAD nominal, reverse engineering of legacy or organic shapes, and digital archiving of small precision items. Each of these loads a different sensor, fixturing, and software stack; picking the wrong combination shows up immediately as a 2-micron repeatability number that does not survive a second scan.
What "Sub-100 mm" Actually Means for Scanner Selection
Component size drives sensor choice more than any other variable, because the field of view (FOV) and stand-off distance together set the achievable point density on a given part. The AutoScan Inspec2 is explicitly positioned in the 1–100 mm part range with a 0.01 mm accuracy spec and dual 5 MP cameras for full-color texture capture [S1]. The Artec Micro II, by contrast, is rated for objects up to 20 × 20 × 15 cm with 5-micron 3D accuracy and 2-micron repeatability, ISO 12836-certifiable, which is roughly an order of magnitude finer than typical benchtop structured-light units [S2]. For a watch gear, a fuel injector nozzle, or an SMD connector body, the Micro II's 200 mm clear envelope is more than adequate, while the Inspec2's tighter chamber is the right fit when the part physically fits inside a 100 mm cube. See the broader 3D scanner reference for how FOV, stand-off, and triangulation angle combine to set per-pixel ground sampling distance.
A useful threshold: if the smallest feature you must resolve is below 0.05 mm and the part is rigid enough to sit on a turntable, structured light wins on per-frame point count and color; if the part has deep pockets, mirror-finish walls, or is mostly dark polymer, a multi-line laser system is the safer call. The Revopoint MetroY Ultra explicitly markets 34 cross-lines, a single-line deep-hole mode, and 15 parallel lines for fine detail, with a stated volumetric accuracy of 0.015 + 0.04 mm × L (m) and a maximum capture rate of 3,000,000 points/s at up to 90 fps [S4]. That combination covers the three failure modes that drive structured-light users to spray-coat their parts.
Sensor Technologies Side-by-Side
The three sensor families in the sub-100 mm desktop class behave differently on the same part, and the differences are quantitative rather than marketing. A structured-light unit, like the AutoScan Inspec2 or the Artec Micro II, projects a known blue-LED or RGB-LED pattern and triangulates against two synchronized cameras: this delivers dense color-mapped point clouds and 5–10 micron 3D accuracy but struggles on specular metal and on dark, light-absorbing polymers [S1][S2]. A multi-line laser unit, like the MetroY Ultra, sweeps 15–34 parallel blue laser lines and reconstructs geometry by triangulation; it does not require texture, handles holes and pockets via single-line mode, and is less sensitive to ambient light, with the manufacturer rating outdoor operation up to 100,000 lux [S4]. A laser-line-profiling unit like the SOL PRO uses "true laser space conversion" with metrology-grade accuracy stated at 0.05 mm (50 microns) in a compact desktop form factor positioned for inspection, reverse engineering, and 3D-printing workflows [S6].
The comparison is sharper when you pin four decision criteria against three classes. On absolute accuracy, structured light leads (5–10 microns), followed by multi-line laser (0.015 mm volumetric), then single-line laser profiling (0.05 mm). On shiny/dark surfaces, multi-line laser leads, with structured light requiring a titanium-dioxide or talc-based spray. On color capture, only structured light gives a registered RGB texture usable for visual inspection reports. On software certification, structured-light units in this class come with ISO 12836 traceability and direct plug-ins into Geomagic Control X, PolyWorks Inspector, and SOLIDWORKS [S1][S2]. For a deeper primer on how structured light projects and decodes its pattern, the structured light scanner page lays out the triangulation math and typical working-distance trade-offs.
Spec Sheet, Not Marketing: Reading the Numbers
Vendor numbers are easy to misread, so it is worth pinning the vocabulary. "Single-frame precision" is the noise floor of one shot, "3D accuracy" is the absolute error against a calibrated artifact, and "volumetric accuracy" scales accuracy with object size via a formula such as 0.015 + 0.04 mm × L (m), which the MetroY Ultra publishes explicitly [S4]. The AutoScan Inspec2 quotes 0.01 mm accuracy with dual 5 MP cameras; the Artec Micro II quotes 3D accuracy up to 5 microns with 2-micron repeatability and an ISO 12836 accuracy certificate; the SOL PRO quotes 0.05 mm accuracy in a desktop form factor [S1][S2][S6]. Repeatability is the number that should govern inspection work: a 2-micron repeatability means the same scan, repeated ten times, falls within a 2-micron sphere, and that is what makes a measurement report defensible to a customer QA function.
Field of view is the second number to check, because it sets minimum and maximum part size. The Artec Micro II's 20 × 20 × 15 cm volume comfortably contains any sub-100 mm component and gives room for fixturing; the Inspec2's smaller chamber is built around the 1–100 mm range and gives shorter stand-off, which in turn raises angular resolution on micro-features [S1][S2]. The MetroY Ultra sits in the small-to-medium bracket, with an automated dual-axis turntable mode that hands the part to the scanner, rather than the engineer hand-holding a wand, which is the right pattern for unattended inspection cells on a production line [S4].
Workflow Integration: Software, Fixturing, GD&T
A scanner that is technically accurate but does not export to your inspection software is, in practice, a paperweight. The Inspec2 integrates with Geomagic, PolyWorks, and SHINING3D Inspect; the Micro II integrates with Artec Studio and exports to SOLIDWORKS, PolyWorks Inspector, Control X, and Design X; the MetroY Ultra ships with Revo Measure and bundles cleanly with Geomagic Control X Essentials and Geomagic Design X Go [S1][S2][S4]. For a metrology lab that already runs PolyWorks, that compatibility list is a procurement gating item.
Fixturing is the other gating item that spec sheets underplay. Desktop structured-light units assume the part sits on a calibrated turntable or a magnetic ball plate, and that the user can reach every face without re-mounting; the Micro II and the MetroY Ultra both sell a dual-axis turntable and the MetroY Ultra specifically bundles a CMM-certified carbon-fiber ball plate for on-site, real-time accuracy verification [S2][S4]. For sub-100 mm metal parts that are flat, shiny, or have undercuts, the standard practice remains: apply a thin, even matte spray before scanning, even on laser systems, because the spray cost is trivial compared to a re-scan caused by specular dropout. Reference workflows on standards and instrumented testing, like the ISO 16331-1 laser-distance-meter methodology, apply the same logic to scanners: stated accuracy is only meaningful when paired with a documented test artifact and procedure.
What Each Class Is For, and Where It Fails

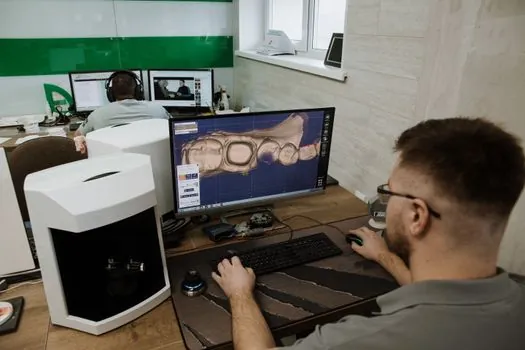

Pick the AutoScan Inspec2 or a comparable structured-light unit when the part is under 100 mm, mostly matte, has visible color or texture, and the downstream deliverable is a color-mapped mesh for a customer-facing report; its dual 5 MP cameras and full-color capture are the value-add [S1]. Pick the Artec Micro II when the part is up to ~150 mm in any axis, the inspection tolerance is in the 5–20 micron band, and ISO 12836 traceability is a contractual requirement; its 5-micron accuracy and 2-micron repeatability are the headline numbers that justify the price [S2]. Pick the Revopoint MetroY Ultra when the part has deep pockets, mirror-finish walls, or is in a high-throughput inspection cell that needs unattended turntable scanning; its 34 cross-lines and 3,000,000 points/s throughput are built for that workload [S4]. Pick the SOL PRO or a similar single-line laser profiler when the workload is reverse engineering a moderate-accuracy part for 3D printing and the budget is under USD 1,500, with 0.05 mm accuracy stated for desktop use [S6].
The common failure modes are well known to anyone who has run a 3D scanner lab. Structured-light units on bare metal return "puddle" artifacts where the projected pattern is reflected, not scattered; the fix is spray, a polarizing filter, or a switch to laser. Laser units on transparent plastics return multiple returns per laser line; the fix is talc dusting or a change of laser wavelength. Turntable drift on long scans accumulates stitching error; the fix is shorter scan segments and a CMM-certified ball plate for stitch verification, exactly the pattern the MetroY Ultra CMM Edition packages [S4]. And, like any high-resolution metrology tool, scanner output should be validated against a calibrated step gage or pin gage before a part is signed off, because a sub-100 mm scan can show 0.01 mm of noise that is actually environmental vibration, not the part. The general industrial barcode scanner page is a reminder that similar spec-vs-reality gaps exist across industrial optical instruments.
Market Status: One Major Desktop Vendor Exited Hardware in 2024
Polyga, a long-time supplier of compact desktop structured-light scanners, has discontinued 3D scanner manufacturing and sales as of the end of 2024, and the company now develops and supplies scan-data software only [S3]. For procurement teams that previously standardized on Polyga Compact units, that means revalidating the supply chain and rebuilding the metrology reference library, since calibration artifacts are typically vendor-specific. The remaining sub-100 mm desktop market is concentrated on the structured-light side with SHINING3D (AutoScan Inspec2) and Artec (Micro II), and on the laser-triangulation side with Revopoint (MetroY Ultra) and Scan Dimension (SOL PRO), with European and Asian metrology OEMs filling specialized niches [S1][S2][S4][S6].
Trackable signals to watch: ISO 12836 accuracy-certificate revision alignment with VDI/VDE 2634-3 for optical 3D systems, since most sub-100 mm desktop units cite one or both; release of a desktop-class unit that pairs blue structured light with on-axis laser triangulation in a single enclosure, which would close the spray-vs-color trade-off; and any move by SHINING3D or Artec to publish a VDI/VDE-traceable volumetric accuracy formula comparable to the 0.015 + 0.04 mm × L (m) figure Revopoint has put on the MetroY Ultra data sheet [S2][S4].
