For commercial HVAC control panels in 2026, the 24-detent incremental encoder with momentary push-button on a 6 mm D-shaft is the dominant knob-input configuration, with units such as the Wilmall GLS45C delivering 24 pulses per revolution, 30,000+ cycle rotational life, and quadrature A/B output at 5 V (3.3 V compatible) across an operating window of -30°C to +70°C [S1].
Lower-cost EC11-series 20-detent modules remain in volume production, listing at roughly $1.25 per count on multi-pack retail, which keeps the entry price for a single detent-encoder knob channel around the cost of a cup of coffee [S3]. The same category now extends into smart-knob modules with a 1.52 in round 360×360 UART display (400 cd/m²) layered on top of the encoder, for panels that want live value readout on the knob face.
Definition and operating envelope of a detent rotary encoder
A detent rotary encoder is an incremental digital input that emits quadrature pulses as the shaft turns, with a mechanical detent every N degrees giving a tactile "click" at each detent position, distinct from a potentiometer that measures absolute angle over a limited sweep (typically ~270°) and suffers wiper wear [S1]. The detent count is independent of, but commonly chosen to match, the pulse count, so a 24-pulse, 24-detent unit gives one pulse per click and the firmware can simply count clicks.
Standard commercial-grade detent encoders ship in plastic bodies with metal shafts, run on 5 V (3.3 V-5 V compatible), and source or sink via open-collector or push-pull A/B channels; the integrated momentary switch is normally open, push-to-click, with a separate common line [S1]. D-shaped or D-notched 6 mm shafts are the dominant mounting interface because they accept knobs with a setscrew without slip, and the same shaft standard is shared by the EC11 family and the paramedic "no detents" raw-component variant for designers who want to choose feel separately from electrical output.
Detent count selection: 12, 20, or 24 positions per revolution
Detent pitch trades resolution against knob ergonomics: 12 detents per turn suits coarse mode/setpoint bumps where each click should feel chunky, 20 detents (the EC11 retail norm) balances menu navigation with a smooth visual sweep, and 24 detents gives finer per-click resolution for trim adjustments [S1][S3]. For multi-turn value selection without a hard stop, designers have removed the mechanical end-stop from rotary switches to obtain 8, 10, or 12 continuous detent positions, a recognized field-modification pattern documented on engineering forums.
For a single-knob HVAC setpoint that ranges across fan speed, mode, and temperature, the 20-detent EC11 format remains the lowest-risk default because the detent pitch maps cleanly to 5° per click and the 6 mm D-shaft mates with off-the-shelf knob caps. Where the panel has separate fine and coarse channels, a 12-detent unit for the coarse channel plus a no-detent or 36-detent unit for the fine channel avoids mode confusion by feel alone.
Electrical interface and protocol choices
Quadrature A/B output is the baseline, with two channels 90° out of phase so the host can decode direction from the leading edge; debounce-optimized detent encoders clean the signal at the source, but the host still needs a 1-5 ms debounce window or hardware RC filter to suppress contact bounce on the integrated push-button [S1]. A/B channels are usually open-collector, so a pull-up to VCC (typically 10 kΩ) is required on the host side, and the push-button switch needs its own pull-up because it shares no common with the encoder outputs.
For panels that want feedback on the knob face rather than a remote LCD, a smart-knob display module stacks a 1.52 in round 360×360 LCD (400 cd/m², 60 mm outline, 37.58 mm active area) onto a rotary encoder switch and exposes UART TTL, with CAN, RS-485, and RS-232 listed as available secondary protocols for panel integration [S4]. This is the architecture most HVAC OEMs are moving toward for premium wall thermostats and zone controllers, because the knob can show setpoint, room temp, or fan speed without a separate display stack, and the encoder layer remains a standard 6 mm D-shaft part for assembly symmetry with legacy knobs.
Mechanical fit, shaft standards, and knob attachment
The 6 mm D-shaft is the de-facto mechanical standard for panel-mount detent encoders in HVAC; the D-flat prevents knob rotation slip, and the matching knob is usually held by a setscrew in a split collet or by a pressed-on cap with a D-shaped socket [S6]. A 3D-printable parametric knob model keyed to 6 mm D-shafts lets prototyping teams iterate on grip diameter, indicator arrow length, and knurl pattern without waiting for a hard-tooled knob, which compresses panel design cycles from weeks to days for early enclosure samples.
Panel cut-out is typically 9 mm or 10 mm round for the encoder bushing, with a hex nut and washer supplied for sub-panel thickness up to ~5 mm; the knob envelope adds 12-20 mm above the panel face, so HVAC front-panel designs need at least 25 mm of clearance behind the bezel to clear the encoder body and the push-button plunger travel. The push-button is rated for the same 30,000+ cycle life as the encoder in commercial-grade parts, so the click-action does not become the failure point ahead of the rotary contacts [S1].
Comparison: detent encoder vs potentiometer vs rotary switch
Three technologies compete for the same panel-knob slot, and the right pick depends on whether the application needs absolute position, infinite rotation, or a fixed discrete count. Potentiometers are absolute within ~270° but wear out as a wiper slides across a resistive element; detent rotary encoders are incremental with infinite 360° rotation and 30,000+ cycle life; rotary switches are absolute discrete (e.g. 4-bit binary on 4 pins plus common) with the strongest detent feel, but they have a finite number of stops unless mechanically modified. [S5]
For a thermostat knob that maps to setpoint temperature, a detent rotary encoder with software accumulation gives infinite trim range without a hard stop, a potentiometer gives absolute position but wears and limits range, and a multi-position rotary switch gives the most positive click feel but constrains setpoint resolution to the switch's pole count. Most 2026 OEM thermostats use the detent encoder because the host MCU counts pulses and renders the value on a display, decoupling the mechanical feel from the setpoint resolution, and the same encoder module can be reused across product variants with different firmware mapping [S1][S5].
Application fit: where the detent encoder belongs in an HVAC control panel
The detent encoder is the right knob for menu navigation, setpoint adjust, and fan-speed/mode select on a wall thermostat or a packaged AHU controller, because the click feedback confirms each input without a display glance and the 360° infinite rotation handles arbitrary trim ranges. A potentiometer still belongs on the trim pot of a discrete analog control board where the knob must set a fixed reference voltage, and a rotary switch belongs on service-mode selector dials where the position must be readable without power. [S1]

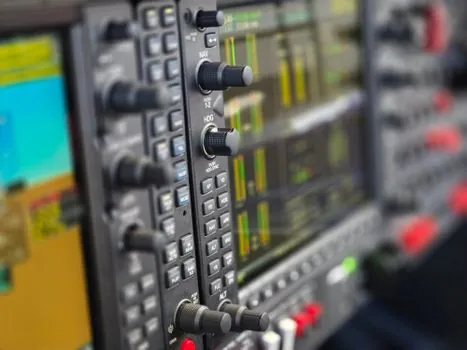

For a marine or offshore HVAC control panel subject to vibration, the detent encoder's tactile click is a safety feature, not a luxury: an engineer can change setpoint by feel when the panel is bouncing and know the click landed, which is the same reason aviation panel builders reach for detent encoders on radio and autopilot heads. The same logic applies to rooftop unit service panels accessed from a ladder, where the operator may have one hand on a rail and cannot watch the knob closely [S1][S2].
Limitations, failure modes, and sourcing
Detent encoders are incremental, so the host must power up with a known state or run a calibration homing routine; loss of pulses from electrical noise or contact bounce reads as drift, and the debounce window in firmware is the single most common cause of "the knob skipped a value" complaints. Open-collector outputs need pull-ups and shielding if the encoder cable runs more than ~100 mm alongside a TRIAC dimmer or relay coil, and the push-button switch has its own contact bounce separate from the encoder contacts. [S1]
Commercial-grade units are rated -30°C to +70°C operating, which covers indoor air-handler and rooftop unit environments but not unconditioned outdoor enclosures; for outdoor-rated panels, look for an extended-temperature part or specify an IP65 panel gasket, since most EC11-class bodies are not sealed. Rotational life is 30,000+ cycles on the Wilmall-spec part, which is enough for ~10 years of residential thermostat use at 8 clicks/day but is the first spec to check against a high-traffic commercial or hotel-room application [S1]. Sourcing channels include Asian OEM catalogs (EC11 multi-packs around $1.25 per count at retail) for low-cost volume, US-based assembly houses (Wilmall GLS45C and equivalents) for documentation and warranty, and module integrators (Wisecoco and similar) for the smart-knob display variant that combines a 1.52 in 360×360 UART round LCD with a rotary encoder switch.
Trackable signals over the next 6-12 months: (1) a 36-detent or 30-detent EC11 variant entering retail at the same $1-2 price band as the current 20-detent parts, which would shift HVAC coarse-channel designs toward 30 detents per turn; (2) smart-knob display modules moving from UART-only to a CAN-FD default option, which would let a single 4-wire bus carry knob events and display updates for multi-zone AHU panels.
