A correctly installed diaphragm valve starts with three confirmed preconditions: line pressure and temperature inside the valve body rating, fluid chemistry compatible with the elastomer or PTFE diaphragm, and a fully cleaned chamber free of debris that could mark the sealing surface [S2].
The valve has three sub-assemblies, valve body, diaphragm, and topworks (handwheel or actuator), and only the diaphragm is a moving wetted part: it compresses against an internal weir to shut off, and lifts clear of that weir to open [S1]. That single design rule drives almost every installation decision in the rest of this article.
Pre-Installation Checks: Rating, Material, and Document Set
Before lifting the valve, the installer's first task is reconciling four documents: the datasheet, the P&ID valve tag, the drawing (latest revision), and the IOM manual, because any one of them can carry a more recent pressure-class or liner change than the others [S4]. The drawing confirms face-to-face length, actuator envelope, and end connection, but it is not a standalone purchasing spec: a clean drawing can still mask a material mismatch if the datasheet is not read against it [S4].
Pressure, temperature, and fluid must be cross-checked against the body nameplate; for elastomer diaphragms, the working envelope is narrower than the body rating and is set by the elastomer compound, not the metal shell [S1]. Bodies commonly ship in 316L stainless steel for sanitary service, with PTFE or EPDM as the two dominant diaphragm options; the two differ in temperature ceiling and in chemical resistance and must be selected against the actual process fluid, not against a generic "rubber" assumption [S1].
Flow Direction and Body Orientation: The Most Expensive Mistakes
Diaphragm valves are almost always unidirectional in process service: install them against the body arrow and the weir stops draining, the seat erodes unevenly, and CIP coverage collapses [S1][S2]. The arrow on the body must be matched against the P&ID flow direction and the line list before any bolt is torqued [S4].
Body orientation matters just as much. For a weir-style sanitary diaphragm valve, the preferred installation is with the body horizontal, the stem vertical, the drain at the lowest point, and the diaphragm pointing up, so that gravity assists full drainability and CIP return [S1]. The actuator or handwheel must not be used as a lifting point during rigging; load it through the body or the supplied yoke, never through the topworks [S2]. The piping on either side of the valve must be aligned without forced fit: flange stress transfers directly into the bonnet flange and can crack it on first heat cycle [S2].
End Connections, Gaskets, and Bolting
Sanitary diaphragm valves most often ship with tri-clamp ends for CIP skids and biotech loops, butt-weld ends for permanent high-purity lines, or flanged ends for utility and chemical service [S1]. Tri-clamp joints need a new sanitary gasket every reassembly, a correct ferrule size, and even clamp torque, because uneven clamp load twists the ferrule and leaks [S1]. Butt-weld ends require an orbital weld procedure qualified to the project WPS; autogenous 316L to 316L is standard, with low-iron weld purging on the ID to keep the surface finish within the specified Ra.
Flanged diaphragm valves follow the same gasket-and-bolt sequence as any lined or soft-seated valve: new gasket, clean sealing faces, bolts tightened in a star pattern to the torque in the IOM, and a second pass after one thermal cycle [S2]. Never apply grease or oil to the diaphragm or to any wetted liner surface; hydrocarbons attack EPDM and PTFE and will swell or stress-crack the diaphragm on the first hot cycle [S2].
Topworks, Actuator Clearance, and Position Feedback
Topworks selection, manual handwheel, pneumatic fail-close, pneumatic fail-open, double-acting, or electric actuator, drives the air supply, signal, and clearance envelope the installer must provide [S1]. For a pneumatic topworks, the supply must be clean, dry instrument air at the pressure stated on the nameplate, with a filter-regulator within 1 m of the actuator; without it, moisture carries into the diaphragm cavity on every stroke and shortens elastomer life [S1].
For atomic-layer and semiconductor ultrahigh-purity service, Swagelok publishes model-specific service instructions for its ALD7A and ALD7C diaphragm valves covering actuator adjustment, flow setting, and configuration-specific limits, which the installer is expected to follow in place of generic torque tables [S5]. Position feedback switches and 4-20 mA positioners must be wired and ranged after mechanical installation, with the valve stroked fully open and fully closed so the feedback unit sees the real end-of-travel, not a bench default.

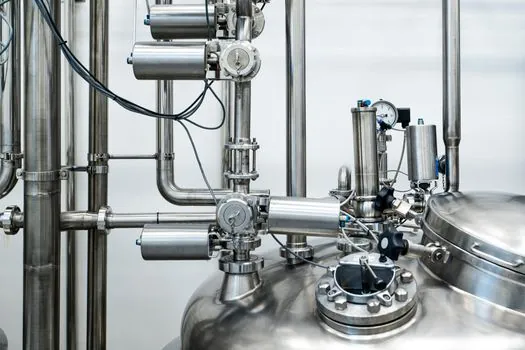

Commissioning Tests and Acceptance Criteria
Commissioning is where most latent installation errors show up. The line-up should be hydrostatically or pneumatically tested at the procedure pressure (commonly 1.5 times the design pressure for hydrostatic, 1.1 times for pneumatic), with the valve half-open so the test pressure seats against the body, not against a possibly-damaged diaphragm [S2]. A full closed-position leak test follows, with the allowable seat leakage defined by the project spec, typically zero visible leakage for sanitary service, or a defined bubbles-per-minute limit per ISO 5208 or FCI 70-2 class for utility service.
Three measurable acceptance signals confirm a clean install: (1) handwheel torque at full close matches the IOM value within ±10%, indicating no over-travel into the diaphragm; (2) actuator stroke time is within the spec band, indicating the right air volume and no binding in the bonnet; (3) zero visible external leakage at the body-diaphragm interface, indicating the diaphragm is correctly seated in the compressor and the bonnet bolts are evenly loaded [S2][S8].
Common Failure Modes: When to Repair Versus Replace
The four recurring diaphragm-valve field failures are: external leakage at the bonnet (root cause: uneven bolt torque or a nicked diaphragm sealing bead, corrective action: re-torque to pattern, replace diaphragm if damaged); internal leakage past the weir (root cause: worn diaphragm or chemical attack, corrective action: replace diaphragm and re-verify with a seat leakage test); sluggish or stuck actuation (root cause: debris in the bonnet, dried media on the stem, or under-sized air supply, corrective action: clean, lubricate per IOM, verify supply); and diaphragm failure inside the body (root cause: chemical incompatibility or thermal overload, corrective action: replace and re-qualify the elastomer selection) [S8].
When a diaphragm shows surface cracking, permanent set, blistering, or hardness change outside the published compound range, repair is not a defensible option: replace the diaphragm and treat the prior service conditions as a qualification gap, because the same root cause will repeat within a few cycles [S8]. For weir-style sanitary valves, the diaphragm must be aligned so its integral bleed holes line up with the pipe flow direction; misaligned bleed holes stop the controlled-bleed function and trap media between the diaphragm layers, which then masks leaks until the next maintenance window [S6].
Sourcing, Standards, and Decision Comparison
Two material choices dominate the comparison. 316L stainless steel body with PTFE diaphragm gives the broadest chemical resistance and the highest temperature ceiling of any soft-seated sanitary valve, but PTFE diaphragms have lower cycle life than EPDM in pure water and steam service; 316L body with EPDM diaphragm gives the longest cycle life in WFI and clean-steam, but a tighter chemical envelope and a lower temperature ceiling [S1]. On the actuator side, manual handwheel is lowest cost and simplest to qualify, pneumatic fail-close is the default for sanitary automation because loss of air closes the valve into a safe state, and electric actuation is chosen only where instrument air is unavailable and slower cycle speed is acceptable [S1][S5].
For project documents, a diaphragm valve drawing is reviewed against ASME B16.34 (valve design and rating) and the project piping class, with the datasheet carrying the elastomer compound reference and the IOM carrying the torque, stroke, and air-supply values; the drawing is the spatial envelope, not the engineering authority [S4]. Buyers comparing sanitary diaphragm valves for minimum hold-up volume should look at zero-dead-leg (ZDL) body geometries, which eliminate the body cavity between two clamped valves and are the standard for biotech and cell-therapy transfer lines [S7].
Trackable signals for the next quarter: a growing number of EPC datasheets now require a documented diaphragm compound, lot number, and shelf-life date on the valve data package, not just a generic "PTFE" callout; and a shift from pneumatic to electric actuation on small-bore WFI skids, driven by air-quality problems in older plants. For related maintenance economics on soft-seated valves, the solenoid-valve TCO breakdown is a useful reference because it shows how cycle count, not purchase price, dominates lifetime cost, a pattern that holds for diaphragm valves as well, and for limit-switch sizing on the position feedback side, the 2026 limit switch spec map lines up neatly with pneumatic diaphragm valve retrofits.
