A directional control valve is a binary, port-to-port routing device; a proportional hydraulic valve is a continuously modulated, closed-loop spool positioner, and the two product families are not interchangeable on a one-to-one basis in modern machine design [S1].
Directional valves cover the common 2/2, 3/2 and 4/3 way configurations with discrete shift positions, while proportional valves add an electrical command axis (typically analog ±10 V or current-driven PWM) on top of that same directional framework, so the proportional variant is a superset, not a replacement, of the basic directional function [S2][S3].
Operating Principle: Binary Shift vs Continuous Modulation
A directional control valve shifts a spool (or poppet) between fixed lands, so each detent corresponds to a fixed orifice geometry; in a 4/3 closed-center valve, the four ports map to three detents, and only the center, extend, and retract flow paths are defined by hard metal-to-metal geometry [S1]. The valve has no native concept of "half-flow"; any speed change downstream has to be built up with separate flow controls, throttles, or orifice plates plumbed into the actuator lines.
A proportional hydraulic valve replaces the fixed detent with a stroked solenoid (force-controlled) or a position-controlled pilot, and the spool can sit at any fractional opening between fully closed and fully stroked, so the metering edges act like an infinitely variable orifice [S1][S3]. Position feedback is the differentiator: most modern proportional valves integrate an LVDT on the spool and close a local loop inside the valve amplifier, while a true servo valve drives that loop tighter with a flapper-nozzle first stage for sub-millisecond response [S4][S5].
Control Signal, Bandwidth, and Repeatability
Directional valves are driven by a discrete coil command, so they have essentially two operating points (energized, de-energized) and a shift time in the 30-150 ms range, with no native way to encode a partial-flow target [S1]. Repeatability is set by the mechanical centering springs and the lap geometry; in a standard 4/3 valve the spool typically has a positive overlap on the order of 3% of stroke or more, which means a small command near null does nothing, it does not produce a small flow [S5].
Proportional valves accept an analog setpoint (commonly ±10 V, 4-20 mA, or PWM), and the integrated electronics compare the LVDT-measured spool position to that setpoint, so the effective bandwidth is set by the closed-loop controller rather than by the solenoid alone [S3][S4]. Practical field numbers for industrial proportional valves cluster around 30-100 Hz small-signal bandwidth and 1-3% hysteresis; servo valves push that to 100-300 Hz and under 1% hysteresis, but cost roughly 3-10x more and demand filtered, degassed fluid [S4][S5].
Decision Matrix: Directional vs Proportional vs Servo
Use the table below to shortlist on four decision criteria, cost, control resolution, response, and integration effort, before you pull a part number [S1][S2][S4].
1. Cost per station: directional is the cheapest (a 4/3, 350 bar, ~25 L/min CETOP 3 stack valve lists well under a proportional unit of the same size and frame); proportional sits in the middle; servo is the most expensive because of the flapper-nozzle stage and tighter spools. 2. Resolution: directional is binary (two states per coil); proportional is continuous across the full stroke; servo adds sub-1% hysteresis and zero-lap metering, which is the only class that can resolve a command of a few millivolts. 3. Response: directional shift is dominated by solenoid time constant; proportional closed-loop small-signal response is tens of Hz; servo runs at hundreds of Hz. 4. Integration effort: directional drops onto a manifold and runs from PLC discrete outputs; proportional needs a command amplifier (often integrated on modern units) and analog output; servo adds null-adjustment, filter monitoring, and tighter contamination control (typically ISO 4406 18/16/13 or better, per common OEM fluid-cleanliness guidance for servo-class valves).
If the machine is a fixed-cycle press, lift, or clamp with three positions and one speed per direction, a directional hydraulic valve on a CETOP manifold is the correct economic choice. If the cycle has any ramped segment, a soft-stop, multiple speeds in one stroke, or a closed-loop pressure/force profile, step up to a proportional hydraulic valve and budget the analog I/O on the controller.
Application Fit: Where Each Type Earns Its Keep
Directional control valves dominate in excavator swing and boom functions, forklift masts, agricultural three-point linkages, machine-tool clamp and unclamp circuits, and any low-to-mid pressure (up to ~350 bar) circuit where the cycle is event-driven rather than profile-driven [S1][S2]. Because each speed or pressure setting requires its own valve or pre-set throttle, the circuits get bulky fast, and machine builders often accept that mechanical complexity in exchange for the unit-cost advantage of commodity valves.
Proportional valves earn their keep in hydraulic presses with controlled closing speed, injection molding clamp and ejector profiles, CNC feed drives, harvesters with load-sensing, and any test stand or motion platform that needs to chase a position or pressure target [S1][S3]. The typical energy-efficiency argument is real: a proportional directional valve in a load-sensing circuit will hold much lower standby pressure than a fixed-throttle directional circuit, because the valve can back off to the minimum margin the load requires instead of dumping across an orifice [S3][S4]. For higher-force and higher-precision work, where you also need tight force or position control of a hydraulic cylinder, proportional is the entry tier and servo is the next step up.

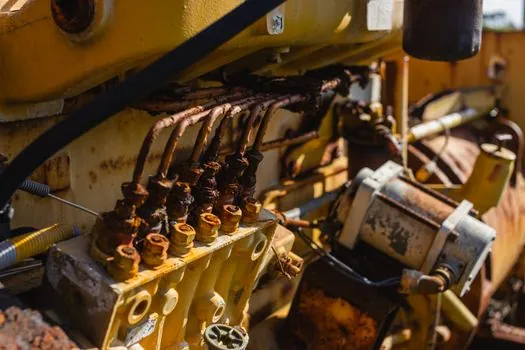

Limitations, Failure Modes, and When NOT to Specify
Do not specify a proportional valve where a directional valve will do, the proportional amplifier and LVDT add cost, calibration steps, and a spare-parts burden that the application does not pay back; conversely, do not specify a directional valve where the cycle needs a soft-stop, because the resulting pressure transient will hammer the machine frame and shorten seal life on every hydraulic cylinder in the loop [S1][S3].
The classic failure modes differ by class: directional valves fail mainly by spool sticking from contamination (fluid cleanliness is the leading root cause in field service reports on commodity 4/3 valves), while proportional valves add failures of the LVDT, the solenoid coil insulation, and the integrated amplifier, and servo valves add nozzle/stage plugging that demands sub-micron filtration and steady thermal null [S5]. The German engineering term "stetigventil" groups servo and proportional together as continuously differentiable valves, which is useful when writing a procurement spec, because the two sub-classes share electronics, plumbing, and many of the same failure modes [S5].
Standards, Sourcing, and What to Put on the Datasheet
For datasheet discipline, list the four things that drive cost and reliability and that are easy to mis-spec: the working pressure class (typically 210, 250, or 350 bar for industrial hydraulics, with 420 bar available in compact form), the rated flow at 10 V or full command (e.g. 25, 45, 60, 80, 120 L/min at the standard 70 bar delta for CETOP sizes 3-7), the command signal standard (analog ±10 V is the most common, with 4-20 mA and CANopen/J1939 options on newer units), and the required fluid cleanliness per ISO 4406 (proportional valves typically tolerate 20/18/15, while servo valves need 18/16/13 or tighter) [S3][S5]. Where the application is a high-cycle press, capture hysteresis in % and step response in ms; where it is a slow force clamp, the static pressure-vs-command linearity is the more important number.
Sourcing trackable signals over the next 12 months: a wider shift of CETOP-3 and CETOP-5 proportional valves onto CANopen and EtherCAT fieldbuses (away from standalone ±10 V amplifiers), and a continued push of integrated electronics directly onto the valve body so that the only external connection is the bus cable and the power supply. Watch the fluid cleanliness clause in the OEM datasheet as a cost lever, because tightening ISO 4406 from 20/18/15 to 18/16/13 in a plant-wide spec will change filter and reservoir decisions well beyond the valve itself.
