Specifying a distribution cabinet is a 4-stage gate: voltage class, short-circuit duty (Icw/Ipk), IP/IK enclosure rating, and form-of-separation (IEC 61439-1/-2). Get any of those wrong and the rest is decoration.
XL-21, GGD, GCS, MNS, SMC, stainless and explosion-proof distribution enclosures sit on a shared spec backbone but diverge sharply on busbar rating, withdrawability and ingress — divergence that decides whether a cabinet lives 5 years or 25 in a plant.
Voltage class and short-circuit duty set the first gate
LV distribution cabinets cover 400 V / 690 V three-phase and 220 V single-phase final circuits; HV cabinets cover 3.6–40.5 kV. Short-circuit withstand is non-negotiable: the busbar system must be rated to Icw ≥ the available fault current at the PCC, with Ipk ≥ 2.1·Icw at 1 s for 50 Hz systems per the IEC 61439-1 verification regime [S1].
Typical LV cabinet Icw ratings span 25 kA / 1 s for residential GGD up to 80–100 kA / 1 s for MNS withdrawable units in heavy industry. Busbar temperature rise is the second gate: copper busbar at 630 A in a 1.5 mm powder-coated steel enclosure is a routine XL-21 build, while 4000 A MNS sections need forced cooling or derated continuous current per IEC 61439-1 §10.10.4 [S1].
IP and IK rating: match the room, not the catalogue
IP54 is the industrial workhorse — dust-protected, splash-resistant — and is the common factory-floor spec for XL-21 and GGD enclosures. IP65 adds water-jet protection for washdown zones (food, beverage, pharma); IP66 handles ship-deck and tunnel duty. IP67/IP68 are reserved for temporary immersion, not for normal distribution rooms. [S1]
IK ratings sit on a separate axis: IK10 (impact 20 J) is the default for steel enclosures ≥ 2 mm; SMC polyester cabinets are typically IK08–IK09 and should not be specified where forklift strikes are credible. Material then becomes the deciding gate: cold-rolled steel (1.5–2.0 mm) is standard; 304 stainless (1.5 mm) for food-grade washdown; 316 stainless for chloride-exposure sites; SMC for outdoor pole-mount, salt-spray, and corrosive atmospheres where a metal cabinet would pit [S1].

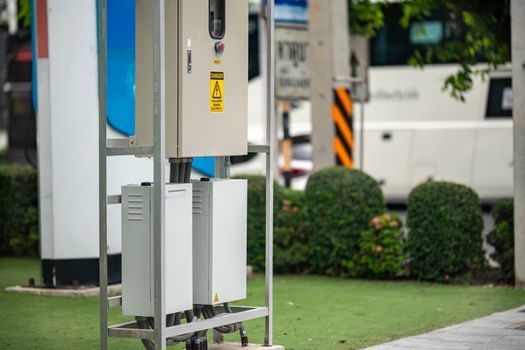

Form of separation and switching: who should NOT pick the cheapest
IEC 61439-1/-2 defines Forms 1 to 4b. Form 1 is the cheapest (no internal separation, busbars exposed on door-open); Form 2 separates busbars from terminals; Form 3 separates busbars, functional units, and terminals; Form 4b segregates every functional unit with a full barrier — a hard prerequisite where the line feeds critical processes, where you need to work one drawer under live bus, or where the operator is not the same person who livened the panel.
Do not specify Form 1 for hospital distribution, data-hall PDU feeders, or any process where a fault on one MCC bucket must not propagate. Do not specify Form 4b for a 200 A lighting board — the cost premium (typically 30–60 % over Form 2) does not earn back. A clean decision rule: Form 1 for final distribution in dry, locked rooms; Form 3b for commercial LV; Form 4b for industrial MCC and any withdrawable MCC cabinet line-up [S1].
Cabinet types lined up against decision criteria
XL-21 is the Chinese volume-build LV wall-mount cabinet, 2200 × 800 × 600 mm typical, fixed front-door design, IP54, 630 A maximum, 50 kA short-circuit withstand — the right pick for residential and small commercial sub-distribution. GGD is a similar fixed LV cabinet with larger busbar cross-section and better three-compartment internal separation, typically 3200 A, 80 kA. [S5]
GCS and MNS are both withdrawable (draw-out) LV cabinets: GCS is the lower-cost Chinese pattern (≤ 4000 A), MNS is the Schneider-licence pattern with denser form-4b segregation and an aftermarket ecosystem. Power distribution box variants drop to ≤ 250 A, IP65, for outdoor branch circuits. SMC polyester cabinets fill the corrosion-resistant niche at IP65/IP66 and IK07–IK08.
Cost ladders in the Chinese supply base — US$ 20/piece for an IP54 10-piece-MOQ small distribution box, US$ 100–120/piece for a metal panel board with IP55, scaling upward for withdrawable MNS sections — confirm the cost gap between fixed and draw-out is roughly 3–5× per kA of rated current [S1].
Thermal management, derating, and PDU distribution
Inside a cabinet, a cabinet PDU is the rack-mount power strip that takes the cabinet's single 32 A or 63 A feed and breaks it into IEC C13/C19 outlets for servers, switches, and UPS-fed loads. Spec a PDU with 1.5–2.0 mm² internal wiring, copper busbar current bars, and a thermal rise ≤ 30 K at rated load — anything else is a fire risk in a sealed cabinet [S1].
Derating rules: in a sealed IP65 cabinet at 40 °C ambient, the manufacturer-derated current for a 630 A assembly is typically 0.85·In; in a vented IP54 cabinet it is 0.95·In. Use IEC 61439-1 §10.10 verified values from the assembly manufacturer's report, not a generic lookup. Spare capacity of 20 % on the main busbar is a 10-year-cost-optimum figure: less, and you are re-building at year 7; more, and you are buying copper for no load [S1].
Installation gates and acceptance checks
The pre-energisation acceptance check has four mandatory gates: (1) the power distribution room, trench, and channel-steel foundation are complete and cured; (2) cabinet-to-foundation bolt torque is to the OEM drawing; (3) the grounding bus is bonded to the station ground grid at ≤ 4 Ω, and any door with a mounted electrical device is bonded to the grounded frame via flexible braid; (4) the secondary wiring uses copper conductors, terminations are torqued, and insulation resistance is ≥ 1 MΩ per 1000 V of working voltage per the RCCN install checklist [S1].
Door swing, clearances, and access also fail sites: the cabinet-to-wall minimum distance must allow the door to fully open (~ 90–120°), terminal boxes must be positioned for visual inspection without disassembly, and the installation drawing must be on site at the time of mechanical completion. A typical pre-power wall checklist is published by Chinese LV assembly spec guides and remains the working reference for brownfield retrofits [S1].

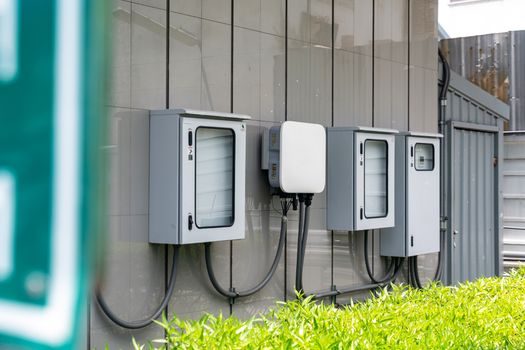

Sourcing signals and the 2026 supply market
On 2026-08-04, the active export book is dominated by LV fixed (XL-21, GGD) and small distribution box orders of 500-piece container loads at CIF terms, with metal panel board pricing in the US$ 100–120/piece band and small distribution box units from US$ 20/piece for 10-piece MOQs [S1]. A junior buyer in France was seeking an LWSMC-500400200 SMC electric distribution cabinet in a 500-piece order on 2026-03-14 — concrete evidence that SMC remains a mainstream export spec for European chemical and water-treatment end users [S1].
