Dry-type transformers carry a 35-50% higher initial equipment cost than equivalently rated oil-filled units, with the gap narrowing or reversing above 1,500 kVA where liquid-filled designs regain a cost-per-kVA advantage [S3][S4]. The 20-year total cost of ownership (TCO) for a 1,000 kVA unit at 60% load lands at roughly $163,000 for dry-type and $154,000 for oil-filled, a difference driven almost entirely by the higher no-load and load losses of air-cooled designs over a 25-30 year service life [S3].
Lead time in 2026 sits at 8-12 weeks for standard catalog units from tier-1 and tier-2 manufacturers, with custom voltages, special certifications (UL, CE, CCC), or high-demand periods pushing delivery to 14-20 weeks [S2][S7]. Tier-3 cost-optimized OEMs quote 50-70% below tier-1 pricing ($12-16/kVA versus $20-30/kVA in the 1000-2500 kVA range) but ship with 2-3% annual failure rates against 0.3-0.5% for premium brands [S2]. Procurement decisions that chase only purchase price typically incur 3-5x higher operating costs from losses and premature replacements over a 25-year horizon [S2].
Initial Equipment Cost and Installation Premium
Dry-type units command a 35-50% initial-cost premium over oil-filled equivalents at low-to-mid voltage classes because the epoxy or cast-resin winding system and the larger footprint required for air cooling both add material and labor [S3]. The installation premium for dry-type is partially offset by eliminating oil containment, spill prevention (bunding, plinths, oil-water separators), and fire suppression vaults that NFPA 70 NEC requirements impose on indoor oil-filled installations above a threshold dielectric volume [S1][S5]. Where oil-filled units are sited outdoors on a concrete pad, civil work and bunding typically add weeks of site preparation that indoor dry-type installations skip entirely [S1].
Above approximately 1,500 kVA, the cost-per-kVA crossover reverses: liquid-filled designs recover their advantage because higher thermal capacity (oil conductivity roughly 6x air) lets manufacturers pack more kVA into a smaller tank with less copper and steel per unit of rating [S4][S3]. Engineers specifying 2,500 kVA and above for utility substations, solar farms, or wind collector systems therefore find oil-filled the default, with dry-type considered only where indoor siting or zero-spill risk overrides cost [S3][S4].
Operating Cost, Losses, and 20-Year TCO
Oil-filled transformers post lower no-load and load losses at equivalent ratings, and the gap compounds over 25-30 years of continuous energization [S4]. A representative 20-year operating cost for a 1,000 kVA unit at 60% loading lands at $124,000 for oil-filled against $126,000 for dry-type, with the difference dominated by I²R losses and core losses rather than maintenance [S3]. Where loading stays below 30% of nameplate, dry-type regains the TCO lead because the lower annual maintenance bill ($800-1,500/yr versus $1,500-3,000/yr for oil-filled) outweighs the energy-loss penalty [S3].
Maintenance cost alone drives much of the gap: oil-filled units require dissolved gas analysis (DGA), moisture and acidity testing, gasket inspections, and tap-changer service performed by qualified personnel, while dry-type needs only connection checks, fan service on forced-air models, and dust removal [S1]. Plant engineers running dry-type in clean indoor environments routinely report multi-decade service with minimal intervention, although one veteran on the Mike Holt forum describes finding a corroded core pile beneath a dry-type unit installed in a humid Louisiana substation, a reminder that ambient humidity and ventilation design still matter [S5].
Lead Time, Capacity, and Supply Chain in 2026
Standard catalog units ship in 8-12 weeks from tier-1 and tier-2 manufacturers in 2026, with custom designs, special certifications, or high-demand periods extending delivery to 14-20 weeks [S2][S7]. Tier-2 suppliers such as XBRELE, LS Electric, and Hammond position themselves on balanced price and 8-12 week customization cycles, while tier-3 cost-optimized OEMs quote 4-6 week delivery at the expense of documentation depth and routine-test rigor [S2]. Procurement teams ordering to a fixed retrofit footprint should verify dimensions, vector group, tap range, terminal layout, and noise limit against the existing drawing before order placement, since substitution mid-cycle is the most common cause of project slippage [S2].
The voltage class boundary is firm: dry-type units cap out around 35 kV in commercial production, while oil-filled designs scale to 765 kV and beyond for transmission-class service [S3]. That voltage ceiling alone decides the technology for most utility substation work, regardless of the cost differential. Engineers comparing transformer types for industrial 480 V or 5 kV distribution can treat the choice as a siting-and-loading question rather than a voltage-class question, a useful framing when integrating transformer selection into broader digital twin to MES integration points or maintenance planning workflows.
Decision Matrix by Loading, Location, and Capacity
Three criteria decide the technology in most real specifications: average loading as a fraction of nameplate, indoor versus outdoor siting, and the kVA rating itself. The break-even loading sits at roughly 30-50% of nameplate: below 30%, dry-type wins on TCO; above 50%, oil-filled wins [S3]. Indoor occupied-space installations (hospitals, data centers, malls) default to dry-type because NFPA 70 NEC fire codes and insurance carriers effectively require it, and dry-type units are self-extinguishing with zero spill risk [S1][S3]. Outdoor utility substations, solar farms, and wind collector systems above 1,500 kVA default to oil-filled because of higher power density, better overload capability (150% for 2 hours versus ~120% for dry-type per IEEE conventions), and longer 25-40 year service life [S3].
Mineral oil carries a flash point near 145°C and a moderate-to-high fire risk, while natural and synthetic ester fluids push the fire point above 300°C and add biodegradability, opening indoor and environmentally sensitive sites to liquid-filled designs that were previously dry-only [S3][S4]. Engineers specifying ester-filled units (FR3, BIOTEMP) should still confirm with the local Authority Having Jurisdiction whether spill containment can be reduced, since FR3 fluid use does not by itself waive bunding requirements in every jurisdiction [S5]. Above 1,000 kVA, veteran practitioners in heavy-industrial service consistently report better reliability from liquid-filled designs, while at smaller kVA ratings the simplicity and zero-fluid maintenance of dry-type tends to win the maintenance team's vote [S5].

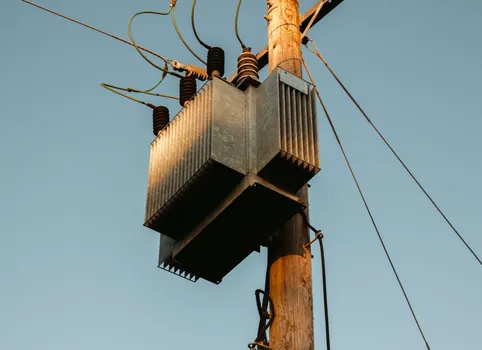

Standards, Sourcing, and What to Verify Before Order
Both types must satisfy the same efficiency and test regimes: IEEE C57 series for oil-filled, IEC 60076 for both, and DOE 2016 or EU Tier-2 Ecodesign efficiency limits for distribution-class units sold into regulated markets [S2][S3]. Ester-fluid-filled units typically reference IEC 60076-14 for the fire-safety classification, and dry-type cast-resin units reference IEC 60076-11 [S3]. Before order placement, request the type-test certificate, routine-test report, winding material declaration (copper versus aluminum), impedance tolerance, thermal class, and a sound-level guarantee, since these drive both regulatory compliance and long-term reliability [S2].
Total cost of ownership over 25 years, including purchase price, no-load losses (transformer is energized 24/7), load losses (I²R), and one mid-life replacement event, often favors tier-1 suppliers despite an 80-100% higher initial investment over tier-3 cost-optimized units [S2]. Two trackable signals to watch through the rest of 2026: first, whether tier-2 lead times compress below 10 weeks as Chinese factory capacity continues to ramp, and second, whether ester-fluid pricing converges with mineral oil enough to push ester into the default specification for indoor retrofits. For engineers weighing transformer type against other rotating-equipment decisions, the position switch vs limit switch framing on hardware-versus-vocabulary choices offers a useful parallel on how specifiers default to familiar terms rather than engineering outcomes.
