A gauge pressure transmitter reads process pressure referenced to local atmosphere, and choosing one is a four-gate decision: pressure span, wetted material, output protocol, and process connection.
The mainstream industrial form factor is a piezoresistive silicon oil-filled cell with a 316L stainless steel isolating diaphragm, loop-powered 24 V DC (12-30 V DC), 4-20 mA output, and process media ratings to roughly 150 °C on the standard build [S1]. Range families typically span -100 kPa to 100 MPa in 1.6/2.5/6 step ratios [S1].
Pressure Range and Span Ratio: Pick the Right Calibrated Window
Gauge pressure transmitters are most often specified in 1.6/2.5/6 standard step ratios, with 0-3, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400, 600 kPa covering the low end and 1-100 MPa covering hydraulics [S1].
Normal operating pressure should sit at 25-75% of the calibrated span to keep linearity, hysteresis, and total error band within published limits. Over-ranging to 1.5× URL is common on industrial units; sustained operation above URL degrades the oil-filled cell.
For vacuum service, a bi-directional -100 to +100, 200, 400, 600 kPa range handles both pump suction and positive displacement; a unidirectional 0-100 kPa range on the same body wastes half the span. Reference the difference between a gauge pressure transmitter and an absolute pressure transmitter when atmospheric reference matters, such as barometric or sealed-gas systems.
Output Protocol: 4-20 mA, HART, or Fieldbus
The 4-20 mA analog signal on a 12-30 V DC loop remains the baseline output for 90%+ of new gauge pressure transmitter installations, and HART overlays Frequency Shift Keying on top of that same 4-20 mA loop without disturbing the analog reading [S1].
Foundation Fieldbus and PROFIBUS PA are fully digital protocols and do not carry a separate 4-20 mA analog channel. For new builds in refinery and chemical service, dual 4-20 mA + HART is the conservative default because it keeps the loop readable with a plain multimeter if the digital layer fails.
WirelessHART and ISA100.11a gateways are options for tank farms and remote wellheads where running cable is uneconomic, but expect 1-3 second update intervals rather than the 100 ms typical of wired loops.
Wetted Material and Process Compatibility
316L stainless steel is the default wetted material for water, steam, air, hydraulic oil, and most chemicals below 150 °C, and it is what the Qinghua BP93420 series specifies on its oil-filled isolating diaphragm [S1].
For aggressive media (HCl, H2SO4, wet chlorine, hot caustic), upgrade to Hastelloy C-276 diaphragms or PTFE-coated 316L. For sanitary service (pharma, food, dairy), specify a 3-A or EHEDG-compliant tri-clamp process connection with an electropolished surface finish.
Flanged diaphragm seals (also called chemical seals) decouple the sensor from high-temperature, viscous, or solids-bearing media, and the standard flange offering includes 3" and 4" 150 lb and 300 lb ratings with insertion lengths from roughly 10.4 to 24.4 inches depending on configuration [S2]. These seals also let the same gauge body cover elevated-temperature service beyond the bare sensor's 150 °C ceiling [S1].
Comparison: Four Realistic Gauge Transmitter Choices
Across 2026 catalog offerings, four practical gauge pressure transmitter configurations cover most plant duties: [S1]
1. General-purpose piezoresistive, 4-20 mA, 316L diaphragm, -100 kPa to 100 MPa, to 150 °C. The default build for water, air, oil, and steam at low pressure; lead time in days, unit cost lowest in class [S1].
2. HART-enabled piezoresistive, 4-20 mA + HART 7, 316L or Hastelloy diaphragm, -100 kPa to 40 MPa, to 150 °C. Same body, added digital layer for remote re-ranging, diagnostics, and device-level asset management.
3. Flanged diaphragm seal (chemical seal) with remote capillary, 316L or PTFE-coated diaphragm, 3"/4" 150 lb or 300 lb flange, insertion 10.4-24.4 in [S2]. For slurries, viscous polymers, high-temperature reactor jackets, and vacuum service where a direct-mount sensor would clog or cook.
4. Differential body used as a gauge, 4-20 mA + HART, 316L diaphragm, ±0.1% URL accuracy, to 100 MPa static pressure. Where a differential pressure transmitter is already specified for flow or level on the same skid and one gauge channel is needed, reusing that spare tap is cheaper than adding a separate gauge body.
For high-temperature media above 150 °C on the standard piezoresistive cell, integrate a finned cooling tower between the tapping and the sensor, or specify a high-temperature build rated to 350 °C; pairing an absolute pressure transmitter for the same duty requires a vacuum reference, so do not substitute a gauge into a sealed reference service.

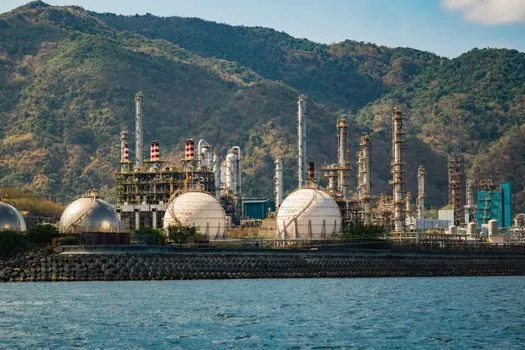

Use Cases by Industry
Water and wastewater: 0-100 kPa to 0-1 MPa ranges on 316L diaphragms, 4-20 mA, IP67 heads, mounted on pump discharge lines to confirm duty point against the pump curve.
HVAC and building services: 0-100 kPa to 0-4 MPa, 4-20 mA, on chilled water headers, boiler drum, and rooftop AHU filter monitoring. Same platform commonly used for local pressure gauge trending, but with the 4-20 mA signal available to the BAS.
Oil and gas upstream: 0-60 MPa HART gauges on wellhead Christmas trees and upstream separators, with NACE MR0175-compliant wetted materials for sour service. Static pressure rating must exceed the maximum shut-in tubing pressure by at least 1.5× for safety.
Chemical and petrochemical: 0-2.5 MPa gauge on reactor jackets and distillate lines, 316L or Hastelloy diaphragms depending on acid/chloride exposure, and flanged diaphragm seals for polymerizing or crystallizing media [S2].
Who Should NOT Use a Standard Gauge Transmitter
Do not pick a standard gauge cell for sealed-vacuum or absolute reference service; atmospheric reference at the sensor will drift with elevation and weather, so a sealed-gauge or absolute body is required. [S1]
Do not specify a 4-20 mA-only gauge if the DCS or PLC does not support HART multidrop and the application needs remote re-range; HART 7 supports multidrop on a single pair but at 4 mA per device, limiting loop count.
Do not specify 316L alone for hot concentrated sulfuric above 90% or for molten sodium; PTFE coatings and exotic alloys have published limits that 316L does not meet. Always cross-check the wetted material with the specific chemical and temperature, not just the family.
Do not reuse a hydraulic gauge transmitter (typically 0-40 MPa) on a low-pressure gas line at 0-50 kPa; the span ratio collapses, and accuracy falls to 1-2% URL.
Standards, Certifications, and Sourcing Signals
Industrial gauge pressure transmitters in 2026 typically ship with CE, RoHS, and where applicable FCC, UL, and SGS marks for OEM build lines [S1]. Hazardous-area service (Zone 1, Zone 2, Class I Div 1/2) requires an additional ATEX 2014/34/EU or IECEx certification, and these ratings are not interchangeable: a CE-marked industrial body without ATEX cannot be installed in a Zone 1 European facility.
For sour service, the wetted material must meet NACE MR0175 limits on hardness, composition, and environmental cracking resistance; vendors publish a separate NACE-compliance certificate, not just a generic material certificate. For sanitary service, 3-A Sanitary Standards and EHEDG cleanability requirements are the two main compliance paths and they have different test methodologies.
For selection beyond the gauge cell, broader sensor reference material covers the duty-vs-output trade-offs discussed in this photoelectric sensor selection guide and the shortlist logic in the inductive sensor selection guide; the encoder selection guide covers a similar four-gate decision tree for a different signal type.
