For renovation work, a glass curtain wall replacement should be selected by the intersection of three gates: structural performance per ASTM E330, EN 13116, or GB/T 21086; thermal performance of the insulating glass unit (IGU); and code-driven safety glass rules, with the make-up tuned to wind exposure, floor count, and facade zone (vision, spandrel, corner) [S4][S3].
The IGU dominates the performance budget: a two-pane IGU uses one sealed cavity, a three-pane IGU uses two cavities, both typically filled with dry air or argon, and on its own float glass of 5.2–6.0 W/(m²·K) U-value falls to 2.5–3.2 W/(m²·K) once it sits inside a sealed IGU, with single-silver Low-E variants reaching 1.5–2.1 W/(m²·K) [S2][S6]. Renovation projects on existing slabs must verify slab-edge anchor capacity and floor-line fire-stopping before any glass selection is finalized [S4].
Glass make-ups for renovation scenarios
For high-rise renovation, the industry-standard combination is Laminated + Insulated + Tempered (LIT): an outer laminated ply (tempered + PVB + tempered), an argon-filled cavity with a low-emissivity coating on a suitable surface, and an inner tempered ply, giving impact resistance plus hurricane compliance plus a U-factor below passive-house thresholds when paired with triple-silver Low-E [S9][S2]. A baseline renovation spec of 6+12A+6 mm with Low-E and PVB lamination yields wind-pressure resistance rated Grade 6 or higher, a spontaneous-breakage rate at or below 0.01% after heat-soak testing, thermal insulation above 70%, and sound insulation above 35 dB [S1]. For commercial-retail renovation where daylighting drives leasing, ultra-clear insulated tempered glass at 8 mm and above delivers 60%–80% visible light transmittance (VLT), and a Low-E coating blocks up to 90% of UV while keeping the visual merchandising layer readable [S1][S8].
Tempered glass is produced by heating float glass to roughly 620°C and rapidly cooling, gaining 3-5x the strength of annealed glass; heat-strengthened glass uses gentler cooling, with surface stress of 24–69 MPa versus tempered's ≥95 MPa, eliminating the nickel-sulfide (NiS) spontaneous-breakage risk but producing larger fragments that must be retained by structural adhesive [S2]. Heat soak testing (HST) at around 290°C reduces but does not eliminate NiS failure, and can raise glass cost 1-4x, a real line item on renovation budgets [S2][S3]. For renovation of premium or security-graded facades, low-E insulated laminated glass or thickened laminated tempered is preferred, because fragments stay adhered to the PVB or EVA interlayer, blocking over 99% of UV in high-end products and delivering 35–45 dB sound transmission loss when combined with an IGU [S2].
System type: stick vs. unitized vs. point-supported
For renovation, system type is selected by floor count, repetition, and site access: stick-built curtain walls are typically more economical below roughly eight storeys, while unitized systems usually win on schedule and safety above that threshold because they are pre-assembled under factory conditions [S4]. For frameless or signature lobbies in renovation projects, point-supported glazing (often with glass fins or stainless steel spiders) trades higher visual transparency for tighter tolerance on glass thickness and a more demanding anchor layout [S5]. A unitized renovation also reduces on-site labor at height, an important safety gate when the existing structure is occupied, and aligns with the spec map approach for high-rise facade replacement covered in Spec Map: High-Rise Glass Curtain Wall Selection 2026.
Stick systems are framed on site, piece by piece, and tolerate irregular geometry on heritage renovation where the existing slab edge is not perfectly straight; unitized systems arrive as pre-glazed panels, lift directly onto anchors, and require the existing slab edge to be within tight vertical and horizontal tolerances [S4]. For renovation of buildings with floor-to-floor heights inconsistent with the original drawings, a stick system with stick-built mullions and transoms absorbs the variation; for tower re-skins where the slab edge is clean, unitized cuts weeks off the schedule [S5].

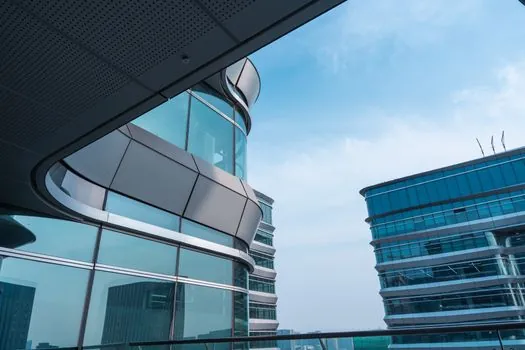

Performance numbers: U-factor, SHGC, VLT, deflection
Standard insulated glass (two panes, air-filled) sits at U-value 2.5–3.2 W/(m²·K), versus single-pane float at 5.2–6.0 W/(m²·K); filling the cavity with argon drops the U-value by another 0.2–0.3 W/(m²·K) and improves acoustic performance [S2]. Single-silver Low-E IGU hits U-value 1.5–2.1 W/(m²·K); double-silver and triple-silver variants push the shading coefficient down to 0.30–0.60, the right band for hot-summer / cold-winter climate zones [S2][S3]. VLT must be balanced against thermal gain: high VLT cuts artificial-lighting load and boosts daylighting, but without a tuned SHGC it can drive cooling load up sharply, so the renovation spec should treat daylighting and solar control as a single coupled variable [S8].
Structural performance is governed by the curtain wall test method: ASTM E330 covers uniform static air pressure for structural deflection, ASTM E331 covers water penetration under the same pressure, and ASTM E283 covers air leakage; these are the three tests most often called out in a renovation submittal package [S4][S7]. Deflection limits commonly land at L/175 to L/180 for the framing members, and the test pressure selected must match the project's actual wind exposure, not a generic default, because corner zones see higher wind pressure and need thicker glass or laminated make-ups validated by calculation [S4][S5]. For Chinese renovation projects, the relevant code pair is JGJ 102 (Technical Specifications for Glass Curtain Walls) and GB/T 21086 (Building Curtain Walls), with the additional rule that facades over 4 m on high-rise or street-facing buildings should avoid full hidden-frame systems [S3].
Façade zones that drive different specs
Corners, spandrels, and slab edges are not vision glass with a different tint; they are different engineering problems. Corner zones see elevated wind pressure, so renovation specs should identify corner pressures early, specify thicker glass or laminated make-ups in those zones, and confirm system bite and gasket range against calculations [S5]. Spandrel panels conceal floor slabs and services, and they trap heat; the specifier should treat spandrel as its own spec item, with shadow-box assemblies to soften appearance transitions or opaque panel alternatives where consistent appearance matters, instead of leaving it as a vision-glass afterthought [S5].
For renovation of buildings with a target floor-to-slab visual reveal, fritted ceramic patterns and back-painted spandrels solve the visual transition without changing the structural framing [S5]. High-traffic entrances and lobby edges benefit from the LIT stack, since the laminated ply holds fragments after impact and the insulated cavity keeps the interior environment stable under door-operation pressure cycles [S9]. Selecting glass for cleanroom-adjacent or flush-glazed facades follows the same principle: the makeup is decided by zone-by-zone performance, not by an overall glass call-out.

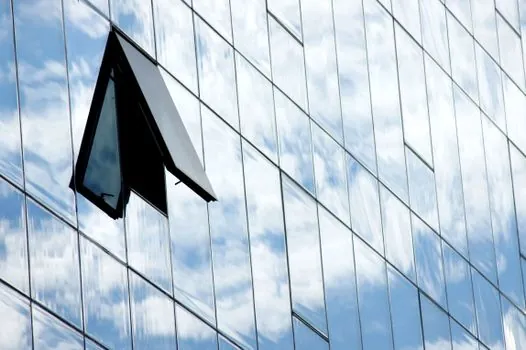

Validation package and failure modes
A practical validation package for renovation includes glass samples covering vision, spandrel, and frit zones; a visual mock-up review for color, distortion, and reflectance; engineering calculations and submittals; and a performance test plan (air/water/structural) aligned to project requirements [S7]. Water-penetration tests like ASTM E331 are run at a static pressure difference that must be selected to match the project's wind exposure, not a default, because under-spec'd test pressure produces a passing test on a wall that leaks in the first storm season [S7]. On retrofits where the original slab edge is suspect, anchor pull-out tests and a slab-edge survey are needed before the new framing is ordered, because the curtain wall transfers its full lateral load back to the floor slab edge through the anchors.
Spontaneous breakage from NiS inclusions in tempered glass remains the most documented in-service failure mode; HST at about 290°C is the standard factory mitigation, and specifying heat-strengthened laminated (HSL) glass for vision zones in occupied renovation work removes the risk at the cost of larger fragments that must be retained by the frame and interlayer [S2]. IGU seal failure shows up as internal condensation and accelerated Low-E coating degradation, driven by poor spacer desiccant or incompatible sealant; a quality laminate specification for renovation should require 25-year-plus service life for the interlayer, achievable with high-end PVB or ionoplast films [S2][S6]. The Boston John Hancock Tower case is the evergreen reminder that glass selection is engineering, not cosmetics: a 1970s facade that required a complete reglazing exercise after progressive glass-to-frame connection failures [S5].
Decision criteria and when NOT to specify a glass curtain wall
Glass curtain wall selection decision criteria, in priority order: (1) wind and seismic load path, validated by ASTM E330 / EN 13116 / GB/T 21086; (2) safety-glass compliance per JGJ 102 or local equivalent, with full hidden-frame systems avoided on facades over 4 m on high-rise or street-facing buildings; (3) thermal performance of the IGU, with U-factor tuned to climate zone (1.5–2.1 W/(m²·K) for single-silver Low-E, lower for double/triple-silver) and SHGC tuned to solar exposure (0.30–0.60 for hot-summer / cold-winter zones); (4) acoustic target, with laminated-plus-IGU delivering 35–45 dB; (5) optics, balancing VLT against solar gain; (6) constructability, where unitized wins above ~8 storeys and stick-built wins below [S4][S2][S3][S5].
Glass curtain wall is the wrong choice when the existing structure cannot carry the anchor loads at the slab edge, when the floor-to-floor geometry is too irregular for a unitized panel, when the building program needs punched openings rather than a continuous envelope (use window wall instead), or when the local code prohibits full hidden-frame on the relevant facade height [S3][S4]. For modular or prefab renovation where the facade is delivered in volumetric units, the spec gate is the IGU-to-module tolerance stack-up, covered separately in Glass Curtain Wall Spec Gates for Prefab Modular Construction. The structural frame of a door-window curtain wall system and a metal curtain wall panel system are alternative envelopes to evaluate when full glass is over-spec'd for the renovation program.
Trackable signals for the next quarter: (1) the share of renovation tenders calling out triple-silver Low-E in hot-summer / cold-winter climate zones, given the SHGC 0.30–0.60 band; (2) movement on HST-versus-HSL substitution rates in renovation specs, as spontaneous-breakage liability is reassigned from product to system; (3) the uptake of LIT (Laminated + Insulated + Tempered) as the default high-rise makeup versus a custom-engineered stack [S1][S2][S9]. A working baseline for a renovation specifier is the full glass curtain wall encyclopedia entry plus the fiberglass-reinforced spacer and seal compatibility reference, with quartz-glass options reviewed only where fire-rated spandrel glazing is required.
