A single vertical lift module (VLM) consolidates the equivalent of roughly 6 to 12 rows of static shelving inside one enclosed column, and Kardex field data shows that within a warehouse with a 25-foot ceiling a single VLM installation can eliminate up to 65 shelving bays [S6]. Vendor literature across the category puts the resulting floor-space reclaim in the 75% to 85% band, with the most aggressive figures (up to 90%) tied to retrofits of low-density shelving rather than dense pallet rack [S2][S3][S4].
Replacement ratio is not a fixed number; it scales with ceiling height, tray count, and tray load. A White Systems aerospace reference install replaced 12 aisles of shelving with three Compact Lift VLM units, returning 4× faster kitting, 99.9% pick accuracy, and a 14-month ROI [S3]. Logic Material Handling states the equivalent plainly: one VLM can replace several rows of shelving or racking, with the resulting footprint reduction often eliminating the need for a building expansion [S2].
Replacement Ratios by Ceiling Height and Configuration
Kardex documents that in a 25-foot-clear facility, one VLM can displace up to 65 shelving units, and the standard Kardex Shuttle 250/500 carries 1,223 pounds per tray while the 700 carries 1,598 pounds and the 1000 carries 2,204 pounds per tray for pallet-class loads [S1][S6]. White Systems lists a recovery range of 80% to 85% of floor area when VLMs replace static shelving, and notes that 60% to 70% of typical warehouse floor area is consumed by static shelving and aisles before the retrofit [S3].
The SSI Schaefer LOGIMAT, distributed by SJF, scales from 8 feet to 78 feet tall in 4-inch increments, so the same column holds very different shelving-equivalent counts depending on installed height; the article calls out that the floor-space figure (up to 90%) is "highest when replacing low-density static shelving" rather than dense rack [S4]. SSG's medical-device cleanroom case study used five VLMs passing trays directly into a sterile room, sized against a baseline static-rack pick rate of approximately 60 picks per hour and a VLM throughput of roughly 4× that figure [S5].
Throughput-Driven Sizing: When One VLM Is Not Enough
Kardex's sizing guide is explicit that the question is not "one or two machines" but "what storage and throughput goals translate into the right number of machines," and warns that operators waiting on a single VLM is a design failure that will not deliver ROI [S1]. For a lab, R&D, or sample-storage operation accessing items 10 to 12 times per day, one taller machine that consolidates as much shelving as possible into a small footprint is the right answer even at modest lines-per-hour [S1].
For a high-speed distribution center processing hundreds to thousands of order lines per hour, Kardex recommends two, three, or more VLMs in parallel connected by software, with vertical zoning inside each unit keeping fast movers near the access opening and slow movers stored higher where extra travel time does not affect pick rate [S1]. SSG states that one trained operator can typically oversee three to five VLMs, a staffing ratio that comes from the same goods-to-person workflow that drives the 4-to-1 throughput uplift over static shelving [S5].
Physical Operating Envelope Compared to Shelving
VLMs use a fixed-column extractor that brings the requested tray to a single access window, while vertical carousels rotate shelves around a track to a fixed opening; the practical difference is that VLMs handle wider SKU variability in tray dimensions, whereas carousels suit uniform small items at very high pick frequency [S4]. White Systems lists up to 2,000 pounds per tray as a common heavy-duty tray rating, and SSG documents the same 2,000-pound ceiling for its installed VLM fleet, well above the 100 to 300 pounds per shelf typical of light-duty steel shelving [S3][S5].

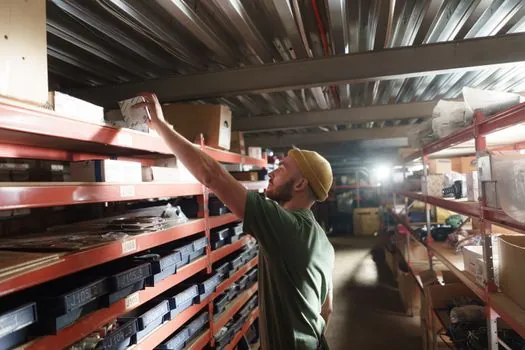

Ergonomics are part of the replacement argument: every VLM delivers trays at a fixed worktable-height window, eliminating ladder use, bending, and stretching that static shelving requires, and the optional LogiWork feature on the LOGIMAT adjusts delivery height per operator [S4][S2]. The mechanical principle behind the column is the same regardless of OEM, and the internal extractor motion is detailed in our VLM extractor retrieval walkthrough.
Layout Criteria: Floor Savings vs Pick-Rate Ceiling
For a single VLM sized to replace one shelving block, the design target is ceiling height utilization at acceptable tray travel time; for a fleet sized to replace an entire shelving aisle network, the design target shifts to parallel-machine throughput and software-based batch dispatch [S1][S4]. The cost driver inside that decision is unit height and tray count, with taller units holding more trays costing more than shorter units but delivering a higher shelving-replacement ratio per square foot of new floor space [S4].
As a sanity check, the Kardex Shuttle product line spans three load classes (250/500 at 1,223 lb, 700 at 1,598 lb, 1000 at 2,204 lb per tray) so the shelving being replaced can be matched by tray capacity rather than forced into one rating [S1]. When throughput is the binding constraint, pairing the VLM fleet with dual-tray staging, as on the LOGIMAT's LogiDual option, removes inter-tray wait time and is covered in our dual-tray delivery breakdown. South West Solutions and SSG both report that automated inventory software and pick-to-light guidance are part of the replacement value, not an add-on, with full transaction logs, API or WMS integration, and weight-sensing restock checks standard on the VLM product class [S5].
Limitations, Failure Modes, and What a VLM Will Not Replace
Kardex's own guide states explicitly that not every item belongs in a VLM, and that pallet racking, bulk storage, or floor stacking remain the correct destination for some SKUs [S1]. Items too long for the maximum tray length, items over the per-tray weight rating, or extremely low-velocity items that do not justify the per-tray slot cost should remain on shelving or rack rather than be forced into a VLM [S1][S4].
Real-world throughput gains also depend on the baseline being replaced: SJF notes that facilities with short aisle runs see less pick-time benefit than facilities where operators previously walked long distances per pick, so the "4× static shelving" headline is an upper bound tied to the worst legacy layouts [S4][S5]. The general warehouse automation landscape, including where VLM fits against carousels and horizontal carousels, is covered at the vertical lift module overview, and related industrial control hardware in this category is catalogued at the remote I/O module reference and the load cell module reference.
Track for any VLM sizing decision in 2026: confirm the installed ceiling height in inches (LOGIMAT scales to 78 feet in 4-inch increments, so even 6 inches of unused headroom changes the shelving-replacement math) [S4], and request the OEM's worst-case tray travel time at full height, which determines whether the design holds the 4× pick-rate claim or drops back toward the static-shelving 60-picks-per-hour baseline [S5].
