Electrical installers who set conduit, cable tray, surface back-boxes, and switchgear alignment lines want a self-leveling cross-line laser in the green 505 to 525 nm band, with stated accuracy of ±1.5 to 3 mm at 10 m and a working range of at least 20 to 30 m indoors, per the 2026-03-03 selection guide from OneVanTool [S1] and the 2026-05-10 cross-line versus rotary breakdown from RayXact [S5].
That combination covers most panel-board fit-outs, dado trunking runs, and underfloor conduit grids without forcing the electrician to fall back to a spirit level and a chalk line. Outdoor switchyard or long cable-tray runs across a site push the choice toward a rotary laser with a detector, as the Quinn Equipment 2026-05-31 guide spells out [S2].
Why a Green Cross-Line Laser is the Default for Indoor Electrical Work
Green-beam diodes at 505 to 525 nm read at roughly 50 to 65 ft (15 to 20 m) in a lit room, against 20 to 30 ft (6 to 9 m) for an equivalent red beam at 630 to 680 nm, a 2x to 4x visibility gain that holds up under fluorescent or mixed LED lighting common on fit-out sites [S5]. For conduit clipping heights, dado trunking lines, and aligned socket outlet boxes, that visibility margin matters more than maximum range.
Accuracy on a professional cross-line sits at ±1.5 to 3 mm at 5 m, or roughly ±3 to 6 mm at 10 m once you scale it, with self-leveling settling inside ±4° of plumb in 3 to 5 seconds [S2][S5]. Bob Vila's 2026-03-27 test of 12 models shows the Huepar HM03CG holding 1/9 in at 33 ft (about ±2.8 mm at 10 m) and the Klein Tools 93LCLS at 3/32 in at 33 ft (about ±2.4 mm at 10 m), both usable for trim and back-box alignment [S3].
Note the trade-off: green diodes pull 20 to 40% more current than red, so runtime drops by roughly that margin on a given battery platform [S5]. Electricians running long shift fit-outs either carry spares or pick a red-beam model where ambient light is controlled.
Where Rotary Lasers Earn Their Keep on Electrical Sites
Rotary lasers spin a single diode at 600 to 1200 RPM to lay down a 360° reference plane readable by a detector at 300 to 800 m diameter, with self-leveling inside ±5° and IP54 or better housings as standard [S2]. For a switchyard build, long external cable tray on a refinery perimeter, or grade-checking duct banks, that range and that single-plane coverage beat any cross-line tool.
Typical professional rotary accuracy lands at ±1.5 mm at 30 m, tight enough to drive machine-control receivers on trenching and duct-lay equipment [S2]. Quinn Equipment's 2026-05-31 comparison puts the rotary-versus-line trade in plain numbers: rotary reaches 300 to 800 m diameter with a detector, line lasers stop at 15 to 50 m and wash out in daylight past about 30 m [S2].
The same article flags the practical limit: outside about 30 m the rotary beam is invisible in daylight without a detector, so any "I can see it across the yard" claim is fiction past that line. Site crews using a rotary for cable-tray alignment on a substation build typically run a grade rod plus detector per worker.
Selection Criteria That Actually Drive the Decision
For an electrical-installation buyer, five numbers carry most of the weight: beam color (green 505 to 525 nm vs red 630 to 680 nm), stated accuracy at 10 m, indoor working range, self-leveling range in degrees, and ingress protection. K-Level's 2026-07-15 construction guide sets a working accuracy floor of ±1 to 2 mm at 10 m for professional or industrial environments, a tighter bar than most cross-line spec sheets meet at full range [S6].
Self-leveling range matters because site floors and step-overs are rarely flat. A unit that levels inside ±4° to ±5° will set up on a normal site surface; a unit with a narrower window needs a tripod or shim, which slows the job [S2][S5]. Out-of-level warning, typically a flashing beam, prevents the silent-error case where the tool projects a line it believes is level but is not.
IP54 is the practical minimum for an active construction site, with IP65 or higher for outdoor or wash-down environments. Hilti, Bosch, DeWalt, and Leica professional lines sit at IP54 to IP67, but the lower-cost consumer units sometimes ship at IP33, which fails in a conduit-bending room with metal swarf and coolant [S4].
Comparing the Main Options for Electrical Layout Work
The decision matrix narrows quickly once the job type is fixed. Below is the working comparison an electrical buyer can apply, with the numbers pulled from the 2026 round of guides and the Bob Vila test set [S2][S3][S5][S6].
Type versus fit-for-purpose for electrical installation:
1. Green cross-line self-leveling (e.g. Huepar HM03CG, DeWalt DCLE34020G): 20 to 30 m indoor range, ±2 to 3 mm at 10 m, battery runtime shortened 20 to 40% versus red. Best for: indoor conduit, dado, socket box, panel alignment.
2. Red cross-line self-leveling (e.g. Skil LL932201, Bosch GLL 30): 15 to 30 m indoor, ±3 to 5 mm at 10 m, longer battery life, lower cost. Best for: dim rooms, budget fit-outs, residential rough-in.
3. Rotary with detector (e.g. Spectra LL300N, Leica Rugby 680, Topcon RL-H5A): 300 to 800 m with detector, ±1.5 mm at 30 m, IP54+ housing. Best for: outdoor cable tray, switchyard, duct bank grading.
4. Dot / plumb laser (e.g. Bosch GPL100-50G): 15 to 30 m point reference only. Best for: column transfers, riser alignment, point-to-point plumbing where a continuous line would confuse the layout [S3][S5].
Mounting, Power, and Workflow Constraints
Most cross-line models accept 1/4 in or 5/8 in tripod threads and a magnetic wall bracket; the magnetic L-bracket is the working default for a one-person electrical crew because it sticks to back-box steel, conduit, and switchgear enclosures without a tripod. Bob Vila's 2026-03-27 round-up lists universal mounts as a separate buying criterion, reflecting how often the lack of a solid mount kills productivity on a metal-framed fit-out [S3].
Power is the quiet constraint. Green-beam units on alkaline AAs run 4 to 8 hours per set; on a 10-hour shift the electrician changes cells mid-day, or moves to a rechargeable Li-ion platform. Red-beam units stretch to 15 to 30 hours on the same cells, which is why they remain common on large commercial jobs despite the visibility gap [S5].

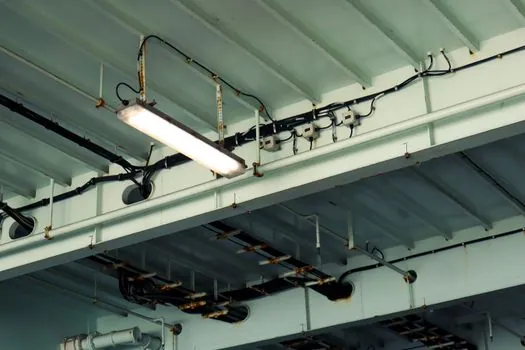

For ceiling work such as cable tray and pendant lighting layout, a model with a 360° horizontal fan beam (e.g. the Huepar HM03CG or Skil LL932201) projects a continuous ring at tray height, removing the need to rotate the unit. The 360° fan is a step up from a simple cross-line for anyone running perimeter conduit, though it costs roughly 30 to 50% more than a fixed cross-line [S3].
Standards, Safety, and Failure Modes to Plan Around
Laser products sold into US electrical and construction sites fall under the FDA Center for Devices and Radiological Health laser classification, with most consumer and professional levels at Class II (less than 1 mW visible). The RayXact 2026-05-10 guide cross-checks its visibility numbers against OSHA laser safety standards and ANSI Z136.1, the US laser-safety consensus standard, as of May 2026 [S5].
Failure mode 1: a unit is set outside its self-leveling window and projects a false-level line. Symptom: misalignment that grows with distance from the tool. Corrective: re-set the unit on a flatter surface or tripod; replace if the leveling mechanism no longer holds calibration. Acceptance: line holds within stated accuracy at 10 m against a reference spirit level.
Failure mode 2: red beam washed out in daylight, leading the installer to estimate the line position by eye. Symptom: cumulative drift across long runs. Corrective: switch to a green-beam model, add a laser-enhancing glasses set, or move to a rotary with detector. Do not "fix" by marking the line freehand; the rework cost on a 30 m conduit run typically runs into four figures [S5].
Failure mode 3: dust and swarf ingestion. Symptom: beam flicker, self-leveling failure, erratic shutoff. Corrective: IP65+ housing, or a protective carry case on metal-framed sites. Replace the unit if the beam flickers after cleaning, because the diode or pendulum is likely damaged.
Limits of This Recommendation Set
The picks above assume a one- to two-person electrical crew running interior fit-out or outdoor cable work, not a surveyor setting primary control on a transmission line. For sub-centimeter geodetic work, a total station or GNSS receiver is the right tool, not a laser level. Likewise, intrinsically safe (IS) laser levels are required in classified hazardous areas; the laser category sits inside the same IS equipment family covered in the explosion-proof electrical reference, and the rule set there governs tool selection in Zone 1 / Class I Div 1 spaces, not the laser's own spec sheet [S4].
For more on the broader layout and leveling toolchain, including the non-laser side, the laser level reference page lays out the technology families. Buyers cross-shopping against other electrical-site tools will find overlap with the electrical automation and LV electrical pages, which cover the downstream hardware these levels help position. For a parallel beam-visibility and IP-rating deep dive on heavy-site tools, the demolition-focused laser level picks for demolition work piece applies the same logic to higher-dust environments.
Trackable signals to watch: any OEM release of a sub-$200 green cross-line at ±2 mm at 10 m with IP65, which would reset the budget tier; any tightening of FDA Class II limits that pushes visible-beam power below current 1 mW ceilings; and any consolidation among rotary laser brands that affects detector compatibility across the Spectra, Leica, and Topcon installed bases [S2].
