A lost foam casting line configured for lighting fixtures should be sized around three concrete numbers: pattern density 18–25 g/L for thin-wall lamp housings, 1,500–3,000 usable EPS patterns per day on a single-shift line, and finished tolerance of ±0.5–1.0 mm before secondary machining [S3][S1].

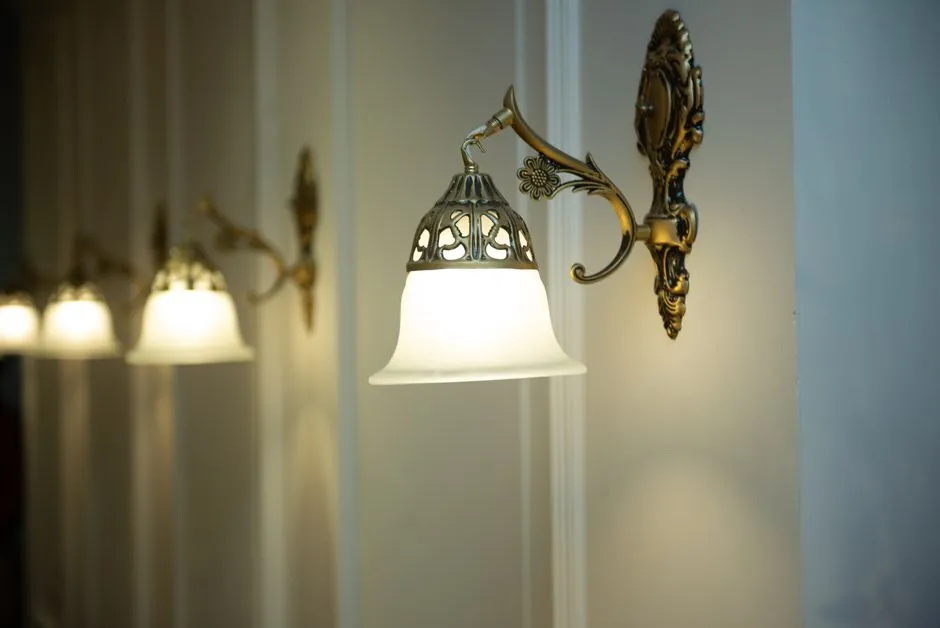

Lighting hardware (street-light housings, pole-base covers, decorative brackets, lamp shade bosses, and heat-sink bodies) sits in the 0.5–8 kg casting weight band, a range where lost foam beats green sand on both surface finish and post-machining hours. Lost foam white-area equipment is described in detail on the lost foam casting line encyclopedia page, and the production chain differs from a conventional molding line because no parting line flash is generated at all.
Why Lighting Castings Fit Lost Foam Economics
Aluminum and ductile-iron lighting housings carry complex internal cavities for wiring channels, heat-sink fins, and mounting bosses, geometries that drive conventional sand foundries into ISO 8062 CT10–CT12 dimensional scatter on thin-wall sections [S2]. Lost foam patterns stay in place until displaced by molten metal, which removes parting-line flash, core-registration error, and sand-erosion inclusions in one hardware step [S2].
Quantified defect windows for gray iron and ductile iron in the 5–200 kg range on properly engineered lost foam lines run 2–4 percent, compared with 8–15 percent typical for green-sand and shell-molding jobbing foundries running 40–50 part numbers per month [S2]. For a 5,000 metric ton-per-year line at $1,200 per ton material and energy, that gap moves annual scrap exposure from $600,000 down to roughly $180,000 [S2]. Lighting buyers should weigh that 7–12 percent defect-rate closure against the higher pattern-tooling amortisation lost foam demands [S2].
Lighting fixtures also lean on the lighting equipment supply chain, and the lighting equipment and electric lamps reference documents typical housing tolerances that a casting line must hit to keep secondary machining hours under control.
Sizing the White-Area Chain for a Lighting Pattern Mix
Pre-expansion, maturation, molding, and drying must be sized as one system; the pre-expander should never produce beads faster than the silos can mature and the molding machines can consume them, otherwise the bottleneck simply moves downstream [S1]. Annual casting tonnage alone cannot size a line: two foundries shipping the same tonnage may need completely different equipment layouts if one runs a dedicated street-light housing pattern and the other alternates between road, industrial, and decorative lighting geometries [S1].
The required-pattern formula is straightforward: usable patterns per hour equals daily pattern demand divided by net productive hours, then divided again by practical machine output after a 15 percent allowance for normal interruptions [S1]. A plant needing 2,400 usable patterns per day with 14 net productive hours needs roughly 171 patterns per hour; if one mold delivers two patterns per 90-second cycle, three molding machines are typically required to cover the target [S1]. For a lighting line that pushes more than 30 pattern changes per shift, the recipe-change penalty pushes the practical output further down, so flexible batch pre-expanders beat continuous units [S1].
The general molding line framing still applies for line balancing, but lighting lines rarely need a fully automatic molding line for volumes under 1,500 castings per day unless the geometry is highly repeatable across SKUs.
Pattern Density, EPS Grade, and Coating Choices for Lamps
Thin-wall lamp shades and street-light heat-sink bodies typically pattern at 18–25 g/L expanded polystyrene (EPS) density, the band that gives enough rigidity to survive cluster handling without foam collapse, and enough permeability to evacuate decomposition gases during pour [S4][S1]. The process is a variation of investment casting that substitutes EPS foam for wax, so lost foam shares the near-net-shape benefits of investment casting at lower pattern cost [S4].
Refractory coating selection drives the surface finish, and lighting housings benefit from a two-coat system: a primer coat of 0.8–1.2 mm followed by a face coat of 0.4–0.6 mm, dried 24–36 h at 40–55 °C with controlled humidity below 70 percent [S1]. For aluminum lighting castings, the face-coat refractory must resist molten aluminum's wetting action (typically a magnesia or alumina-based formulation), while ductile-iron lamp hardware tolerates silica-based face coats used in the railway and stator press ring examples [S3].
Dimensional tolerance on lost foam lighting castings lands at ±0.5–1.0 mm depending on component size and material, with the tighter end of the band achievable on aluminum housings under 2 kg and the wider end on ductile-iron pole-base castings above 5 kg [S3].
Pouring, Shakeout, and the Lighting-Specific Failure Modes

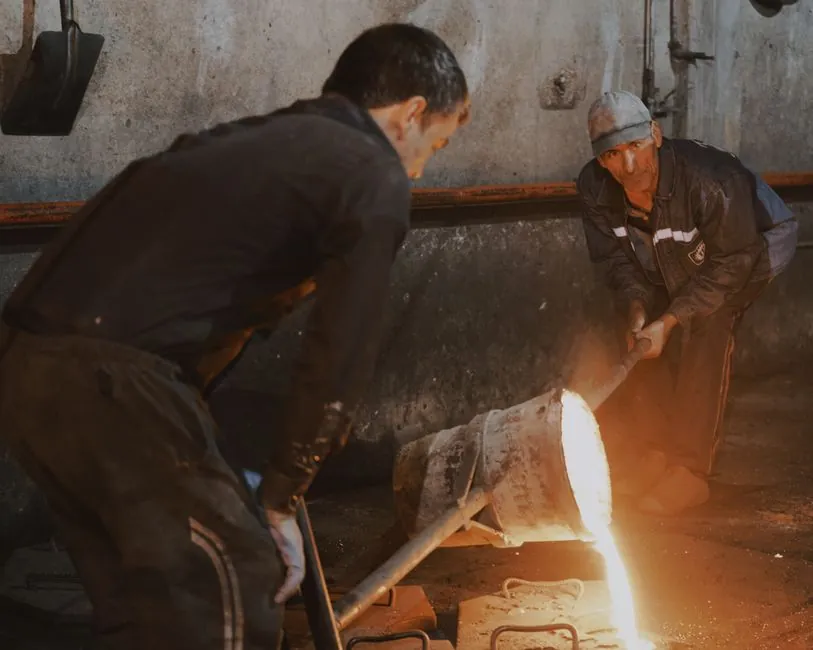

Pouring temperature for aluminum lighting castings sits at 680–740 °C, while ductile-iron lamp hardware pours at 1,300–1,360 °C; a 50 °C miss on the low side produces cold shuts and misruns, and on the high side produces gas porosity from accelerated foam decomposition [S5]. The Federal Group USA defect catalogue distinguishes the two visually: gas porosity appears as round, smooth-walled holes from trapped gas or mold moisture, while shrinkage shows as jagged, irregular voids in thick sections from poor riser design [S5].
Pouring height and gating velocity control turbulence, which in lost foam is more sensitive than in green sand because the foam pattern is still decomposing during fill. Ceramic foam filters in the runner system cut inclusions from refractory coating erosion, a defect that is otherwise the dominant visual reject on decorative lighting surfaces [S5].
Shakeout and sand recovery complete the line, and a vibratory table with a sand cooling classifier keeps the silica bed below 40 °C before reuse, which protects pattern geometry on the next pour and prevents moisture re-absorption above the 3.5 percent threshold that triggers gas porosity in iron castings [S5][S2]. The downstream conveyor sorting line link typically moves shakeout output to shot-blast and inspection at a cycle time matched to the pour rate.
Defect Control: Comparing Lost Foam Against Sand and Shell
Selection between process routes for a lighting program usually hinges on four criteria: defect rate, dimensional tolerance, lead time, and pattern cost. The table below summarises the current picture from 2026 production data [S2][S4][S5].
Green sand molding: 8–15 percent defect window, ISO 8062 CT10–CT12 tolerance, 2–3 week lead time, lowest tooling cost [S2].
Shell molding: 5–8 percent defect window, ISO 8062 CT8–CT10 tolerance, 3–4 week lead time, moderate tooling cost, separate shell-breakage failure mode [S2].
Lost foam: 2–4 percent defect window for 5–200 kg iron castings, ±0.5–1.0 mm tolerance, 4–6 week lead time including pattern tooling, higher pattern cost but lower per-unit machining [S2][S3].
Permanent mold (gravity die): 3–5 percent defect window, ±0.3–0.6 mm tolerance, 6–10 week lead time for steel tooling, best per-unit cost above 5,000 parts but poor fit for complex internal geometry typical of lighting heat sinks [S4].
For most lighting programs in the 0.5–8 kg band with mixed SKUs, lost foam and permanent mold are the two finalists; lost foam wins on geometry flexibility, permanent mold wins on per-unit cost once volume crosses the 5,000-part breakeven [S4][S3].
Utility Demand and Melting Options for a Lighting Line
Steam, compressed air, and ventilation loads for a 1,500–3,000 pattern-per-day white area sit at roughly 600–900 kg/h steam, 8–12 m³/min compressed air at 0.6–0.7 MPa, and 25,000–35,000 m³/h drying-room ventilation depending on ambient humidity [S1]. A medium-frequency coreless melting furnace is the standard match for lighting programs, with 250–500 kW inductor ratings common for 1–3 t/h pour rates of aluminum; for iron castings, a line-frequency furnace holding 1.5–3 t is the usual pairing.
Process control instrumentation on the pouring line is more limited than pressure-loop work, but the same principles apply: ATEX-rated sensors near coated-pattern storage, Ethernet-APL gateways on the molding-station PLCs, and isolated thermocouples at the pouring ladle for closed-loop pouring temperature trim, per current OEM guidance [S1]. Pattern storage humidity must stay below 60 percent RH to prevent coating cracks before molding [S1].
Limitations and When Lost Foam Is the Wrong Choice
Lost foam is not the right process when pattern volumes fall under 500 castings per year, when the part geometry requires section thicknesses below 3 mm in cast iron (foam pattern fragility dominates yield), or when the buyer has an in-house green-sand line already amortised [S2][S4]. For high-volume decorative lamp covers above 10,000 parts per year, permanent mold gravity die casting usually wins on per-unit cost despite higher tooling spend, because the steel mold absorbs pour after pour with minimal consumable cost [S4].
Lead times also work against lost foam: the 4–6 week pattern tooling cycle is longer than sand or shell, and foam pattern storage requires a 20–25 °C climate-controlled warehouse for any inventory beyond 60 days [S1]. Foundries should validate pattern aging behaviour on the specific EPS grade before committing to a 12-month lighting program [S1].
Two trackable signals for 2026 buyers: watch for EPS pre-expander models that deliver 18–22 g/L density with sub-2 percent density scatter, and watch for coating formulations that cut aluminum-pour wetting failures below 1 percent at the 720–740 °C pour window. A related reference, Static Pressure Molding Machine Specs for Energy Equipment Castings, walks through the higher-tonnage end of the same line-design math for buyers scaling beyond lighting SKUs.
