Reed, Hall-effect, AMR, GMR/TMR, and magneto-inductive pickups split on four hard spec gates: switching frequency ceiling, sensing gap, power draw, and immunity to stray fields — choose the principle first, the housing second [S1][S3].
On the supply side, the 2026 connector ecosystem for these sensors is dominated by M8 3-/4-pin and M12 quick-disconnect formats, with co-moulded PVC/PUR cable variants common from Asian and European vendors [S1][S3]. For cylinder-position duty, the catalog breadth of dedicated magnetic cylinder sensors (AG, DFG, AL series) shows the volume segment has standardised on T-slot and C-slot mounting geometries [S3].
Switching Principle Comparison on Spec Gates
Reed switches remain the simplest and cheapest, with no power draw on the sensor element, but they cap out near 200–500 Hz mechanical and have a finite glass-envelope life around 10^7–10^8 operations — they suit low-speed end-of-stroke detection on pneumatic cylinders [S3]. Hall-effect ICs are solid-state and run to several kHz with sub-mA current, and integrated variants add short-circuit and reverse-polarity protection; the AG, DFG, and AL cylinder-sensor families all sit in this solid-state camp [S3].
AMR and GMR/TMR devices push sensitivity down to the sub-mT range and support high-speed rotary encoding; magneto-inductive types are favoured for harsh, high-vibration duty because the coil is potted and there is no semiconductor die to fracture. Across these four families, the trade looks like:
- Reed: lowest cost, no supply current, slow, contact-bounce limited, glass-fragile on shock.<br>- Hall IC: 3–24 V DC, kHz bandwidth, 1–10 mA quiescent, PNP/NPN or push-pull, fits IO-Link on modern variants.<br>- AMR/GMR/TMR: best for fine resolution, but sensitive to strong external fields and often need a conditioned magnet.<br>- Magneto-inductive: ruggedised for mining, slurry, and outdoor mobile equipment, accepts larger air gaps [S1][S3].
Selection Criteria That Actually Drive the Order Code
Five numeric gates decide the part number, and the buyer who locks these first avoids 80% of returns: (1) sensing distance / operate point in mm; (2) target magnet type and surface flux density; (3) supply voltage 5 V, 12 V, 24 V, or wide 10–30 V DC; (4) output stage — NPN sinking, PNP sourcing, push-pull, analog 0–10 V, 4–20 mA, or IO-Link; (5) connector family — M8 3-pin, M8 4-pin, M12 A-coded 4-/5-pin, or PVC/PUR pigtail [S1][S3].
For pneumatic-cylinder applications, the equipment side gates are equally strict: the slot profile (T-slot, C-slot, tie-rod, round, profile, or short-stroke) dictates whether you can drop the sensor flush or need a bracket from the PBL/PBN/PBI/PN/PD/PCF/PO/PCD/PCE accessory family [S3]. For non-cylinder duty — slurry pipelines, position feedback on linear actuators, elevator door interlocks — the housing switches to stainless or coated brass with IP67 or IP69K and a rated pressure or temperature envelope.

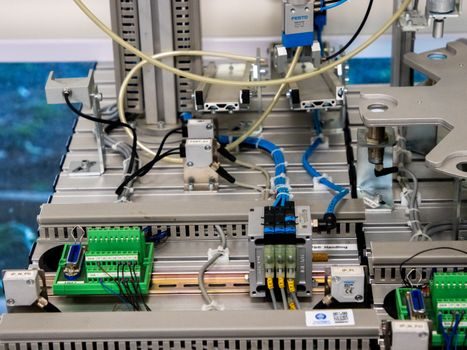

Connector, Cable, and Wiring Rules
Connector failures cause more field downtime than sensor-element failures, so spec the connector with the same care as the sensor. M8 3-pin is the de-facto small-format standard for low-power 3-wire PNP/NPN devices, while M8 4-pin is used where IO-Link or dual-output (NO+NC) is required; M12 A-coded 4-pin handles 24 V DC sensor chains, and M12 5-pin is reserved for analog or dual-channel use [S1][S3].
Cable jacket choice is the next gate: PVC is the budget option with a typical -10 °C to +80 °C window, while PUR is specified for drag-chain, oil exposure, and weld-spark environments and extends down to roughly -25 °C or -40 °C depending on the compound [S1]. For cable carriers, specify a minimum bend radius (often 10× cable OD for static, 5× OD for continuous flex) and a cycle count — uncoiled PUR chains are commonly rated 5–10 million cycles. Co-moulded versions eliminate the strain-relief failure mode and are the right pick for washdown and food-grade lines [S1].
Mounting, Magnet Pairing, and the Air-Gap Reality
Every magnetic sensor datasheet quotes a nominal sensing distance with a reference magnet; in practice, the operating gap is set by the magnet, the target material behind it (ferrous vs non-ferrous), and any surrounding steel that shunts flux. A stainless bracket can cut the effective range by 30–50% versus a non-ferrous mount, so engineers should derate the published figure on any line near structural steel [S3].
For the magnet itself, NdFeB (N35–N52 grade) is the default for sub-30 mm gaps; samarium-cobalt (SmCo) is specified above 150 °C or in acid environments; AlNiCo handles higher temperatures but with lower flux density. Micro-magnet sourcing from Chinese manufacturers remains cheap at small batch (sample-grade NdFeB pieces were listed on wholesale channels in the US$ 0.10–5 per-piece band as of July 2026), but consistency lot-to-lot is the variable to audit [S2]. For higher-precision AMR/GMR/TMR use, demand a magnet supplier datasheet with Br, HcJ, and temperature coefficients (α(Br) typically -0.09 to -0.12 %/°C for NdFeB).
Who Should NOT Pick a Reed Switch
Reed switches are the wrong pick when any of these are true: switching frequency above ~200 Hz, ambient vibration above 10 g RMS, presence of strong external DC or AC fields from welding cables or VFD drives, or a required life above ~10^8 operations. The contacts will either bounce, chatter, or weld closed, and the failure will not announce itself. Solid-state Hall or magneto-inductive is the only honest answer in those envelopes [S3].
Reed switches are also the wrong pick for safety-rated position detection in Category 1/2/3 / PL c/d functions, because a single contact cannot meet the dual-channel diagnostic coverage required by the relevant machinery-safety standards; spec a dual Hall or a coded-magnet solution instead. For explosive-atmosphere duty, an Ex-certified Hall sensor with the matching ATEX/IECEx marking on the certificate (not the datasheet) is mandatory — a generic CE-only reed will not clear hazardous-area audits.
Failure Modes and Sourcing Signals to Track
The top three field failure modes for magnetic sensors, in order, are: (1) cable/connector fatigue at the strain relief — solved by co-moulded M8/M12 or a flex-rated PUR chain; (2) magnet demagnetisation on lines that run hot — track Br loss and α(Br); (3) false triggers from adjacent ferrous masses or neighbouring magnets, which a Hall IC will handle but a reed will chatter [S1][S3].
