A marble cutter is a specialised 110–125 mm handheld diamond-blade tool built for clean, low-chip cutting of marble, granite, ceramic and stone, typically drawing 1,400–1,600 W at 12,000–13,000 r/min no-load speed and reaching 30 mm depth per pass [S3][S5].
It is engineered for tile setters, stone fabricators, interior fit-out crews and countertop installers who need finish-grade edges rather than demolition speed, and it sits alongside — not above — general-purpose angle grinders, circular saws and rebar cutters on a construction tool inventory [S4].
Core Components and Working Principle
The four functional groups on an electric marble cutter are the cutter body, the motor, the cutting table/base and the control panel; these work in series so the motor drives the diamond blade at high speed while the operator controls the feed rate along the table [S6].
Most production units use a 220–240 V, 50/60 Hz universal or induction motor with rated input between 1,400 W and 1,600 W, a M20 spindle thread, and a continuous no-load speed band of 12,000–13,000 r/min; blade diameter stays in the 110–125 mm class because larger wheels move the tool out of its handheld envelope and reduce cut accuracy [S3][S5].
Advantages in Real Cutting Tasks
Marble cutters are lighter and more compact than a full-size circular saw, which is the main reason operators pick them for vertical or overhead work on installed tiles where a heavier saw is unsafe [S4].
The narrow kerf of a 110–125 mm diamond blade reduces material waste on expensive stone and lets the operator follow scribed lines on glazed tile without chipping; the same kerf on a 185–235 mm circular saw removes noticeably more stone per pass [S3].
A typical 0–45° bevel base lets the user cut mitres on skirting and counter edging in a single setup, and the integrated dust-proof motor housing extends service life on dry-cut stone work where fine particulate is constant [S3].
Disadvantages, Failure Modes and Safety Limits
Dry cutting marble or granite generates a heavy respirable-crystalline-silica load, so the tool is a dust hazard by design; without a water-feed or M-class extraction the operator is exposed to dust concentrations that exceed common indoor air limits, which is a documented job-site failure mode for this tool class [S7].
Electric shock risk rises sharply when water contacts the motor housing on a non-waterproofed cutter; standard manufacturer manuals forbid use on wet, oily or cable-littered surfaces specifically to prevent water ingress into the switch and armature, and they require an RCD-protected supply [S5][S8].
Marble cutters must not be used by people with conditions that can cause sudden loss of consciousness (epilepsy, blood-pressure disorders, heatstroke) and the working radius must be cleared of bystanders, which are explicit manufacturer-safety constraints rather than optional advice [S5][S8].
Wet vs Dry, Waterproofing and Blade Selection
Wet-feed marble cutters suppress airborne dust, cool the diamond segment and extend blade life, but only if the motor and switchgear are sealed to an IP rating that handles sustained water exposure; a standard dry-rated cutter used in wet mode is fighting its own design and creates real electrical-safety risk [S7].
Blade choice controls cut quality: a continuous-rim diamond blade is the default for marble and glazed ceramic because it minimises chipping, while a segmented rim cuts faster on concrete but will chip polished stone — that is why the same tool with the wrong blade gives different finish results [S6].
Maximum cutting depth is bounded by blade diameter and base geometry; the AMC16-110 class is rated to 30 mm per pass at 90°, which is enough for standard 20 mm tile plus adhesive bed, but cannot resaw 40 mm countertop slabs in a single pass [S3][S5].
Comparison: Marble Cutter vs Circular Saw vs Angle Grinder
On cut precision on stone, the marble cutter wins because of its narrow 110–125 mm diamond kerf and rigid table; on material versatility, the circular saw wins because it handles wood, metal and masonry with blade swaps; on speed and aggression, the angle grinder class is the budget option but lacks a cutting table and ships with a coarser abrasive wheel that chips polished stone [S3][S4].
On dust and electrical safety, a wet-feed marble cutter is the cleanest indoor option, while a dry-only angle grinder in a closed room is the worst; on kerf waste, the marble cutter is the most material-efficient, the circular saw is intermediate, and thin abrasive wheels on a grinder cut a similar kerf but run hotter and wear faster [S4][S7].
For cuts that need a guide rail and a long straight travel on sheet goods, the circular saw still leads; for finish cuts on installed stone, the marble cutter still leads; for rough shaping and demo, the rebar cutter and angle-grinder class dominate because speed beats finish [S4].
Selection Criteria and Spec Gates
The first gate is power supply match: 220–240 V, 50/60 Hz, 1,400–1,600 W input is the band where most production marble cutters sit, and dropping below 1,400 W usually means the blade stalls on dense granite [S3][S5].
The second gate is the duty-cycle label — Class II double insulation is the baseline for handheld stone tools, and the operator should verify the label, the guard, and the spindle lock before each shift; Ronix and Tolsen manuals both flag these as non-negotiable pre-use checks [S5][S8].
The third gate is depth and bevel: confirm that the rated maximum cutting depth (30 mm for the 110 mm class) covers your thickest tile plus adhesive, and that the bevel range covers your mitre needs; the 0–45° adjustable base on the AMC16-110 is the field-standard range and anything narrower is a fit-out limitation [S3].
The fourth gate is dust/water management: for indoor marble work, specify a wet-feed or M-class-extraction configuration; for outdoor stone work, prioritise the dust-proof motor housing and an RCD on the supply [S3][S7][S8].
Use Cases and Operating Notes

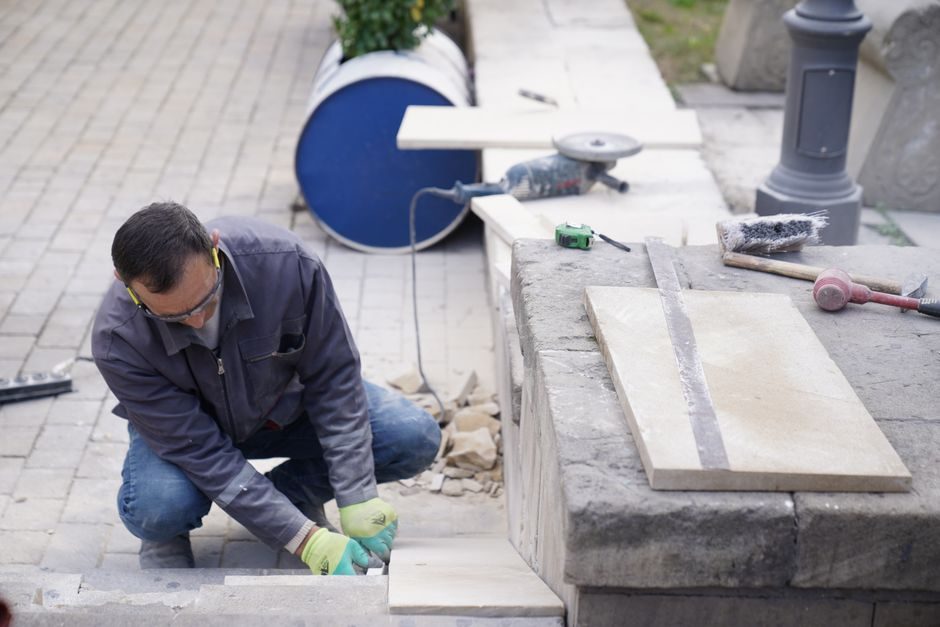

In tile-laying, a marble cutter with a 110 mm continuous-rim diamond blade and a 30 mm depth rating is the correct tool to trim 20 mm porcelain or marble at the wall line, and it is the tool of choice when the finish edge will be visible without skirting [S3][S4].
For granite countertop trimming, a wet-feed marble cutter keeps silica dust down and prevents segment glazing, but the operator must still respect the 30 mm per-pass depth limit and stage deep cuts in multiple passes to keep the blade in its efficient band [S5][S7].
For site work, the same tool on a GFCI/RCD-protected 230 V supply is the safest handheld option, but it must never be coupled with oxy-fuel cutting workflows or used near flammable vapour; the manufacturer explicitly bans use on water, oil or cable-littered surfaces [S5][S8].
Engineers specifying marble cutters for fit-out fleets should look at the impact drill pros and cons and the circular saw installation guide as adjacent references, since most crews rotate the marble cutter, the impact driver and the circular saw across the same day, and the guarding plus anchoring logic transfers directly [S5][S8].
Track three signals over the next procurement cycle: a wet-feed IP-rated SKU at the 1,400–1,600 W / 110–125 mm point entering the catalogue, a manufacturer datasheet quoting EN 60745-1 / IEC 60745 stone-cutting compliance with a verifiable serial-number trace, and any change to local silica-dust enforcement that tightens dry-cut rules on marble work.
