Needle valves belong on low-flow, clean-service throttling jobs in a pulp and paper mill, not on the abrasive stock, black liquor, or chip feed lines that dominate the process [S4][S7].
Typical duties where a needle valve earns its place include instrument-air header blocks, chemical dosing trim, sample line isolation, and small-bore steam tracing drips, where its tapered plug-and-seat geometry gives the fine resolution a globe valve would overshoot [S8][S2].
Where needle valves fit in a mill, and where they do not
Pulp and paper process streams fall into two very different wear regimes, and the split is the single biggest determinant of whether a needle valve is the right hardware [S4][S7]. On the clean side, instrument air, white water filtrate, fresh dilution water, low-pressure condensate, and chemical additive dosing headers carry low-solids media at low velocity, which suits the narrow seat orifice of a needle pattern and lets the operator trim flow over many turns of the stem [S8]. On the dirty side, brown stock at 3-5% consistency, black liquor at 50-80% solids, and chlorine dioxide bleach filtrate are abrasive or corrosive enough to destroy a fine-tipped needle seat in weeks, so mills route those through ball valve or knife-gate patterns with full-bore ports and replaceable seats [S4][S5][S7].
The functional fit is also process-position specific. A needle valve is at its best on isolation-then-adjust service where the operator sets a flow once and leaves it: dosing pumps, sample conditioning, gauge root valves, and small steam tracing orifices. It is at its worst on frequent modulation cycles in a control loop, because the long tapered plug has limited rangeability compared with a characterized globe or V-port ball, and a stock consistency excursion can pack fibre against the seat [S2][S8].
Material and trim selection for paper-mill chemistry
Mill chemistry is the second selection filter, and it is unusually aggressive because the same piping may see acidic bleach plant liquor on Monday and a hot caustic boil-out on Wednesday [S2][S4]. Standard 316 stainless steel bodies with PTFE seats handle sodium hydroxide, sodium sulphide, and dilute chlorine dioxide at moderate temperatures, which is why most general-purpose needle valves in a mill are 316/PTFE combinations [S3][S4].
For hot black liquor, recovery boiler soot-blowing air, and chlorine dioxide generator feeds, alloy trim such as Alloy 20, Hastelloy C, or duplex 2205 is specified, paired with graphite or PTFE packing that survives the boil-out solvent chemistry the plant uses for descaling [S2][S4][S7]. Where the line sees repeated thermal cycling, metal-to-metal seats in Stellite or 17-4PH overlay on a 316 body keep seat geometry stable when PTFE would creep [S3].
Seat leakage class is another paper-mill-specific concern because low-pressure condensate and vacuum header drip legs run at very low differential, and an under-rated seat will pass continuously. Specify at minimum API 598 or FCI 70-2 Class IV shutoff for clean service, and Class VI (soft seat) for instrument air and dosing where bubble-tight shutoff is paid for in lost chemical or lost accuracy [S2][S3].
Sizing, Cv, and connection standards
Needle valve Cv selection follows the same ISA 75.01 / IEC 60534 equations used for any control valve, but the operating point on a paper mill is almost always at the bottom of the Cv curve. A 1/2 in. needle pattern typically delivers Cv 0.1-1.0, a 3/4 in. 0.5-2.5, and a 1 in. 1.0-5.0, which is exactly the range a 0.1-2 gpm dosing pump or a 5-50 lb/hr steam tracing orifice needs [S8].
For inlet pressure, the common mill ratings are ASME B16.34 Class 800 and Class 1500 for 1/2 in. to 1 in. forged needle bodies, which cover saturated steam up to about 800-1000 degF and cold working pressures well above any instrument-air header. End connections in the paper mill are overwhelmingly threaded NPT or BSP, with socket-weld (SW) and integral flange reserved for higher-temperature steam tracing and recovery boiler sample lines [S3][S8].
Stem packing is the chronic leak path on a needle valve in this service, and mills that have moved to live-loaded graphite or PTFE packing with fugitive-emission conformance to API 624 or ISO 15848-1 report packing life on instrument-air headers that used to weep weekly [S2][S3]. Where a needle is mounted on a chemical dosing line, specify a packless or bellows-sealed body to eliminate the packing leak as a slip-hazard and emissions source [S2].
Comparison against the main alternatives
The decision tree in a paper mill usually comes down to needle, globe, V-port ball, and needle-and-needle (double-needle) on the same duty. On a four-criterion comparison of (1) flow resolution at low Cv, (2) cost, (3) clean-service compatibility, and (4) suitability for stock or slurry, the needle pattern wins on resolution and cost on clean service, the globe wins on resolution and packing life at higher pressure, the V-port ball wins on versatility and full-bore cleanout, and the needle-and-needle wins on fine metering at very low flow [S2][S4][S5][S8].
For pulp and paper specifically, the comparison lines up as: a standard 316 needle at Class 800 is the lowest-cost option for clean throttling up to about 1.5 gpm; a globe valve with alloy trim costs 2-3x as much but gives longer packing life on steam and chemicals; a V-port ball costs 2-4x but accepts occasional fibre and is field-repairable; and a knife-gate or full-bore ball is mandatory on stock lines because a needle seat would be destroyed by stock at any consistency [S4][S5][S7].
Field failure modes and what to write into the spec
The recurring needle-valve failure modes in paper mills are well documented, and a spec that addresses them up front is cheaper than a repeat shutdown [S2][S4][S7]. Erosion of the needle tip is the dominant failure on any line that sees even trace fibre, so the spec should exclude needle valves from stock, black liquor, and white water recirculation; it should also require the seat to be a renewable insert rather than a machined-in surface, because re-machining a seat in a 316 body in situ is rarely economical [S4][S7].
Packing leakage is the second mode, and on instrument air and steam tracing it is the source of most mill fugitive-emission hits, so specify live-loaded packing with documented conformance to API 624 / ISO 15848-1, plus a stem material that will not gall (416 stainless or 17-4PH) [S2]. A third mode is galling of the threaded stem when the operator over-torques to stop a seat leak; a back-seat design that lets the operator repack under line pressure removes that risk and is standard on most Class 800 needle patterns [S3][S8].
Finally, write the spec so that the body is rated for the boil-out chemistry, not just the process chemistry, because descaling solvents and biocide flushes are typically the opposite pH of the process stream and the valve will see them every shutdown [S2].
Sourcing, standards, and trackable signals
Major mill valve suppliers such as Valmet, DeZURIK, Warren Valve, and the J Flow / QRC distributor channel all carry needle patterns in the 316, alloy, and graphite-packed configurations used in paper mill service, and their published pulp and paper line cards list needle, globe, ball, and knife-gate options as a system rather than as individual SKUs [S1][S3][S5][S6]. For adjacent spec work, the same paper-mill engineering offices that select needle valves are also choosing ball valve hardware for stock lines and reviewing broader process construction machinery and equipment interfaces during mill rebuilds, which is why selection guidance tends to come from OEM line-card documents rather than from generic catalog pages [S1][S3][S6].
Also worth cross-referencing for related process decisions is the engineering treatment of lamps and light fittings in mill walkways, which sits at the same person-safety intersection as packing-leak management on a needle valve header [S2].

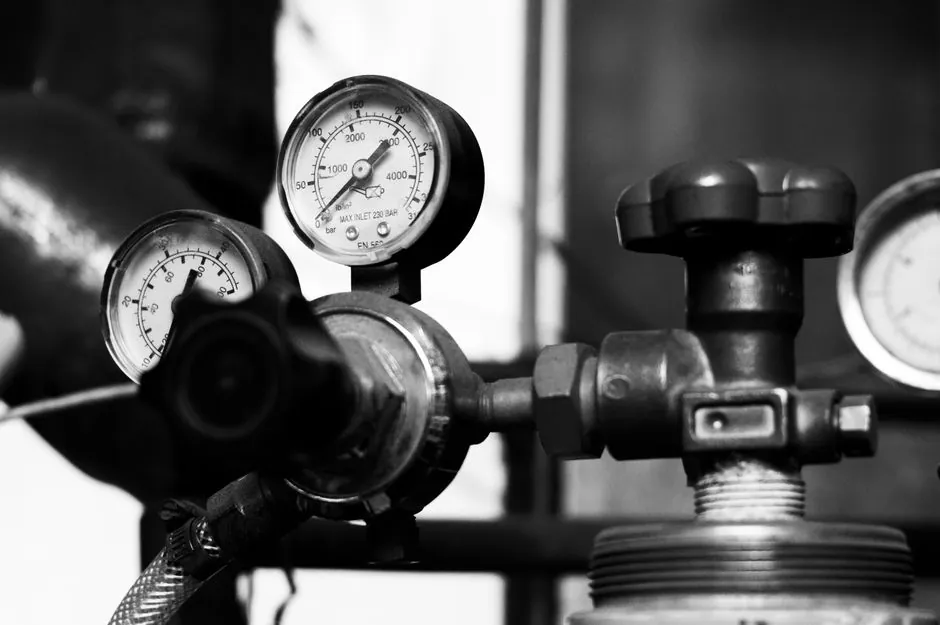

This topic is covered further in Air Solenoid Valve Advantages and Disadvantages: A Spec-First Engineer's Map.
