A printed circuit board quote is not a single number — it is a function of stackup, copper weight, surface finish, panelization, volume tier, and testing depth, with Chinese instant-quote systems exposing roughly 4-12 of those knobs directly on the order page [S2][S3].
For a process engineer buying prototypes, the practical question is not "what does a PCB cost" but "which specification move moves the price the most per unit of electrical value delivered" — and that answer changes with layer count, flex vs rigid, and lot size [S1].
Cost Driver Hierarchy: What Moves the Quote the Most
Layer count sits at the top of the cost stack because each additional conductive layer adds lamination cycles, inner-layer imaging, and drilling steps; PCBGOGO's flex quote flow exposes 1/2/4/6-layer options as primary selectors, with PCBGOGO's general rigid capability list cited at 1-30 layers for high-precision work [S2][S3]. Board thickness is the second lever — FASTPCB's standard quote lists 0.4 / 0.6 / 0.8 / 1.0 / 1.2 / 1.6 / 2.0 / 2.4 mm as the selectable thickness range, with 1.6 mm as the FR-4 default that carries no surcharge [S2]. Flex stackups add a third dimension: PCBGOGO publishes an FPC thickness menu from 0.08 mm to ≥0.4 mm, and explicitly notes that "unusual parameters" outside the standard list trigger a small price increase plus longer lead time [S3].
Copper weight is the third primary driver because it changes etching chemistry, plating time, and current-carrying capability; PCBGOGO lists outer copper at 0.5 oz (18 µm) / 1 oz (35 µm) / 1.5 oz (53 µm) / 2 oz (70 µm) and inner copper at 1/3 oz (12 µm) / 0.5 oz (18 µm) / 1 oz (35 µm) [S3]. Doubling copper from 1 oz to 2 oz on outer layers is one of the cleanest cost-vs-specification trade-offs in PCB sourcing, because higher copper also lets designers drop trace count or increase trace width for the same current budget.
Rigid FR-4 vs Flex vs Rigid-Flex: Cost and Selection Boundary
Rigid FR-4 remains the cost baseline for most industrial and consumer electronics, with FASTPCB publishing standard lead-time guarantees of 15 days for OEM PCBA and 30 days for ODM design-plus-prototype lots [S2]. Flex PCBs use polyimide base material and PCBGOGO's flex capabilities explicitly list min track/spacing of 2/2 mil and min hole size of 0.15 mm, which is the practical lower bound below which yield drops and quote escalates [S3]. For applications that need both — connectors rigid, body flexed — the rigid-flex hybrid adds one lamination interface and a stiffener menu (PI / FR-4 / Metal at 0.1-1.6 mm), with PCBGOGO flagging 0.1 mm, 0.9 mm, 1.1 mm, 1.3 mm, 1.4 mm, 1.6 mm PI thicknesses and 0.45 mm metal as "unusual" surcharge categories [S3].
The decision rule is mechanical, not electrical: if the assembly must fold once during installation, flex or rigid-flex is cheaper than a connector-plus-cable alternative; if the assembly lives in a fixed enclosure, FR-4 wins on both unit cost and supply-chain depth. EMS providers such as Venture Electronics frame the value proposition as "simple PCB assemblies in days, not weeks" with automated lines that learn per order, which is a different cost lever — cycle time, not unit price [S4].
Surface Finish and Trace Geometry: The Quote-Line Items Engineers Skip
Surface finish changes both cost and solderability profile: PCBGOGO's flex quote exposes four finish options — immersion gold (ENIG), OSP, immersion silver (Ag), and chemical tin — with ENIG thickness selectable at 1 µ" / 2 µ" / 3 µ" (1 µ" = 0.0254 µm) [S3]. ENIG is the default for fine-pitch and wire-bond work, OSP is the lowest-cost option for high-volume SMT with short shelf-life, immersion silver sits between them for moderate-frequency RF, and chemical tin is specified where lead-free reflow and avoidance of nickel are required. Choosing OSP over ENIG is typically the single largest unit-cost reduction available on a 4-layer board, at the price of a 6-month typical shelf life versus 12+ months for ENIG.

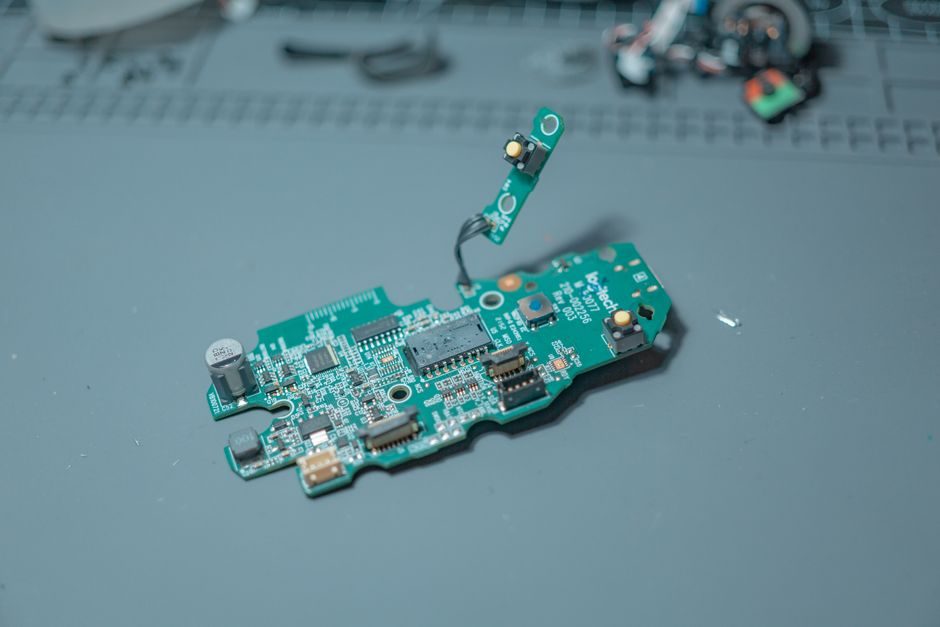

Trace geometry and drill size act as multipliers on yield rather than as direct line items. PCBGOGO publishes a 2/2 mil min track/spacing and 0.15 mm min hole on flex; the equivalent FR-4 baseline for most Chinese prototype houses is 4/4 mil trace/space and 0.2-0.25 mm via, and going below those lines adds a per-design NRE rather than a per-piece surcharge [S3]. For HDI work — laser-drilled microvias, sub-100 µm pitch BGAs — the PCB industry 4.0 adoption piece tracks the standards and sourcing signals that govern those builds.
Volume Tier, Lead Time, and EMS Bundle Economics
Prototype tier (5-100 pieces) carries the highest per-piece cost because setup amortization is spread across few parts; FASTPCB's instant-quote quantity selector tops out at 100 pieces with a 100+ escape, which is the volume boundary where panelization efficiency and setup amortization flip the per-piece curve [S2]. FASTPCB's stated delivery bands are 15 days for OEM PCBA and 30 days for ODM design-plus-prototype, with component sourcing at 7-15 days — those numbers are a useful sanity check against quotes that promise 5-day turns at prototype volume, because component lead time is usually the binding constraint, not fab time [S2].
Bundling fab + assembly + component sourcing changes the cost structure: turnkey EMS providers (FASTPCB, Venture, FR4PCB.TECH, WDFPCB) quote against board quantity, assembly side, SMD solder joints, and DIP solder joints as separate selectors, which means the assembly NRE is decoupled from the fab NRE and can be optimized independently [S2][S4][S6][S8]. For low-volume industrial builds, the assembly NRE often exceeds the fab unit cost — a fact that gets hidden in turnkey "per-board" quotes. Spectra-Physics' process lasers for via drilling, depaneling, direct imaging, and trimming sit further upstream in the cost stack: tooling choices at the laser stage determine the per-panel drilling and imaging throughput, which feeds back into the per-piece quote at every fab house [S5].
Total Cost of Ownership: Beyond the Per-Piece Quote
Per-piece quote is the visible cost; the invisible costs are rework, yield loss, field failure, and inventory. 100% E-test versus no-test on a flex build is another binary lever — PCBGOGO offers 100% E-test as a checkbox on the flex quote, and the cost is a few percent of the unit price, but the failure-mode avoidance on a high-pin-count flex connector is significant [S3].
Inventory carrying cost interacts with surface finish shelf life: OSP's roughly 6-month shelf life forces smaller lot sizes and more frequent reorders, which raises the per-piece logistics cost even when the fab unit price is lower. For builds intended for long-field-life industrial deployment — process control, energy, transportation — ENIG or immersion silver typically wins on lifecycle cost despite a higher entry price, a pattern that mirrors the cost-driver logic in flat-belt TCO analysis and similar industrial spec-driven purchases. For reference on how quality standards map onto these cost choices across FR-4, flex, and HDI builds, the 2026 PCB quality standards spec map tracks the relevant IPC and supplier-qualification frameworks.
Selection Criteria: A Cost-Driven Comparison Table
Four PCB build types, scored on three cost-decision criteria: per-piece unit cost (lower is better), lead time at prototype volume, and suitability for flexing or high-density interconnect. Rigid FR-4 4-layer 1.6 mm ENIG scores low unit cost, 15-day prototype lead via FASTPCB's OEM PCBA band, and is unsuitable for dynamic flex; the same FR-4 in 8-layer 1.6 mm ENIG roughly doubles unit cost and adds 3-5 days lead time, but is the workhorse for industrial control. Flex 1-2 layer polyimide with coverlay and PI stiffener carries a per-piece premium of 2-4× over equivalent-layer FR-4 and adds 5-10 days lead time, but is the only option for one-time fold installations; 4-layer flex is the cost ceiling short of rigid-flex, and any layer count above 4 should trigger a rigid-flex review. Rigid-flex 4-layer hybrid sits at 3-6× the equivalent rigid FR-4 unit cost and 20-30 days lead time, but replaces a connector-cable assembly, so total assembly cost often favors it once the eliminated connector, cable, and secondary operations are counted. [S3]
Failure Modes and Constraint Map
The most common cost-driven failure modes are: under-specifying copper for a high-current power section, which forces a respin to thicker copper and a new fab cycle; over-specifying ENIG on a through-hole-only design, which inflates the unit price without solderability benefit; and under-panelizing a prototype run, which leaves the fab house to apply a default panelization that may not match the assembly line's feeder pitch. PCBGOGO's "single piece" vs "in panel" selector is the explicit lever for the last item, and "different design in panel" carries an explicit surcharge line on the quote page — meaning mixed-design panels are priced as a non-default option, not absorbed [S3].
Standard fast-turn instant-quote platforms are also not the right channel for: controlled-impedance stacks with tight ±10% tolerance, flex designs requiring IPC-6013 Class 3 certification, or any build requiring full material traceability — those need a manual quote against an NDA, and FASTPCB explicitly lists a "Manual Quotation" channel alongside its instant quote [S2]. For background on how upstream material supply shocks — polyimide, FR-4 laminate, copper foil — feed into PCB cost cycles, the polypropylene resin supply 2026 piece covers the resin-side risk pattern that has historically moved FR-4 substrate pricing.
The trackable signals for the next 90 days are: (1) Chinese instant-quote platforms' published 1.6 mm 4-layer 5-piece baseline against ENIG vs OSP finish, which is the cleanest read on fab cost pressure; (2) any change in stated OEM PCBA lead-time bands below FASTPCB's current 15-day reference, which would signal capacity loosening or tightening [S2]; (3) updates to the polyimide and FR-4 laminate availability notes on flex and rigid quote pages, which lead unit-cost moves by 2-4 weeks [S3].
