Quarry piling work separates cleanly into two drive families: hydraulic impact hammers for stiff overburden, blasted rock fill and dense gravel, and vibratory hammers running at 15-30 Hz for sheet pile walls, temporary cofferdams and casing extraction in loose-to-medium sand and granular quarry fill [S5].
Selection starts with four numbers, not brand lists: carrier operating weight, ram mass, per-blow energy (or eccentric moment for vibratory units), and the soil set criterion the hammer must reach. Get any of these wrong and the pile either refuses to penetrate or the leader mast loads up and the rig stalls [S1][S2].
Quarry Soil Classes and the Set Criterion They Set
Soil class fixes the millimetres of penetration per blow that the hammer must hit at design driving energy, and that target decides which hammer family is even on the table. Common working set criteria: 5-10 mm/blow in medium-dense sand, 2-5 mm/blow in dense sand or stiff clay, and 10-25 mm/blow in soft clay or loose silt, with granite quarry floors and shot-rock fill routinely sitting at the 2-5 mm end of that range [S5].
Quarry bench faces and access ramps typically classify as dense granular fill with cobbles, where vibratory units lose effectiveness because the eccentric mass cannot sustain resonance through cobble contacts. Hydraulic impact hammers carry that range, and a 3-5 tonne ram delivering 40-60 kJ per blow is the empirical target for 250-400 mm precast concrete and 300-600 mm driven casings in those strata [S5].
Crushed-rock stockpiling yards and washing-plant foundations usually sit on engineered granular fill that classifies as loose-to-medium sand, where a vibratory hammer pulling the pile down through skin-friction loss will out-produce an impact rig by a wide margin and is also easier on adjacent crusher structures [S5]. A working pile driver reference for the full drive-principle comparison sits in the encyclopedia entry.
Hammer Family Comparison: Impact vs Vibratory for Quarry Use
Quarry-relevant hammer families line up against four decision criteria: drive principle, energy band, blow or frequency rate, and the soil class where each one stops working. [S4]
Drop hammers deliver energy as ram mass × drop height, with a textbook 800 kg ram at 2 m free-fall producing roughly 15.7 kJ per blow, and remain the lowest-capex option only for small timber or short precast piles under 6 m, which is rarely the case in modern quarry construction [S5].
Hydraulic impact hammers span 10-3000 kJ per blow at 20-120 blows/min, with modern variable-stroke units letting the operator dial energy per blow without changing ram mass, and they are the default for precast concrete piles 300-600 mm and steel tubular piles up to 30 m, including the driven casings used for crusher base isolation and weighbridge foundations [S5].
Diesel hammers are still common in Asia and on remote infrastructure because they carry no external hydraulic power pack, but they emit visible smoke, have a fixed energy band per model, and cannot soft-start, which is why European Tier 4 and EU Stage V quarry projects usually reject them on emissions grounds [S5].
Vibratory hammers resonate the pile at 15-30 Hz with an eccentric mass and pull it down through skin-friction loss, making them ideal for sheet pile walls around wash-plant sumps, settling ponds and temporary quarry access ramps in loose-to-medium sand, but ineffective in stiff clay, dense gravel or shot-rock fill where impact hammers take over [S1][S5].
Carrier Match: Excavator Class, Oil Flow and Headroom
Quarry piling attachments are most often excavator-mounted, so the carrier operating weight, auxiliary oil flow and working pressure gate the whole selection. Published top-clamp vibratory hammer ranges for excavator mounting sit at 15-90 ton carriers, with the bracket, pin diameter and arm width custom-matched to the specific machine model [S1].
Beyond carrier tonnage, three hydraulic parameters decide hammer viability: auxiliary oil flow in L/min, relief pressure in bar, and the hydraulic power available at the attachment circuit, because an undersized supply starves the vibration motor and an over-rated pressure trips the relief valve on every cycle. Vendors consistently ask for carrier model, operating weight, oil flow and pressure before quotation, then size the eccentric moment and clamp geometry to that envelope [S1][S2].
Quarry headroom is the other hard constraint. Bench faces with a 6-8 m vertical clearance cannot accept a 24 m leader mast on a crawler crane, so a hanging-lead or short-mast hydraulic impact rig is the only realistic option, and for sheet pile walls around low-headroom wash plants, an excavator-mounted vibratory unit is again the cleaner answer [S1][S4].
Static Press-In Units and Where They Fit a Quarry
Static hydraulic press-in drivers do not impact or vibrate; they react against previously driven piles or kentledge and jack the new pile in. They suit highly compressible clay layers and soft clay with low sand content, and they can adapt to complex geological conditions where vibration and impact would damage adjacent crusher bearings or settlement-sensitive structures [S6].
Quarry applications are narrow but real: press-in drivers are used for sheet pile walls adjacent to operating control rooms, near existing conveyor galleries where vibration would trip dust-extraction interlocks, and for noise-sensitive perimeter walls at quarry boundaries that abut residential or commercial receptors [S6].
The trade-off is throughput: static press-in rigs run at a fraction of the cycle rate of an impact or vibratory hammer, and on dense quarry fill or shot-rock, they stall and require pre-augering, so they are a specialist tool, not a default [S6].

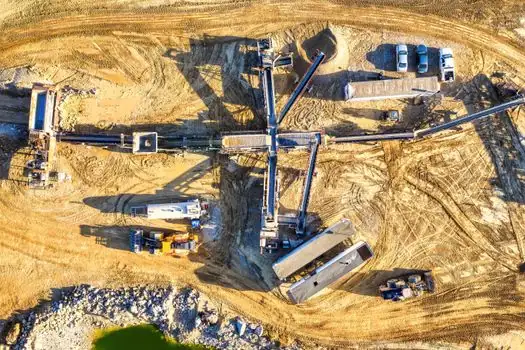

Diesel Hammer Use on Remote Quarry Sites
Diesel pile drivers remain relevant on remote quarry sites and in regions with no Tier 4 or Stage V emissions enforcement, because they carry no external hydraulic power pack and run on the combustion cycle alone, which simplifies logistics where bulk hydraulic units are hard to fuel and service [S8].
The energy band of a diesel hammer is fixed per model and cannot be soft-started, which makes them a poor match for sensitive adjacent structures, and on urban-edge quarries with residential receptors, the visible smoke and peak per-blow noise routinely exceed local limits [S5][S8].
Selection for a remote quarry greenfield typically comes down to ram weight and the pile section being driven, with common diesel configurations in the 3-7 tonne ram class for 300-500 mm precast concrete and steel H-piles to 20 m, paired with a crawler crane and hanging leads [S8].
Verification Standards That Govern Quarry Foundation Acceptance
Foundation acceptance on a quarry crushing line or weighbridge pad runs on the same execution standards as civil building work: EN 12699 for displacement piles, EN 1536 for bored and continuous-flight-auger piles where pre-drilling is used to break through cobble layers, ISO 22477-4 for dynamic pile load testing, and ASTM D4945 for high-strain dynamic testing with the Pile Driving Analyzer [S4].
Set criterion is checked against the driving energy recorded by the hammer, and a hydraulic impact rig that delivers 40-60 kJ per blow with a 3-5 tonne ram must be matched to a 2-5 mm/blow target in dense sand or stiff clay, with the operator logging stroke, blow count and hydraulic pressure throughout the drive, usually through a PLC-controlled power pack that mirrors the PLC data-logging pattern used on modern piling rigs [S5].
Bearing capacity on production piles is then verified by restrike or by signal-matching analysis on the dynamic test record, not by blow count alone, because soil set relaxes after driving and the end-of-drive reading understates long-term capacity in granular quarry fill [S4].
Selection Sequence and Sourcing Signals to Track
The decision sequence for a quarry piling package is: soil classification and pile section, target set criterion, hammer family (impact vs vibratory), per-blow energy and ram mass, carrier class and hydraulic envelope, then leader geometry and power-pack sizing, in that order, with vendor selection run as a matched system rather than a price-per-hammer comparison [S1][S2][S9].
Two sourcing signals worth tracking: vendor datasheets that publish both eccentric moment and hydraulic flow demand together (most omit one), and OEM guidance on Tier 4 / EU Stage V compatibility for hydraulic impact units, because the emissions envelope is increasingly the binding constraint on European quarry projects. The excavator-mounted vibratory segment is also where most 2026 product updates are concentrated, including matched-bracket releases from KRATOR and Yekun, which is consistent with the broader shift toward carrier-mounted piling attachments over dedicated crawler-rig fleets [S1][S3].
For larger quarry infrastructure where a crawler rig is justified, the Pile Driver Spec Map for Mining covers carrier match, excitation force and hydraulic demand in more depth, and the encyclopedia entry on pile drivers lists the spec parameters that decode any manufacturer datasheet. Track OEM emission-compliance notices and the next round of matched-bracket releases for 20-50 ton quarry-class excavators as the two leading indicators of new product availability through Q4 2026.
