Shaft coupling selection in industrial drives reduces to five binding inputs: rated torque, peak/transient torque, service factor, shaft bore range and the misalignment budget (angular, parallel and axial) the application actually imposes [S3].
A coupling is the mechanical device that connects two shafts end-to-end to transmit power, with the dual purpose of absorbing minor misalignment and absorbing shock load, distinguishing it from a shaft collar which only clamps axially [S1]. Custom-engineered catalogues from established makers (e.g. System Components Inc., KTR) list torque ratings from sub-Nm servo sizes up to multi-megawatt steel-mill gear couplings in the same product family [S2][S4].
Selection Criteria: The Five Hard Numbers
Specifying a coupling starts from the driver nameplate torque multiplied by a service factor derived from duty cycle, with electric motors typically carrying SF 1.0–1.5, internal combustion engines SF 1.5–3.0, and reversing or peak-loaded applications at the upper end [S3]. The torque output of the selected coupling must equal or exceed the rated torque of the prime mover after service factor; KTR's backlash-free servo-coupling range, for example, is published per-bore with explicit nominal torque figures rather than a single family rating [S4].
Bore range is the second gating number: most off-the-shelf flexible couplings cover bores from 6 mm to 200+ mm, with pilot-bore, finished-bore and taper-bore variants affecting both price and lead time [S3]. Misalignment budget is the third, split into angular (degrees), parallel (mm) and axial (mm) components — gear couplings tolerate parallel offset of up to ~0.5–1.0 mm per coupling at mid-range sizes, while disc couplings tolerate higher angular misalignment, and elastomeric jaw couplings accept combined offset at the cost of torsional stiffness [S3][S4].
Type Comparison: Rigid, Gear, Disc, Elastomeric, Fluid
The four coupling families that dominate general industrial use are flexible jaw (elastomeric insert, e.g. spider/coupling sleeve), gear (steel hub and sleeve, lubricated), disc (stacked thin metallic membranes, no wearing element) and disc coupling variants built for backlash-free servo duty, plus fluid coupling units for soft-start high-inertia loads and gear coupling ranges for steel-mill and marine drives [S1][S2][S4].
Decision matrix on four criteria: (1) Cost — elastomeric jaw couplings are lowest cost per Nm; gear couplings are mid; disc couplings are highest; (2) Temperature — elastomeric inserts typically rated -30 °C to +100 °C (some nitrile compounds up to +120 °C); gear and disc couplings tolerate higher ambient and process temperatures; (3) Maintenance — disc and rigid couplings are maintenance-free when correctly aligned; elastomeric inserts need periodic replacement (often 12–24 months in continuous duty); gear couplings require grease replenishment; (4) Backlash — jaw and gear couplings have measurable backlash; disc and metal-membrane couplings are sold as backlash-free, and KTR's servo line explicitly targets zero-backlash applications [S2][S3][S4].
Who Each Type Is For — and Who It Is Not For
Elastomeric jaw couplings are correct for pump, fan, conveyor and small gearmotor drives where cost dominates, misalignment is moderate, and some torsional damping is welcome; they are not correct for high-precision servo positioning, high-temperature zones above the elastomer limit, or explosive atmospheres where the rubber insert cannot be qualified [S2][S3]. Disc and metal-membrane couplings are correct for CNC spindles, servo axes, packaging machinery and high-speed turbomachinery demanding zero backlash and high torsional stiffness, with catalogue torque from sub-Nm to several thousand Nm in the backlash-free servo line [S4].

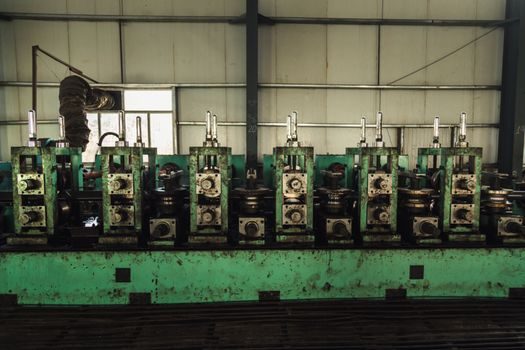

Gear couplings carry heavy-duty industrial drives — mill stands, marine propulsion gearboxes, large compressors — where the published catalogue from System Components Inc. includes both flange-type and sleeve-type versions in their Powertork® range, with continuous lubrication assumed; they are not correct for cleanroom, food-grade or low-speed precision applications [S2]. Fluid couplings are for high-inertia soft-start applications (conveyor belts, crushers, large fans) where controlled torque ramp-up protects the driver; for related power-transmission mechanical interfaces, a shaft key is the usual anti-rotation element on the shaft side, and a shaft coupling definition restates this as the device that transmits torque between two shafts [S1][S3].
Real Use Cases and Sourcing Logic
Three common specification contexts frame sourcing: (1) a chemical-plant centrifugal pump driven by a 75 kW 4-pole motor at 1,475 rpm typically lands on a flexible jaw or gear coupling sized for ~485 Nm, SF 1.5 → 730 Nm, with spacer variant for easy seal access; (2) a CNC machining-centre spindle at 12,000 rpm and servo positioning typically requires a backlash-free disc coupling from KTR-class catalogues with explicit dynamic balancing grade [S2][S4]; (3) a paper-mill winder drive with cyclic torque reversals calls for a high-torque gear coupling with continuous-duty grease points [S2].
For paper, converting and pulp lines specifically, drive selection logic is laid out in Linear Modules for Pulp and Paper: Spec Bands and Sourcing Logic 2026, which sets the speed/torque envelope the coupling must follow. Sourcing should run through the maker's published catalogue, not a generic supplier page: HNC, KTR and System Components all publish downloadable engineering PDFs with bore, torque, mass and misalignment data per coupling size [S2][S3][S4].
Limitations, Failure Modes and Standards
Common failure modes are predictable: elastomeric insert failure from overload, heat ageing or chemical attack; gear-coupling sleeve tooth wear from inadequate lubrication or misalignment exceeding design; disc-pack failure from sustained angular misalignment or shock load beyond catalogue [S3]. Shaft alignment within the published tolerance (often 0.05–0.10 mm parallel offset for mid-size flexible couplings) is the single largest determinant of coupling life in the field [S3].
Relevant standards cover specific application rules: API 671 governs special-purpose couplings for refinery services, AGMA 9005 governs flexible coupling selection for industrial drives, and ATEX 2014/34/EU plus the IEC 60079 family apply where the coupling sits inside a classified hazardous area. Couplings sold into CE-marked machinery must ship with a Declaration of Conformity referencing the Machinery Directive 2006/42/EC [S3].
Selection Workflow and Trackable Signals
A defensible selection workflow is six steps: (1) nameplate torque × service factor = design torque; (2) catalogue minimum torque ≥ design torque; (3) catalogue max bore ≥ both shaft diameters; (4) catalogue misalignment envelope ≥ measured/expected offset; (5) environmental checks (temperature, atmosphere, cleanliness); (6) verification against the applicable ISO/AGMA/API clause. Signal to track next: AGMA 9005 and API 671 revision dates against current coupling catalogues, plus IECEx/ATEX certification coverage on the maker's published data sheet for the size you intend to order [S3][S4].
