Prefabricated construction modules rely on steel plate grades such as ASTM A36, S355JR, S355J2, and ASTM A572 Gr.50, with 2026 China export listings for S355JR shipbuilding plate quoted at US$ 499-560 per tonne (10 t MOQ) [S3].
Reinforcement inside the precast concrete body is dominated by cold-drawn hooked-end steel fiber made to ASTM A820M-11, with diameters of 0.5-0.9 mm, lengths of 30-60 mm, tensile strength of 1200 MPa, and aspect ratios of 60-80, supplied at 10000 t/year capacity from Tianjin [S2].
Grade selection: carbon, structural, and weathering options
For modular framing and connectors, carbon steel plate in ASTM A36 remains the baseline general-purpose grade, with a 36 ksi (250 MPa) minimum yield, while ASTM A572 Gr.50 lifts the floor to 50 ksi (345 MPa) at a modest cost premium for load-bearing nodes [S3].
European-spec alloy steel plate S355JR (1.0045) and S355J2 (1.0577) are the dominant structural choices for prefabricated modules shipped to the EU, with St 52-3 still referenced as the legacy equivalent; 2026 export pricing sits at US$ 499-560 per tonne for 10-tonne MOQ lots [S3]. For aggressive coastal or industrial sites, weathering plate (e.g. ASTM A588) is occasionally specified to extend paint cycles, but for indoor modular work the cost premium rarely pays back within typical 25-year design lives.
Thickness and dimensional gates for modular frames
Primary module framing typically falls in the 6-12 mm plate thickness range, while shear walls, column stubs, and beam-to-column end-plate connections step up to 16-25 mm, with gusset and base-plate details occasionally going to 40 mm at heavily loaded transfer points [S3].
For precast concrete panels and composite floors inside the module, the reinforcement budget is satisfied by construction-tools consumables such as ASTM A820M-11 hooked-end steel fiber, where the standard geometry of 0.55 mm diameter x 35 mm length and aspect ratio 63 is the most commonly specified size for industrial floor slabs [S2]. Producers offer six standard SKUs (G-6030, G-6535, G-6035, G-8060, G-6060 in glued and loose forms), packaged at 20 kg/bag with 50 bags/pallet or 1000 kg bulk bags, and a 20'GP container holds 20-25 tonnes [S2].

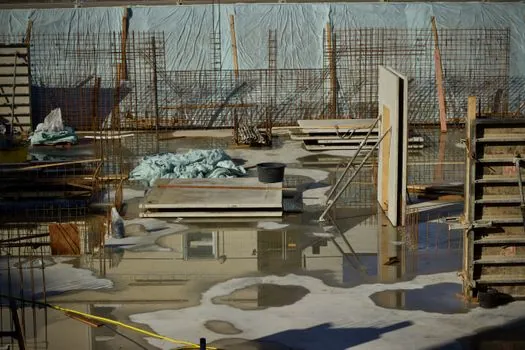

Steel fiber performance vs. rebar for precast modules
Hooked-end cold-drawn steel fiber at 1200 MPa tensile and aspect ratio 60-80 delivers >1200 MPa compressive strength contribution in the host concrete, with 45 degree bending angle (min 30 degree) per ASTM A820M-11 geometry [S2]. For thin-walled precast panels under 80 mm, fiber-only or fiber-plus-mesh reinforcement is more practical than nominal rebar cages, because rebar cover constraints force very small aggregate and high paste content.
For primary structural members in the module (columns, beams, transfer trusses), rebar remains the load-carrying reinforcement, while steel fiber is the crack-control addition; this is a complementary, not a substitutive, relationship. Buyers sourcing bending equipment for in-plant rebar prep can cross-reference the Rebar Bender Specs for Plumbing Installation: 2026 Selection Map when sizing shop tooling around the same tonnage.
Comparison: S355JR vs. ASTM A36 vs. ASTM A572 Gr.50 for modular framing
ASTM A36 plate (250 MPa yield, 400-550 MPa tensile, good weldability, baseline cost) fits light modular non-structural cladding and low-rise frames where weight savings are not critical. S355JR (345 MPa yield, impact tested at 20 degree C) and S355J2 (impact tested at -20 degree C) are the EU-preferred defaults for cold-climate sites, and they are priced in 2026 at US$ 499-560 per tonne FOB China for 10-tonne MOQ [S3].
ASTM A572 Gr.50 (345 MPa yield, better strength-to-weight ratio than A36, similar weldability) is the US-preferred default for primary load-bearing nodes, and it is widely stocked by North American service centers. The real decision axis is rarely the base price per tonne (often within 8-12 percent of each other) but rather the certification chain, the impact-test temperature rating, and the lead time from regional stockists; S355J2 buys you -20 degree C Charpy guarantees that A36 cannot match without separate impact testing [S3].
Corrosion protection, fabrication, and the fabrication-association angle
For shop-fabricated modular work, the Steel Tank Institute/Steel Plate Fabricators Association (STI/SPFA) is the reference trade body, with members fabricating shop- and field-erected storage tanks, water pipe, pressure vessels, and heat exchangers for petrochemical, power, food, pharma, fuels, and wastewater customers; the same plate-input supply chain services prefabricated construction [S1]. The association's training calendar for 2026 includes API 653 Tank Inspections (13 August), SP001 Aboveground Tank System Inspector Training in Pittsburgh (17-21 August), and a pre-certification webinar on 20 August [S1].
Shop fabrication benefits from open-hearth or electric-furnace plate with consistent thickness tolerance (typically EN 10029 Class A for S355), and bolted module connections generally prefer hot-dip galvanized S355J2 plates plus a zinc-rich primer, since field welding inside an enclosed module bay is a documented safety and quality penalty. For adjacent fire-rated or impact-rated assemblies inside the module, silicon-steel is not a structural option; it is reserved for transformer laminations and should not be confused with the structural plate grades above.
Lead time, MOQ, and procurement gates for 2026
Standard S355JR/S355J2 plate from Chinese mills is commonly quoted at 10-tonne MOQ with 25-35 day mill lead times, while service-center stock in EU/US ports can ship 6-25 mm plate in 1-3 tonne cut sizes within 7-10 days at a 10-20 percent per-tonne premium [S3]. Steel fiber procurement is on a different clock: ASTM A820M-11 stock fiber in 0.55 x 35 mm geometry is typically dispatched within 15 days of deposit or LC, with MOQ 1 kg for trial orders and production capacity 10000 t/year [S2].
A 20'GP container holds 20-25 tonnes of steel fiber, a 40'GP holds 25-27 tonnes, and a 40'HQ holds 25-27 tonnes, which sets the floor on rail and truck logistics for in-bound reinforcement [S2]. The next verification nodes to watch are the 13 August 2026 API 653 webinar, the 17-21 August 2026 SP001 Pittsburgh training, and the Q4 2026 EN 10029 Class A stock availability from the larger S355 distributors.
