Industrial storage racks are specified around four hard numbers: pallet footprint, beam load rating, upright frame capacity, and the height-to-depth (HTD) ratio of the frame, which together determine whether a system is code-compliant under ANSI MH16.1 and the IBC [S1][S5]. The 40" x 48" GMA-style wood pallet, at 6 1/2" tall with a 2,500 lb minimum load capacity and 4-way forklift entry, remains the baseline that most selective rack beams and frames are designed to accept [S2].
Frame stability is the first gate: a single-row rack with an HTD ratio at or below 6:1 can be anchored with standard base plates, while ratios above 6:1 require anchors and base plates rated for a 350 lb overturning force applied at the top beam level, and ratios above 8:1 require engineered cross-aisle ties [S5]. For more on how a pallet rack system is laid out against these ratios, the structural load path is the same whether the rack is selective, push-back, or flow.
Pallet Geometry and GMA-Style Baseline
GMA-style pallets are stringer-design wood pallets sized 40" wide x 48" deep x 6 1/2" high, with seven top and five bottom boards at least 1/2" thick, four-way forklift notches in the stringers, and a 2,500 lb minimum load capacity [S2]. Rack designers read pallet width as the deck-board direction (40") and depth as the stringer direction (48"), and they lock the pallet orientation, 40"W x 48"D or 48"W x 40"D, before configuring any bay, because flipping it later will misalign beam length and fork-pocket clearance [S2].
Non-GMA pallets force a re-spec. Block pallets (4 to 12 blocks, 4-way) and skids (stringer pallet with no bottom deck boards) change the deck-board pattern and the forklift-entry geometry, so the rack beam length, deck-wire pitch, and upright frame spacing must be re-derived rather than copied from a GMA layout [S2]. The 2,500 lb figure is a floor, not a design load: real beam ratings are picked from the manufacturer's capacity tables against the heaviest pallet plus product, not against the pallet's bare rating.
Beam, Upright, and Utilization Ratio
Beam load ratings depend on beam length and profile depth, while the upright frame rating is the total system capacity the columns and bracing can carry down to the floor and anchors [S4]. Engineers use a "utilization ratio" to judge if a design passes: a value over 100% means the rack is overstressed, while a value around 30% means the rack is underutilized and lighter sections could save steel cost [S4].
Two steel routes dominate. Structural racks (hot-rolled sections) carry more capacity per bay and are common in higher seismic zones, while roll-formed racks are more versatile and cost-effective for typical selective-rack duty in ambient warehouses [S4]. Selecting a storage rack by steel type without re-running the utilization ratio is a common way to over-buy steel in low-seismic sites or under-buy it in high-seismic sites.
HTD Ratio and Anchorage per ANSI MH16.1
ANSI MH16.1 Section 8.1 defines the HTD ratio as measured frame height (floor to top surface of the highest load-supporting beam) divided by frame depth (outside front column to outside back column at the floor) [S5]. The thresholds are: HTD up to 6:1, standard floor anchors are sufficient; HTD above 6:1, anchors and base plates must resist a 350 lb overturning force at the top beam; HTD above 8:1, engineered overhead cross-aisle ties are required and any anchorage must be engineer-certified [S5].
These HTD rules apply to a single-row rack, both roll-formed and structural; back-to-back rack rows require the correct type and quantity of row spacers rather than the single-row anchor scheme, and sloping-leg or offset-leg frames are out of scope and need separate engineering [S5]. For a pallet rack taller than about 24 ft in a 48"-deep frame, the math will already push you past the 6:1 line and into the engineered-anchor regime, so the spec must carry that requirement up front.
Seismic, IBC §1705, and Special Inspection Triggers
Under IBC §1705.12.7 (2015/2018 IBC) and §1705.13.7 (2021/2024 IBC), periodic special inspection is mandatory for the anchorage of storage racks 8 ft (2,438 mm) or greater in height, and the section also pulls in steel cantilevered storage racks 8 ft or taller assigned to Seismic Design Category D, E, or F [S3]. The IBC storage-rack definition itself limits "storage rack" to cold-formed or hot-rolled steel pallet, movable-shelf, rack-supported, ASRS stacker, push-back, pallet-flow, case-flow, and pick-module racks, while drive-in/drive-through, cantilever, portable, and non-steel racks are excluded from that definition and fall under different clauses [S3].
Site seismic class changes the design load, not just the inspection. In higher seismic areas, conservative overload assumptions can backfire: the heavier the assumed shelf load, the larger the seismic force, which drives thicker base plates, more anchors, beefier connections, and possibly slab upgrades, so it is often more cost-efficient to tighten the actual maximum load before locking the seismic design case [S4]. Pairing the seismic category with a storage rack height above 8 ft is the cleanest trigger to put IBC §1705 special inspection on the drawing set.
Type-by-Type Selection: Selective, Push-Back, Drive-In, Flow
Selective pallet rack is the default: one pallet per SKU, every pallet face accessible from the aisle, the most flexible layout, and the lowest density [S1][S4]. Push-back rack suits multiple pallets per SKU where LIFO is acceptable, with carts that nest on inclined rails. Drive-in and drive-through rack are high-density, low-SKU-count options; drive-in is LIFO, drive-through can run FIFO from one side and feed from the other [S1].
Pallet-flow rack is the high-density FIFO option for several pallets per SKU with high turnover, while case-flow racks and pick modules sit inside the IBC "storage rack" definition and are used for order picking rather than full-pallet storage [S1][S3]. A quick comparison: on accessibility, selective wins and drive-in loses; on density per square foot, drive-in and flow win and selective loses; on FIFO enforcement, flow and drive-through win and push-back/drive-in lose; on forklift-impact risk, selective is the easiest to repair, while drive-in forces the truck to enter the structure [S1]. For a higher-level view of how these compare inside the broader storage handling toolchain, the trade is always the same: aisle space versus cubic density, plus the FIFO or LIFO rule the SKU mix demands.
Environment: Ambient, Controlled, and Cold Storage
Warehouse climate is a direct cost driver. Ambient warehouses, where temperature is not controlled, keep rack costs down; temperature-controlled settings for pharmaceuticals, cigars, or similar goods add modest cost; freezers and coolers add the most, because installation time stretches, steel behaves differently at low temperature, and the spec writer usually has to add cold-rated anchors and tighter tolerances [S1]. Cold storage also changes forklift and pallet choices (often treated wood or plastic pallets), which feeds back into beam length and deck selection on a pallet rack layout.

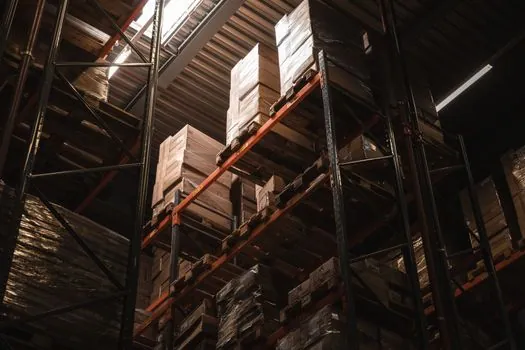

Who Should and Should Not Spec a Standard Selective Rack
A standard selective rack on a GMA 40" x 48" pallet plan, with an HTD ratio at or below 6:1, frame height under 8 ft, and an ambient or temperature-controlled (not freezer) site, is the right answer for most general-distribution warehouses that need one pallet per SKU and direct access to every face [S1][S2][S5]. It is the wrong answer for high-SKU-count, high-density operations (use flow or push-back), for freezer sites with very high racks (use rack classes rated for low-temp steel and engineered anchors), for Seismic Design Category D, E, or F sites with racks over 8 ft (engineer the anchorage and plan IBC §1705 special inspection), and for any layout where the calculated HTD ratio exceeds 8:1 without cross-aisle ties [S3][S4][S5].
The next node to lock is the manufacturer's stamped beam and upright capacity tables for the exact part numbers in the layout, cross-checked against the engineered seismic case for the site, with IBC §1705 special inspection written into the spec for any rack 8 ft or taller in the relevant seismic categories [S3][S4].
