Specifying a turnover box for warehouse, automotive, cold-chain, or agricultural bulk handling comes down to seven verifiable spec gates: rated load, material, capacity, lid/stack geometry, hygiene certification, minimum-order quantity, and supplier audit trail. Miss any one and you buy a box that cracks, warps, contaminates, or arrives in the wrong color.
Current China-origin supply as of 2026-03 shows molded PP turnover crates at US$1.50-3.50 per piece at 50-piece MOQ [S2], with blue warehouse-grade HDPE storage boxes at US$2.00 per piece at 100-piece MOQ [S3]. Stainless-steel vacuum-insulated variants occupy a separate premium tier for temperature-sensitive logistics [S1].
Rated Load and Stacking Geometry
Static load ratings of 10-30 kg on the smaller 15-30 L models and 40-75 kg on the 50-75 L industrial sizes are typical for the segment; nested-stack designs cut empty-container reverse-logistics volume by roughly 60-70% versus rigid sidewall equivalents. Boxes specified for cold-store or freezer use should carry an explicit -25 to -40 C impact-rating statement; unmodified homopolymer PP turns brittle below -10 C. [S1]
Material Grade: PP vs HDPE vs Stainless
Polypropylene (PP) copolymer is the workhorse for general-purpose automotive and distribution loops because of higher impact strength and better hinge fatigue life than homopolymer; HDPE wins on cold-temperature toughness and chemical resistance to acids and detergents common in food and pharma wash-down [S2][S3].
Stainless-steel 201 is widely used in cost-sensitive Asian markets for non-contact storage; SUS 304 is mandatory for direct food-contact, pharmaceutical, or cleanroom applications. Vacuum-insulated stainless turnover vessels from manufacturers like Super Tech target cold-chain pharmaceutical and biological transport, and are separately classed as VIP (vacuum insulation panel) enclosures rather than commodity crates [S1].
Capacity, Wall Thickness, and Tooling Tolerances
Common external footprints cluster around 600x400 mm, 500x300 mm, and 400x300 mm with heights from 120-340 mm, giving nominal volumes of 15 L (shallow tote), 30-40 L (mid-range), and 55-75 L (bulk). Wall thickness of 1.5-2.5 mm is typical for injection-molded PP; below 1.2 mm the box flexes under rated load and the hinge pin pockets elongate after 200-300 cycles. [S2]
Mold-flow simulation reports, dimensional inspection reports, and a 100% pre-shipment sample check are standard requests on first-article runs. For buyers comparing a carton box one-time-shipper against a reusable turnover crate, the break-even point on rental cost per cycle typically falls between 8 and 14 round trips at 2026 Asian landed-cost economics.
Hygiene, Certification, and Use-Case Fit
Food-contact use requires FDA 21 CFR or EU 10/2011 food-grade resin documentation; medical and pharma loops add USP Class VI or ISO 10993 biocompatibility statements on the masterbatch and any colorants. Anti-static (ESD, surface resistivity 10^6-10^9 ohm) variants are specified for electronics and EV-battery assembly cells. [S3]
Forged-in date-code cavities and RFID tag pockets are now standard on premium automotive-tier boxes; the decade-resistance box format (long-life 10+ year returnable pool) is the target for closed-loop OEM pools and uses UV-stabilized copolymer with documented weathering data per ASTM G154 or ISO 4892.

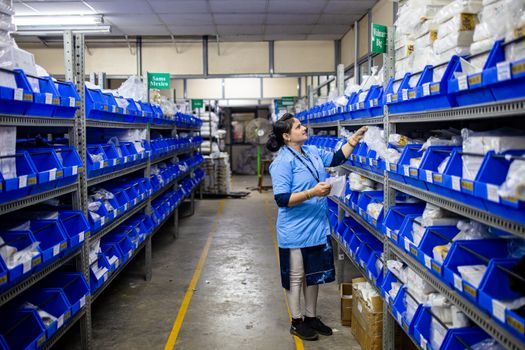

MOQ, Color Customization, and Supplier Audit
MOQ at Chinese molders typically starts at 50 pieces for off-the-shelf sizes and 500-2,000 pieces for custom color or embossed logo runs [S2][S3]. Mold cost for a new 600x400 mm tool ranges roughly US$8,000-18,000 depending on cavity count and hot-runner specification; the per-piece amortization falls under US$0.10 once production exceeds 100,000 pieces.
On-site supplier audit should confirm: injection-molding tonnage (typically 800-1,600 tonnes for this size class), in-house mold shop, raw-material traceability to resin batch, and load-test certificates from SGS, BV, or TUV. Nanjing (Jiangsu) and Gaocheng (Hebei) clusters dominate Chinese supply of the mid-range 30-50 L category [S2].
Common Failure Modes and Selection Traps
Four recurring failure modes: (1) hinge pin cracking after 150-300 cycles on under-thickness hinges — fix by specifying living-hinge design with 1.5-2.0 mm web; (2) base bowing under forklift pickup — fix by specifying a reinforced twin-skin base; (3) color-batch inconsistency in custom blue/grey/green — fix by locking masterbatch supplier and Pantone code; (4) odor/taste transfer in food-grade loops — fix by demanding virgin-resin letter and excluding recycled-content masterbatch. [S4]
Avoid specifying a power-distribution box or limit switch box enclosure when the actual duty is bulk-parts storage — different product family, different material, different price band. Buyers running dedicated cold-store loops should reference the cold-box core machine spec family for the insulated-equipment context.
For 2026 capex cycles, three trackable signals: (a) resin PP-homo vs PP-co spot price spread, currently a 6-9% premium for copolymer; (b) ISO 6780 inter-stack footprint adoption as the default spec at automotive Tier-1 plants in China and Mexico; (c) rising demand for ESD-safe variants driven by EV-battery cell and PCBA assembly throughput. Lock your spec on these three and the turnover box line stops for the right reason — not because the crate failed in the field.
