An ultrasonic level sensor is a non-contact measurement instrument that times ultrasonic pulses against a liquid or bulk-solid surface to return level, distance, or volume over a 4-20 mA, IO-Link, or analog output [S1][S2][S3]. A dock leveler is a permanently installed steel plate welded or hinged into a loading-bay pit, raised and lowered hydraulically (or by air bag) to bridge the gap between warehouse floor and truck bed.
These two devices share zero functional overlap: the sensor is an electronic measurement transducer with ranges commonly published from 0.07 m up to 40 m [S2], while the leveler is a mechanical structure rated by dynamic load, deck width, and lip extension. Confusion in sourcing specs usually traces to the word "level" being applied to both fill height in a vessel and vertical offset at a dock door.
Operating envelope and measurable quantities
Ultrasonic level sensors in the current 2026 catalog window publish measurable spans of 0.07 m to 40 m on the NIVUS P-Series for water and wastewater [S2], 30 mm to 8,000 mm on the microsonic hps+ series for aggressive liquids and sludge [S3], and 250 mm to 1,300 mm on the microsonic pico+TF for aggressive liquids or granules [S1]. Process-pressure ratings reach 5 bar on the NIVUS P and 6 bar on the microsonic hps+ [S2][S3]; process-temperature windows span -30 °C to 95 °C on the NIVUS P, and -25 °C to 70 °C on the microsonic hps+ and pico+TF [S1][S2][S3].
Ingress protection on sensor housings is typically IP67 for the microsonic pico+TF and hps+, and IP68 for the NIVUS P submerged-service variant [S1][S2][S3]. Output options across the population include 4-20 mA analog, IO-Link digital, and push-pull switching variants, with resolutions quoted from 0.025 mm to 2.4 mm depending on range and transducer [S3]. A typical block on a ultrasonic flowmeter line of duty uses the same time-of-flight principle, but in a pipe instead of an open tank.
Materials, chemical compatibility, and hazardous-area options
Sensor wetted-face materials are selected for chemical duty: the microsonic pico+TF uses a PTFE membrane and a PVDF M22 sleeve for ketone-bearing inks and aggressive paints [S1]; the hps+ range pairs a PTFE membrane with FFKM O-ring sealing against 1.4571 stainless-steel or PVDF housings, validated through 1,000,000 alternating pressure cycles in cellulose thinner [S3]. Chemical resistance testing of that scope is the engineering reason a PTFE/FFKM stack is preferred over EPDM or NBR on small-tank aggressive-media service.
For hazardous areas, the NIVUS P-Series carries ATEX approval for Ex-Zone 0 and Ex-Zone 1, with integrated temperature compensation and 1-inch thread or DIN-flange mounting [S2]. The microsonic hps+ is UL Listed to Canadian and US safety standards for non-ATEX deployments [S3]. The microsonic pico+TF adds automatic synchronisation and multiplex operation for up to ten sensors operating simultaneously in close quarters, useful on multi-bay small-tank skids [S1]. None of these certifications translate to a dock leveler; pit welding, ramp capacity, and lip actuation are governed by a separate set of mechanical standards.
Selection criteria: tank and silo duty

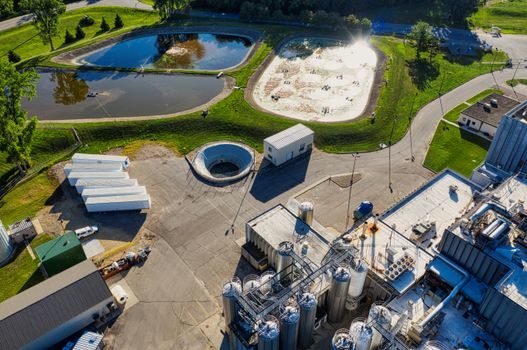

For fill-level monitoring in small chemical tanks, the pico+TF is the match when the medium is aggressive and the access port is small: range 250-1,300 mm, PTFE/PVDF face, 4-20 mA plus IO-Link, IP67, 10-30 V supply, 0.069 mm resolution [S1]. For larger storage tanks, sumps, and open-channel flow sites, the NIVUS P is the match: 0.07-40 m range, IP68, ATEX Zone 0/1, 5 bar process pressure, paired with a NivuMaster evaluation unit [S2].
For OEM panels, silos, and overpressure vessels, the hps+ is the match: 30-8,000 mm range, PTFE/FFKM sealing, 1.4571 stainless or PVDF housing, optional digital display, 9-30 V supply, 0.025-2.4 mm resolution, 6 bar overpressure tolerance [S3]. The PKP FUM10s series extends the small-format class to 60-6,000 mm with programmable 4-20 mA output and IP65/IP67 housing for general liquid service [S5]. Solidat Applied Technologies' GaugerGSM line targets remote fuel and sewer monitoring with PVDF-coated transducers and intrinsic safety for hazardous areas [S4].
For broader ultrasonic sensor selection beyond level, the microsonic mic+ family publishes five detection ranges (0.25 m, 0.35 m, 1.3 m, 3.4 m, 6.0 m) in a metal-jacketed package for proximity and distance applications outside tank service [S6]. See the spec-driven selection map in GWR Level Sensor vs Dock Leveler for a parallel non-contact-radar comparison against the same mechanical alternative.
Selection criteria: dock leveler duty

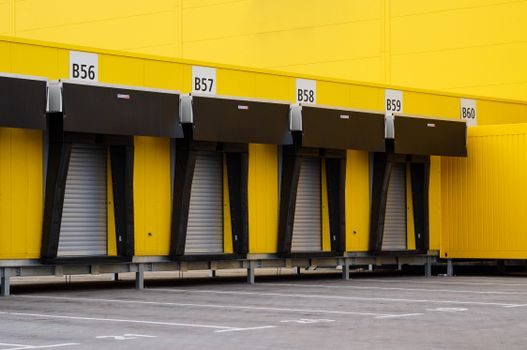

A dock leveler is specified by static and dynamic load capacity (commonly 25-50 kN dynamic, depending on forklift class), deck width (typically 1.8-2.4 m), lip extension (usually 300-500 mm reach into a trailer), pit depth, and actuation type (hydraulic, air-bag, or mechanical). None of these parameters map to a transducer datasheet. A pit depth of 0.5 m is sometimes confused with the 0.07 m minimum blind zone on the NIVUS P-Series, but the leveler depth is a structural dimension, not a measurement floor [S2].
If the procurement need is to sense vehicle presence, door position, or trailer height, an ultrasonic sensor at the door header can complement a leveler, but does not replace the mechanical device. The microsonic mic+ 0.25-6.0 m detection range is a typical fit for non-contact door-area object detection, with four unit variants and five ranges available [S6].
Comparison matrix: sensor classes vs dock leveler
The decision below lines up the four most common ultrasonic level sensor classes against the dock leveler on the criteria that actually drive a buy: measurement range, wetted materials, hazardous-area cert, output protocol, and primary function. [S1]
microsonic pico+TF — range 0.25-1.30 m, PTFE/PVDF face, no ATEX (industrial only), 4-20 mA or IO-Link, primary function fill-level of aggressive liquids or granules in small tanks [S1]. NIVUS P-Series — range 0.07-40 m, IP68 housing, ATEX Zone 0 and 1, analog to NivuMaster, primary function water and wastewater level plus open-channel flow [S2]. microsonic hps+ — range 0.03-8.00 m, PTFE/FFKM + 1.4571 SS or PVDF, UL Listed, analog plus digital, primary function overpressure vessel level and aggressive media [S3]. PKP FUM10s — range 0.06-6.00 m, IP65/IP67 housing, no ATEX, programmable 4-20 mA, primary function general-purpose liquid level [S5]. Dock leveler — range not applicable (mechanical), structural steel, no cert equivalent, hydraulic or air-bag actuation, primary function truck-to-floor bridging.
Failure modes and engineering constraints
Ultrasonic sensors fail predictably: foam, vapour, and heavy turbulence can absorb or scatter the acoustic pulse; the dead-band (often 0.07 m or 0.25 m depending on model) must be respected, and high-temperature media above the published 70 °C or 95 °C ceiling will damage the transducer [S1][S2][S3]. The microsonic pico+TF and hps+ mitigate aggressive-media attack with PTFE membranes and FFKM O-rings, but only on the wetted face; the housing must still be specified for the surrounding atmosphere [S1][S3].
Dock levelers fail in different modes: lip cracking under offset impact, hydraulic seal failure, pit settlement misaligning the deck, and ramp-latch wear. These are mechanical, not acoustic, and they share no diagnostic data path with the level instrumentation network.
Sourcing map: 2026 supplier window
In the past six months, the published supplier base for ultrasonic level instruments includes microsonic (Germany/USA) for the pico+TF, hps+, and mic+ lines [S1][S3][S6]; NIVUS GmbH (Germany) for the P-Series and NivuMaster transmitter [S2]; PKP Prozessmesstechnik (Germany) for the FUM10s [S5]; Solidat Applied Technologies (UK) for intrinsically safe fuel and sewer remote monitoring [S4]; Feejoy Technology (Shanghai) for OEM liquid and material level transmitters [S9]; and Chongqing Zhao Zhou Technology Development for level meters, radar instruments, and flowmeters under one catalogue [S7]. Chinese OEM lines such as the TLC2326-WL automatic water-tank overflow controller and LoRa remote water-level platforms continue to publish on dedicated B2B portals through mid-2026 [S8].
The clear specification signal: an ultrasonic level sensor solves a fill-height measurement problem in a vessel, sump, or open channel; a dock leveler solves a vertical-bridging problem at a loading bay. Specifying one in place of the other is a category error, not an engineering trade-off. Track the next node as the 2026 ATEX/IECEx harmonisation guidance for Ex-Zone 0 ultrasonic transducers, and the Q4 2026 microsonic firmware revisions to the hps+ LinkControl PC configuration tool.
