Commercial-building welded steel mesh is most commonly specified as hot-rolled ribbed or cold-drawn smooth low-carbon wire, resistance-spot-welded into square or rectangular grids, then supplied as flat panels (typically 2.4 × 6.0 m) or rolls (1.2 × 30 m) [S8].
For slab-on-grade, podium decks, and composite metal-deck topping in offices, retail, and warehouse structures, the dominant 2026 specification window in the global supply chain remains mild-carbon wire to ASTM A1064 or its EN 10080 equivalent, in wire diameters from 4 mm up to 12 mm with 50 × 50, 100 × 100, 150 × 150, and 200 × 200 mm openings [S1][S3]. Anping (Hebei) and Jiangsu mills, including ISO 9001-certified exporters, supply the bulk of cross-border volume for the Middle East, Africa, and Southeast Asia [S3][S6][S9].
Wire Material: Carbon Steel, Galvanized, and Stainless Compared
For external façades, parking decks, plant rooms, food-service zones, and coastal structures, hot-dip galvanized (zinc-coated, typically 60–275 g/m²) or stainless steel (304 / 316L) wire is specified to control chloride-induced corrosion of the welds and the parent wire [S1][S3][S9].
Galvanized welded mesh from Anping and Hengshui mills is typically offered in standard 1/2" (12.7 mm) to 4" (101.6 mm) openings with 0.5–4.0 mm wire, while structural-grade carbon mesh jumps to 4–12 mm wire and 50–200 mm openings [S7][S3]. Stainless 304/316L mesh from ISO 9001 manufacturers carries a 15+-year track record in architectural and chemical-plant builds and is sold in finer weaves (down to 80 mesh) for partition and decorative use, but its cost keeps it out of main slab reinforcement [S9].
Opening and Wire Diameter: What the Common Specs Map To
Square-opening 50 × 50 mm, 100 × 100 mm, 150 × 150 mm, and 200 × 200 mm mesh in wire diameters of 4, 5, 6, 8, 10, and 12 mm are the structural grid that an Anping-based exporter such as ZhongCheng or Tatall ships by container-load to commercial-build sites [S3][S9]. Wire below 4 mm belongs to the fence/partition family (BRC, 358 high-security, cattle fence, rabbit cage) and is rarely used in primary slab reinforcement of commercial buildings because the cross-sectional steel area drops below the 0.12–0.20% minimum that cracking and deflection calculations demand in 100–200 mm slabs [S5][S7].
For a 150 mm commercial slab carrying office live load, the standard engineer-friendly call is A1064 / W4 (4 mm wire) at 150 × 150 mm openings for crack-control mesh, and W5 or W6 (5–6 mm) at 100 × 100 mm where higher design moments apply [S3]. Panel formats are typically 2.4 m wide × 6.0 m long for flat sheets, which equates to roughly 14.4 m² per panel and 3.1 kg/m² at W4 150 × 150, a useful figure for tonnage take-off.
Galvanizing and Surface Finish: Where It Pays, Where It Wastes
Hot-dip galvanizing after welding (rather than welding pre-galvanized wire) is the recommended route where the mesh sits in a wet or chloride-exposed environment, because the weld nugget itself is coated, eliminating the rusty spot at every intersection that causes early pitting [S1][S3]. Electro-galvanized or PVC-coated finishes are adequate for interior partitions but fail the 1,000-hour salt-spray benchmark that most commercial car-park and food-processing specs require [S5][S7].
For interior commercial builds (offices, malls, hotels) where the mesh is fully embedded in concrete cover, plain black (uncoated) low-carbon wire is the cost-correct choice, and any additional zinc or polymer coating is wasted money. Specifiers should reserve galvanized or stainless mesh for the envelope: façade backing, retaining-wall drainage layers, plant-room screens, and the top 30–50 mm of car-park deck slabs [S1][S4][S8].
Load and Code Mapping for Commercial Builds
Welded wire reinforcement in commercial slabs and walls is governed by ASTM A1064 / A1064M in North America and by EN 10080 (with B500A or B500B grade wire) in the EU; the grade callout dictates both yield (500 MPa for B500) and ductility class [S3][S6]. Manufacturer quality programmes typically include ISO 9001, with weld-shear testing at the intersection (commonly a minimum 0.5 × tensile strength of the parent wire) and sheared-panel dimensional checks on a 1-in-20 sampling basis [S3][S9].
For commercial car parks and podium decks with exposure to de-icing salts, Erico-type detail practice (a recognized industry guidance, not pinned to a single standard revision here) is to specify galvanized or epoxy-coated welded mesh in the top layer to delay corrosion-driven spalling; mild-carbon mesh in those locations is a known 15–25-year service-life penalty. Fire-rated assemblies, where welded mesh replaces traditional rebar in certain thin-shell fire-resistant floor systems, call for a documented yield strength and ductility per ASTM A1064 because the system listing depends on the steel grade, not the panel pattern [S3].

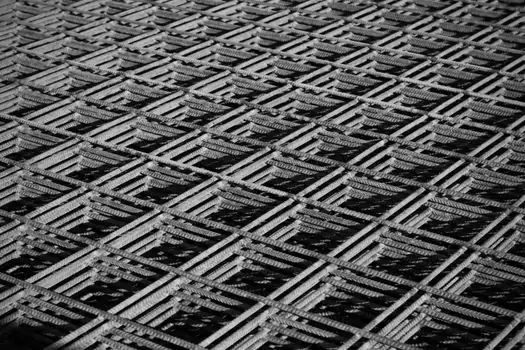

Comparison: Carbon vs Galvanized vs Stainless Welded Mesh for Commercial Use
On a 1:1 opening (100 × 100 mm) and W5 wire basis, mild carbon (ASTM A1064 / Q235) is the lowest cost, typically 20–40% of stainless and 50–70% of hot-dip galvanized, and is correct for any fully embedded interior slab in a dry environment [S1][S8][S9]. Hot-dip galvanized is the middle-cost option (60–80% of stainless), with a zinc coat in the 60–275 g/m² band, and is the correct pick for façades, parking-deck top layers, plant rooms, and retaining-wall drainage layers where chloride or moisture is in play [S1][S3]. Stainless 304/316L is the highest-cost option, justified for food-grade interiors, coastal façades, and chemical-exposed plant rooms, but is over-specified for almost all interior slabs and is rarely used in primary commercial floor reinforcement [S9].
For decorative architectural mesh in the same building, separate stainless woven metal fabrics are normally used rather than welded, because the structural reinforcement grade and the visual grade rarely overlap in either opening or finish [S1].
Choosing a Supplier and the Practical Failure Modes
Specifying from an ISO 9001-certified mill with a documented weld-shear test report, EN 10080 or ASTM A1064 grade callout, and mill test certificate per batch is the baseline. Cross-checking batch weight against the calculated theoretical weight (wire area × length × density) within ±3% is a fast on-site screen for under-diameter or under-galvanized substitution [S3][S6][S9]. Lead time for a 20–28 tonne container of standard 100 × 100 × W5 panels is typically 15–25 days from Anping or Hengshui, and the cost gap between domestic and export supply is wide enough that the same W4 / W5 panel often lands at 30–50% below the in-country price for buyers in the Middle East and Africa [S3][S5][S6][S7].
Three recurring field failures should shape selection: (1) weld-nugget corrosion on electro-galvanized mesh in wet service, which dictates switching to hot-dip galvanized after welding; (2) cracking along 90° panel corners when sheets are cut and bent on site, which dictates ordering factory-cut bent panels for complex shapes; (3) under-strength panels from unmarked exporters using Q195 rather than Q235 wire, which a simple mill certificate and a 10-bend ductility test will catch [S3][S6]. Specifiers wanting a closer look at residential-scale grids and openings can cross-reference the residential welded mesh spec map for lighter-duty patterns, while heavier structural coordination typically ties into the steel section selection for renovation projects at the column-and-beam interface.
A related guide on stainless steel mesh for architectural interiors is worth pulling when the project brief crosses from structural slab reinforcement into the visual finish layers of a commercial interior.
