ABS (Acrylonitrile Butadiene Styrene) is synthesised by emulsion, mass or mass-suspension polymerisation to a sea-island two-phase morphology — polybutadiene rubber particles dispersed in a continuous styrene-acrylonitrile (SAN) matrix [S3]. Bulk density of finished ABS resin sits at 1.05 g/cm³ with a mould-shrink range of 0.4-0.7%, the two values most often cited on incoming-material certificates [S2].
Production lines split into two distinct engineering envelopes: upstream polymerisation (reactors, coagulation, drying, pelletising) at roughly 0.3-5 m³ stainless-clad reactors, and downstream conversion (injection moulding at 200-260 °C, extrusion at 200-240 °C, blow moulding, thermoforming, plus the AM-FDM filament route for small-batch parts) [S1][S3]. For context on how ABS sits next to other commodity thermoplastics on reactor and conversion lines, see PVC Resin Manufacturing Process: Polymerisation Routes, K-Value Grades and Compound and Polyethylene Resin Manufacturing: Process Routes, Reactor Choices and Spec Gates.
Polymerisation Routes: Emulsion, Mass and Mass-Suspension
Emulsion polymerisation is the dominant historical route: butadiene is polymerised first to polybutadiene latex, grafted with styrene-acrylonitrile in a second reactor, then coagulated, washed and dried — this path gives the cleanest control over rubber-particle size (typically 0.1-1 µm) and the highest gloss/impact balance [S3]. Mass (bulk) polymerisation dissolves rubber in styrene-acrylonitrile monomer and runs in a stirred reactor train; it skips the water phase, lowers effluent load, and is the route of choice for many commodity-paint-and-appliance grades [S1].
Mass-suspension splits the work: prepolymerisation in bulk to ~30-40% solids, then suspension in water to finish — used where plants want emulsion-grade impact but lower coagulant-handling cost. Typical commercial ABS grades ship with 15-30% acrylonitrile, 5-30% butadiene, 40-60% styrene; the acrylonitrile window drives chemical resistance and the upper heat-distortion limit, while the rubber fraction drives Izod impact [S3].
Morphology, Shrinkage and the Sea-Island Decision
ABS is a two-phase thermoplastic: SAN forms the hard continuous phase, polybutadiene the soft dispersed phase, with the rubber particles chemically grafted to the matrix so the two phases do not separate during melt processing [S3]. That grafted interface is the single most important microstructural fact — it is what makes ABS notch-tough at -20 °C and reformable above its glass-transition, unlike a simple SAN/straight-rubber blend.
Mould-shrink range of 0.4-0.7% is tighter than polypropylene (1.0-2.5%) and tighter than high-density polyethylene (1.5-3.0%), which is why ABS is the default for tight-tolerance appliance housings and helmet shells [S2]. Glass-fibre-reinforced ABS grades cut shrink to ~0.2-0.4% and raise HDT from ~95 °C toward ~105-110 °C, traded against a ~30% drop in unnotched Izod.
Conversion Processes and Moulding Windows
Injection moulding is the dominant conversion route: melt 200-260 °C, mould 40-80 °C, injection pressure 70-140 MPa, with cycle times of 20-60 s for thin-wall appliance parts and longer for thick safety-helmet shells [S2][S3]. Drying the resin at 80 °C for 2-4 h before moulding is non-negotiable — ABS hydrolyses slowly but any residual moisture shows as silver streaks on the part surface.

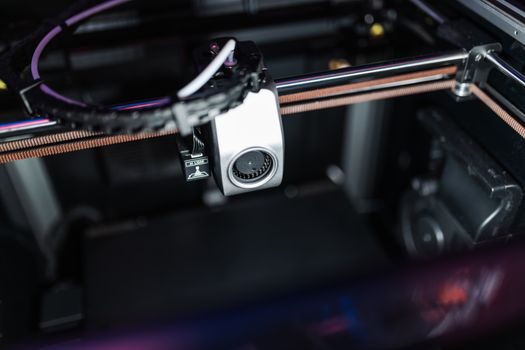

Extrusion (sheet, profile, pipe) runs 200-240 °C at the die with a downstream three-roll stack for sheet; thermoforming takes extruded sheet at 130-160 °C; blow moulding uses melt 200-230 °C into chilled moulds. Fused-deposition modelling (FDM) in additive manufacturing takes the same base resin as 1.75 or 2.85 mm filament at nozzle 230-260 °C and bed 100-110 °C, a route useful for jigs and low-volume end-use parts [S1]. For a broader view of how ABS sits in the wider thermoplastics tool-kit, see the engineering plastic reference.
ABS vs SAN vs Polystyrene vs PP — Decision Comparison
For a spec-driven pick, the four commodity plastics most often compared against ABS line up as follows on the criteria a process engineer actually weighs: density (1.05 / 1.08 / 1.05 / 0.90-0.91 g/cm³), mould shrink (0.4-0.7% / 0.3-0.6% / 0.3-0.6% / 1.0-2.5%), notched Izod (200-400 / 20-50 / 10-30 / 30-100 J/m) and continuous service temperature (70-90 / 80-100 / 60-80 / 90-110 °C) [S3]. SAN beats ABS on clarity and chemical resistance; polystyrene beats both on cost; polypropylene beats both on heat and chemical resistance. ABS is the middle ground — tough, paintable, plateable, and the cheapest of the four with a notched Izod above 200 J/m.
For applications that need a tougher, denser engineering plastic than ABS without going to polycarbonate, see the plastic pallet reference which maps out the impact-vs-cost bands for the wider structural-plastics family.
Surface Finish, Plating and Joining
ABS is the only commodity thermoplastic that takes a decorative chrome or nickel plate directly — the polybutadiene phase is etched by chromic-sulfuric acid to create micro-cavities that mechanically key the metal layer, and the resulting plated shell is what makes the bright trim on cars and shower heads. Painting, hot-stamping and ultrasonic welding all work; solvent welding needs MEK or methylene chloride, both now restricted in many jurisdictions. [S1]
Flame treatment, corona discharge and acid etching raise surface energy from ~38 mN/m toward ~50 mN/m for printing or adhesive bonding — a step ABS needs more than PP or PE because of its relatively low polarity. Helmet-shell production chains chain ABS pellets → injection moulding → deflashing → ventilation-hole drilling → chin-strap slotting → printing → packing, with batch-impact testing per lot [S2].
Failure Modes, Regrind Limits and Health Notes
ABS degrades by chain scission and oxidation if melt temperature exceeds ~280 °C or residence time stretches beyond ~10 min, evidenced by yellowing, streaking and a drop in Izod. Regrind is normally capped at 20-30% with a defined hopper ratio to virgin; high-regrind runs drop impact and raise gel count. Acrylonitrile monomer is acutely toxic and a suspect carcinogen, which is why emission control on the SAN-feed and devolatilisation steps is a permit-condition issue, not a soft guideline [S3].
ABS is NOT a good fit for outdoor UV-exposure without stabilisation (carbon-black or HALS packages), NOT rated for food contact in unmodified grades, and NOT suitable for hot-fill above ~90 °C. For the pipe and conduit side of the family, the plastic pipe reference covers the pressure-derating and chlorinated-water rules that the underlying ABS and ABS/PVC blends must meet. Related 3D-printing process control is covered in the additive manufacturing material entry.
Standards, Spec Codes and Sourcing Signals
Spec calls for ABS typically cite ISO 2580 (ABS moulding and extrusion materials — designation system based on Vicat/IZOD/HDT), ASTM D4673 (ABS moulding compounds), UL 94 HB or V-0 listings for flame grades, and FDA 21 CFR 181.32 / EU Regulation 10/2011 for food-contact grades. For trade and customs, ABS falls under HS code 3903.30 (ABS polymers, primary form). Trackable procurement signals worth watching: a sustained rise in acrylonitrile contract price, a styrene monomer force majeure, and any plant turnaround announcement from the three largest Asian ABS producers — each historically moves spot ABS price within two to three weeks [S3].
