An air break switch with arcing horns is a non-load-break disconnector whose copper-alloy contacts separate in open air, with the arc stretched and lengthened along the horns until it extinguishes naturally, typically rated for no-load, small capacitive, and transformer excitation currents only [S2][S5].
A vacuum pole-top load break switch mounts a sealed vacuum interrupter on the pole structure, where the moving contact separates inside a high-vacuum bottle and the metal vapour arc extinguishes at the first current zero, allowing the device to make and break full load current and overload current at distribution voltages [S1][S3].
Arc Extinction Principle and Contact Hardware
Air break switches rely on ambient atmospheric air as the dielectric and on the geometry of the arcing horns to draw the arc away from the main contacts, lengthening it until voltage can no longer sustain it, so there is no sealed interrupt chamber and no SF6 gas [S5]. Vacuum load break switches instead encapsulate a pair of butt contacts inside a vacuum bottle, typically with a metal vapour shield and a stainless steel bellows, where the absence of ionisable gas forces arc extinction within a few milliseconds of contact separation [S3].
For an air switch, the arcing horns are usually a pair of copper or copper-alloy rods brazed to the main and moving contacts, providing a sacrificial path that protects the silver-plated current-carrying surfaces from arc erosion [S2][S5]. A vacuum interrupter, by contrast, is a factory-sealed unit rated by short-time withstand current (typically 16-25 kA for 1-3 s on distribution-class pole-top gear) and by mechanical endurance in operations, with the contacts themselves shielded by the vapour shield rather than by atmospheric geometry [S3].
Voltage and Current Class Coverage
Air break switches with arcing horns are standard in 11 kV, 15 kV, 22 kV, 24 kV, and 33 kV overhead distribution, used as line sectionalising points and visible isolation points, with no fault-current interruption rating because they are inherently non-load devices [S1][S5]. The vacuum pole-top load break switch family, often delivered as ZW32-type outdoor vacuum circuit reclosers or 12-36 kV vacuum LBS, is commonly specified at rated voltages of 12 kV, 24 kV, and 36 kV with a rated current of 630 A and a rated frequency of 50/60 Hz [S1][S3].
Across the same 11 kV / 22 kV / 33 kV band, the practical difference is what the device can break: an ABS is for isolation, while the vacuum unit can make and break load current, overload current, no-load transformers, and capacitor bank switching within its 630 A continuous rating [S1][S3]. Insulect's overhead switchgear catalogue explicitly segments the market into air, gas, and vacuum load break switches, indicating that all three are still specified as separate SKUs for Australian distribution networks rather than collapsing into one universal product [S4].
Selection Criteria: Decision Matrix
Choosing between the two comes down to four criteria that line up cleanly against the available evidence. The first is breaking duty: an air break switch with arcing horns is restricted to no-load, small capacitive, and transformer magnetising currents, while a vacuum pole-top LBS can break full load current and overload current up to its 630 A rating [S2][S3][S5]. The second is maintenance: ABS units are simple, mostly porcelain- or polymer-insulator mounted, with the contacts and horns visible for inspection, whereas a vacuum LBS has a sealed interrupter that cannot be serviced in the field and is judged by contact wear indicator or operations counter.
The third criterion is cost and footprint: air break switches are the lowest-cost option in the 11-33 kV class because they have no sealed gas bottle, no vacuum interrupter, and no SF6 handling requirement, and the vacuum pole-top unit carries a price premium tied to the interrupter and the spring actuator mechanism [S3]. The fourth is standards and operator safety: air break switches designed to IEC 62271-102 give a visible air gap and a mechanically interlocked earthing blade for induced voltage protection during maintenance, while vacuum load break switches are positioned where actual load-current switching is required and the upstream protection (fuse or circuit breaker) handles fault currents [S5]. The cross-product load switch reference lays out the same three-position (connect, disconnect, earth) function on many pole-top LBS designs.
Where the Air Break Switch Fits, and Where It Does Not
For sectionalising a long overhead 11 kV or 22 kV feeder, for earthing a known de-energised line before a work crew approaches, and for the visible-isolation duty required by IEC 62271-102, the air break switch with arcing horns is the right tool, and any attempt to use it for breaking load current will produce an uncontrolled external arc that defeats its purpose [S2][S5]. The horns only stretch the arc; they cannot replace a real arc-quenching chamber.
For capacitor bank switching, for no-load transformer switching, and especially for automated or remote-controlled feeder reconfiguration at the same 12-36 kV class, the vacuum pole-top load break switch is the correct choice because it can repeat the operation thousands of times without contact wear that would change the open gap, and because the vacuum interrupter extinguishes the arc at current zero without depending on atmospheric conditions [S1][S3]. Insulect's separate listing of air, gas, and vacuum load break switch families reflects exactly this use-case split in the Australian market [S4].

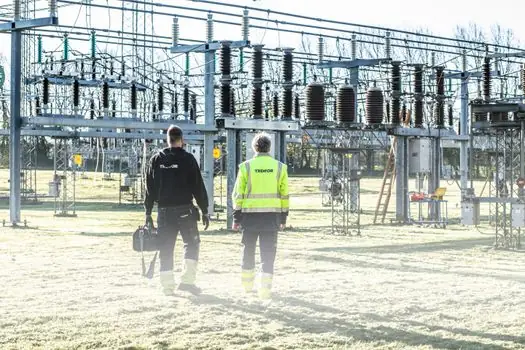

Standards, Failure Modes, and Integration
Air break switches are designed against IEC 62271-102 (high-voltage disconnectors and earthing switches), IEC 62271-1 (common specifications for high-voltage switchgear and controlgear), and the ANSI C37.30/C37.32 definitions, with creepage distances on porcelain or polymeric insulators set by IEC 60071 for outdoor pollution performance [S5]. Vacuum load break switches in the 12-36 kV pole-top class are typically built to IEC 62271-103 (high-voltage switches for rated voltages above 1 kV and less than or equal to 52 kV) and to the relevant mechanical-endurance and short-time withstand clauses, with the interrupter itself qualified by its operations counter and contact-erosion indicator rather than by field service of the contacts [S3].
The two technologies can co-exist on the same feeder: a gang-operated air break switch with arcing horns and an earthing blade is commonly installed upstream of a vacuum pole-top LBS so that the LBS handles load-current switching while the ABS provides the visible isolation point required for safe manual access. The remote terminal unit and SCADA interface for the vacuum unit are independent of the ABS, so specifying both is a common distribution-engineering pattern, particularly where fault ratings, automation, and operator-visible isolation all have to be satisfied simultaneously [S1][S3]. For plant-level low-voltage switching duty rather than medium-voltage overhead line work, the electronic load and air pick reference pages cover adjacent tool categories that engineers often evaluate in the same specification cycle.
Track the IEC 62271-103 maintenance testing cycle on installed vacuum interrupters, watch for SF6 regulation tightening that continues to push 12-36 kV pole-top designs away from gas LBS and toward vacuum, and confirm the next procurement round's pollution creepage requirement (IEC 60071) before locking insulator shed profile.
