Cold storage doors typically require R-20 to R-30 insulation, 4 to 6 inch polyurethane or XPS foam cores, and high-speed roll-up or sliding operation, with EPDM, silicone, or magnetic seals to limit infiltration between dock, chiller, and freezer zones [S2].
The hardware spec window is narrow: door panel construction, opening speed, seal geometry, and frame corrosion resistance drive refrigeration load, frost formation, and OSHA-aligned worker safety across the envelope, not the door model alone [S1][S3].
Defining the cold storage hardware scope
Cold storage architectural hardware covers the door, frame, seal, hinge, track, and operator package that closes a temperature-controlled envelope against a warm dock or ambient corridor. The category overlaps with insulated metal panel (IMP) penetrations, dock seals, and high-speed fabric or rigid doors, and feeds directly into architectural hardware selections across the rest of the building. [S1]
Inside the envelope, hardware decisions must be coordinated with the storage rack layout and the storage and handling system, because door opening frequency is set by forklift, pallet jack, and conveyor traffic. A 1-2% share of total U.S. industrial real estate for cold storage, as cited by NAIOP-affiliated authors, means most specifiers are still choosing between retrofit and new build assumptions, which changes hardware priorities [S5].
Selection criteria for cold storage doors and hardware
Thermal insulation is the first gate: polyurethane foam and extruded polystyrene (XPS) cores in the 4 to 6 inch thickness band give the R-20 to R-30 envelope most spec sheets target for cooler and freezer service, with deep-freezer doors at the high end of the band [S2].
Air-tightness is the second gate and depends on seal material rather than panel alone. EPDM, silicone, magnetic, double, and triple seal geometries are listed as the main options, with the heavier seal stacks typically reserved for doors separating chilled and ambient zones where condensation risk is highest [S2].
Durability framing on cold storage doors runs through stainless steel, aluminum, and heavy-duty PVC components with bumpers, and the same materials show up in track, hinge, and operator covers to keep corrosion and impact damage down in fork-mix traffic lanes [S1][S2]. For a parallel spec-driven map of hardware in a different building type, see the architectural hardware for schools reference, which uses the same criteria-based workflow.

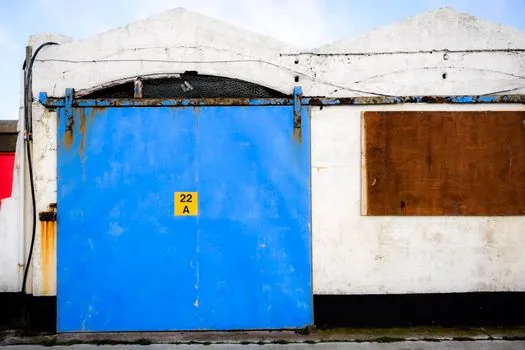

Door type comparison: roll-up, sliding, swing, and fabric
High-speed rigid roll-up doors, sliding doors, swing doors, and impactable fabric doors each map to a different traffic pattern, hygiene class, and temperature band. The table below lines the four families against the four criteria that drive most specifier decisions. [S1]
Option, criteria, use case: High-speed rigid roll-up (e.g. ISO-Roll 315, DURA-Roll 109), criteria: cycle rate, air seal, hygiene, cleanability, use case: high-traffic dock and chiller openings where fast close reduces infiltration [S1].
Option, criteria, use case: Insulated sliding (e.g. ISO-Slide 1200, ISO-Slide 1200F UL fire-rated), criteria: panel rigidity, vision panel, fire rating, use case: large freezer or blast cell openings needing manual fail-safe operation [S1].
Option, criteria, use case: Insulated swing (e.g. ISO-Swing 220 stainless or fiberglass), criteria: footprint, seal compression, use case: personnel and small-goods doors in IMP walls where swing geometry simplifies the frame pocket [S1][S2].
Option, criteria, use case: Insulated impactable fabric and high-speed fabric (ISO-Flex, ISO-Cool 2500, ISO-Roll 215), criteria: impact recovery, foam core, R-value, use case: cold storage openings exposed to fork truck impact, where a breakaway panel cuts downtime versus a rigid door [S1].
Use cases across the cold chain
Manufacturing and processing facilities need hygienic sliding or swing doors in stainless or fiberglass, with cGMP and Annex 1 type cleanability requirements, which pushes the spec toward non-porous, non-shedding panels and stainless sub-components [S1].
Gateway and multimarket distribution facilities typically pair high-speed rigid roll-up doors with dock seals and shelter hoods to keep the 34 to 40°F fresh produce band and the 0°F or below frozen band separated from ambient dock air [S3][S5].
Last-mile cold storage, which is the fastest-growing slice of the cold building supply chain, tends to use higher door counts in smaller footprints, so impactable fabric and insulated swing doors become attractive because repair cost per cycle is lower than on a rigid cold storage door [S5].

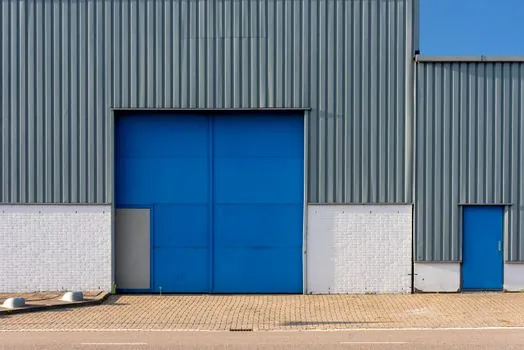

Limitations, failure modes, and constraints
Open time is the single biggest failure driver: every extra second of door-open time pulls warm, humid air into the envelope, and that air freezes on floor, rack, and door surfaces to create ice hazards that OSHA-aligned controls must manage [S3].
Seal degradation at the door perimeter is the second most common failure mode, and it shows up first as condensation, then as frost, then as a refrigeration load that drifts the temperature setpoint [S2]. Specifying EPDM, silicone, or magnetic seal stacks based on temperature band, not generic catalog listings, limits this drift.
Standard warehouse construction cannot handle sustained cold, so doors, frames, and tracks must be coordinated with the insulated metal panel envelope, the underfloor heating system that prevents frost heave, and the vapor barrier that stops moisture infiltration through wall and ceiling penetrations [S3][S7]. Skipping any one of these upstream constraints is the most common reason a correctly specced door still underperforms in service.
Standards, sourcing, and what to verify
Cold storage construction is governed by a stack of building, food safety, and energy codes, but the most relevant spec-side references for the door package are the food-safety frameworks (e.g. cGMP and Annex 1 style cleanability) and the fire-rating marks such as UL on insulated sliding door models, both of which are visible on manufacturer data sheets and BIM objects [S1].
Material sourcing for the door, frame, and hardware should be confirmed against the same data sheet that lists R-value, core type, and seal geometry, and that data sheet should be cross-checked with the architectural spec and approval drawing packages before the door is released for fabrication [S1].
For reference designs, the best practices in cold storage facility development publication and the cold storage facility design engineering guide cover insulation thermal conductivity, vapor barrier design, and building envelope detailing that the door hardware spec must align with, not contradict [S5][S8].
Track the next two signals: revised ASHRAE-style cold storage energy benchmarks being absorbed by the 2026 state energy codes, and the next round of insulated metal panel fire test data being released by door and panel manufacturers through 2026 Q4. Either shift can move a stainless sub-component, a seal stack, or a foam core out of the approved products list and force a hardware re-spec before the next build phase.
