On 2026-07-09 the DirectIndustry industrial index lists 20 manufacturers offering 68 distinct mining-and-quarrying dump-truck models, with Bell Equipment, Caterpillar Global Mining, Hitachi, Hyundai, Komatsu and XCMG dominating the named-OEM shortlist [S1]. Payload bands inside that index range from roughly 30 t utility-class units to 363 t mechanical-drive mining trucks, and the correct selection is decided first by mine tonnage and haul-road profile, not by engine horsepower or tyre size.
For Chinese export supply, Made-in-China and GoldSupplier list HOWO-series mining dumpers from 7.5 t to 70 t payload, with Sinotruk HOWO Tx 380/400/430 hp 8x4 25 m³ tippers listed at US$19,800-26,900 per unit and 6x4 ZZ5707S3840AJ 41-50 t class dumper pricing on OKorder at FOB Shanghai with 1,500 pcs/month supply [S2][S3][S4][S6]. Choosing between these and a Western OEM mechanical-drive truck is a different decision tree than choosing between haul-truck classes, so the spec bands matter more than brand familiarity. Readers comparing on-highway tippers with off-road rigid-frame haulers can review the broader dump truck category reference, while those weighing a separate loader pairing should note the mining dump truck class sits above 40 t payload in most catalogues.
Payload Class and Rigid-Frame vs Articulated Split
The first spec band to lock is payload: 30-50 t covers construction-quarry and small open-pit work, 70-100 t is the mid-range rigid-frame (mechanical-drive) mining truck, 150-240 t covers the 793/797/Cat 793F class, and 290-363 t covers the 980E/MT5500 ultra-class [S1][S5]. The HOWO 70-ton mining dump truck (ZZ5707S3840AJ family) sits at the lower edge of the off-road mining class, with a 6x4 drive layout, manual transmission, and Euro 2 emission rating [S5][S6].
Articulated dump trucks (ADTs) — typically 25-45 t payload with 6x6 drive and oscillating articulation — suit soft-ground, muddy or steep-gradient haul roads below roughly 2 km one-way, where a rigid-frame mechanical-drive truck would bottom-frame or lose traction [S1]. Rigid mechanical-drive haulers suit hard-rock, long-cycle, high-tonnage pits with crushed-stone or blasted bench roads. Mixing the two on the same haul road is a common mistake; the maintenance bay, tyre inventory and operator-licence class differ.
Drive Layout, Engine Power and Transmission
Common drive configurations on the 2026 OEM shortlist are 4x2, 6x4, 8x4 and 6x6, with 6x4 dominating the 30-50 t class and 6x6 standard on ADTs [S1][S2][S6]. For the HOWO 6x4 41-50 t mining dumper the OEM specifies a diesel engine with manual transmission, payload 41-50 t, and Euro 2 emission standard — figures that matter for any pit where Tier 4 Final / Stage V is contractually required [S6]. A Sinotruk HOWO Tx 380/400/430 hp 8x4 16 m³ / 25 m³ tipper at the lower end (US$19,800-26,800 FOB) targets construction-quarry duty rather than deep open-pit mining [S4].
For Western OEM mechanical-drive rigid haulers, gross engine power scales roughly 1,500 kW at 100 t class, 2,000-2,500 kW at 240 t class, and 2,600-3,000 kW at 363 t class, paired with AC-drive or DC-drive electric-wheel traction and retarder braking rated in the megawatt range [S1]. The wrong powertrain choice (diesel-mechanical in a long down-gradient haul) wastes fuel and overheats service brakes; electric-drive with retarder is the standard answer for sustained down-haul cycles.

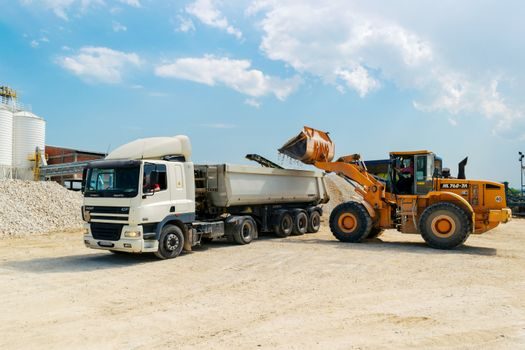

Body, Liner and Loading-Tool Match
Body volume (heaped m³) and payload must reconcile to within roughly 10% of the loading tool's pass count, or the truck either short-loads (wasted cycle cost) or spillage-loads (struck-pan damage). 16 m³ bodies suit 5-6 m³ shovel passes (3-pass loading), 25 m³ bodies suit 7-8 m³ shovel passes, and 60-110 m³ bodies match 30-50 m³ hydraulic-shovel or wheel-loader passes on ultra-class trucks [S1][S4].
Body liner choice — 400-500 Brinell quenched-and-tempered steel, hard-faced overlay, or rubber-polyurethane mat — is driven by ore abrasiveness (iron ore vs limestone vs coal) and impact-zone geometry. Hard-face overlay on the front wall and floor extends service life in granite/quartzite loading; rubber mat suits coal where impact is light and hang-up is the failure mode. Aerodynamic studies on mining dump trucks, including head-shape rounding and splitter-plane additions, show measurable drag reduction at sustained haul speeds, though for typical 30-40 km/h cycle speeds the fuel saving is marginal versus the liner/tyre cost.
Braking, Grade Performance and Tyre Selection
For pit ramps at 8-12% sustained grade, the truck must hold speed on down-haul with retarder alone and stop fully on service brakes alone within a defined service-brake-only stopping distance. AC-drive mechanical-drive trucks regenerate up to roughly 80% of nominal motor torque as retarding effort; a truck without electric retarder should not be specified for sustained 10% down-haul. Tyre size scales with payload: 30-50 t class uses 24.00R35 or 27.00R49, 100 t class uses 33.00R51, and ultra-class 290-363 t uses 40.00R57 or 53/80R63 [S1].
Tyre pressure monitoring, payload measurement (on-board scales +/- 1-3% accuracy), and reverse-camera / radar proximity systems are now standard procurement line items on new mechanical-drive builds.
Standards, Emissions and Compliance Levers
Emission class is the most common procurement disqualifier. Euro 2 (as listed on the HOWO ZZ5707S3840AJ) is acceptable for some African, South-American and Central-Asian pits, but is barred from new EU and North-American mine builds where Stage V / Tier 4 Final is required, and from many Australian state-level contracts as well [S6]. On-road homologation versus off-road mine-only registration is a separate question: most 6x4 41-50 t HOWO units are registered as on-road N3 category in China and re-registered as M-category off-road in the destination country, which can affect operator-licence and speed-limiter settings.
Structural standards for haul-truck bodies, frames and welds reference ISO 3450 (earth-moving machinery — roll-over protective structures) and ISO 12100 for safety-of-machinery risk assessment; braking-distance limits are typically contractually defined per mine rather than per standard. Buyers specifying for EU, US, Canadian or Australian pits should confirm ROPS/FOPS certification on the cab and ISO 3450 compliance before issuing the PO.
Sourcing Channels, Price Bands and Lead Time
Three sourcing channels dominate the 2026 supply chain.
Concretely, the Made-in-China index lists Howo dump-truck FOB price bands from US$7,500 (small 4x2 tipper) to US$32,000 (16-25 m³ 8x4 mining dumper) per unit, with the 380-430 hp Tx series at US$19,800-26,900 [S3][S4]. Western OEM mechanical-drive rigid haulers above 100 t payload are typically quoted per-project with 12-18 month lead time and per-unit prices well above US$1 million. When comparing 30 t dump truck units side-by-side with 70 t mining-class units, remember the latter requires a 6x6 or 6x4 rigid off-road chassis, a retarder, and ROPS/FOPS cab — the spec gap is not linear in price.
Selection Criteria: Decision Tree in One Pass
Step 1 — payload required (t): under 30 t = on-road tipper, 30-50 t = quarry/mining class rigid, 50-100 t = mid-range rigid, 100-240 t = large mechanical-drive, 240-363 t = ultra-class. Step 2 — haul-road condition: hard-rock, dry, long cycle = rigid; soft, muddy, short cycle = ADT. Step 3 — grade profile: under 8% = diesel-mechanical acceptable, 8-12% = electric retarder required, over 12% = trolley-assist or autonomous conveyor alternative. Step 4 — emission class: Tier 4 / Stage V for OECD pits, Euro 2-3 acceptable for many non-OECD pits, Euro 4-5 for transitional markets. Step 5 — loading tool: 3-pass, 4-pass, 5-pass match to shovel/loader bucket size. For a similar spec-driven comparison on a related on-road heavy-truck class, see the truck-mounted concrete pump selection guide. [S1]
Track the following before the next procurement cycle: (1) Sinotruk and XCMG export volumes for 41-70 t mining-class trucks through 2026 Q4 — the GoldSupplier 1,500 pcs/month supply line is the most concrete capacity signal in the public index [S6]; (2) any tightening of Euro 3 → Euro 4 transition timelines in key African importing countries; (3) tyre price moves on 27.00R49 and 33.00R51 sizes, which drive total cost of ownership more than unit price on a 100 t class rigid. Buyers comparing the on-road concrete-pump trucks that share many of the same chassis spec bands can cross-reference the truck-mounted concrete pump picks for oil and gas sites to understand how a related heavy-truck spec map reads in 2026.
