Bridge-site cutting breaks into two distinct work envelopes: formwork, decking and rebar-tying timber (TCT blades, 250-400 mm OD, kerf 2.5-4.0 mm, max 3,800-4,500 RPM) and structural concrete / rebar cutting (diamond blades, 350-800 mm OD, laser-welded segments, wet-feed) [S2][S4].
Specifying a wood-laminate TCT blade on a concrete deck cut is the most common site failure: tooth loss, segment shatter, and HCS kickback. This article maps the right blade, machine class, and dust/water suppression for each bridge construction sub-task, drawing on TCT blade geometry from the laser-welded TCT product line (250-400 mm OD, 60-108 Z, ATB/TCG tooth geometry, radial run-out ≤0.03 mm, lateral run-out ≤0.02 mm) [S2] and the concrete-reuse prototype test data from the Institution of Structural Engineers [S1].
Cutting Tasks on a Bridge Site and the Right Blade Class
Bridge construction generates at least four cutting populations: (1) timber formwork and plywood decking, (2) structural concrete (deck slab, pier, abutment, parapet), (3) reinforcing bar, and (4) temporary works / utility channel. For (1) the laser-welded TCT product family with OD 250-400 mm, kerf (B) 2.5-4.0 mm, body (b) 2.0-3.2 mm, and bore (d) 30/60 mm, available in 60Z, 72Z, 80Z, 96Z, and 108Z ATB/TCG configurations, covers 95% of formwork cuts [S2]. For (2) and (3) only diamond-segmented blades are fit for purpose; the TCT carbide tip is engineered for wood fibre and loses its brazed tip within minutes on siliceous aggregate. Bridge deck concrete typically tests 35-65 MPa compressive strength with 20 mm aggregate — well outside the operating envelope of a wood-cutting TCT blade.
Cutting rebar embedded in hardened concrete on a demolition or retrofit job is the corner case where even a competent diamond blade risks segment loss if the operator plunges into the rebar without a scan; the Institution of Structural Engineers' saw-cut concrete-reuse prototypes (saw-cut elements lifted, recut, and reassembled into new load-bearing prototypes) confirm that controlled saw-line cutting of structural concrete is repeatable, but only with the correct blade class and water feed [S1].
Blade Geometry and Tolerances That Matter on Site

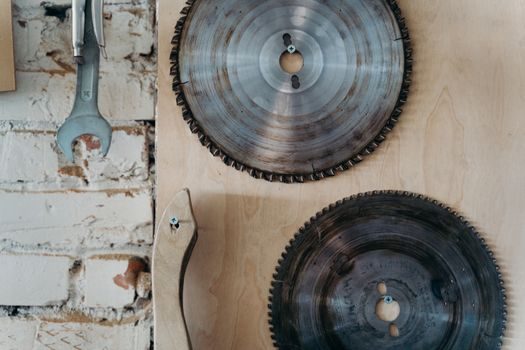

For formwork and shiplap plywood, the laser-welded TCT blades offered in OD 250 / 300 / 350 / 400 mm, kerf 2.5-4.0 mm, and tooth counts 60-108 Z with ATB or TCG geometry, deliver radial run-out max 0.03 mm and lateral run-out max 0.02 mm — tighter than the generic 0.05 mm industrial tolerance and the reason the cut edge stays paint-ready without sanding [S2]. Tooth geometry is the second decision: ATB (alternate top bevel) suits cross-cutting solid wood and plywood across the grain, while TCG (triple chip grind) is the right grind for laminate, melamine, MDF, and chipboard where chip-out at the bottom face is the failure mode. TCT plate material in the cited line is 75Cr1 (German) or SKS51 (Japanese), tipped with Ceratizit carbide, and tensioned on VOLLMER equipment — a useful spec-floor when auditing a low-cost bid.
For concrete and rebar, the comparable spec-floor is: diamond segment height 10-12 mm (new) / ≥2 mm (resoak reject limit), laser-welded (not silver-soldered) segments for dry/wet dual use, core steel ≥1.8 mm, and a maximum operating speed stamped on the blade that the saw's no-load RPM must not exceed. Under-speccing segment height is the dominant cause of premature blade retirement on bridge deck work; a 7 mm segment on 35 MPa deck concrete is typically consumed in 30-40 linear metres of cut, whereas a 10-12 mm segment reaches 80-120 m.
Machine Class: Circular Saw, Mitre Saw, Wall Saw, or Floor Saw
Hand-held circular saws (typically 184-235 mm blade, 5,500-6,200 RPM no-load) cover formwork ply up to ~75 mm thick in a single pass. For thicker laminated beams and glulam decking (100-200 mm), a sliding compound mitre saw with a 250-305 mm TCT blade is the practical floor; the 300 mm OD 60Z-96Z ATB/TCG TCT blades drop straight onto mitre-saw arbors (d = 30 mm with a 60 mm adapter ring common in EU stock) and reach 3,800-4,500 RPM [S2].

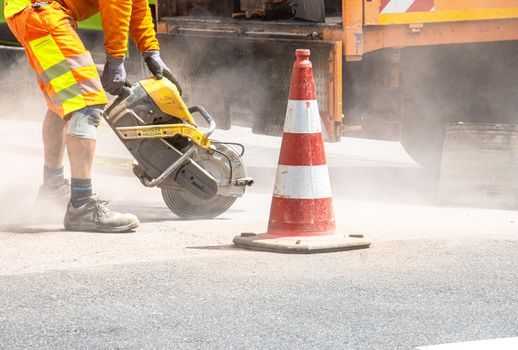

Concrete cutting is a different machine class. For vertical pier faces and abutment walls a rail-mounted wall saw (diamond blade 600-1,200 mm, 1,000-1,800 RPM) is the production tool. For horizontal deck slabs and approach slabs a walk-behind floor saw (blade 350-800 mm, 2,400-3,600 RPM, diesel or 400 V three-phase) is the standard. Hand-held ring saws (blade 320-430 mm) handle the corners and small openings where the floor saw cannot reach. A 110 V chop saw with an abrasive disc is not a concrete-cutting tool and must not be used on bridge decks.
Dust, Water, and the Reuse-Cutting Workflow
Wet cutting is mandatory for all structural concrete and rebar cuts on a bridge site: it suppresses respirable crystalline silica dust (the regulatory exposure limit in EU OSHA-transposed practice is 0.025 mg/m³ as an 8-hour TWA, requiring wet suppression or class M extraction on every dry cut) and it cools the diamond segment, multiplying blade life by a factor of 3-5. The ISTructE saw-cut concrete-reuse prototypes — three load-bearing assemblies built by recutting salvaged slab and wall elements and reassembling them — relied on wet diamond saw-line cutting to keep the cut faces dimensionally true and the salvaged elements re-usable as structural members rather than rubble [S1]. Dry TCT wood cutting is acceptable for formwork ply, but a 250 mm TCT blade at 6,000 RPM on a 19 mm formwork sheet still needs a dust port and class L or M extraction; on bridge sites this is usually a HEPA H13 vacuum coupled to the saw's dust shroud.
For timber formwork plywood the practical cut sequence is: score the phenolic face with a 250 mm 60Z ATB blade at 2,500-3,000 RPM, then full-depth cut with a 300 mm 72Z or 80Z ATB/TCG TCT blade at the saw's rated 3,800-4,500 RPM [S2]. Re-using formwork ply is itself a circular-construction lever: a 3-4 mm kerf TCT blade removes less material per cut than a 6-7 mm abrasive or a worn 80Z blade with lateral run-out above 0.05 mm, which translates directly into more re-use cycles per sheet.
Comparison: TCT Wood Blade vs Diamond Concrete Blade vs Abrasive Disc
The three blade classes line up against bridge-site decision criteria as follows, drawing the cut-quality and tolerance data from the laser-welded TCT product spec [S2] and the saw-cut concrete reuse evidence base [S1]:
- Material fit: TCT 250-400 mm ATB/TCG = solid wood, plywood, MDF, chipboard, laminate, melamine. Diamond laser-welded = concrete (35-65 MPa), reinforced concrete, masonry, natural stone, asphalt. Abrasive = steel section, thin-wall pipe, emergency only on concrete.
- Cut quality: TCT delivers radial run-out ≤0.03 mm and lateral run-out ≤0.02 mm — paint- or laminate-ready edge. Diamond wet-cut delivers a 1-2 mm kerf with minimal chipping on the cut face, dimensionally accurate enough to recut salvaged elements for structural reuse [S1][S2]. Abrasive delivers a rough 6-7 mm kerf and significant heat-affected zone, unfit for reuse.
- Cooling: TCT runs dry on wood with extraction. Diamond requires wet feed on structural concrete; dry only for occasional shallow cuts with extraction. Abrasive is dry only.
- Cost per linear metre (indicative, mid-2026): TCT 300 mm 72Z ≈ 0.05-0.10 €/m on formwork ply. Diamond 450 mm wet-cut on C40 deck concrete ≈ 0.80-1.50 €/m. Abrasive 355 mm on the same deck ≈ 2.50-4.00 €/m with frequent disc changes.
Limitations, Failure Modes, and What Not to Do
The three most expensive mistakes on a bridge cut: (1) using a wood-TCT blade on concrete or rebar — total blade loss within minutes, and the shattered carbide is a fragment hazard; (2) running a diamond blade above its rated RPM — segment release, typically with the saw still in cut, the most common cause of bridge-site circular-saw injury; (3) dry-cutting structural concrete without class M extraction and water suppression — silica exposure exceedance and regulatory stop-work. The 75Cr1 plate and Ceratizit carbide spec on a TCT blade is a useful proxy for "this blade is not the cheap disposable line" [S2]; for diamond blades, the equivalent proxy is segment height ≥10 mm and a stamped maximum RPM that matches the saw's no-load speed.
Blade class selection also drives saw choice; a TCT wood blade has no place on a wall saw, and a 600 mm diamond blade has no place on a hand-held circular saw. For utility channel and cable-tray cuts on the bridge deck, see the related spec map on circular saws for HVAC installation (which covers sheet-metal and spiral duct considerations) and the companion guide on circular saws for plumbing installation, which covers twin-wall and PP-R pipe cuts Circular saw selection for HVAC installation: blades, RPM, and dust control [Circular Saw Spec Map for Plumbing Installation: 2026 Selection Guide](/news/circular-saw-selection-for-plumbing-installation-2026-selection-guide.html). For the temporary-works timber and formwork-ply side of bridge construction, the spec map on circular saws for interior finishing is the closest analogue because it covers the same TCT ATB/TCG geometry on the same laser-welded product line Circular Saw Selection for Interior Finishing: Specs, Blades, and Cut Quality.
Sourcing, Standards, and a Verifiable Next Signal
The two governing documents for bridge-site cutting are EN 13236 (diamond blades for construction) and EN 847-1 (circular saw blades for woodworking); the latter underwrites the kerf and run-out tolerances quoted on the laser-welded TCT product line (radial ≤0.03 mm, lateral ≤0.02 mm) [S2]. For structural concrete reuse, the relevant load-test reference is the ISTructE saw-cut prototype paper, which provides the empirical basis for re-deploying saw-cut elements as primary structure rather than recycled aggregate [S1]. The wider trend to track is the procurement side: TCT blade stockists (kitairu.net 2026-07 listing) continue to expand the OD 300-350 mm 80-96Z ATB/TCG range, and diamond-segment manufacturers are pushing 10-12 mm segment height into the 350-450 mm blade class as the new default for deck-slab work [S2][S4].
