In tunnel construction, a cut-off machine is rarely specified as a single SKU — it is specified as a duty class that matches face conditions, ventilation, and the steel or concrete the crew is severing on a given shift. The portable 14-inch gas class (STIHL TS 420, 14 in / 350 mm wheel) is the workhorse for rebar and concrete trim work in road headers and NATM headings, the 355 mm 2200 W electric portable (2200 W input, 3800 r/min no-load) handles site-shed steel-prep where three-phase is available, and heavy swing-frame units (Fox 2-C class, 30 HP, 762 mm × 6 mm wheel at 14,200 SFPM / 72 m/s) are stationed at the portal or precast yard for gating and riser work on tunnel-segment moulds [S1][S2][S3].
Tunnel crews are not buying the same tool a stone mason uses for interior trim or a sparky uses for conduit — the dust load, abrasive water slurry from wet-mix shotcrete, and the volume of rebar and lattice girder cutting push selection toward higher-wattage electric units in the heading and dedicated gas or hydraulic units where diesel generators dominate. A spec that mixes these up leads to wheel glazing, premature bearing failure, and contractor downtime claims.
Duty Class 1 — Portable 14-inch Gas Cut-Off (STIHL TS 420 Class)
The STIHL TS 420 runs a 14 in (350 mm) cutting wheel and is explicitly aimed at road construction and landscaping crews who need a low-maintenance gas saw with the STIHL anti-vibration system and a cyclone-routed pre-filter that extends service intervals on dusty sites [S2]. For a tunnel heading this class is the right tool for trimming lattice girders, cutting rebar cages (typically 12–25 mm bar) at the face, and slicing wood lagging or steel channel without trailing a power cable through wet muck [S2]. The 14-inch gas class is a poor fit where pure electric is mandated (gassy headings classified as Group I M2 / Zone 1 equivalents) or where the cut depth exceeds the wheel's effective reach.
Site realities that push the spec toward a 14-inch gas saw: no three-phase at the face, frequent relocation (the saw travels with the heading advance), and intermittent cuts of 1–2 minutes duration rather than continuous production cutting. Spec text should call out the wheel diameter, the AV system, and the filter service interval — the cyclone pre-cleaner on the TS 420 class is what keeps the saw cutting through a 100 m³/s dust-loaded heading without daily filter swaps [S2].
Duty Class 2 — Portable 355 mm Electric Cut-Off (2200 W Class)
The Made-in-China 355 mm 2200 W portable electric steel-cutting machine defines the second duty class: 2200 W rated input, 110/220 V selectable, 50/60 Hz, no-load speed 3800 r/min, with a 355 mm abrasive wheel for cold-cut steel section, plate, and rebar [S3]. This class sits between the gas-powered 14-inch saw and a stationary swing-frame cut-off, and is the right call inside tunnel segments during steel-collar or invert-rail prefabrication at a portal-side workshop fed by grid power or a 50–100 kVA genset.
Spec data for this class is concrete and quotable: 2200 W input, 3800 r/min, 355 mm wheel, 110/220 V dual voltage [S3]. For tunnel work the spec line should pin voltage tolerance (typical industrial spec is ±10% of nominal), the no-load speed, the wheel bore, and a duty-cycle statement — these machines are rated for intermittent cut work (e.g. 5 min on / 10 min off at full load), not continuous steel-slab production cutting. The 355 mm electric class is a poor fit for wet-mix shotcrete rebound, for which the dust port and IP rating are the wrong spec axis — that is a concrete cutter problem, not a cut-off problem.

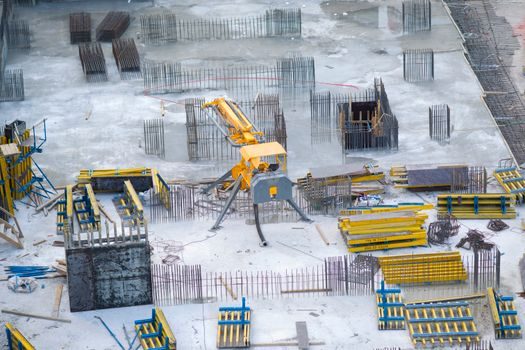

Duty Class 3 — Heavy Swing-Frame Cut-Off (Fox 2-C Class)
The Fox 2-C swing-frame cut-off is the foundry class that tunnelside segment yards adopt when they need to remove gates and risers from segment moulds or to trim cast-steel support fittings: 30 in × 1/4 in × 1-3/4 in (762 mm × 6 mm × 44 mm) wheel, 30 HP (22 kW) motor, two-speed pulley drive, 14,200 SFPM (72 m/s) starting wheel speed recovering to ~12,500 SFPM average as the wheel wears, 1,130 lb (513 kg) total mass, 110 in (2,794 mm) length, 90° clockwise and 75° counter-clockwise swing, sealed-for-life spindle with acme threads on a high-strength alloy shaft [S1]. The machine is crane-suspended from a bridge or jib and pivots on its chain hoist to align the cut.
This class is wrong for the heading and right for the casting/precast yard. Tunnel segment moulds are poured with large gates and risers that have to come off without breaking the segment; the swing frame lets the operator get the wheel flat to the casting and make cuts "very close to the casting eliminating the need for additional grinding" per the OEM's own spec text [S1]. The 30 HP rating also matters for the steel-rib fabricator next to the portal who is cutting 200 mm I-beam stubs off the segment cage moulds — a 14-inch portable saw stalls inside 30 seconds on that section.
Selection Criteria: Wheel Size, Power, Power Source, Mobility
Four decision criteria separate the three classes on a tunnel project. Wheel size determines max cut depth: 14 in (350 mm) gas portable handles rebar and small channel, 355 mm electric portable handles plate and small section, 30 in (762 mm) swing frame handles castings and heavy section [S1][S2][S3]. Power source is the safety gate: gas where no power, electric where three-phase is available and the heading is well-ventilated, and hydraulic or pneumatic where intrinsic-safety rules apply — none of the three sources should be mixed in a single spec line.
Power rating defines the duty: 30 HP (22 kW) swing-frame drive absorbs continuous foundry load [S1], 2200 W portable electric handles intermittent steel plate cuts at typical industrial ±10% voltage tolerance [S3], and the 14-inch gas class covers intermittent rebar and concrete trim at the face [S2]. Mobility is the tie-breaker: crane-suspended swing-frame at 1,130 lb is portal-side only [S1], a 355 mm electric portable is shop-side, and a 14-inch gas saw is the only one of the three that travels with the face crew [S2]. For the related interior-finishing and electrical-installation cases where the cut-off saw is the same tool but the duty is lighter, see the interior-finishing spec map and the electrical-installation spec map.

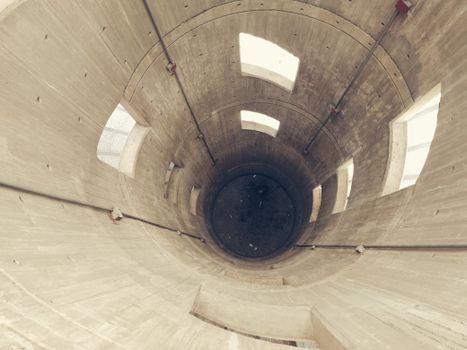

Use Cases Mapped to Tunnel Activities
Heading advance (NATM or drill-and-blast): 14-inch gas cut-off for rebar, lattice girder trim, channel lagging — selected on mobility, AV system, and dust-load filter behaviour [S2]. Segment casting yard: 30 HP swing-frame for gate and riser removal on segment moulds, selected on wheel size, two-speed drive for wheel-wear compensation, and the 90°/75° swing geometry that lets the operator cut flat to a curved casting [S1]. Steel-collar and invert-rail workshop: 355 mm 2200 W electric portable on 110/220 V, selected on input wattage and no-load speed for cold-cut steel section [S3].
Specialised cut-off saws for shotcrete, ductile iron pipe, and segment-joint grinding live in adjacent duty classes — the shotcrete crew typically uses a dedicated concrete cutter with water suppression, not an abrasive cut-off, because dry abrasive cutting on cured shotcrete is a silica-dust compliance problem on most modern European and North American tunnel projects. Where the cut-off machine is in a precast yard making masonry blocks or cutting the rebar for segment cages, the masonry cut-off machine selection map and the alloy-steel selection map cover the upstream material-spec questions.
Failure Modes and Spec Pitfalls
Three failure modes recur when a cut-off saw is mis-specified for tunnel work. First, a 14-inch gas saw dropped into a continuous steel-cutting role at the portal: the wheel glazing curve on cold-cut steel plate drops the SFPM by 15–20% inside two hours, the two-speed pulley recovery that the Fox 2-C uses to maintain SFPM [S1] is not present on a 14-inch gas saw, and the operator burns through wheels. Second, a 355 mm 2200 W electric saw deployed on a heading with a 30 m cable run from a small genset: voltage at the tool drops below the 110/220 V ±10% industrial spec, motor current climbs, and thermal cutouts trip every 20 minutes [S3].
Third, a swing-frame cut-off crane-suspended into a heading: at 1,130 lb (513 kg) and 110 in (2,794 mm) long, the Fox 2-C is a foundry machine, not a heading machine [S1] — rigging it into a heading on a chain hoist violates the OEM's stated mounting requirement of a bridge or jib crane at the casting yard. Spec text should pin the mounting arrangement and the swing-arc dimensions, not just the wheel size. The OEM's stated 90° clockwise / 75° counter-clockwise swing is the spec line that protects the operator from the casting yard layout, not a marketing number [S1].

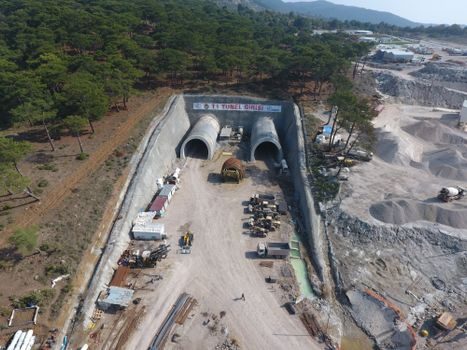

Sourcing, Standards, and Procurement Notes
Procurement data points worth pinning on the PO: STIHL TS 420 14-inch gas class at the manufacturer's listed $1,449.99 dealer price as a 2026-07-19 reference point [S2]; 355 mm 2200 W electric portable made-in-china listed-spec with full input/no-load/voltage data [S3]; Fox 2-C swing-frame with the OEM-published wheel/motor/weight data and the two-speed drive spec [S1]. For tunnel-procurement contracts that flow into the segment-precast yard, the Fox 2-C's stated "individually balanced" spindle and sealed-for-life bearing are spec lines that translate directly into maintenance-interval warranties [S1].
Safety standards touching abrasive cut-off work in tunnels are typically driven by the regional construction code (e.g. EU EN 12413 for bonded abrasive products, US ANSI B7.1 for abrasive wheel safety, plus the tunnel project's own ventilation plan for dust). Spec text should call out the abrasive-wheel standard on the wheel itself, the wheel-speed match to the machine's stated SFPM or m/s, and the operator-PPE class for the dust load. Trackable signals to watch through the rest of 2026: whether the masonry cut-off machine selection map covers a new battery-electric 14-inch class, and whether Chinese-made 355 mm electric portable pricing tightens below the current spec points on made-in-china listings.
