For surface marking on metals and plastics, the average power rating of a fiber laser marker sits in the 20W to 30W range, with 50W to 100W units used when throughput or mark depth demands it [S3][S4]. A marker's nameplate wattage is the average output power of the source at its operating pulse frequency, and most industrial fiber marking systems are sold in 20W, 30W, 50W, 75W, and 100W steps [S2].
Wattage alone does not determine mark quality: pulse energy, peak power, and pulse frequency together decide whether the beam anneals, ablates, or engraves [S3]. Buyers who anchor on the wattage number without checking those three parameters routinely overspend on a marker that still underperforms on the parts they actually run [S5].
What the wattage label actually means on a fiber marking source
The figure printed on a fiber laser marker (20W, 30W, 50W) is the average output power, calculated as pulse energy multiplied by pulse repetition rate [S3]. On a 1064 nm fiber source, average power interacts with two other parameters to produce the mark: pulse energy in millijoules and peak power at the focal point [S3].
Every fixed-pulse-width fiber laser is internally limited to roughly 1 millijoule per pulse because of the damage threshold of the laser diode and the internal optics [S5]. A 30W unit reaches that 1 mJ ceiling at about 30 kHz, a 50W unit at 50 kHz, and a 100W unit at 100 kHz, so the highest-energy pulse from each is essentially the same, and the higher-wattage markers simply deliver more of those pulses per second [S5]. Buying more watts therefore buys marking speed and multi-pass coverage, not a stronger individual pulse, which is a critical distinction when comparing laser marker spec sheets.
Standard power tiers: 20W, 30W, 50W, 75W, 100W
Generic fiber laser marking machines typically offer 20W, 30W, 50W, 75W, and 100W as the standard power options, and most buyers fit into one of three buckets: routine identification, balanced industrial marking, or higher-throughput deep work [S2][S3]. A 20W system covers standard daily marking and lower-volume work, 30W is the balanced starting point for steady production, and 50W is the right step when speed, volume, and material difficulty all increase together [S3].
On an industrial scale, a 20W fiber laser can engrave clear, permanent serial numbers on stainless steel industrial tools at roughly 120 characters per minute, which is the throughput target for part tracking and brand marking [S4]. A 50W fiber laser can engrave 0.5 mm deep into stainless steel about 30% faster than a 30W unit, which is the speed gain that justifies stepping up from 30W to 50W for industrial tooling marks [S4]. These numbers illustrate the rule of thumb stated bluntly in the marking-wattage guide: the average power rating of a laser marker is the most consequential specification you will choose [S3].

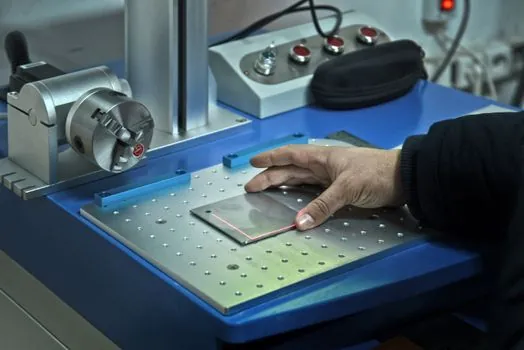

How wattage maps to the three main mark types
Marking, engraving, and cutting are three different power regimes, and the wattage that works for one usually fails the other. For surface-level identification, 20W to 30W is the recommended range on stainless steel, aluminum, brass, ABS, acrylic, and polycarbonate, covering logos, serial numbers, and barcodes [S4]. For deeper impressions on hardened steel, titanium, hardwoods, and MDF, the 30W to 100W range applies, with 50W to 60W as the common industrial midpoint [S4][S6].
Cutting sits in a different regime entirely, starting at 100W for thin stock and running to 1500W to 3000W for thicker plate [S4]. That is why a marker and a cutter are not interchangeable, even if both are fiber sources. For a comparison: most laser engraving on metal requires 20W to 50W, and applications needing greater speed or depth can use up to 80W to 100W for the same job [S6]. Choosing on this axis is the main engineering decision, and related comparisons such as data center electrical equipment 2026 capacity planning follow a similar logic: a power spec only has meaning inside its intended application envelope.
Decision matrix: 20W vs 30W vs 50W vs 100W for marking
The four power tiers compare on cost, mark depth, throughput, and the materials they handle, and that four-axis view usually picks the right unit without further spec-diving [S1][S2][S3][S4][S5].
On cost, 20W is the entry point and the lowest capital outlay, 30W is roughly 30% to 50% more than 20W for the step-up in headroom, and 50W to 100W is a multiplier above 30W that only pays back if the part mix needs it [S3][S5]. On mark depth, 20W to 30W handles surface annealing, stain marking, and shallow ablation, 50W extends to about 0.5 mm deep engraving on stainless steel, and 100W is for deep engraving and reduced cycle time on tough alloys [S4][S5]. On throughput, a 30W marker running clear polycarbonate uses only 3 to 4 W of applied power and runs at 30 to 35 inches per second on anodized aluminum, while a 100W unit simply lands 3.3 times as many 1 mJ pulses per second as a 30W unit, so it earns its keep only when the part stream keeps the beam busy [S5]. On materials, 20W to 30W covers stainless, aluminum, brass, ABS, acrylic, and polycarbonate; 50W extends comfortably to hardened steel and titanium; and 100W is reserved for heavy industrial tooling and the deepest marks [S4]. The takeaway is that most plant-floor marking work runs comfortably on 30W, with 50W as the upgrade for tougher metals and 100W only when cycle time is the binding constraint [S5].

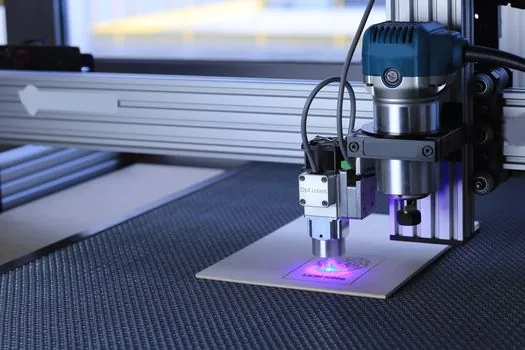

What 30W actually does on real parts
A 30W fiber laser marker handles the majority of the marking work most job shops see, and the application examples put concrete numbers on that claim [S5]. Clear polycarbonate takes a black surface mark with only 3 to 4 W of applied power, ablating anodize off aluminum to expose a bright white mark needs 12 to 15 W at 30 to 35 inches per second, and stain marking on stainless steel and titanium sits inside the 30W envelope [S5].
The useful pulse frequency range on a 30W fixed-pulse-width laser is roughly 20 to 50 kHz; above that range each pulse carries too little energy to do productive work on metal [S5]. Cycle times are short: a brand-name word in 0.1-inch bold characters marks anodized aluminum in 2 to 3 seconds, and a single-line stick font drops that to about 300 milliseconds, so the operator load time usually exceeds the laser on time [S5]. When the process stream includes gas analysis or oxygen trimming, selecting the right laser analyzer and process-side instruments follows the same matching-to-task logic, not the highest-wattage instinct.
When 50W to 100W is the right answer
There are two legitimate reasons to specify 50W to 100W for a marking application, and both are about throughput, not mark strength [S5]. The first is deep engraving on industrial tools, where the extra pulse rate lets the marker remove material in fewer passes and hold tolerance on a 0.5 mm to 1 mm deep cavity [S4][S5]. The second is cycle time on a high-volume line, where the extra 1 mJ pulses per second let the galvos scan faster across the surface and still leave a fully developed mark [S3][S5].
A 100W fiber laser can engrave a 1 mm deep logo on aluminum in about 13 minutes, which is the throughput target that justifies the higher capital cost when the part stream actually needs that mark depth [S4]. For shops that do not run that part mix, the same dollar spent on a 30W unit with better optics and a tighter galvo head will produce a finer mark on a wider range of materials [S5]. The selection question to ask is not "what is the highest wattage we can afford" but "what pulse frequency and pulse energy match the part, the material, and the cycle time", which is the same decision logic that drives adjacent process choices such as tunable diode laser oxygen analyzer matching on a gas analysis stream.

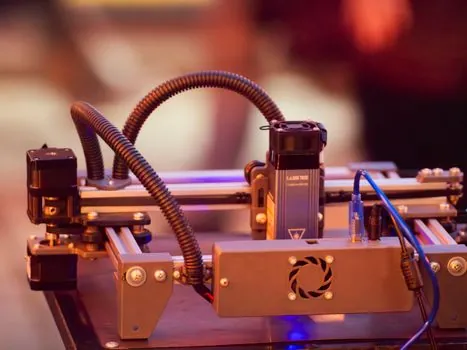

Selection criteria: matching the source to the part
Five factors determine the right power for a marking installation, and the ranking is the same one most application engineers use: material, mark depth, throughput, mark quality, and budget [S3][S4]. Material comes first because carbon steel, stainless steel, aluminum, brass, ABS, acrylic, and polycarbonate all respond differently to the 1064 nm fiber wavelength, with stainless and carbon steel being the most receptive and reflective metals like bare aluminum being the least receptive at low power [S3][S4]. Mark depth is the second filter: 20W to 30W for surface marks, 50W to 100W for engraved cavities, and anything heavier needs a different source class [S4][S6].
Throughput is the third filter and the one that drives most step-ups from 30W to 50W: a 30W marker hits 120 characters per minute on stainless serial numbers, and a 50W unit runs roughly 30% faster on a 0.5 mm deep stainless engraving [S4]. Mark quality, meaning contrast, edge sharpness, and Heat-Affected Zone width, is the fourth filter and often favors the lower-wattage unit because shorter pulse residence times and finer galvo control produce cleaner edges on small barcodes and QR codes [S4][S5]. Budget is the fifth filter, and the only honest answer is to specify the lowest wattage that meets the first four criteria, because every 10W step above the application minimum costs money on the source, the chiller, the power supply, and the replacement diode [S1][S3][S5].
Failure modes and constraints to spec against
Under-speccing a marker is the more common mistake, but over-speccing creates its own set of problems. A 100W unit on a thin-wall aluminum extrusion can blow through the wall before the galvo has finished the first character, and a 50W unit on a delicate plastic can scorch the substrate around the mark, so a higher average power rating is not a free upgrade [S5]. The damage threshold of the laser diode and the internal optics sets a hard ceiling at roughly 1 mJ per pulse, which means a 30W unit and a 100W unit cannot produce a stronger single pulse, only more pulses per second [S5].
That ceiling also limits how slowly a higher-wattage unit can pulse, which constrains pulse-energy-sensitive processes such as deep engraving on heat-sensitive alloys [S5]. Buyers who try to use a 100W marker as a cutter run into a different limit: 100W to 1500W is the cutting regime, and a 100W marker will not slice 5 mm aluminum cleanly even if the nameplate wattage looks similar [S4]. The right way to interpret the spec is to match the source class to the process, not to chase the highest number on the data sheet, and the same selection discipline applies across adjacent process instruments, from the marking head itself to laser displacement sensor choices for in-line inspection.
Standards and sourcing for fiber marking power ratings
Fiber laser marker power ratings are quoted as average output power at a stated pulse repetition rate, and reputable vendors publish both numbers plus the pulse width on the spec sheet [S1][S3]. The wattage figure alone is not enough to compare two markers: a 30W unit with 20 to 50 kHz usable pulse range and a 1 mJ pulse ceiling is a different tool than a 30W unit with a wider but lower-energy pulse profile [S5]. Buyers should request the pulse energy in millijoules, the pulse frequency range in kilohertz, and the pulse width in nanoseconds, then map those three numbers against the material absorptivity at 1064 nm and the target mark depth [S3][S5].
Independent guidance on laser marking power selection is published by marker OEMs and by marking job shops, with the consensus band sitting at 20W to 30W for surface marking, 30W to 60W for shallow engraving, and 50W to 100W for deep engraving or high-volume lines [S1][S2][S4][S5][S6][S7]. The next signal to track is the published pulse energy ceiling versus nameplate wattage on new 2026-vintage fiber sources, since that ratio is the true indicator of mark strength, not the wattage number printed on the front of the marker [S5].
