A paper or pulp mill drive is one of the few industrial settings where a fluid coupling routinely outperforms a gear or grid coupling, because refiners, large fans, and abrasive stock pumps are high-inertia, high-starting-torque loads that punish a hard-coupled start [S1]. Refiner startup in particular loads heavily and immediately, so a hydrodynamic coupling that lets the motor start on no load and ramp torque into the load in seconds is the default protection scheme for disc and conical refiners in stock preparation [S2].
Selection is not a catalogue exercise. Power rating alone is the most common reason mills oversize (and pay for cooling they don't need) or undersize (and cook the coupling). The decision pivots on the driven load's inertia, the slip at full load, the ambient around the housing, and whether the drive is constant torque, variable torque, or a shock load [S3]. A correctly chosen fluid coupling buys soft start, torque limiting, and overload slip, while a wrong fit shows up as thermal trips, premature seal failure, and accelerated gearbox wear [S3].
Where Fluid Couplings Actually Win in a Paper Mill
Four paper-mill drive groups take the majority of fluid-coupling installations: refiner drives, stock and water pumps, ID/FD/vacuum fans, and chipper/conveyor drives, each with a different selection emphasis [S2]. Refiner drives need smooth acceleration and overload protection, because disc and conical refiners present a steep torque curve at start. Stock and water pumps run continuously on abrasive slurries, where a scoop-controlled variable-speed fluid coupling matches pump flow to process demand and reduces wear plus power. Fans and blowers benefit from no-load motor start, fast starting-current decay, and variable-speed energy saving on large ID and FD fans. Chippers and conveyors are a jerk-load, soft-start application where continuous declutching-style slip and load sharing are the real value, not the nominal rating.
The coupling family itself is consistent: a centrifugal pump wheel driven by the motor, a facing turbine wheel on the output shaft, and a housing that contains a working fluid, with no mechanical contact between input and output [S5]. That hydrodynamic power path is what makes the soft start, torque limiting, and slip-on-overload possible, and it is the reason fluid couplings are a separate category from gear, grid, and elastic couplings in mill coupling specifications [S1].
Selection Criteria Beyond the kW Rating
Five numbers drive the choice, and only one of them is on the motor nameplate. First, driven-machine inertia (WK² or GD²) sets the start time and the heat the coupling must absorb during acceleration; under-rating this is the dominant cause of thermal failure. Second, peak load profile, which is constant (centrifugal fans, pumps), variable (conveyors, some refiners), or shock (hammer mills, presses), dictates whether a basic fixed-fill coupling is enough or whether a delayed-fill or scoop-controlled unit is required [S3]. Third, the slip at full load, typically in the 2–5% range for industrial fluid couplings, drives thermal duty: higher slip means more heat to reject and a coupling that needs either a larger housing or a cooler fill. Fourth, ambient temperature and ventilation around the coupling, because overheating from poor enclosure cooling is a documented failure mode when the coupling is operated outside its rated power range or in a hot machine room [S3]. Fifth, the working fluid specification, normally a mineral-oil hydraulic fluid around ISO VG 32 for standard paper-mill installations, with HFA water-oil emulsions or HFD-U flame-resistant synthetics used where fire-resistant fluid is mandated (e.g. underground conveyors or hazardous-area drives) [S5].
Mounting style is the secondary decision, and it is driven by the driven machine. Close-coupled and flange-mounted units are common on pumps and fans; shaft-mounted and pulley-mounted units are common on conveyors and chipper drives [S4]. For high-inertia mill service, manufacturers' literature consistently highlights designs with no mechanical contact between internal parts, which insures minimal maintenance on the torque path (only bearings and seals remain wearing items) [S7].

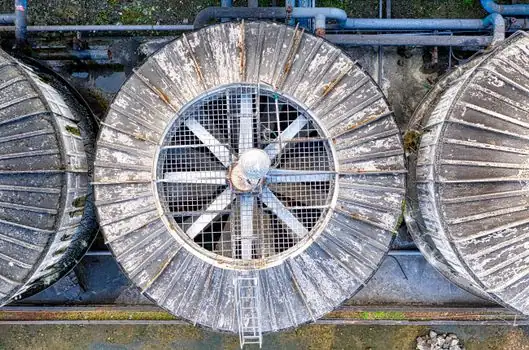

Fluid Coupling vs Gear, Grid, and Elastic Couplings in Mill Service
A spec-first comparison makes the choice mechanical. Gear couplings handle the highest torque densities and absorb shock load, but they transmit shock directly into the gearbox unless a torsional-soft insert is added, and they have little to no slip on overload [S1]. Grid couplings offer high torque capacity, good misalignment compensation (axial, radial, angular), and decent shock absorption, but they still deliver a hard start to the motor [S1]. Elastic couplings are the right pick when misalignment and torsional vibration damping dominate, especially on rollers and light pumps in the paper-making section, but their torque density and slip-on-overload capability are well below a fluid coupling [S1]. Fluid couplings are the only option that natively gives soft start, torque limiting, and slip-on-overload in one component, which is why they dominate refiner and large-fan drives in pulp mills [S2]. The trade-off is steady-state slip losses (2–5%) and a housing that is larger and heavier than a gear coupling of equivalent torque rating, plus the need to size the working fluid and fill correctly for the application.
The same soft-start logic that drives fluid coupling selection for agriculture machinery (high-inertia augers, fans, and feed rolls) shows up in paper mill service, with the added twist of abrasive stock fluid and 24/7 duty cycles that agriculture drives rarely face. Mills that want to combine a fluid coupling's soft start with a VFD's process control will sometimes use a VFD plus a fluid coupling on the same line, accepting some slip loss in exchange for mechanical isolation and overload protection.
Standards, Sourcing, and What to Verify on the Datasheet
Fluid couplings are sold as proprietary OEM assemblies (Föttinger-principle hydrodynamic units), not as commodity components, so verification happens on the vendor datasheet rather than against a single industry standard. Three items are worth checking on every quote: the rated power range in kW at the design ambient, the maximum permissible slip time (or heat capacity per start) versus the actual start time of the driven machine, and the fluid specification including viscosity grade, fire-resistance rating, and the OEM's allowable fill range [S3][S5]. Reference installations in the paper sector are also a useful proxy, because paper-mill duty (refiners, large fans, abrasive pumps) is one of the most demanding fluid-coupling applications, and a vendor that can point to installed base in newsprint, kraft, and writing-paper lines has been through the worst-case thermal and shock-load envelope [S2].
For hazardous-area paper mills (solvent pulping, coating kitchens, boiler areas), confirm the coupling's bearings and seals are compatible with the fire-resistant fluid the site standardises on, since HFA emulsions and HFD-U synthetics have different viscosity, lubricity, and seal-material behaviour than mineral oil, and the OEM's published ratings typically assume one fluid family [S5]. Buyers should also confirm the coupling's venting and drain access for routine fluid changes, because in a 24/7 paper mill the maintenance philosophy is "swap fluid on schedule, not when the coupling cooks."

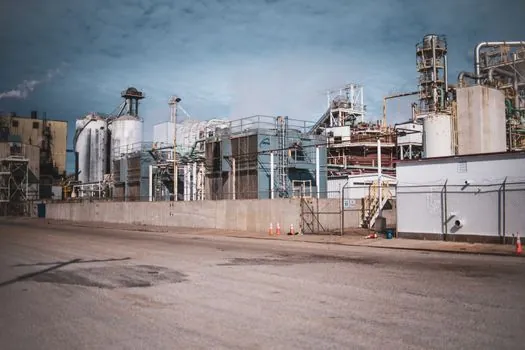

Failure Modes Engineers Actually See on Paper Mill Floors
Three failure patterns dominate. Thermal overload, where the coupling is undersized for the start time plus the slip losses of a high-inertia refiner or fan, is the most common; it shows up as discolored housing paint, accelerated seal hardening, and fluid darkening well before the rated hours [S3]. Seal and bearing wear is the second pattern; while the pump and turbine never touch, the input and output shaft bearings and the seals between the housing and the shafts are normal wearing items, especially in hot, humid machine rooms [S5][S7]. The third is incorrect fill: overfilling raises stall torque and pushes more heat into the coupling, while underfilling raises slip and again drives thermal trips; OEM fill charts by coupling size and ambient are not a suggestion. Mills that log coupling temperature and slip on their drives can catch drift in either direction long before the coupling trips.
Fluid coupling selection in pulp and paper is therefore a load-profile, inertia, and thermal problem first, with kW rating a check at the end. A refiner, a stock pump, an ID fan, and a chipper conveyor each push the coupling in a different direction, and a single fixed-fill model is rarely the right answer for all four in the same mill. The next trackable signal is whether the mill logs per-drive WK², start time, and coupling slip in the same CMMS record; sites that do cut fluid-coupling-related downtime noticeably, because thermal and fill issues show up in the data before they show up on the floor.
