A gate valve is a linear-motion isolation valve whose wedge or parallel disc lifts vertically to create an almost straight-through flow path, making pressure drop the lowest of any linear valve family when fully open [S2]. Bi-directional sealing, simple structure, and suitability for high-pressure and high-temperature service keep gate valves as the workhorse for crude oil transmission, refinery block valves, power-plant main steam, and large-diameter water mains [S1][S3].
That same geometry drives the trade-offs: a long stem stroke, large face-to-face envelope on rising-stem designs, sealing surfaces exposed to friction during every cycle, and a strict prohibition on partial-open operation that induces vibration and seat erosion [S2][S3]. The full open/closed duty cycle, not flow regulation, is the design contract.
Core Advantages: Low Pressure Drop, Bi-Directional Sealing, Robust Shut-Off
Gate valves in the fully open position present an almost straight bore, so the flow resistance coefficient approaches the minimum of any industrial valve class, which is why they are specified for long U.S. transmission lines and city water mains [S1][S2]. The vertical gate motion means the fluid force acts perpendicular to the disc travel, so opening torque stays low and large-diameter units can be driven by handwheels, gearboxes, or electric actuators without oversized operators [S2]. Bi-directional sealing comes from the symmetric body geometry, allowing installation without regard to flow direction and supporting symmetrical seat designs [S2]. Forged or cast bodies rated to ASME B16.34 pressure-temperature classes and body materials from carbon steel to stainless and alloy grades handle refinery, steam, and process-header service with proven durability [S1][S3].
See the foundational operating principle and the OS&Y versus non-rising stem distinction in the gate valve reference page.
Disadvantages: Slow Operation, Seat Wear, Throttling Ban, Tall Stack-Up
Operating a gate valve requires a full stem stroke from fully closed to fully open, so multi-turn handwheels or geared actuators are slower than quarter-turn alternatives and rule out emergency-isolation scenarios that need sub-second closure [S2][S3]. Each cycle drags the gate across the seat faces, generating friction wear that accelerates when the media carries solids, and the seats are usually not field-repairable without removing the valve from the line [S2]. Partial-open throttling is explicitly prohibited: the constricted gap accelerates the fluid, creates eddy currents and gate vibration, and erodes both the disc and seat sealing surfaces within a short service window [S2][S3][S4]. Rising-stem designs add vertical clearance for the stem to travel, so they cannot be installed in shallow vaults, low-ceiling pipe racks, or tight pits [S1][S2].
Gate Valve Variants: Wedge, Slab, Parallel-Slide, Knife
Wedge gate valves are the default refinery and pipeline choice and split into solid wedge, flexible wedge, and split wedge designs that trade sealing tightness for thermal-binding resistance and seat-compensation behaviour [S4]. Slab gate valves use a one-piece gate and are the standard API 6D pipeline design for oil and gas transmission because the full-bore cavity self-drains and supports pigging [S4]. Parallel-slide gate valves keep the disc faces parallel to the seat and rely on a spring or medium pressure to push the gate against the downstream seat, which suits high-temperature steam and reduces thermal binding [S4]. Knife gate valves use a sharp-edged gate to cut through slurries, pulp, and mine tailings, so for thick or fibrous media they outperform wedge designs, but elastomer sleeves limit them to lower pressure classes [S4]. Special designs such as pressure-seal bonnets, cryogenic extensions, bellows-seal stems, and through-conduit expanding gates address high-pressure, low-temperature, zero-emission, and double-block-and-bleed service respectively [S4].
For fibrous or solids-laden service the dedicated knife gate valve reference is the relevant entry point.
Selection Criteria: Duty, Standard, Stem, Media
Select a gate valve when the duty is full-bore isolation, the line is large-diameter, the operating cycle count is low, and throttling is handled by a separate control or globe valve [S1][S3]. For refinery and high-temperature steam service, specify API 600 gate valves in carbon, alloy, or stainless steel with OS&Y rising stems for visible position indication and easier packing maintenance [S1][S4]. For oil and gas transmission, specify API 6D slab or expanding gate valves in pipeline sizes with full-bore bores, double-block-and-bleed capability, and fire-tested seating per API 607 or API 6FA [S4]. Match the seat and seal material to the media: metal seats for abrasive or high-temperature service, resilient seats for clean water, and elastomer-lined bodies for corrosive chemicals [S4]. For small-bore or high-pressure branch connections API 602 compact gate valves are the standard fit [S4].
Comparison: Gate Valve vs Ball Valve vs Globe Valve
On three decision criteria, gate valves trade the quarter-turn speed of a ball valve for a lower full-open pressure drop and lower unit cost at large diameters, while a globe valve outperforms both on flow regulation but at the price of a tortuous flow path and high head loss [S1][S3]. Ball valves close in a 90-degree rotation, gate valves need a full multi-turn stem stroke, and globe valves sit in between with adjustable stem travel [S3]. For throttling service, only the globe valve is correct: gate and ball valves suffer vibration, erosion, and seat damage under partial-open conditions, with the failure mode particularly aggressive on gate valves because the disc edges stay exposed to the high-velocity jet [S2][S3]. On footprint, ball valves are the most compact, gate valves the tallest, and globe valves the longest face-to-face [S3]. On initial cost at large diameters, gate valves are typically cheaper than ball valves and competitive with butterfly valves [S3].
Common Failure Modes and Maintenance Triggers
The five field-failure modes consistently reported are seat leakage past worn disc faces, stem packing leakage from aged gland seals, thermal binding when a cold valve is opened against a hot line, corrosion attack on body or trim in sour or chloride service, and actuator failure on motorized or geard units left in cycle for years [S4][S6]. A leaking, jammed, or inoperable gate valve compromises system safety and efficiency and is the single most common reason process units trip on loss of isolation [S6]. Inspection routines that catch these modes include stroking each valve at least once per quarter, repacking glands at the first sign of external weep, and replacing seats before leak rate exceeds the API 598 acceptance threshold for the valve class [S4]. Cyclic service on slurries, steam, or sour hydrocarbons shortens seat life and pushes maintenance intervals toward the 12-month mark rather than the multi-year calendar typical of clean water service [S2][S4].

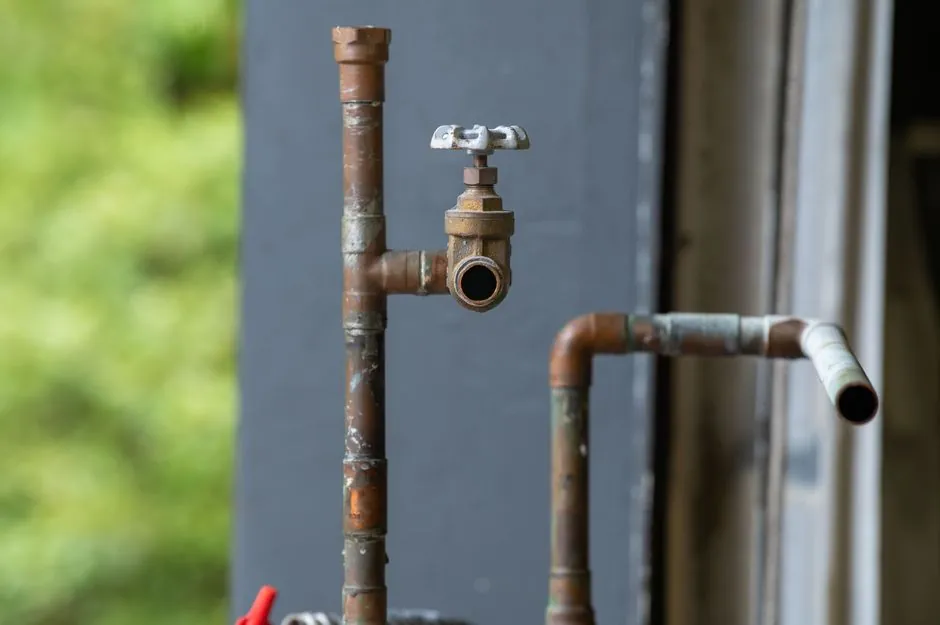

Field-level installation discipline is covered separately in Gate Valve Installation: Field Checks That Prevent Leakage and Seat Damage, and the cost side beyond the invoice price is mapped in Ball Valve TCO: Cost Drivers Beyond the Invoice for Engineers.
Who Should and Should Not Specify a Gate Valve
Gate valves are the correct choice for on/off isolation in oil and gas transmission, refinery and petrochemical process headers, power-plant main steam and feedwater, large-diameter water and wastewater mains, fire-protection loops, and storage-tank manifold isolation where minimum pressure loss and infrequent cycling dominate the specification [S1][S3][S4]. They are the wrong choice for flow regulation or throttling, for frequent cycling beyond a few operations per day, for service with high solids content unless a knife-gate design is used, for installations with limited vertical clearance that rule out rising-stem builds, and for fast-closure emergency-isolation where a quarter-turn ball or butterfly valve is the safer fit [S2][S3][S4]. Specifying engineers should also avoid gate valves where the seat material cannot be matched to the media chemistry, since seat degradation is the dominant end-of-life failure mode in the field [S2][S6].
