The choice between a gate valve and a ball valve is decided by four measurable parameters: cycle frequency, required bubble-tight shutoff, pressure class, and whether the line must be pigged or rodded clean [S3].
Both designs are quarter-turn or multi-turn isolation devices manufactured in cast iron, carbon steel, stainless steel and bronze by hundreds of foundries worldwide, including the iron and steel valve programmes documented at SVR Global and the Chinese OEM clusters catalogued on Made-in-China [S2].
The two are routinely confused because they share end-connection formats (flanged, screwed, butt-weld) and similar face-to-face envelopes, yet their sealing mechanics, seat wear behaviour and torque profiles diverge sharply.
Sealing Mechanics: Wedge-and-Seat vs Floating-Ball-and-Seat
A gate valve closes a flexible or solid wedge against two parallel seats; the disc travels perpendicular to flow and fully retracts into the bonnet cavity when open, giving an unobstructed bore with a flow coefficient close to that of the pipe itself [S3].
A ball valve rotates a spherical disc with a cylindrical bore 90° between open and closed; the ball is typically held by two seats of PTFE, R-PTFE, PEEK or metal, and shutoff is achieved by elastomeric or lip-seal compression rather than metal-to-metal wedging [S1].
This geometry difference drives almost every downstream spec decision. Because the ball remains in the flow path even when open, a conventional full-port ball valve introduces a small bore step at the seat area, while a gate valve — when fully open — presents no obstruction to pigs, scrapers or rodding tools.
The wedge design carries an inherent limitation that Bundor documents directly: gate discs are subject to seat wear proportional to the number of closure events, so the service life is closely tied to cycle count rather than hours on line [S3].
Cycle Duty and Seat Wear: Where Each Design Wins
Ball valves tolerate frequent cycling because rotation only slides the seat across a small arc; PTFE-seated soft-seated balls are routinely rated for thousands of duty cycles in chemical and water service. [S1]
Gate valves, by contrast, are explicitly specified for infrequent isolation — line sectioning, main header shutoff, fire-water mains — where the valve may move only a handful of times per year [S3]. Specifying a gate valve in a modulating or frequently cycled position accelerates seat galling and leaks long before the body reaches its pressure-class rating.
For tight shutoff, soft-seated ball valves routinely achieve Class VI or better bubble-tight sealing with low-emission packing; gate valves depend on lapped wedge-and-seat contact and are more sensitive to particulate fouling between the seats [S3].
Where a line must be cleaned mechanically, the gate valve's full-bore geometry is non-negotiable. Pig-passable pipelines in oil & gas and water transmission specify gate or ball valves with full-bore bores equal to the pipe ID; reduced-port ball valves, while cheaper, are not pig-passable and are excluded from those services.

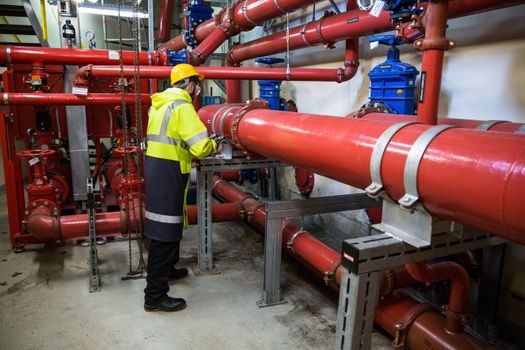

Pressure Class, Body Materials and End Connections
Both designs ship in the same pressure ladder: ANSI Class 150 through 1500, PN10 through PN100, and API 6D pipeline classes are common catalogue items at Indian, Chinese and US iron-and-steel valve manufacturers [S1][S2].
Body materials follow the same alloy ladder — ASTM A216 WCB carbon steel, A351 CF8/CF8M stainless, A395 ductile iron, and bronze for marine and potable — and both designs are routinely offered in flanged, threaded/screwed, butt-weld and socket-weld ends from the same foundry (a fact that often blurs the procurement decision) [S1][S6].
Special variants are now standard catalogue items. V-port ball valves — the segment-ball design produced by Hiton Special Valve and others — give a controlled equal-percentage characteristic that approximates globe-valve throttling, which a flat gate cannot match [S5].
Forged-steel gate and ball valves, both in carbon and stainless, are stocked in Class 800 and Class 1500 ratings for high-pressure hydrocarbon service; pricing and lead time are now driven more by material certification (EN 10204 3.1/3.2, NACE MR0175 for sour service) than by geometry [S2][S4].
Actuation, Automation and Field Integration
Ball valves are the default platform for automated isolation and control. The quarter-turn output shaft mates directly to pneumatic rack-and-pinion actuators, electric actuators and solenoid packages, and a soft-seated ball can cycle in under one second with a compact 90° actuator [S4].
Gate valves require multi-turn actuators — handwheels, gear operators, or electric linear drives — to translate rotary input into linear stem travel. Even with a gear operator, closure times run into tens of seconds and the actuator envelope is larger for the same pressure class [S3].
On an automated plant skid this translates into direct cost differences: a ball valve with pneumatic actuator and solenoid typically costs less to automate than a gear-operated gate valve of equivalent bore, and the ball-valve package fits a smaller footprint. Where existing plant DCS or ESD systems expect a discrete open/closed feedback, the ball-valve platform offers simpler limit-switch and position-transmitter integration.
For fail-safe duties — firewater isolation, ESD-1 valve isolation — both designs are supplied with fusible-link, spring-return or hydraulic override actuators, but the ball valve dominates new ESD buildouts because of its faster stroke and smaller actuator mass.

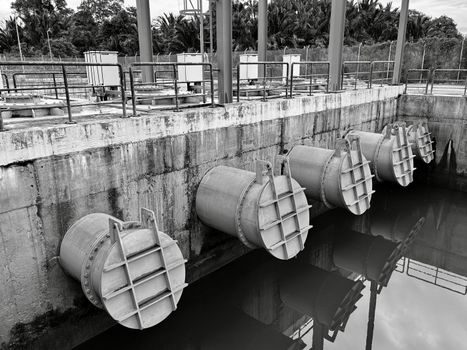

Fluid-Service Suitability: Slurry, Steam, Cryogenics and Chemicals
Slurry, pulp, and mining services are the historical sweet spot of the gate valve. The unobstructed straight-through bore tolerates fibrous or abrasive media that would score a ball-and-seat assembly, and dedicated knife-gate derivatives with elastomeric sleeves and sharpened discs handle pulp-stock to 12% consistency [S2].
Steam and high-temperature services favour metal-seated gate or ball valves with graphite or flexible graphite packing; PTFE soft seats are normally limited to about 200 °C, while metal-seated balls extend to 400 °C and beyond in API 607 fire-safe designs.
Cryogenic service (-196 °C LNG, -50 °C LPG) uses extended-bonnet gate and ball valves with cold-box-compatible stem lengths to keep the packing above the ice point; both designs ship with NACE MR0175 compliance for sour H2S service when specified [S2][S4].
Chemical and pharmaceutical duties lean heavily on ball valves because PTFE/PFA full-bore balls tolerate corrosive media without metal-to-metal seating, and clean-in-place/sterilise-in-place operations favour the smooth spherical surface that releases residue more readily than a wedge-and-guide assembly.
Decision Criteria at a Glance: When to Pick Which
Use this four-criterion cut to lock the spec on a single drawing. The same criteria are what specifiers walk through in any reputable gate valve buying guide 2026 and they apply unchanged to ball-valve selection. [S2]
1) Cycle count: high (more than ~50 cycles/month) → ball valve; low (less than ~10 cycles/year) → gate valve. 2) Required shutoff class: Class VI bubble-tight → soft-seated ball; Class IV general process → either, with gate being the cheaper option. 3) Bore continuity for pigging or rodding → full-bore gate or full-port ball; reduced-port ball excluded. 4) Actuation: quarter-turn pneumatic/electric package → ball; multi-turn handwheel or gear operator → gate [S3][S4].
Where the duty is isolation-only on a clean, infrequent-cycleservice in oil, gas or water mains, the gate valve remains the lower-cost and lower-pressure-drop solution. Where the duty includes throttling, frequent cycling, automation, or tight shutoff on a hazardous fluid, the ball valve is the safer spec.
Sourcing Reality: Foundry Clusters, MOQ and Lead Time
The two designs are produced in overlapping foundry clusters, which means procurement can usually source both from the same supplier base. SVR Global exports iron-and-steel valves globally and produces both families in custom alloys for chemical service [S2]. Wenzhou Sudhana Fluid, ODK Valve, and the broader Made-in-China catalogue list ball, gate, globe, butterfly and check valves from the same production lines [S4].
For commodity ANSI 150 flanged gate or ball valves in WCB or CF8, Chinese foundries commonly quote 4-8 week lead times at MOQs in the tens of pieces; for special-alloy, NACE, fire-safe or cryogenic variants, lead time stretches to 12-20 weeks and is dominated by raw-material bar stock rather than foundry capacity [S2][S4].
OEM brand selection still hinges on documentation depth — EN 10204 3.2 material certs, hydrostatic and pneumatic test reports, fire-safe API 607 certification, and traceability — more than on catalogue claims. The 2019-vintage ODK operation reports fixed assets above 54 million yuan and a stated R&D capability for new-concept castings, which is a useful proxy for a foundry's ability to support non-standard alloys [S4].
Indian manufacturers such as Ganesh Industries list cast-iron and stainless ball, gate, globe and butterfly valves as a single product family, confirming that the small-to-mid-bore commodity market treats the two as interchangeable catalogue items at the procurement layer even though they behave differently in service [S1].
Failure Modes and Inspection Intervals
Gate-valve failure modes cluster around seat erosion, wedge sticking, and packing leaks after long idle periods; field reports and Bundor's service guidance note that gate seats are more vulnerable to particulate damage, so lines with suspended solids benefit from upstream strainers [S3].
Ball-valve failure modes cluster around seat cold-flow (PTFE creep under sustained pressure and temperature), stem-packing wear, and — in soft-seated designs — chemical attack on the seat polymer. Routine inspection is therefore recommended at fixed cycle counts rather than fixed calendar intervals.
For both designs, the API 598 / API 6D hydrostatic test sequence remains the universal acceptance benchmark at the factory gate, and pressure-class derating above 200 °C follows ASME B16.34 curves regardless of disc geometry. The electric ball valve variants built on the same platforms add actuator duty-cycle and torque-limit testing to that baseline.
A simple field rule: if a valve has not been stroked in more than 12 months it should be exercised and re-torqued before being trusted as a primary isolation barrier, irrespective of whether it is a gate or a ball.
Trackable signals for the next 12-18 months: (1) further migration of metal-seated ball-valve price points into PN16/PN40 chemical service as Chinese foundries scale, and (2) tightening of fugitive-emission certification (ISO 15848) on both gate and ball soft-seated packages as European refinery turnarounds are scheduled through 2026-2027.
