Five functional families dominate 2026 production runs: thin-wall packaging, structural enclosures with ribs and bosses, threaded fasteners and inserts, optical/lens components, and high-tolerance gears; machine tonnage 90-1,500 t covers most volume bands, with 43 presses in that span typical for a mid-tier US custom molder [S2].
Selection is driven by wall thickness, draft angle, rib geometry, and the chosen resin flow length, with molded prototype runs and small series frequently ordered from one European shop running low-tonnage presses in Übach-Palenberg [S4]. Automated vision inspection of cosmetic and structural features is now standard on consumer-facing parts, with deep-learning based systems deployed for small plastic parts [S3].
Thin-wall packaging and consumer-grade thin-wall parts
Thin-wall injection molded parts are typically specified at wall thickness 0.5-1.5 mm and require mould surface temperatures of 80-120 °C for amorphous resins such as PP and PS to fill the cavity before freeze-off; the parts feed the food packaging, closure, and disposable medical sectors and run on high-speed presses (cycle time often below 6 s) [S2].
Design rules for thin-wall moulding are strict: rib thickness must be held to 50-60 % of the nominal wall to prevent sink marks, draft angles of 0.5-1° are mandatory on vertical faces, and gate diameters under 1.0 mm are common to balance fill across multi-cavity tools [S1]. The Autodesk Inventor community thread on support ribs with drafts flags the operational pain point: the stock Rib command in CAD packages often fails to draft correctly between a tapered screw boss and an exterior sidewall, forcing manual face-draft patches [S1].
Structural enclosures: ribs, bosses, and sidewall design
Structural enclosures, the second family, are characterised by wall thickness 2.0-3.5 mm, rib height-to-thickness ratios held to roughly 3:1, and boss outer diameters set at roughly 2× the mating screw diameter; these rules govern everything from automotive interior trim to outdoor powersports housings specified for UV resistance and high impact [S2].
For functional plastics, automotive tier-1 demand runs through part and tool design into series production within tight launch windows, and renewable-energy enclosures are required to hold tolerance across temperature and weather swings typical of rooftop and field-deployed assets [S2]. Lawn and garden parts compound the load case with UV exposure plus impact, and the same resin family (glass-filled PP, ASA, or PC/ABS) is typically extended across all three end-uses, with part-specific additive packages [S2].

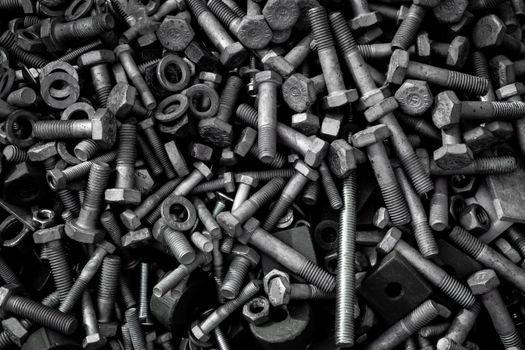

Threaded fasteners, inserts, and bosses
Threaded bosses are typically moulded with a core pin and a draft of 0.5-1° per side; metal inserts (brass, stainless) are either over-moulded in a two-shot process or post-moulded by ultrasonic or heat staking, with pull-out force targets of 1,500-3,000 N common in automotive interior assemblies [S2].
The Autodesk forum thread that motivated this category review reports the recurring designer problem: generating a properly drafted reinforcement rib between a tapered screw boss and a sidewall is a manual operation, not a one-click feature in mainstream CAD, which directly lengthens DFM cycle time on assembly-intensive moulded parts [S1]. In parallel, automated inspection of boss concentricity and thread presence on production parts is now routine via machine vision platforms for plastic-part QC [S3].
Optical, lens, and high-tolerance gear parts
Optical parts (lenses, light guides, sensor covers) and precision gears are usually moulded in PC, PMMA, COC, or POM on electric or hybrid presses with shot-to-shot weight repeatability held under ±0.3 %; tool surfaces are polished to SPI-A3 or finer and mould temperatures are tightly controlled in the 80-140 °C band [S2].
Deep-learning based image-analysis platforms such as In-Sight ViDi are now specified for end-of-line inspection of small plastic parts covering both structural and cosmetic defects, a step that has become a standard purchase line for tier-1 and tier-2 moulders shipping cosmetic-class enclosures [S3]. For buyers building a sourcing map, side-by-side comparison of optical-grade vs structural-grade moulded parts is laid out in the Injection Molded Part Selection spec-first decision map for 2026 buyers.
Material and machine-tonnage map by part family
Material and tonnage selection follows the part family. A typical 2026 spec table for the five families above: thin-wall packaging, PP/PS, 90-200 t, 0.5-1.5 mm wall; structural enclosures, PP-GF/PC/ABS, 200-850 t, 2.0-3.5 mm wall; threaded bosses and inserts, PA-GF/PBT, 150-500 t, 2.5-4.0 mm wall; optical/lens, PC/PMMA/COC, 100-300 t, 1.0-3.0 mm wall; precision gears, POM/PA, 50-200 t, 1.5-5.0 mm wall [S2].
One mid-tier US moulder publicly lists 43 injection machines from 90 t to 1,500 t on the shop floor, which covers all five families above on a single site, and the same vendor's automotive and renewable-energy part lines illustrate how the tonnage bands map onto end-use [S2]. For buyers comparing injection moulding against adjacent processes, the Plastic Extrusion Profile line-configuration map and the Hot Chamber Die Casting tonnage and application map frame where moulded plastic parts stop and competing processes take over.
Limits, failure modes, and sourcing signals for 2026
The hard limits of injection moulding show up at three points: thin-wall flow length on long parts (L/t above ~150 forces a higher mould temperature or a higher MFI resin), thick-section warpage on glass-filled resins (sections above 4 mm often need conformal cooling to hold flatness), and the geometric pain of correctly drafted ribs between a tapered boss and a sidewall, which the Autodesk thread records as a manual DFM task rather than an automated CAD feature [S1].
Buyers cross-checking plastic-part QC, vision, and inspection capability should also track how Cleanroom System Suppliers 2026 reshape moulded-part supply for medical and semiconductor customers, since cleanroom-rated moulding is a separate sub-segment with its own particulate and bioburden limits.
